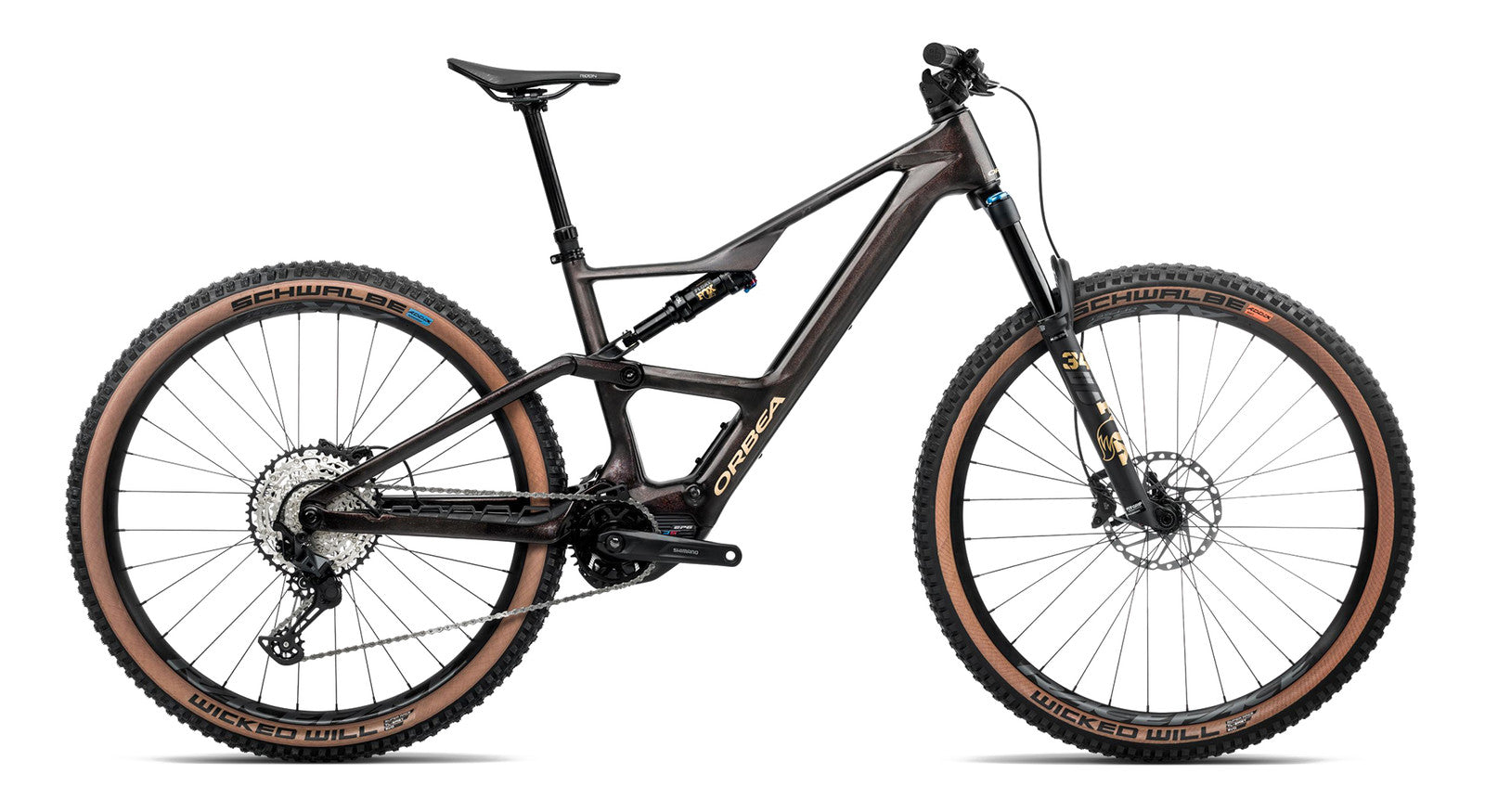

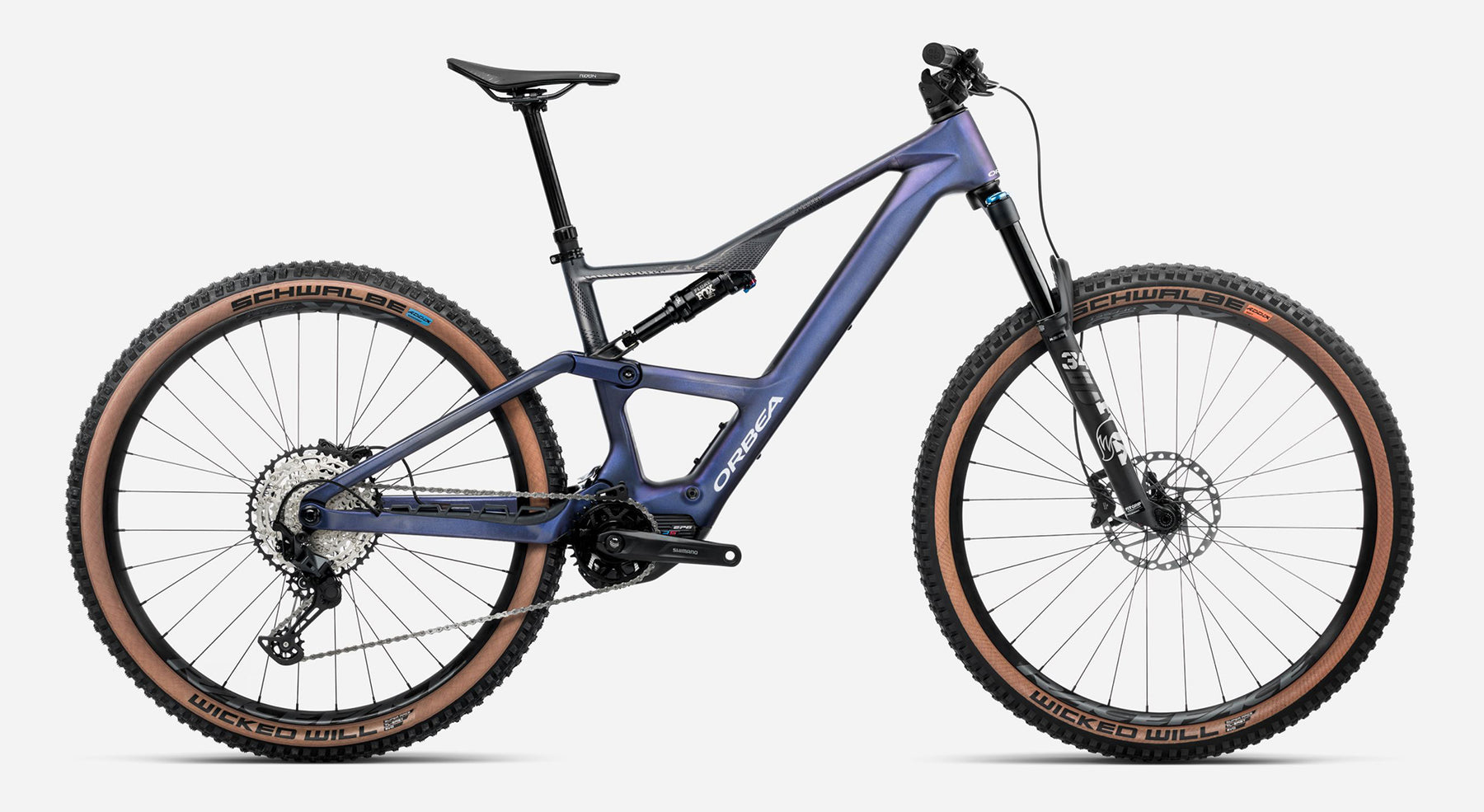

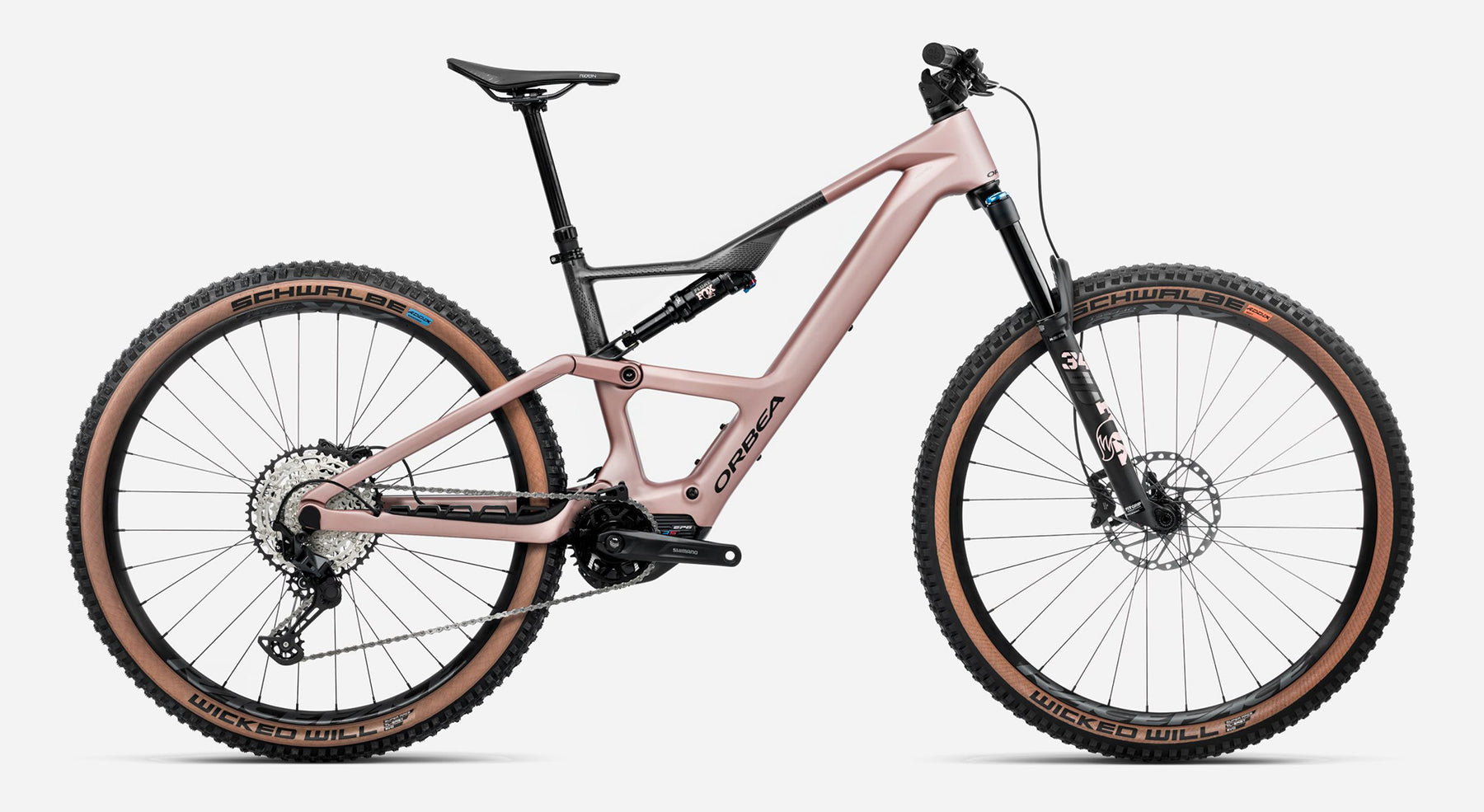

2026 Orbea Rise SL M20 E-Bike
No reviews
- Free Domestic shipping
- Low stock - 2 items left
- Backordered, shipping soon
Key Features
- Orbea Rise SL OMR Carbon frame (2025), a lightweight e-MTB platform with 140mm of efficient travel.
- Shimano EP600 RS Gen2 MC motor tuned for Rider Synergy (RS) and paired with a lightweight Orbea Internal 420Wh battery.
- Performance-level suspension featuring the Fox 36 Float SL Performance fork (140mm, Grip damper) and Fox Float Performance rear shock.
- Reliable Shimano SLX 1x12-speed drivetrain components for durability and precise shifting.
- Consistent braking power provided by Shimano M6100 4-piston Hydraulic Disc Brakes with 180mm Shimano RT64 Rotors.
- Durable Race Face AR 30c Tubeless Ready wheelset.
- Fast-rolling and grippy Schwalbe Wicked Will Evo TLE tires with Super Race casing (Soft front / Speed Grip rear).
- Integrated minimalist control system using the EN600-L Remote (no dedicated display).
Full Specifications
| Frame | Orbea Rise SL OMR 2025 Carbon, 140mm travel, 29" wheels, Concentric Boost 12x148 |
|---|---|
| Rear Shock | Fox Float Performance 2-Pos Evol LV custom tune 210x50mm |
| Fork | Fox 36 Float SL Performance 140, Grip damper, 3-Pos, 15x110 |
| Fork Travel | 140mm |
| Head Tube Diameter | 1-1/2" (Steerer tube: Alloy, Black Oxidated Bearing) |
| Motor | Shimano EP600 RS Gen2 MC (Rider Synergy motor) |
| Battery | Orbea Internal 420Wh |
| Display / Remote | N/A (Uses integrated Orbea System Controller - Remote: EN600-L) |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
| Chainring | e*thirteen Helix Core e*spec Direct Mount 32T, 55mm ChainLine |
| Cranks | Shimano Steps EM600 |
| Shifters | Shimano SLX M7100 I-Spec EV, 12-speed |
| Cassette | Shimano CS-M7100 (SLX), 10-51t, 12-Speed |
| Rear Derailleur | Shimano SLX M7100 SGS Shadow Plus, 12s |
| Chain | Shimano M6100 (Deore) |
| Chainguide | Orbea eBike chainguide |
| Handlebar | OC Mountain Control MC31, Rise 20, Width 800mm |
| Stem | OC Mountain Control MC20, 0º |
| Computer Mount | OC Computer Mount CM-05, Garmin/Sigma |
| Brakes | Shimano M6100 Hydraulic Disc (2-piston, generally) |
| Rotors | Shimano RT64 Rotors, 180mm front / 180mm rear |
| Wheels | Race Face AR 30c Tubeless Ready |
| Front Tire | Schwalbe Wicked Will Evo TLE, 29" x 2.40", Super Race, Soft Compound, Addix, Brown |
| Rear Tire | Schwalbe Wicked Will Evo TLE, 29" x 2.40", Super Race, Speed Grip, Addix, Brown |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Seatpost Lever | Shimano SL-MT500 I-Spec EV |
| Saddle | Fizik Terra Ridon X5 145mm |
| Grips | OC Lock On |
| Tools / Accessories | N/A |
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 610mm | 614mm | 620mm | 647mm |
| Head Tube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| Head Tube Length | 95mm | 100mm | 110mm | 120mm |
| Seat Tube Angle | 78° | 78° | 78° | 78° |
| Seat Tube Length | 405mm | 415mm | 430mm | 460mm |
| Bottom Bracket Height | 37mm drop | 37mm drop | 37mm drop | 37mm drop |
| Chainstay Length | 440mm | 440mm | 440mm | 440mm |
| Wheelbase | 1193mm | 1220mm | 1249mm | 1279mm |
| Reach | 440mm | 465mm | 490mm | 515mm |
| Stack | 609mm | 614mm | 623mm | 632mm |
| Additional Info |
|
|||
