Orbea

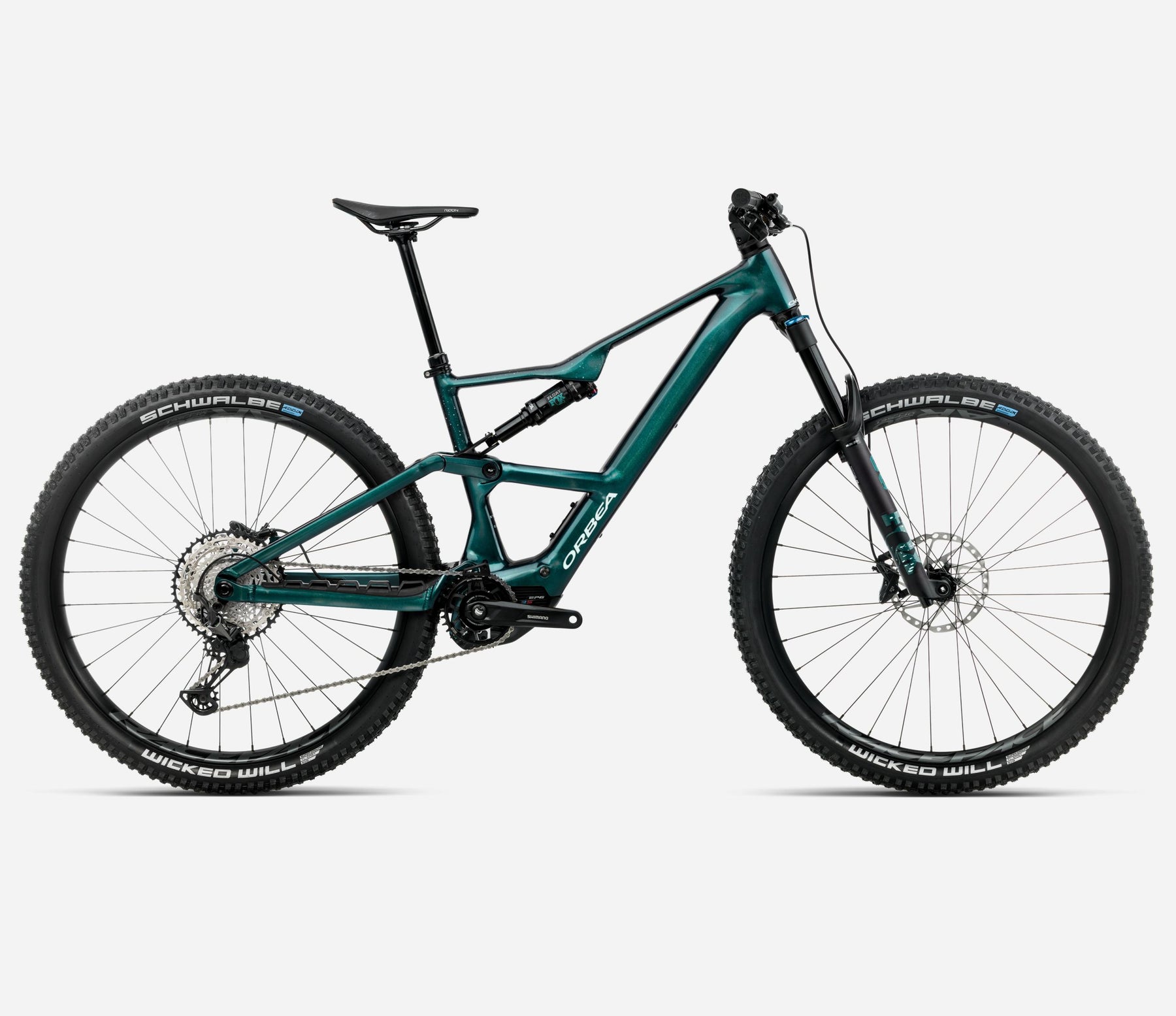

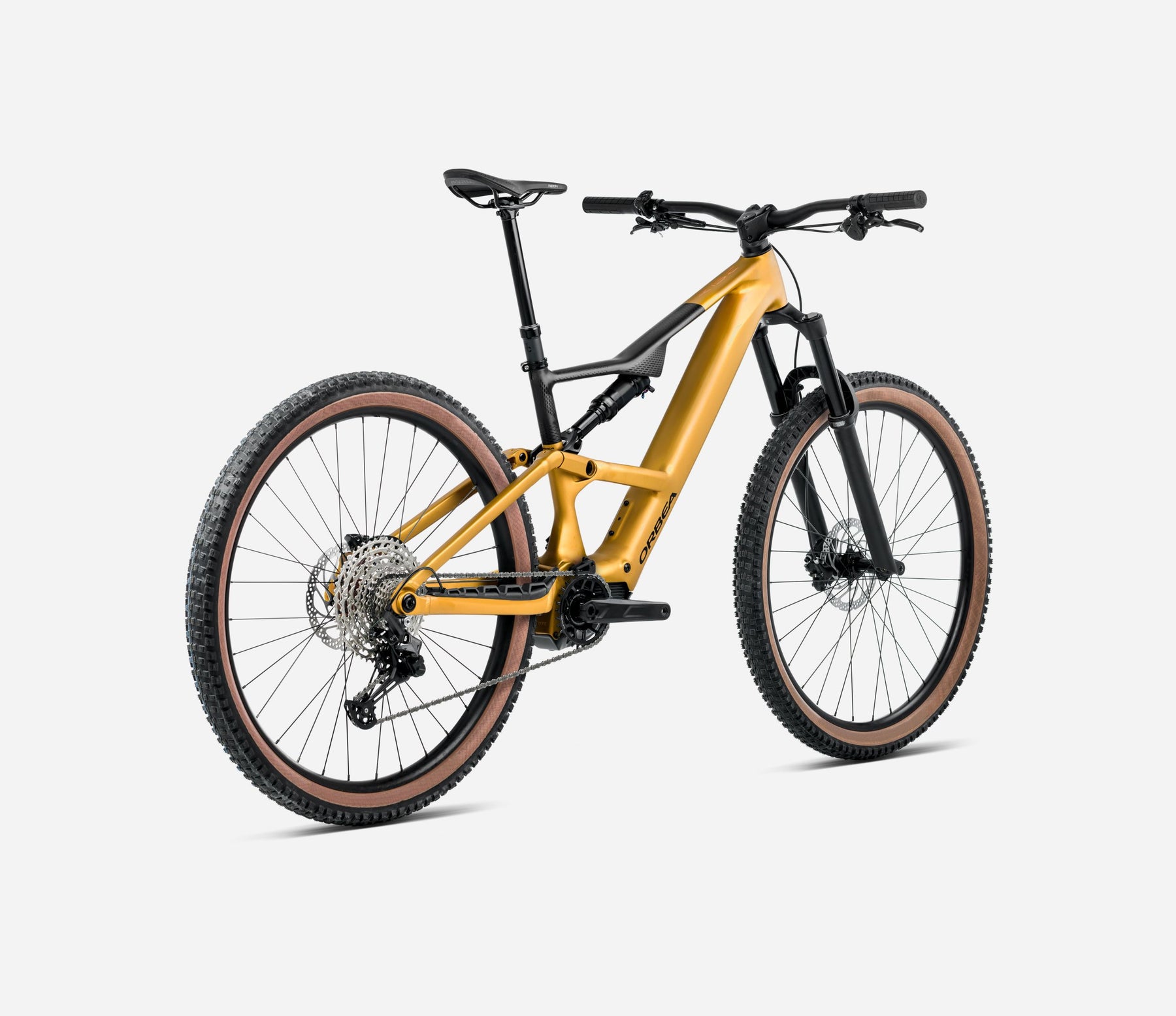

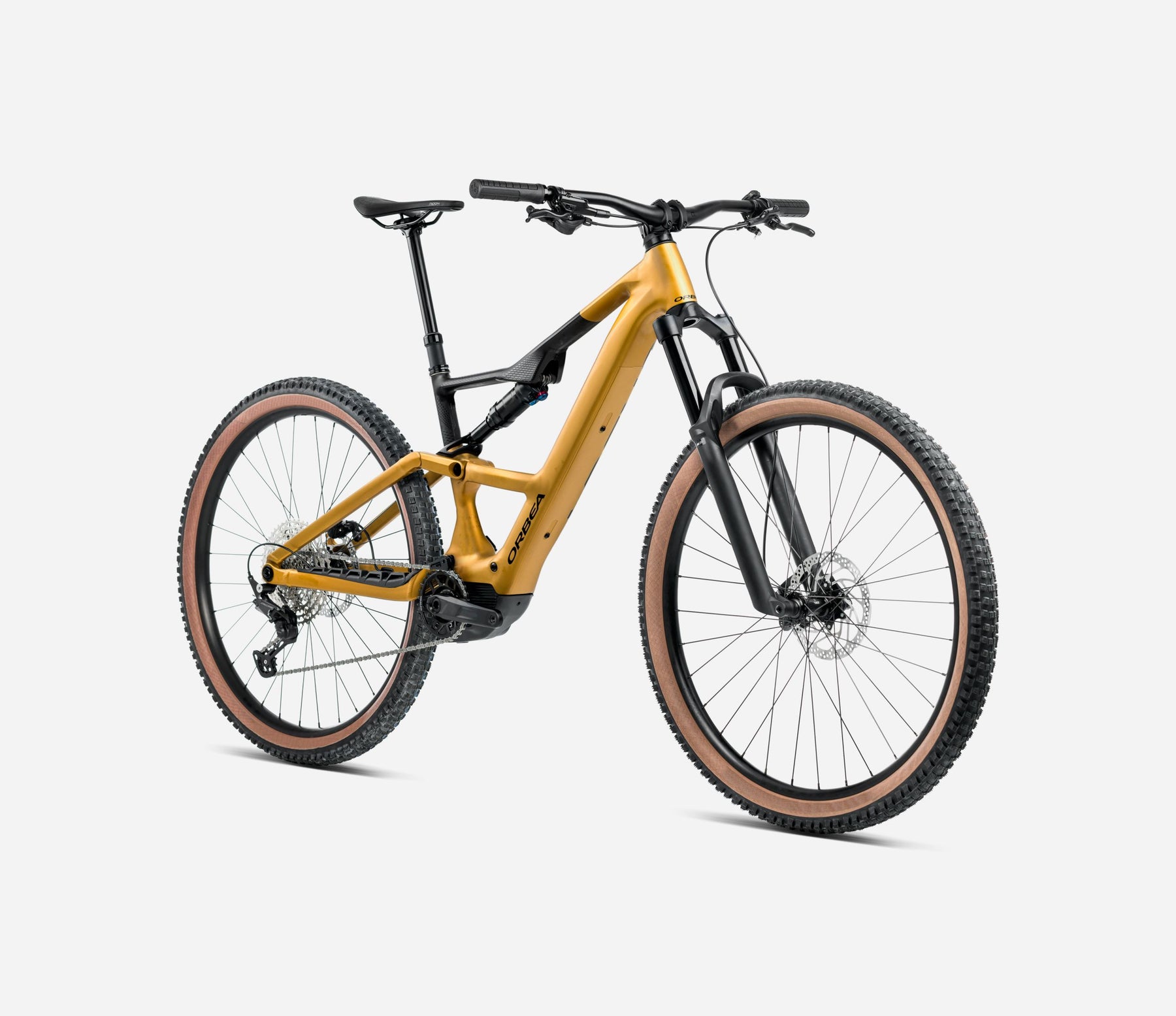

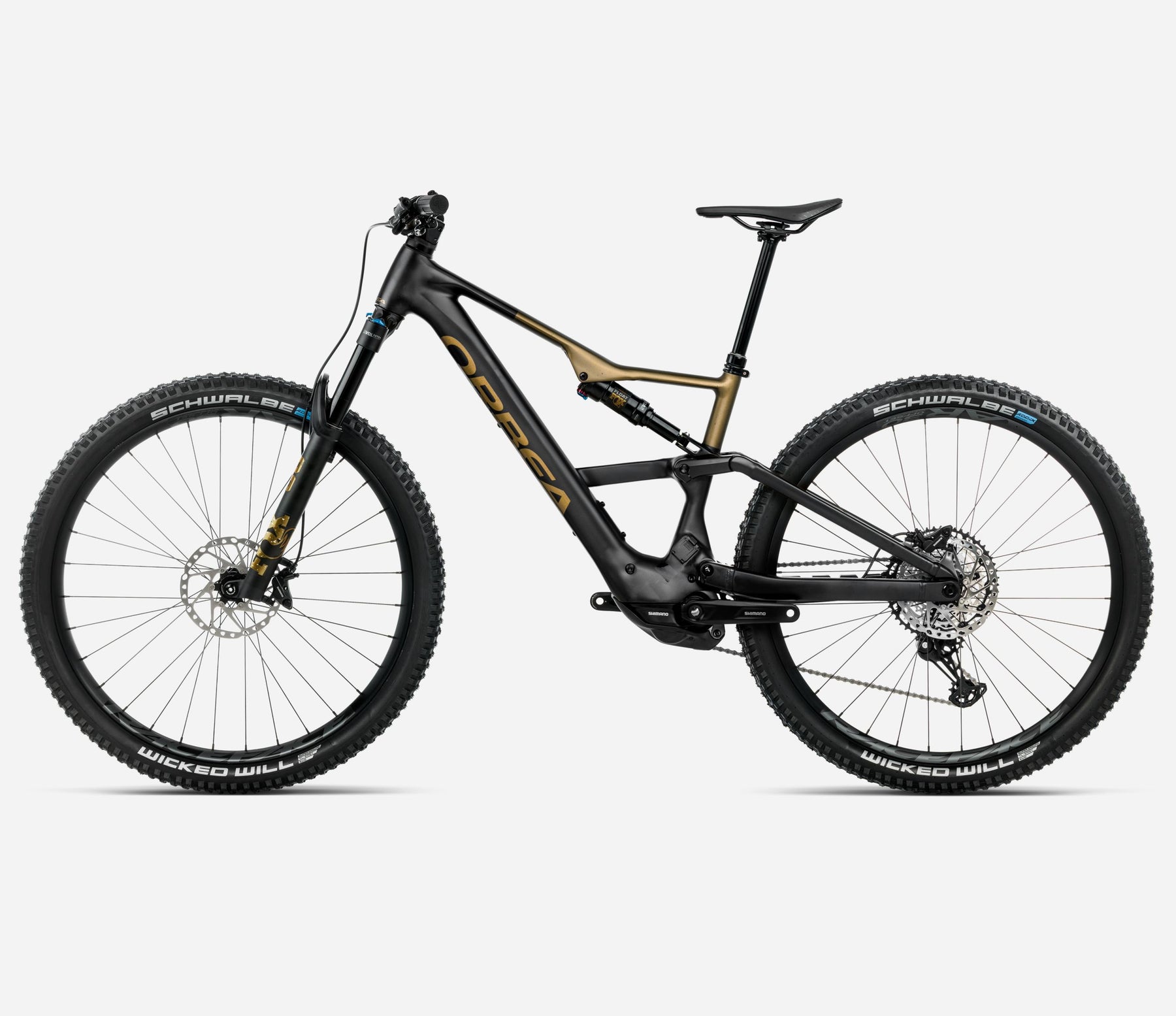

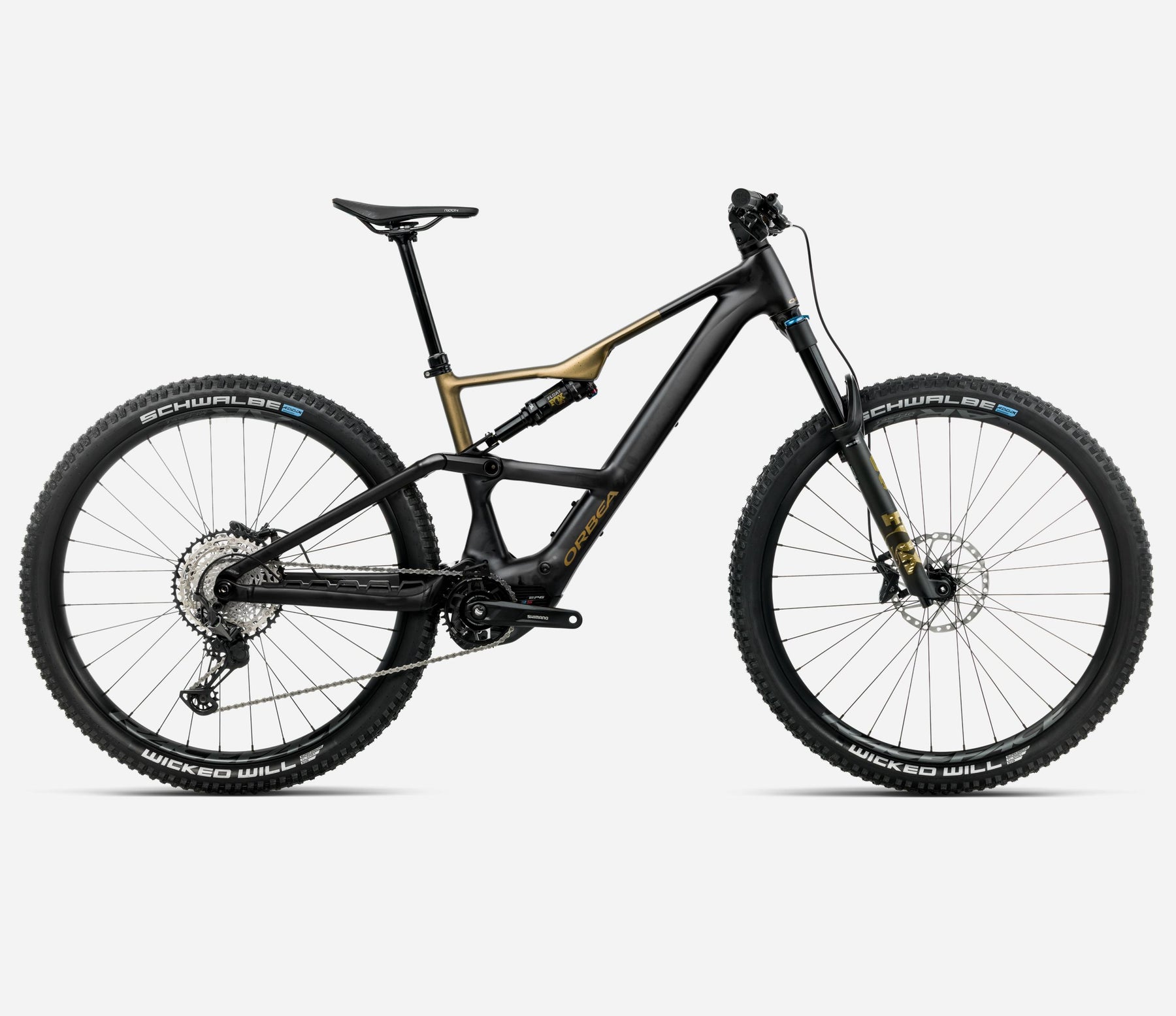

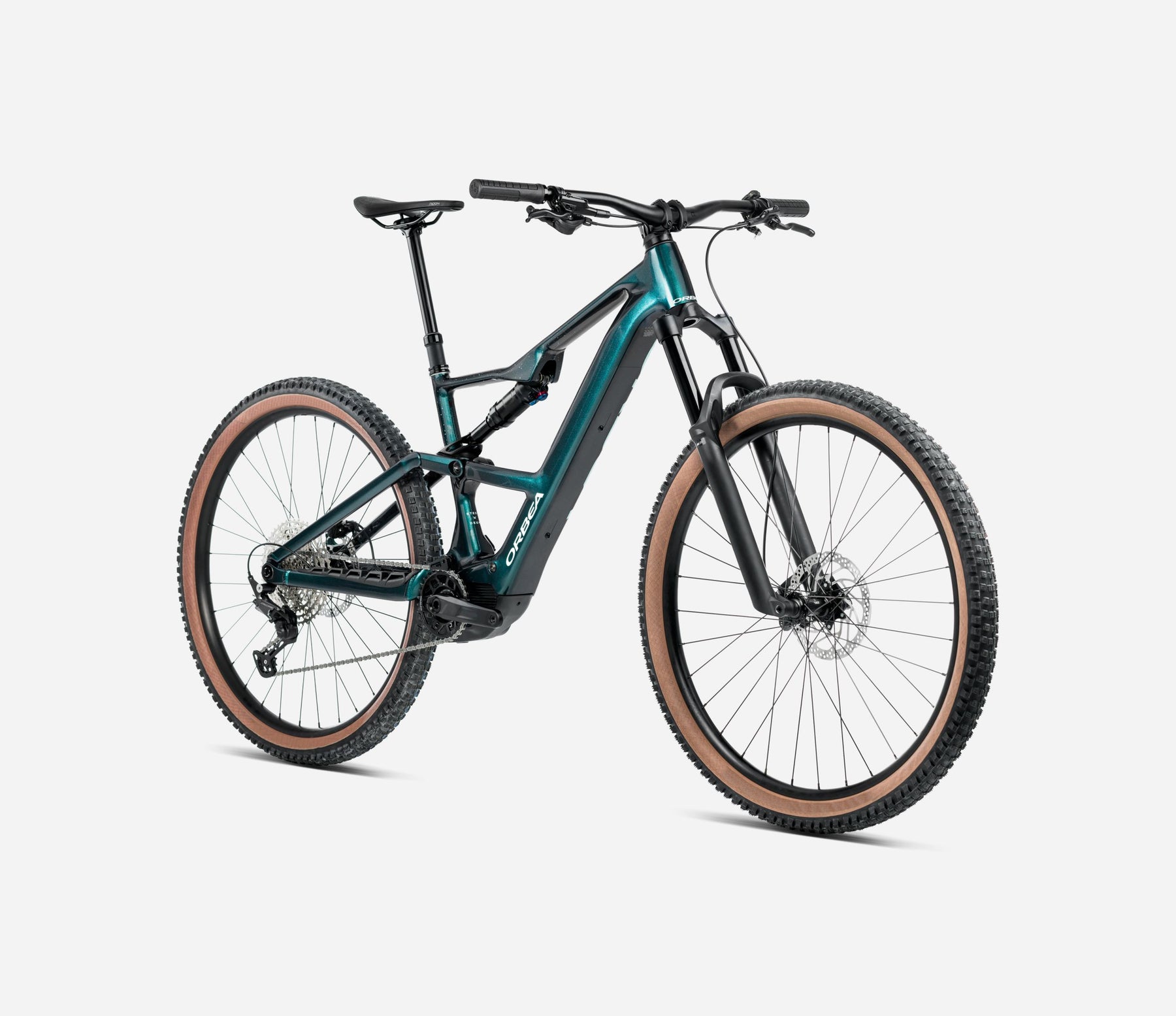

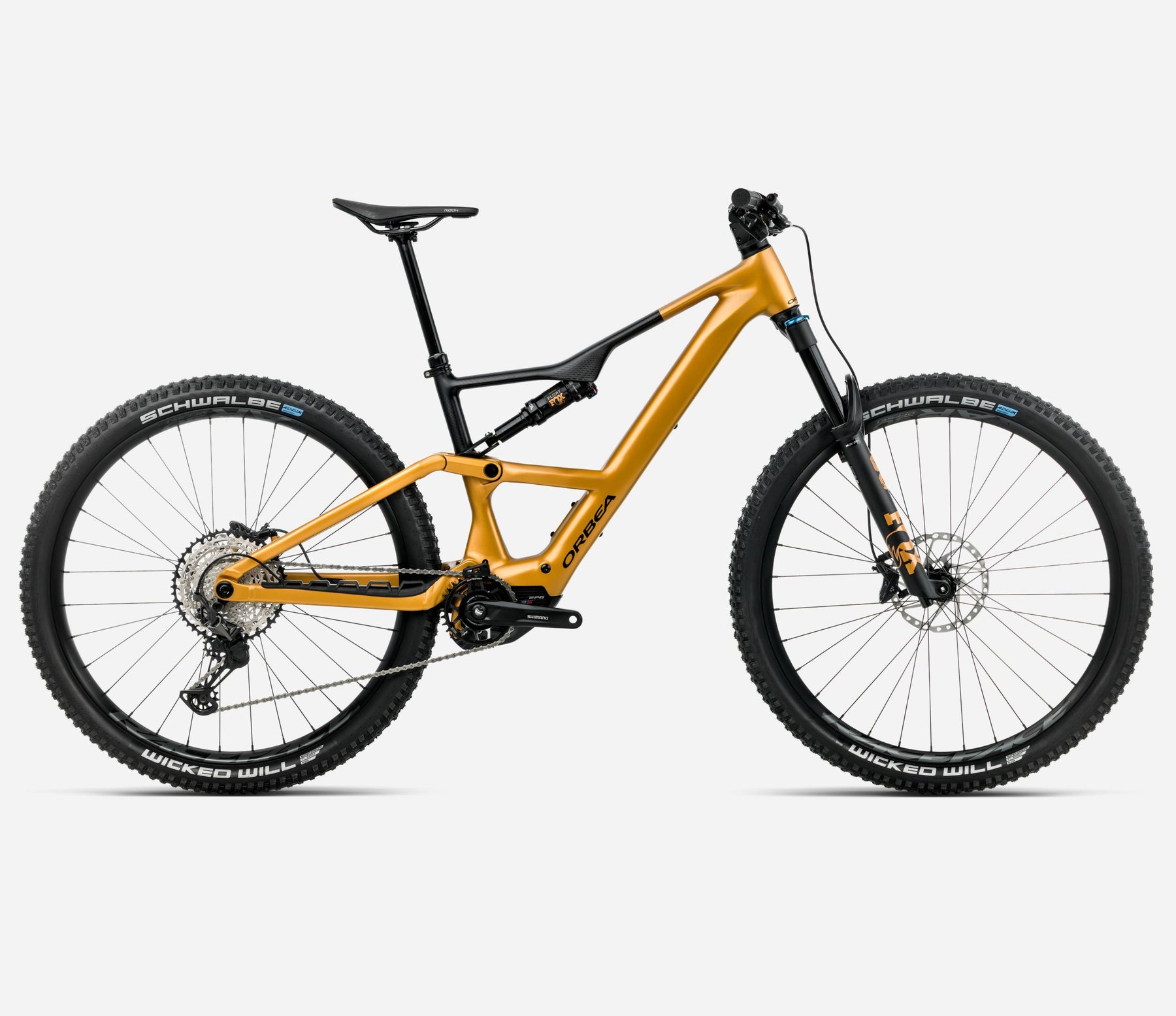

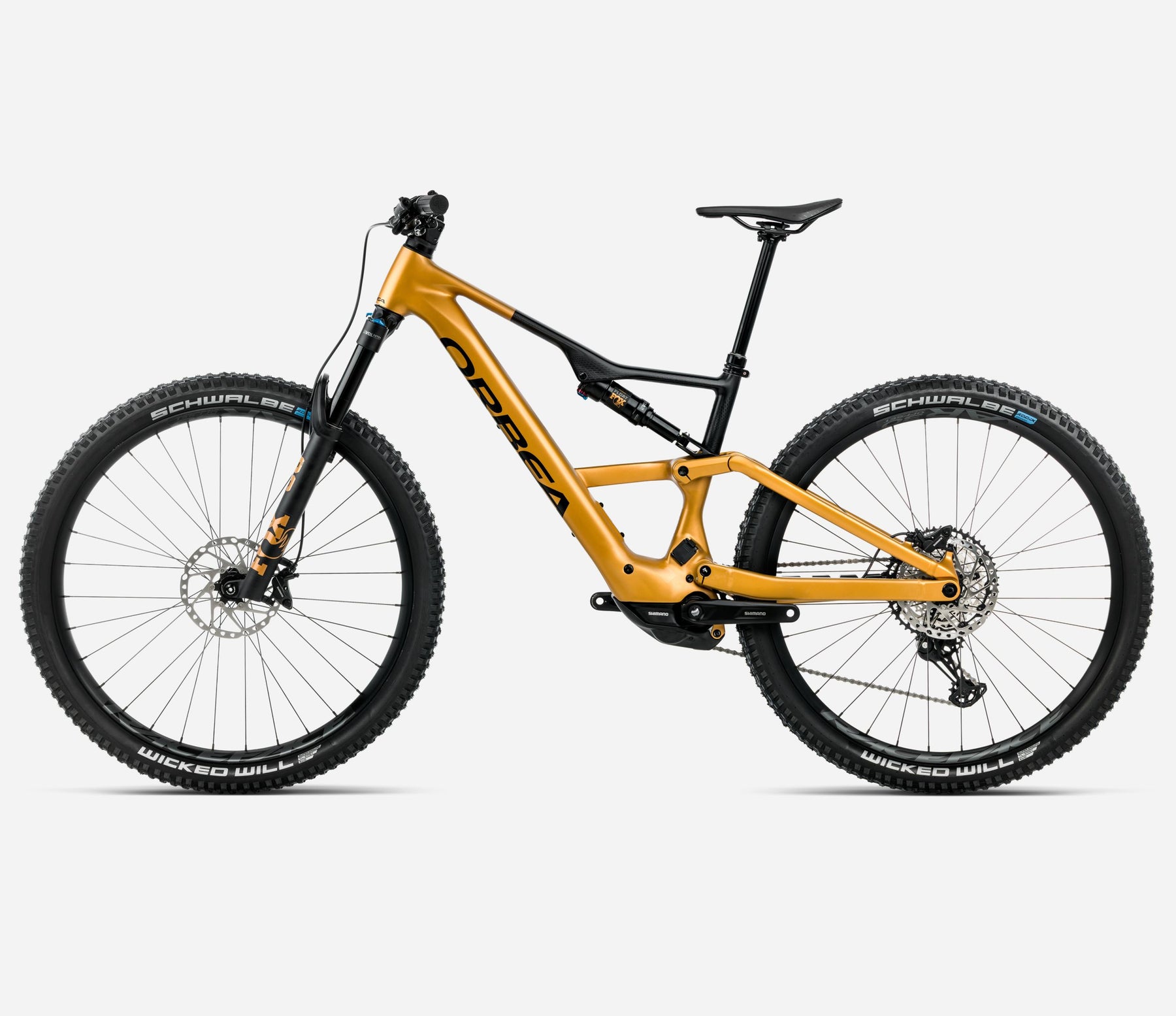

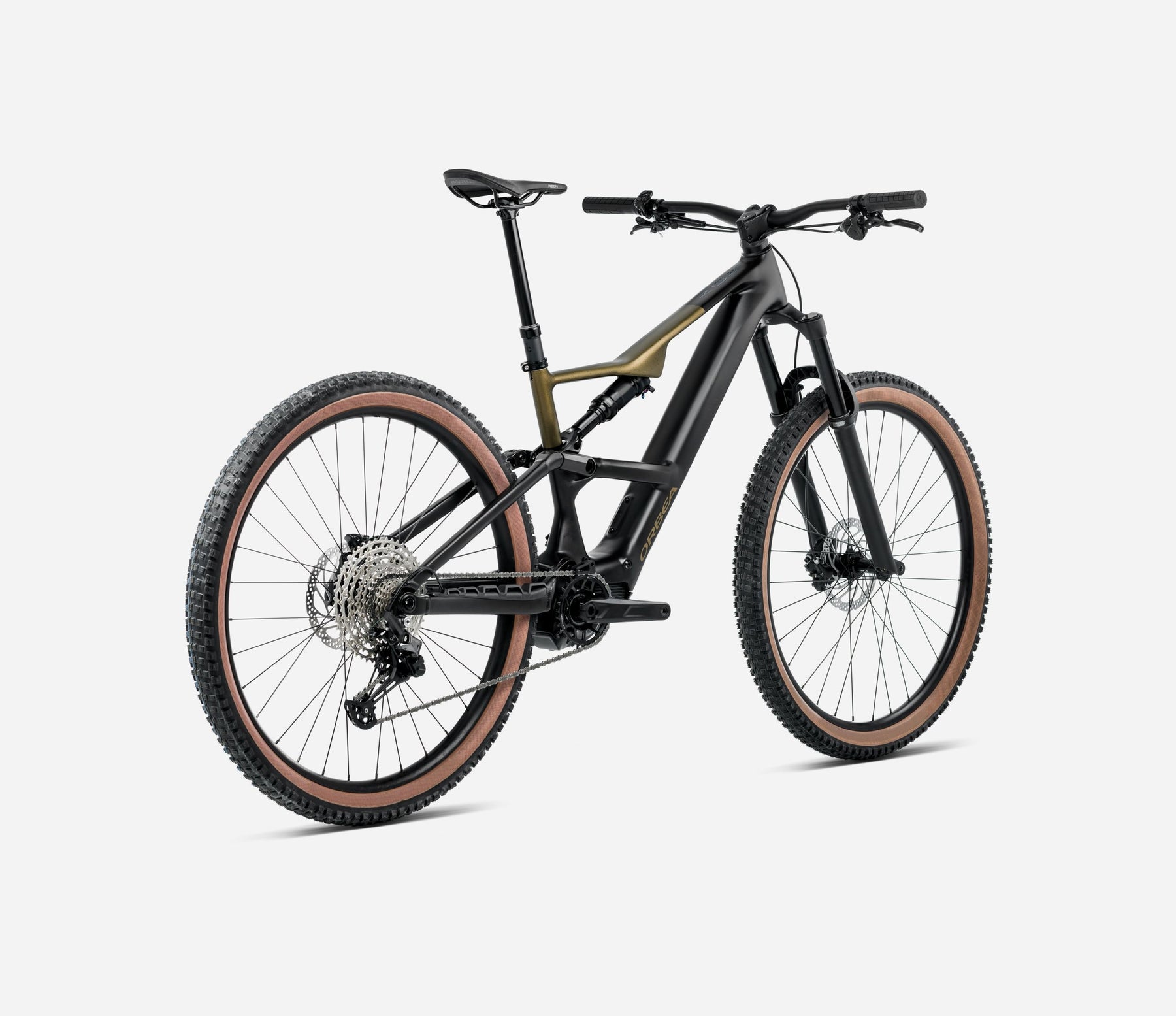

2026 Orbea Rise LT H10 E-Bike

$5,999.00
/
Shipping calculated at checkout.
Color
Size
  • Free Domestic shipping
  • Low stock - 2 items left
  • Backordered, shipping soon

Key Features

  • Orbea Rise SL Hydro aluminum frame (2025) offering 140mm of travel with adjustable geometry.
  • Long-range Orbea Internal 630Wh battery paired with the efficient Shimano EP600 RS Gen2 MC motor (Rider Synergy tune).
  • Performance suspension featuring the Fox 36 Float SL Performance fork (140mm, Grip 3-Pos) and Fox Float Performance rear shock.
  • Reliable and performance-focused Shimano SLX/XT 1x12-speed drivetrain components.
  • Strong stopping power from Shimano M6120 4-piston Hydraulic Disc Brakes with 180mm Shimano RT64 Rotors.
  • Durable Race Face AR 30c Tubeless Ready wheelset.
  • Fast-rolling and grippy Schwalbe Wicked Will Evo TLE tires with Super Race casing (Soft front / Speed Grip rear).
  • Integrated minimalist control system using the EN600-L Remote (no dedicated display).
  • Features adjustable geometry (High/Low settings) to fine-tune the head angle and bottom bracket height.

Full Specifications

Frame Orbea Rise SL Hydro (Aluminum) 2025, 140mm travel, 29" wheels, Concentric Boost 12x148
Rear Shock Fox Float Performance 2-Pos Evol LV custom tune 210x50mm
Fork Fox 36 Float SL Performance 140, Grip 3-Pos, 15x110
Fork Travel 140mm
Head Tube Diameter 1-1/2" (Steerer tube: Alloy, Black Oxidated Bearing)
Motor Shimano EP600 RS Gen2 MC (Rider Synergy motor)
Battery Orbea Internal 630Wh
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A
Remote EN600-L
Chainring e*thirteen Helix Core e*spec Direct Mount 32T, 55mm ChainLine
Cranks Shimano Steps EM600
Shifters Shimano SLX M7100 I-Spec EV, 12-speed
Cassette Shimano CS-M7100 (SLX), 10-51t, 12-Speed
Rear Derailleur Shimano XT M8100 SGS Shadow Plus, 12s
Chain Shimano M6100 (Deore)
Chainguide Orbea eBike chainguide
Handlebar OC Mountain Control MC31, Rise 20, Width 800mm
Stem OC Mountain Control MC20, 0º
Computer Mount OC Computer Mount CM-05, Garmin/Sigma
Brakes Shimano M6120 Hydraulic Disc (4-piston)
Rotors Shimano RT64 Rotors, 180mm front / 180mm rear
Wheels Race Face AR 30c Tubeless Ready
Front Tire Schwalbe Wicked Will Evo TLE, 29" x 2.40", Super Race, Soft Compound, Addix, Brown
Rear Tire Schwalbe Wicked Will Evo TLE, 29" x 2.40", Super Race, Speed Grip, Addix, Brown
Seatpost OC Mountain Control MC22, 31.6mm, Dropper
Seatpost Lever Shimano SL-MT500 I-Spec EV
Saddle Fizik Terra Ridon X5 145mm
Grips OC Lock On
Tools / Accessories N/A

Geometry

Size (Setting) SM (High, Low) MD (High, Low) LG (High, Low) XL (High, Low)
Top Tube Length 569mm, 570mm 595mm, 614mm 622mm, 620mm 637mm, 647mm
Head Tube Angle 64.5°, 64.0° 64.5°, 64.0° 64.5°, 64.0° 64.5°, 64.0°
Head Tube Length 95mm 100mm 110mm 120mm
Seat Tube Angle 77.5°, 77.0° 77.5°, 77.0° 77.5°, 77.0° 77.5°, 77.0°
Seat Tube Length 405mm 415mm 430mm 460mm
Bottom Bracket Height Drop: 26mm, 34mm Drop: 26mm, 34mm Drop: 26mm, 34mm Drop: 26mm, 34mm
Chainstay Length 440mm 440mm 440mm 440mm
Wheelbase 1201mm, 1203mm 1228mm, 1230mm 1258mm, 1259mm 1287mm, 1288mm
Reach 435mm, 430mm 460mm, 455mm 485mm, 480mm 510mm, 505mm
Stack 614mm, 619mm 617mm, 623mm 623mm, 633mm 637mm, 642mm
Additional Info
  • Geometry figures are provided for the **High** and **Low** flip-chip settings.
  • The Low setting provides a slacker head angle (64.0°) and lower bottom bracket (34mm drop) for gravity riding.
  • The High setting steepens the angles (64.5° HTA) for better climbing and general trail use.
