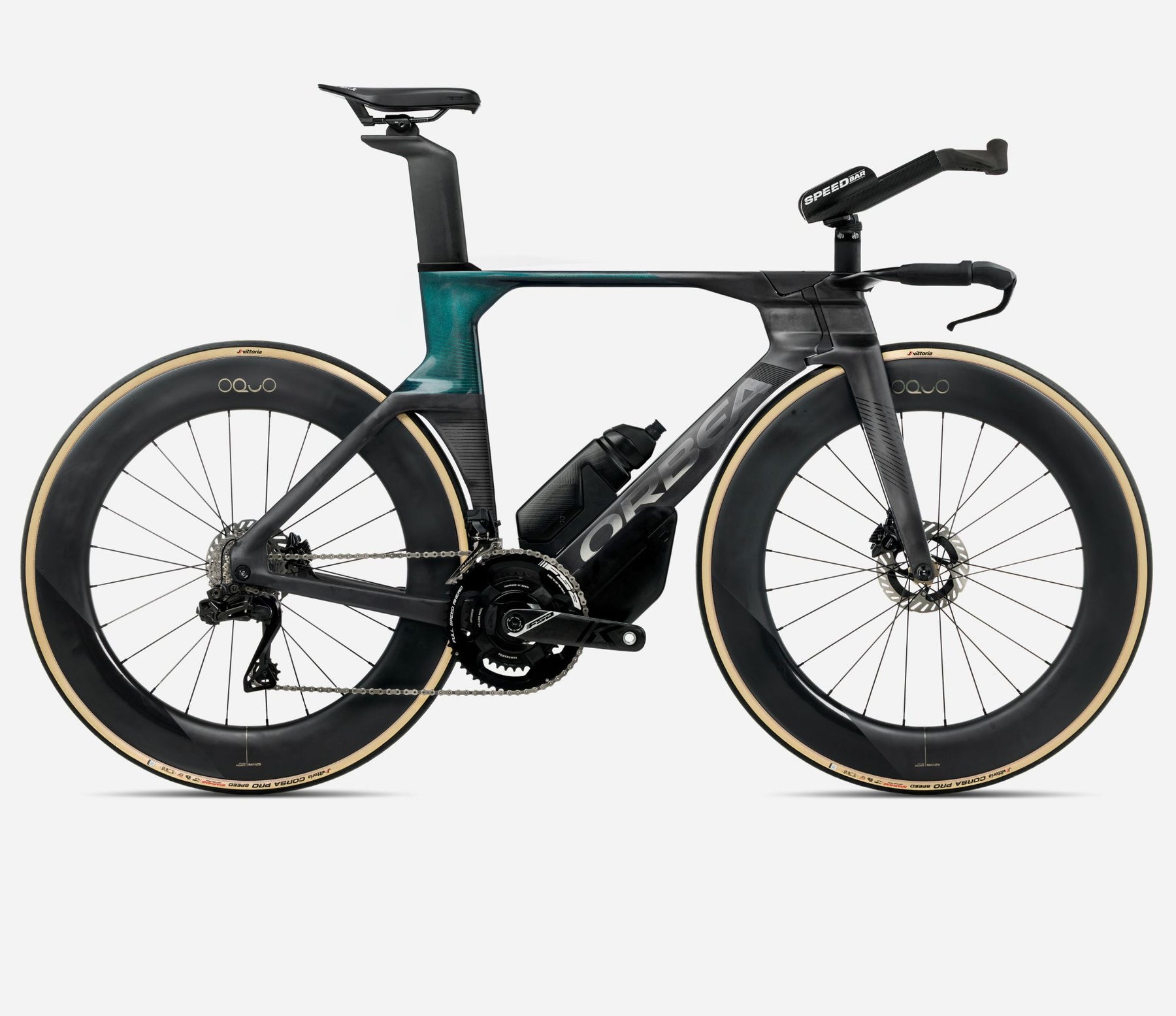

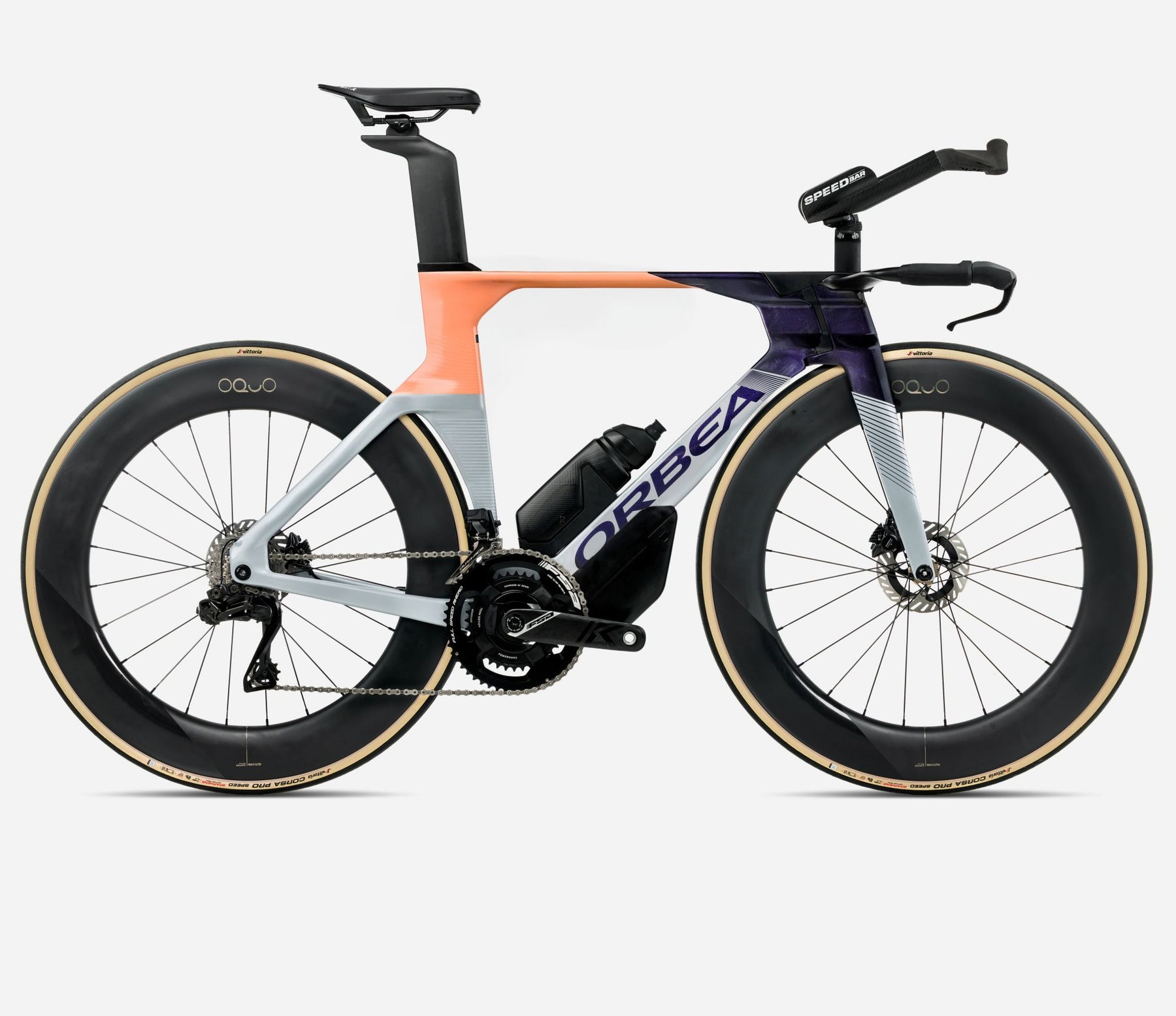

2026 Orbea Ordu M10ILTD UCI
- Free Domestic shipping
- Low stock - 2 items left
- Backordered, shipping soon
Key Features
- Orbea Ordu OMX Carbon Disc monocoque frame, optimized for extreme aerodynamics.
- Integrated FSA Powerbox K-Force Team Edition crankset for precise power metering.
- Shimano Dura-Ace Di2 R9200 12-speed electronic drivetrain for top-tier shifting performance.
- UCI-approved Speedbar Carbon Extensions PRO cockpit with integrated computer mount (Garmin/Wahoo).
- High-end Oquo Road Aero RA80LTD wheelset built on OQUO Q10 hubs.
- Shimano R9270 Hydraulic Disc Brakes (Dura-Ace level) with 140mm rotors for reliable braking.
- Integrated hydration and storage: OC Aero Bottle RA10 (550ml) and OC Aero Toolbox TB01PP.
- Vittoria Corsa Pro Speed TLR tires designed for low rolling resistance on wide aero rims.
Full Specifications
| Frame | Orbea Ordu carbon OMX Disc, monocoque construction, HS 1"-1 1/8" mini tapered, BB 386mm, powermeter compatible, Thru Axle 12x142mm, Speed release compatible dropout, Internal Cable Routing. |
|---|---|
| Fork | Orbea Ordu OMX ICR fork 2021, full carbon, 1" head tube, Thru axle 12x100m, Speed release compatible dropout. UCI Legal. |
| Headset | FSA 1-1/8"-1" Integrated Aluminium Cup |
| Crankset | FSA Powerbox K-Force Team Edition 36x52t (Integrated Power Meter) |
| Shifters | Shimano R9180 (Di2 TT/Triathlon Shifters) |
| Cassette | Shimano Dura-Ace R9200 11-30t 12-Speed |
| Rear Derailleur | Shimano Dura-Ace Di2 R9250 |
| Front Derailleur | Shimano Dura-Ace Di2 R9250 |
| Chain | Shimano CN-9100 |
| Handlebar | Orbea Ordu OMX (Integrated Aero Bar) |
| Extension | Speedbar Carbon Extensions PRO + grips + Computer Mount for Garmin/Wahoo (UCI Approved) |
| Brakes | Shimano R9270 Hydraulic Disc |
| Rotors | 140mm Front / 140mm Rear |
| Wheels | Oquo Road Aero RA80LTD |
| Hub Name | OQUO Q10 |
| Tyres | Vittoria Corsa Pro Speed 29-622 TLR wide rim G2.0 OEM HP |
| Front Wheel Axle | Orbea Thru Axle 12x100mm M12x2 P1 Lite |
| Rear Wheel Axle | Orbea Thru Axle 12x142mm M12x2 P1 Lite |
| Seatpost | Orbea Ordu OMX, w/Micro tilt adjustment |
| Saddle | Fizik Transiro LD R5 size 135mm |
| Hydration | OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10 |
| Storage | OC Aero Toolbox TB01PP |
Geometry
| Measurement | XS | S/M | M/L | XL |
|---|---|---|---|---|
| 1. Head Tube | 59mm | 96mm | 96mm | 149mm |
| 2. Chainstay | 405mm | 405mm | 405mm | 405mm |
| 3. BB Drop | 75mm | 75mm | 75mm | 75mm |
| 4. Wheelbase | 971mm | 1007mm | 1007mm | 1048mm |
| 5. Seat Angle | 74º-78º | 74º-78º | 74º-78º | 74º-78º |
| 6. Standover | 746mm | 781mm | 781mm | 831mm |
| 7. BB - Front Wheel Axle | 578mm | 613mm | 613mm | 654mm |
| 8. Trail | 60mm | 60mm | 60mm | 60mm |
| 9. Handlebar Width | 380mm | 380mm | 380mm | 380mm |
| 10. Handlebar Stack (HIGH/LOW) | 451mm/481mm | 486mm/516mm | 486mm/516mm | 536mm/566mm |
| 11. Handlebar Reach | 641mm | 665mm | 665mm | 689mm |
| 12. Armrest Stack MIN-MAX | 515mm-605mm | 550mm-640mm | 550mm-690mm | 600mm-740mm |
| 13. Armrest Reach MIN-MAX | 361mm-481mm | 385mm-505mm | 385mm-505mm | 409mm-529mm |
| 14. Armrest Width MIN-MAX | 105mm-195mm | 105mm-195mm | 105mm-195mm | 105mm-195mm |
| 15. Sadle Height MIN-MAX | 589mm-782mm | 624mm-817mm | 624mm-857mm | 675mm-906mm |
| 16. Saddle Setback Travel | 100mm | 100mm | 100mm | 100mm |
| 17. Tilt | 0º-15º | 0º-15º | 0º-15º | 0º-15º |
