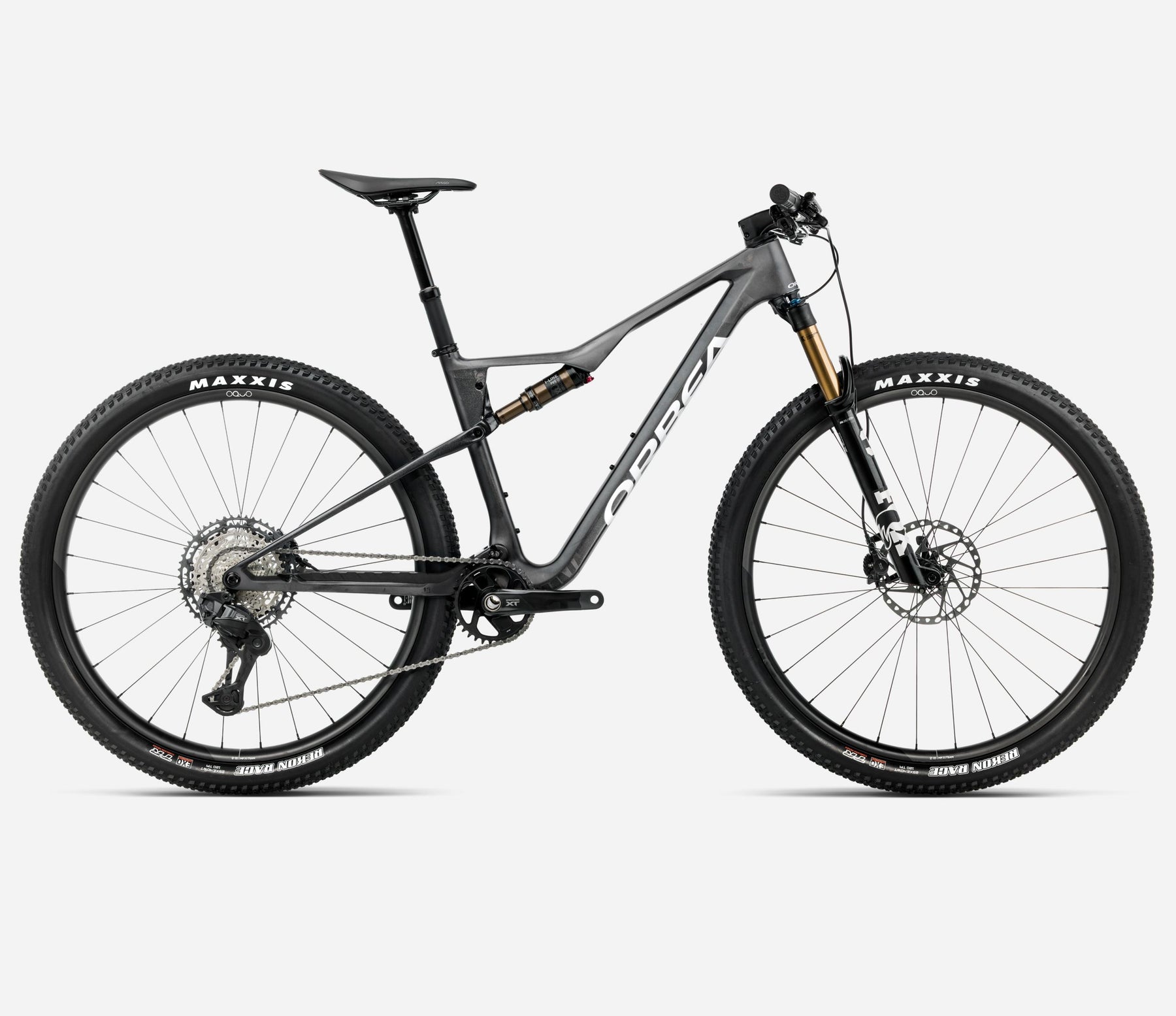

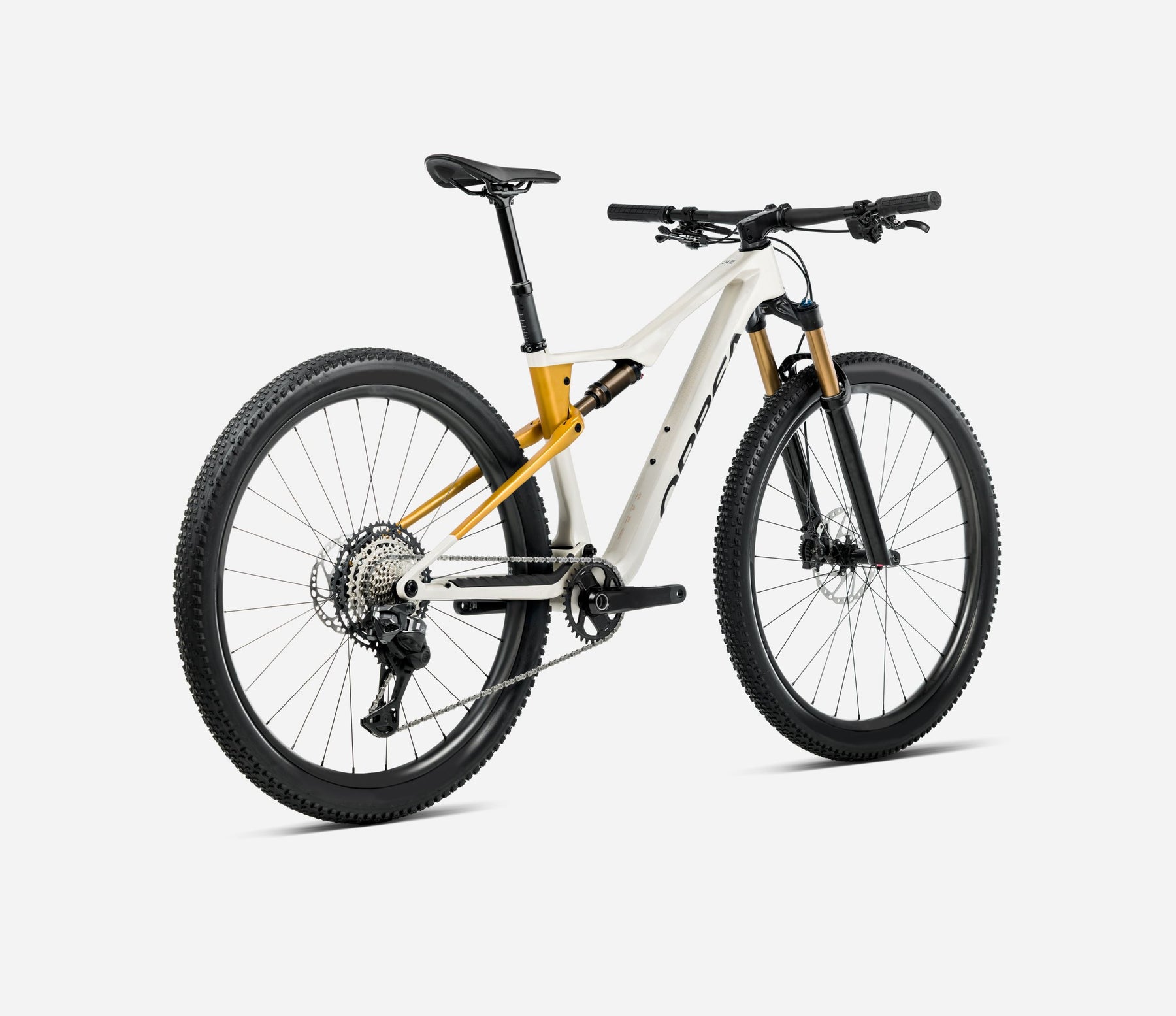

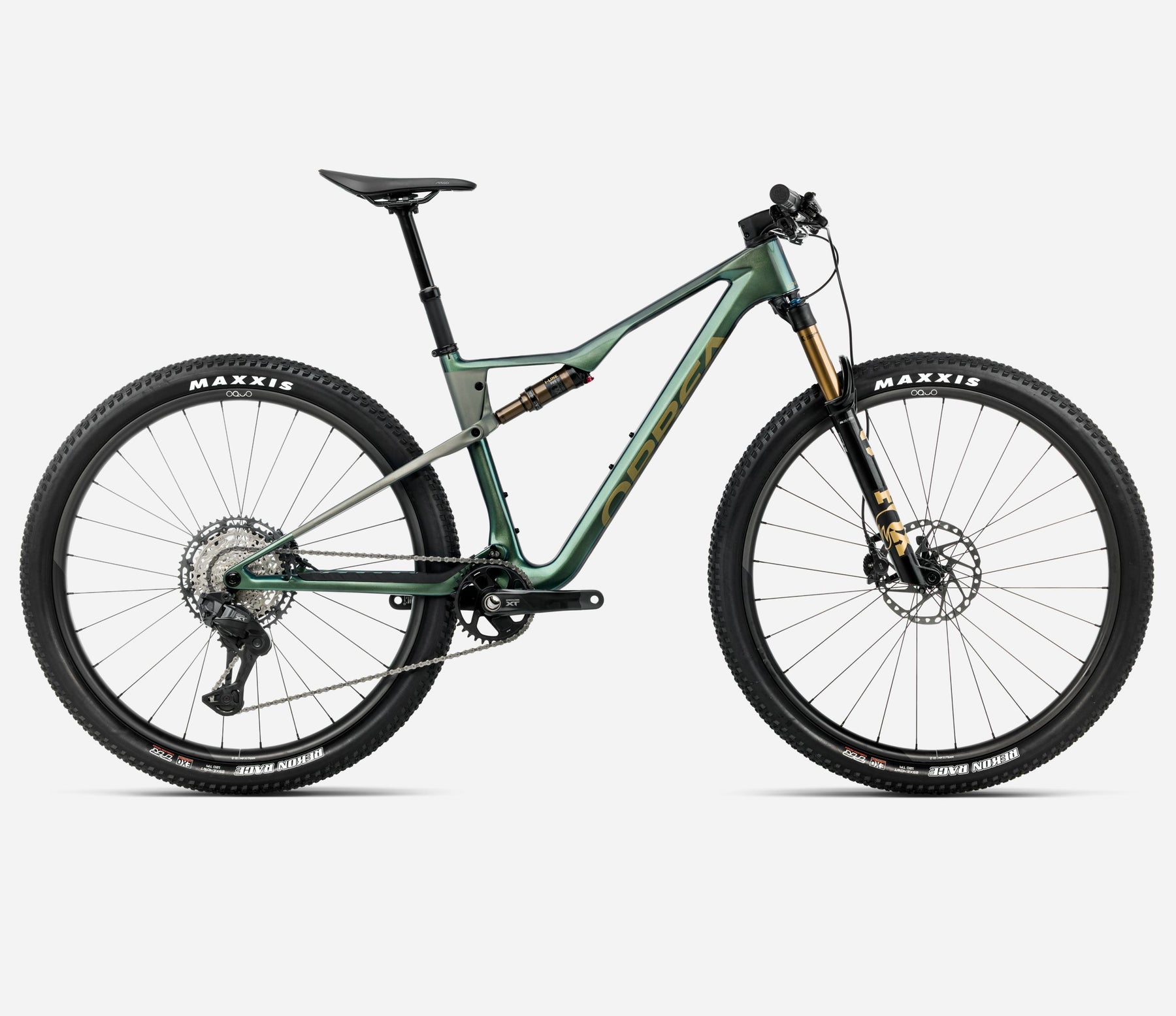

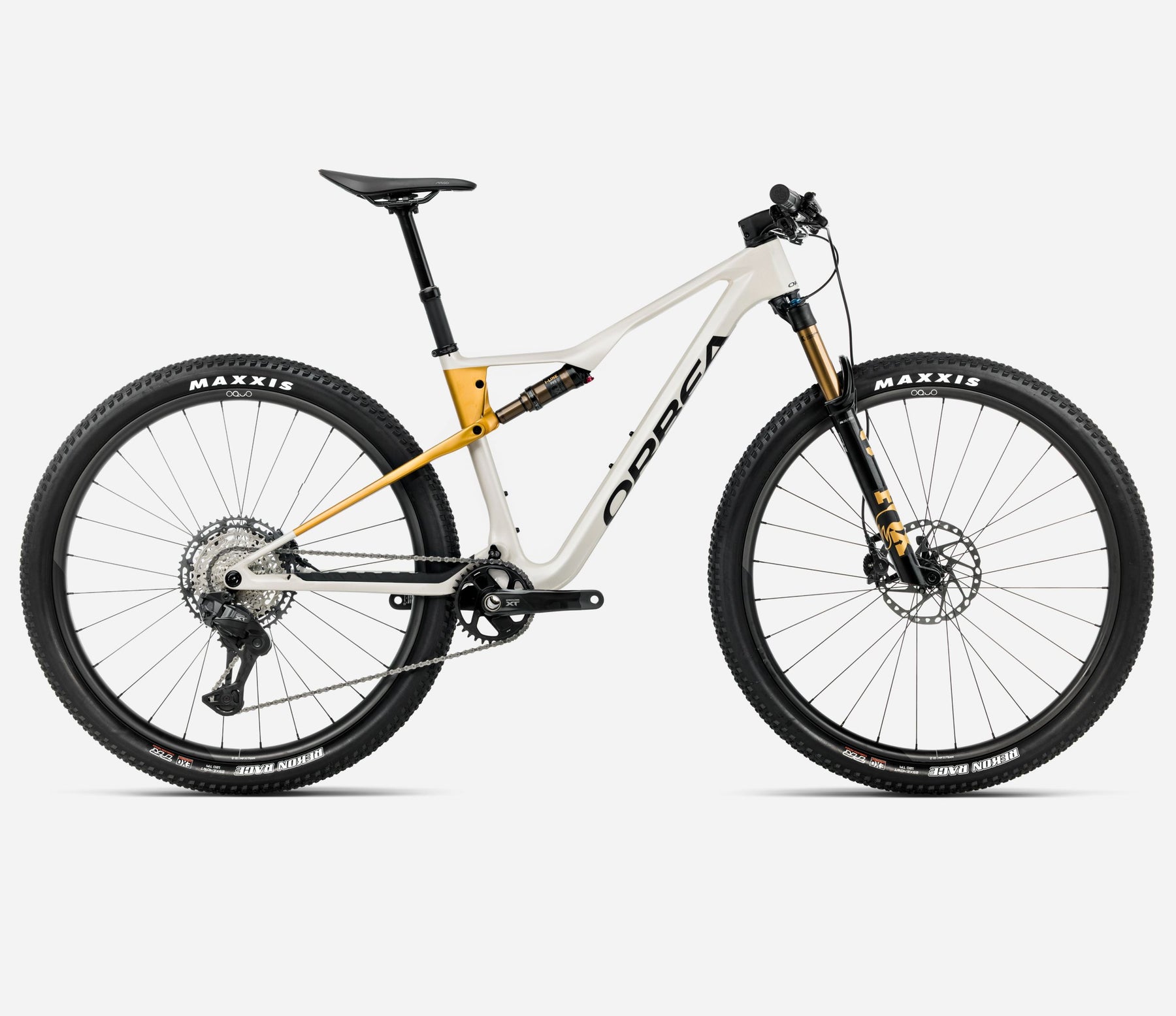

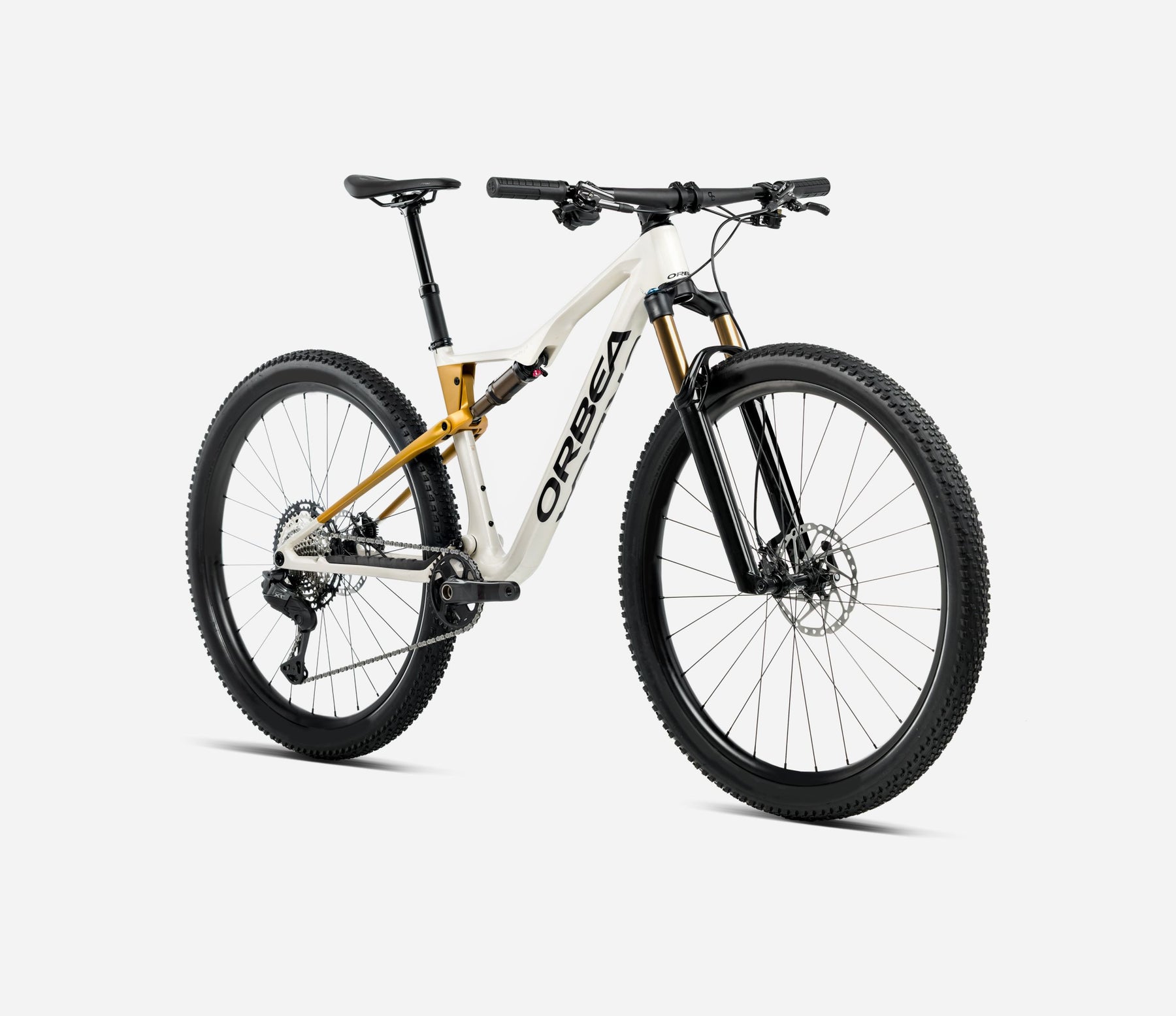

2026 Orbea OIZ M10 Bike
No reviews
- Free Domestic shipping
- Low stock - 2 items left
- Backordered, shipping soon
Key Features
- Orbea Oiz OMR Carbon frame, featuring Fiberlink suspension, Boost spacing, and integrated SIC/I-Line technologies.
- Top-tier FOX Factory Suspension: Includes the 34 Float SL Fork (120mm, Kashima) and Float SL Shock (Kashima).
- High-performance Shimano XT M8200 1x12-speed drivetrain components for flawless shifting.
- Integrated OC Squidlock MP11 remote controls suspension lockout and dropper post from a single lever.
- Powerful and reliable Shimano XT 8200 2-piston Hydraulic Disc Brakes.
- Fast-rolling, high-performance Oquo Mountain Performance MP30TEAM wheelset.
- Carbon handlebar (OC Mountain Performance MP10) for reduced weight and excellent damping.
- XC tires: Maxxis Rekon Race 2.40" WT with 120 TPI Exo TLR casing.
Full Specifications
| Frame | Orbea Oiz Carbon OMR, Fiberlink, Boost 12x148, BSA, SIC, UFO, I-line shock |
|---|---|
| Rear Shock | Fox Float SL Factory 120mm Remote Push-lock Evol Kashima custom tune 190x45mm |
| Rear Travel | 120mm |
| Fork | Fox 34 Float SL Factory 120, Grip SL damper, Remote-Adj Push to Lock, QR15x110, Kashima coating |
| Fork Travel | 120mm |
| Remote Lockout | OC Squidlock MP11 (Controls Suspension + Dropper) |
| Head Tube Diameter | 1-1/2" (Steerer tube: Alloy, Black Oxidated Bearing) |
| Handlebar | OC Mountain Performance MP10 Carbon, 760mm Width |
| Stem | OC Mountain Performance MP21, -6º rise |
| Grips | OC Lock On |
| Brakes | Shimano XT 8200 Hydraulic Disc (2-piston) |
| Rotors | (Not specified, typically 160mm/180mm Shimano Center Lock or 6-bolt) |
| Drivetrain | 1x |
| Shifters | Shimano XT M8250, 12-speed |
| Rear Derailleur | Shimano XT M8250 SGS, 12s |
| Crankset | Shimano XT M8200, 34 tooth |
| Bottom Bracket | (Assumed Shimano Compatible) |
| Chain | Shimano M8100 (XT), 12-speed |
| Cassette | Shimano CS-M8200 (XT), 10-51t, 12-Speed |
| Wheels | Oquo Mountain Performance MP30TEAM |
| Tires | Maxxis Rekon Race 2.40" WT, 120 TPI, Exo, TLR |
| Saddle | Fizik Vento Argo X5 Alluminium 140mm |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Seatpost Lever | (Integrated into OC Squidlock MP11 remote) |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 575mm | 598mm | 623mm | 650mm |
| Head Tube Angle | 67° | 67° | 67° | 67° |
| Head Tube Length | 90mm | 90mm | 100mm | 115mm |
| Seat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| Seat Tube Length | 405mm | 432mm | 460mm | 510mm |
| Bottom Bracket Height | 333mm (42mm drop) | 333mm (42mm drop) | 333mm (42mm drop) | 333mm (42mm drop) |
| Chainstay Length | 432mm | 432mm | 432mm | 432mm |
| Wheelbase | 1138mm | 1163mm | 1189mm | 1219mm |
| Standover | 731mm | 741mm | 741mm | 750mm |
| Reach | 425mm | 450mm | 472mm | 496mm |
| Stack | 596mm | 596mm | 606mm | 619mm |
| Additional Info |
|
|||
