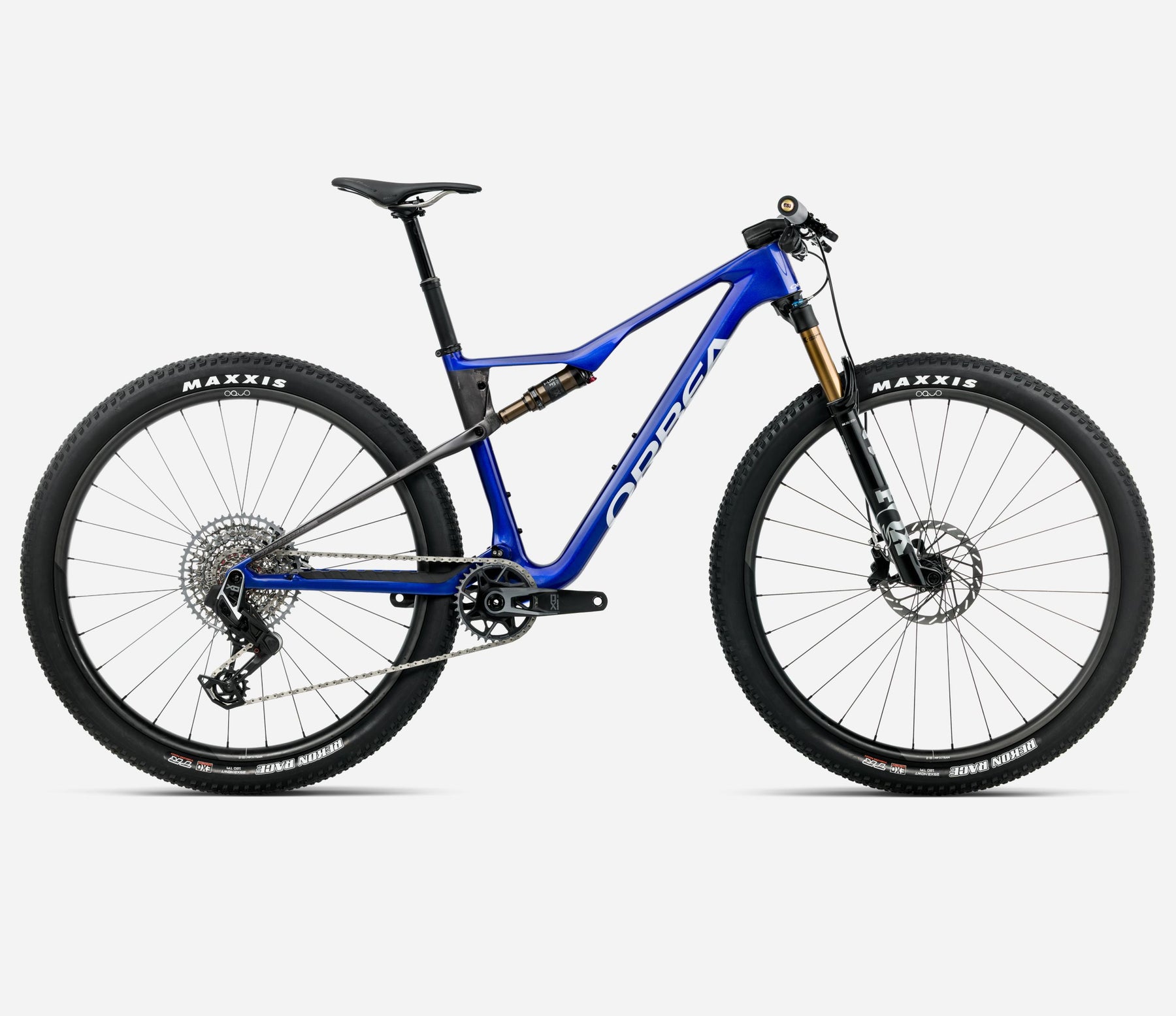

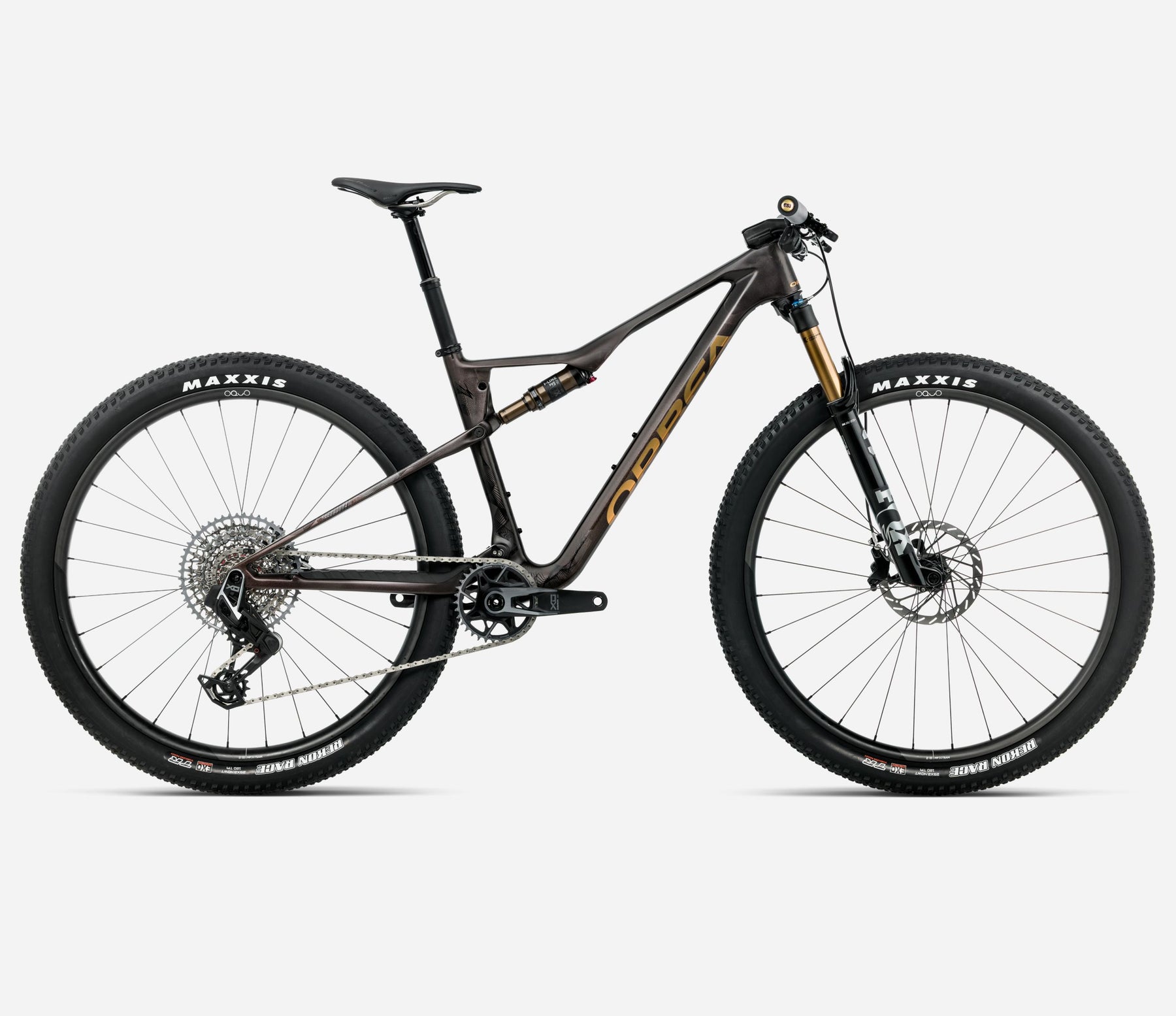

2026 Orbea OIZ M-Team AXS
No reviews
- Free Domestic shipping
- Low stock - 2 items left
- Backordered, shipping soon
Key Features
- Orbea Oiz Carbon OMX frame, featuring the lightest OMX carbon construction and efficient Fiberlink suspension.
- Top-tier FOX Factory Suspension: Includes the 34 Float SL Fork (120mm, Kashima) and Float SL Shock (Kashima), both remote-adjustable.
- Flawless SRAM X0 Eagle AXS 12-speed wireless drivetrain with **34t X0 Crankset** and 10-52t cassette.
- Integrated OC Squidlock MP11 remote controls suspension lockout and dropper post from a single lever.
- Powerful SRAM Motive Silver A2 4-piston Hydraulic Disc Brakes.
- Fast-rolling, high-performance Oquo Mountain Performance MP30TEAM wheelset.
- Ultralight cockpit featuring the OC Mountain Performance MP10 Carbon Cockpit (integrated bar/stem).
- XC tires: Maxxis Rekon Race 2.40" WT with 120 TPI Exo TLR casing.
Full Specifications
| Frame | Orbea Oiz Carbon OMX, Fiberlink, Boost 12x148, BSA, SIC, UFO, I-line shock |
|---|---|
| Rear Shock | Fox Float SL Factory 120mm Remote Push-lock Evol Kashima custom tune 190x45mm |
| Rear Travel | 120mm |
| Fork | Fox 34 Float SL Factory 120, Grip SL damper, Remote-Adj Push to Lock, QR15x110, Kashima coating |
| Fork Travel | 120mm |
| Remote Lockout | OC Squidlock MP11 (Controls Suspension + Dropper) |
| Head Tube Diameter | 1-1/2" (Steerer tube: Alloy, Black Oxidated Bearing) |
| Handlebar/Stem | OC Mountain Performance MP10 Carbon, Cockpit (integrated bar/stem), 760mm Width |
| Computer Mount | SH-MP10 specific (Integrated mount) |
| Grips | (Not specified by brand/model) |
| Brakes | SRAM Motive Silver A2 4 piston Hydraulic Disc |
| Rotors | (Not specified, typically 160mm/180mm) |
| Drivetrain | 1x |
| Shifters | SRAM AXS Pod, 12-speed wireless |
| Rear Derailleur | SRAM X0 Eagle AXS, 12-speed wireless |
| Crankset | Sram X0 Eagle Dub Black, 34 tooth |
| Bottom Bracket | SRAM DUB (Assumed, compatible with DUB crank) |
| Chain | SRAM GX Eagle, 12-Speed |
| Cassette | Sram GX-1275 Eagle, 10-52t, 12-Speed |
| Wheels | Oquo Mountain Performance MP30TEAM |
| Tires | Maxxis Rekon Race 2.40" WT, 120 TPI, Exo, TLR |
| Saddle | Selle Italia SLR Boost Elite Fill, Rail Ø7 mm |
| Seatpost | OC Mountain Performance DP-MP10, 31.6mm, Dropper |
| Seatpost Lever | (Integrated into OC Squidlock MP11 remote) |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 575mm | 598mm | 623mm | 650mm |
| Head Tube Angle | 67° | 67° | 67° | 67° |
| Head Tube Length | 90mm | 90mm | 100mm | 115mm |
| Seat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| Seat Tube Length | 405mm | 432mm | 460mm | 510mm |
| Bottom Bracket Height | 333mm (42mm drop) | 333mm (42mm drop) | 333mm (42mm drop) | 333mm (42mm drop) |
| Chainstay Length | 432mm | 432mm | 432mm | 432mm |
| Wheelbase | 1138mm | 1163mm | 1189mm | 1219mm |
| Standover | 731mm | 741mm | 741mm | 750mm |
| Reach | 425mm | 450mm | 472mm | 496mm |
| Stack | 596mm | 596mm | 606mm | 619mm |
| Additional Info |
|
|||
