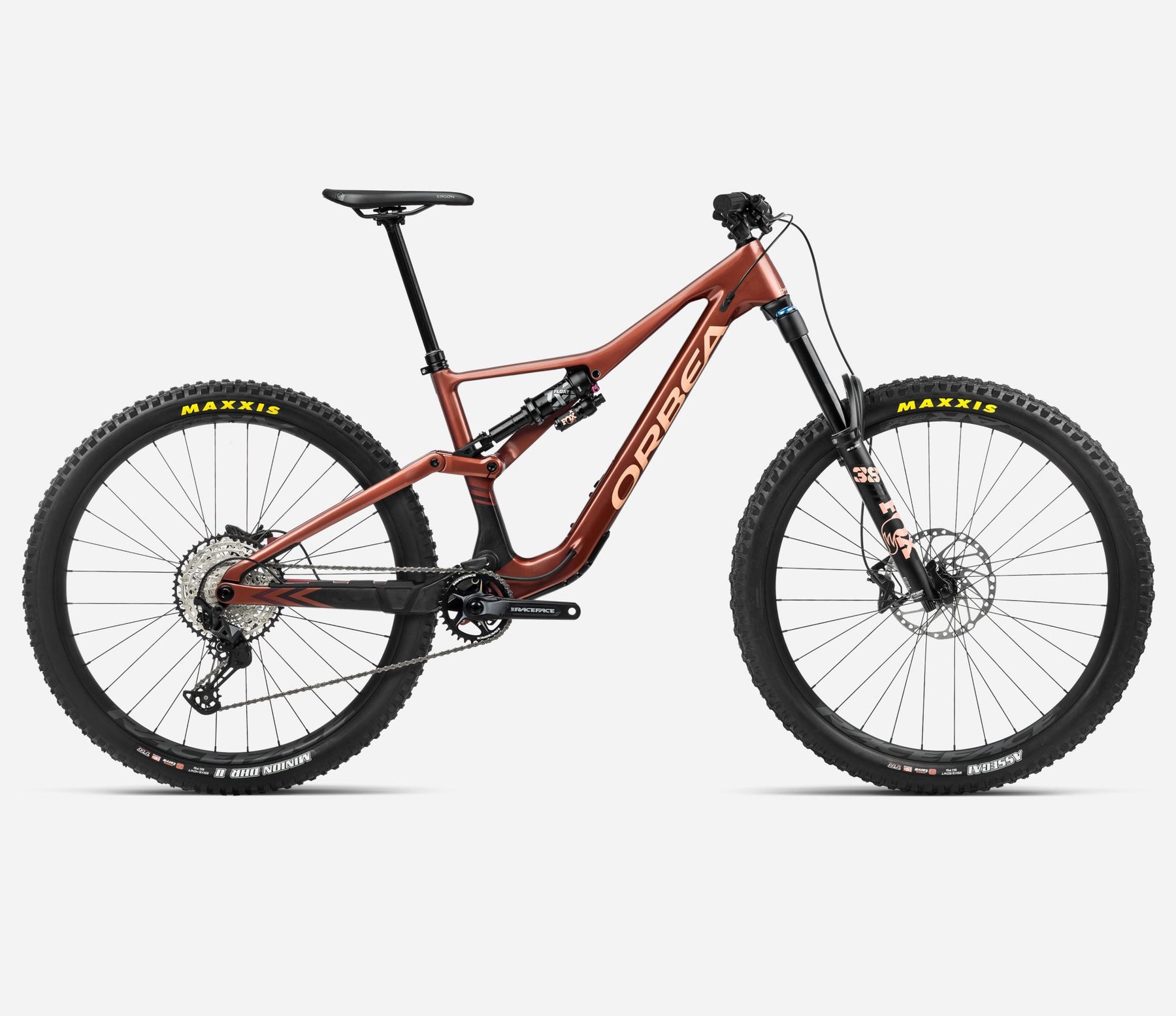

2024 Orbea Rallon M20
- Free Domestic shipping
- Low stock - 1 item left
- Backordered, shipping soon
Key Features
- Orbea Monocoque Race Carbon frame featuring 167mm Advanced Dynamics suspension and ISCG05 mounts.
- High-end FOX Suspension: 170mm FOX 38 Float Performance Fork and FOX FLOAT X Performance Rear Shock (2-Position Adjust).
- Reliable Shimano SLX M7100 12-speed drivetrain with a wide-range 10-51t cassette.
- Four-piston Shimano M6120 Hydraulic Disc Brakes for powerful and consistent braking.
- Aggressive Maxxis tire combination: Assegai (F, 2.50" WT) and Minion DHR II (R, 2.40" WT), both in 3C MaxxTerra EXO+ TR casing.
- Enduro-ready cockpit featuring OC Mountain Control MC30 800mm handlebars and an Ergon SM Enduro saddle.
- Includes OC Mountain Control MC22 dropper post and the integrated MT-20 FLP Multitool.
- Frame features Pure Enduro geometry with Concentric Boost and an adjustable flip-chip for High/Low settings.
Full Specifications
| Frame | Orbea Monocoque Race Carbon, Advanced Dynamics 167mm, 29" wheels, Concentric Boost 12x148, Pure Enduro geometry, Internal cable routing, ISCG05 |
|---|---|
| Rear Shock | Fox FLOAT X Performance 2-Position Evol LV custom tune 230x62.5mm |
| Rear Travel | 167mm |
| Fork | Fox 38 Float Performance 170 Grip 3-Pos QR15x110 |
| Fork Travel | 170mm |
| Headset | Acros Alloy 1-1/8 - 1-1/2" Integrated |
| Crankset | Race Face Aeffect 32t |
| Shifters | Shimano SLX M7100 I-Spec EV, 12-speed |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Rear Derailleur | Shimano SLX M7100 SGS Shadow Plus |
| Chain | Shimano M6100 |
| Chainguide | e*thirteen CL55 30-36t black |
| Handlebar | OC Mountain Control MC30, Rise 20, Width 800mm |
| Stem | Alloy 3D forged, 35mm interface, -7º |
| Grips | OC Lock On |
| Brakes | Shimano M6120 Hydraulic Disc (4-piston) |
| Wheels | Race Face AR 30c Tubeless Ready |
| Front Tire | Maxxis Assegai 2.50" WT FB 120 TPI 3C MaxxTerra EXO+ TR |
| Rear Tire | Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C MaxxTerra Exo+ TR |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Seatpost Lever | Shimano SL-MT500 I-Spec EV |
| Saddle | Ergon SM Enduro |
| Accessories | Accessories Containers, MT-20 FLP Multitool (2/3/4/5mm hex) |
Geometry
| Measurement | S (H/L) | M (H/L) | L (H/L) | XL (H/L) | S-MT | M-MT | L-MT | XL-MT |
|---|---|---|---|---|---|---|---|---|
| 1. Seat Tube (C-T) | 415mm | 415mm | 435mm | 460mm | 415mm | 415mm | 435mm | 460mm |
| 2. Top Tube (EFF) | 572mm / 599mm | 599mm / 626mm | 626mm / 653mm | 653mm / 680mm | 573mm | 600mm | 627mm | 655mm |
| 3. Head Tube | 90mm | 100mm | 110mm | 120mm | 90mm | 100mm | 110mm | 120mm |
| 4. Chainstay | 440mm | 440mm | 440mm | 440mm | 438mm | 438mm | 438mm | 438mm |
| 5. BB Drop (H/L) | 28mm / 35mm | 28mm / 35mm | 28mm / 35mm | 28mm / 35mm | 35mm | 35mm | 35mm | 35mm |
| 6. BB Height (H/L) | 350mm / 343mm | 350mm / 343mm | 350mm / 343mm | 350mm / 343mm | 343mm | 343mm | 343mm | 343mm |
| 7. Wheelbase | 1202mm | 1231mm | 1260mm | 1290mm | 1201mm | 1230mm | 1260mm | 1289mm |
| 8. Head Angle (H/L) | 64.0° / 63.5° | 64.0° / 63.5° | 64.0° / 63.5° | 64.0° / 63.5° | 64.0° / 63.5° | 64.0° / 63.5° | 64.0° / 63.5° | 64.0° / 63.5° |
| 9. Seat Angle (H/L) | 77.5° / 77.0° | 77.5° / 77.0° | 77.5° / 77.0° | 77.5° / 77.0° | 77.0° | 77.0° | 77.0° | 77.0° |
| 10. Rake | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| 11. Standover | 737mm | 737mm | 754mm | 774mm | 744mm | 744mm | 761mm | 781mm |
| 12. Reach (H/L) | 435mm / 460mm | 460mm / 485mm | 485mm / 510mm | 510mm / 535mm | 430mm | 455mm | 480mm | 505mm |
| 13. Stack | 619mm | 628mm | 637mm | 646mm | 623mm | 632mm | 641mm | 650mm |
| 14. Fork Length | 587.7mm | 587.7mm | 587.7mm | 587.7mm | 587.7mm | 587.7mm | 587.7mm | 587.7mm |
