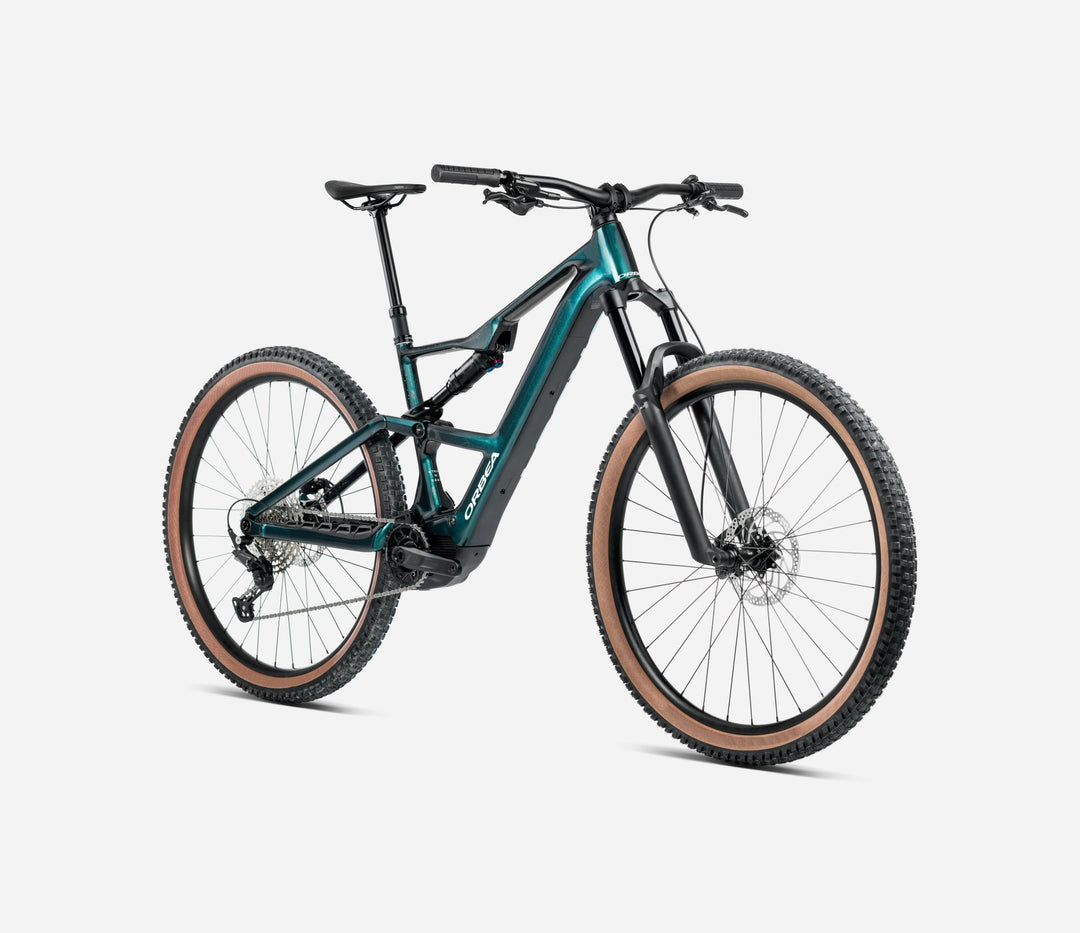

2026 Orbea Rise SL H10 E-Bike
No reviews
- Free Domestic shipping
- Low stock - 1 item left
- Backordered, shipping soon
Key Features
- Orbea Rise SL Hydro 2025 aluminum frame with 140mm travel.
- Shimano EP600 RS Gen2 MC Motor powered by a large Orbea Internal 630Wh Battery.
- Fox 36 Float SL Performance 140mm fork (GRIP damper) and Fox Float Performance 2-Pos shock.
- Shimano XT M8100 12-speed rear derailleur with Shimano SLX shifters.
- Shimano M6120 4-piston hydraulic disc brakes with 180mm rotors.
- Race Face AR 30c Tubeless Ready wheelset.
- Schwalbe Wicked Will Evo TLE 29x2.40 tires (Super Race, Soft/Speed Grip compounds).
- OC Mountain Control MC22 dropper seatpost.
Full Specifications
| Product | Orbea Rise SL H10 E-Bike |
|---|---|
| Model Year | 2026 |
| Intended Use | e-MTB Trail / All-Mountain |
| Rider | Unisex |
| Sizes and Geometry | SM MD LG XL |
| Wheel Size | 29" |
| Frame Material | Aluminum |
| Frame Material Details | Orbea Rise SL Hydro 2025, Concentric Boost 12x148 |
| Rear Travel | 140mm |
| Rear Shock | Fox Float Performance 2-Pos Evol LV custom tune 210x50mm |
| Fork | Fox 36 Float SL Performance 140, Grip, 3-Pos, 15x110 |
| Fork Travel | 140mm |
| Head Tube Diameter | Tapered (Alloy 1-1/2" Steerer tube, Black Oxidated Bearing) |
| Headset | N/A (Integrated with steerer tube) |
| Handlebar | OC Mountain Control MC31, Rise20, Width 800 |
| Stem | OC Mountain Control MC20, 0º |
| Grips | OC Lock On |
| Brakes | Shimano M6120 Hydraulic Disc (4-Piston) Rotors: Shimano RT64 Rotors 180mm front / 180mm rear |
| Brake Levers | Shimano M6120 (Integrated with brake system) |
| Drivetrain | 1x |
| Shifters | Shimano SLX M7100 I-Spec EV |
| Front Derailleur | None |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus |
| ISCG Tabs | N/A |
| Chainguide | Orbea eBike chainguide |
| Cranks | Shimano Steps EM600 |
| Chainrings | e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine |
| Bottom Bracket | Integrated with motor unit |
| Pedals | None |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Rims | Race Face AR 30c Tubeless Ready |
| Hubs | N/A (Integrated into wheels) |
| Tires | Front: Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Soft Compound, Addix, Brown Rear: Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown |
| Saddle | Fizik Terra Ridon X5 145mm |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | N/A |
| Rear Dropout / Hub Dimensions | 12x148 (Concentric Boost) |
| Max. Tire Size | N/A |
| Bottle Cage Mounts | N/A |
| Colors | N/A |
| Warranty | N/A |
| Weight | N/A |
| Miscellaneous |
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 568mm | 594mm | 622mm | 651mm |
| Head Tube Angle | 65.3° | 65.3° | 65.3° | 65.3° |
| Head Tube Length | 95mm | 100mm | 110mm | 120mm |
| Seat Tube Angle | 78.3° | 78.2° | 78.1° | 78.0° |
| Seat Tube Length | 405mm | 415mm | 430mm | 460mm |
| Bottom Bracket Height | 334mm | 334mm | 334mm | 334mm |
| Chainstay Length | 441mm | 441mm | 441mm | 441mm |
| Wheelbase | 1192mm | 1220mm | 1249mm | 1278mm |
| Standover | N/A | N/A | N/A | N/A |
| Reach | 441mm | 467mm | 491mm | 516mm |
| Stack | 609mm | 613mm | 623mm | 632mm |
| Additional Info |
|
|||
