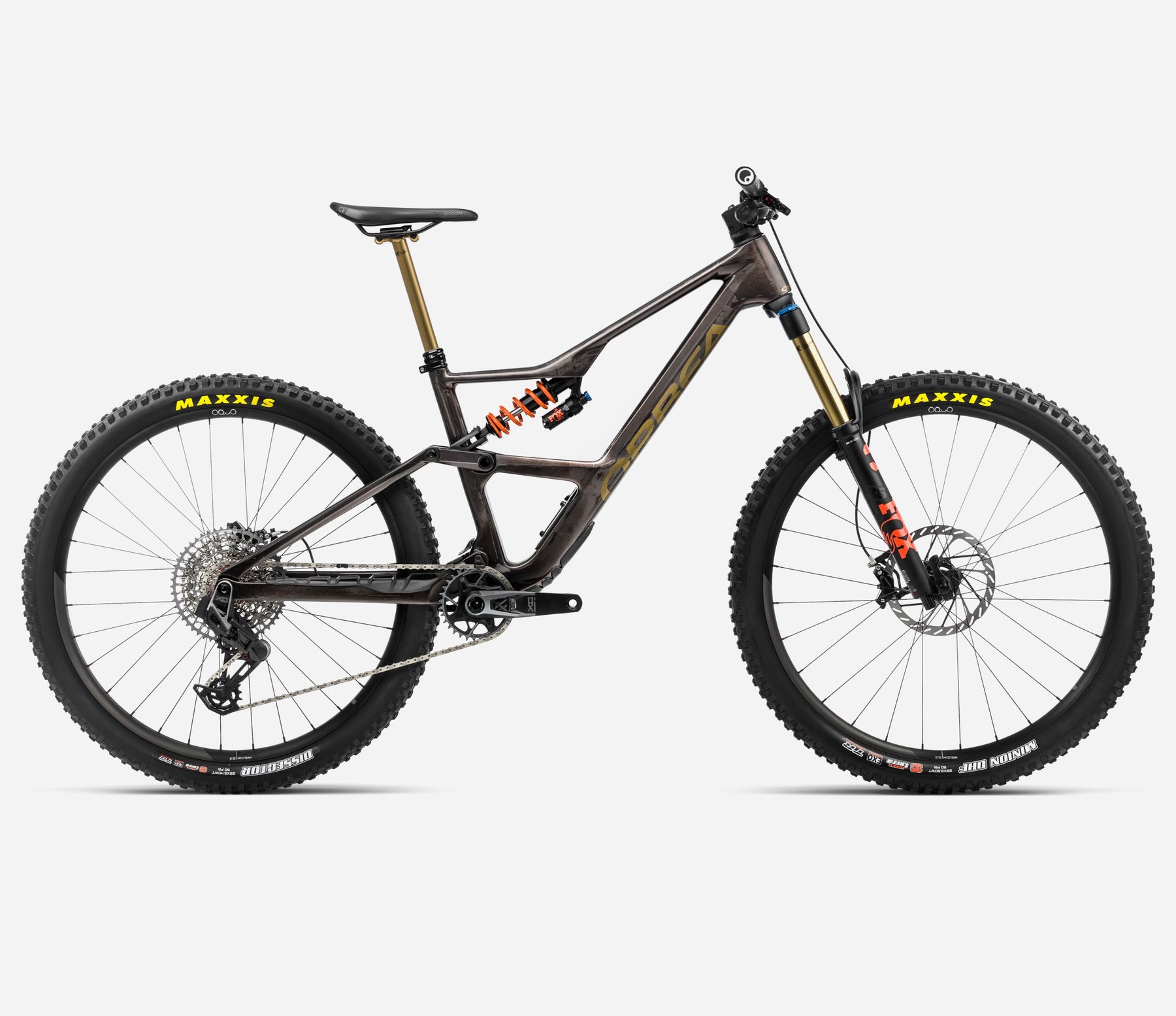

2024 Orbea Occam LT M-Team Bike
No reviews
- Free Domestic shipping
- Low stock - 2 items left
- Backordered, shipping soon
Key Features
- Orbea Occam LT OMR Carbon frame (2024), offering 150mm of travel with adjustable gravity-focused geometry.
- Top-tier FOX Factory Suspension: Features the FLOAT 36 Fork (160mm, GRIP2 damper, Kashima) and DHX Factory Coil Shock (or Float X Factory Air option).
- Flawless shifting with the SRAM X0 Eagle Transmission (T-Type) 12-speed electronic wireless drivetrain.
- Powerful and reliable SRAM Code Silver 4-piston hydraulic disc brakes (Shimano XTR M9120 option available).
- Integrated LOCKR internal frame storage in the down tube.
- High-end OQUO Mountain Control MC32Team Alloy wheelset (Carbon LTD option available).
- Aggressive Maxxis tire pairing: Minion DHF (front, 2.5") and Dissector (rear, 2.4").
- Quick Flip chip allows for fast adjustment between 64.0° (Low) and 64.5° (High) head tube angles.
- Includes the OC Fully Loaded Pivot (FLP) MT-20 Multitool concealed in the bike.
- Customizable through Orbea's MyO personalization program.
Full Specifications
| Product | Orbea Occam LT M-Team Bike |
|---|---|
| Model Year | 2024 |
| Intended Use | Enduro / All-Mountain |
| Rider | Unisex |
| Frame Material | Carbon Fiber (OMR - Orbea Monocoque Race) |
| Frame Material Details | OMR high-modulus carbon front and rear triangles, molded chainstay and down tube protection |
| Rear Travel | 150mm |
| Rear Shock | FOX DHX Factory, 2-position compression lever, custom tune, 210mm x 55mm (Option: FOX FLOAT X Factory) |
| Fork | FOX FLOAT 36 Factory, GRIP2 damper, Kashima coating, 44mm offset |
| Fork Travel | 160mm |
| Head Tube Diameter | Straight, 1.5" |
| Headset | Alloy, oxidated bearings |
| Handlebar | OC Mountain Control MC10 Carbon, 800mm width, 20mm or 35mm rise options |
| Stem | OC Mountain Control MC10 Alu SL, 0° rise Length: 35mm (SM), 40mm (MD/LG), 50mm (XL) |
| Grips | Ergon GE10 |
| Brakes | SRAM Code Silver, 4-piston (Option: Shimano XTR M9120, 4-piston) |
| Brake Levers | SRAM Code Silver Stealth, tool-free Reach Adjust and Contact Point Adjust (Option: Shimano XTR M9100) |
| Drivetrain | 1x |
| Shifters | SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless |
| Front Derailleur | None |
| Rear Derailleur | SRAM X0 Eagle Transmission, 12-speed, AXS electronic wireless |
| ISCG Tabs | None |
| Chainguide | OC integrated upper slider |
| Cranks | SRAM X0 Eagle Transmission Alloy DUB Length: 165mm (SM), 170mm (MD-XL) |
| Chainrings | SRAM X0 Eagle Transmission, 32 tooth |
| Bottom Bracket | SRAM DUB |
| Pedals | None |
| Chain | SRAM GX Eagle Transmission, 12-speed |
| Cassette | SRAM GX Eagle Transmission XS-1275, 12-speed, 10-52 tooth |
| Rims | OQUO Mountain Control MC32Team Alloy (Option: OQUO Mountain Control MC32LTD Carbon) |
| Hubs | OQUO Mountain Control wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver |
| Spokes | OQUO Mountain Control wheelset |
| Tires | Front: Maxxis Minion DHF, 3C MaxxTerra compound, EXO casing, TR, 29" x 2.5" Rear: Maxxis Dissector, 3C MaxxTerra compound, EXO casing, TR, 29" x 2.4" (Option: Maxxis Assegai, DH casing, 2.5"/Maxxis Minion DHR II, DH casing, 2.4") |
| Saddle | Ergon SM Enduro Comp (Options: fi'zi:k Terra Aidon X1, fi'zi:k Terra Aidon X5) |
| Seatpost | FOX Transfer Factory dropper, Kashima coating, FOX 1x remote lever Drop: 125mm (SM), 150mm (MD/LG), 175mm (XL) (Option: OC Mountain Control MC21 dropper, 125/150/170/200/230mm drops) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Bottle Cage Mounts | One inside front triangle |
| Colors | Spaceship Green/Corn Yellow, Cosmic Carbon View/Metallic Olive Green; customizable via Orbea's MyO personalization program |
| Warranty | Lifetime frame |
| Miscellaneous |
|
Geometry
| Size (Setting) | SM (High, Low) | MD (High, Low) | LG (High, Low) | XL (High, Low) |
|---|---|---|---|---|
| Top Tube Length | 571mm, 572mm | 597mm, 598mm | 624mm, 625mm | 651mm, 653mm |
| Head Tube Angle | 64.5°, 64.0° | 64.5°, 64.0° | 64.5°, 64.0° | 64.5°, 64.0° |
| Head Tube Length | 95mm | 100mm | 110mm | 120mm |
| Seat Tube Angle | 77.5°, 77.0° | 77.5°, 77.0° | 77.5°, 77.0° | 77.5°, 77.0° |
| Seat Tube Length | 405mm | 415mm | 430mm | 460mm |
| Bottom Bracket Height | 350mm (28mm drop), 342mm (36mm drop) | 350mm (28mm drop), 342mm (36mm drop) | 350mm (28mm drop), 342mm (36mm drop) | 350mm (28mm drop), 342mm (36mm drop) |
| Chainstay Length | 440mm | 440mm | 440mm | 440mm |
| Wheelbase | 1199mm, 1200mm | 1226mm, 1227mm | 1255mm, 1257mm | 1285mm, 1286mm |
| Reach | 435mm, 430mm | 460mm, 455mm | 485mm, 480mm | 510mm, 505mm |
| Stack | 616mm, 621mm | 621mm, 625mm | 630mm, 635mm | 639mm, 644mm |
| Additional Info |
|
|||
