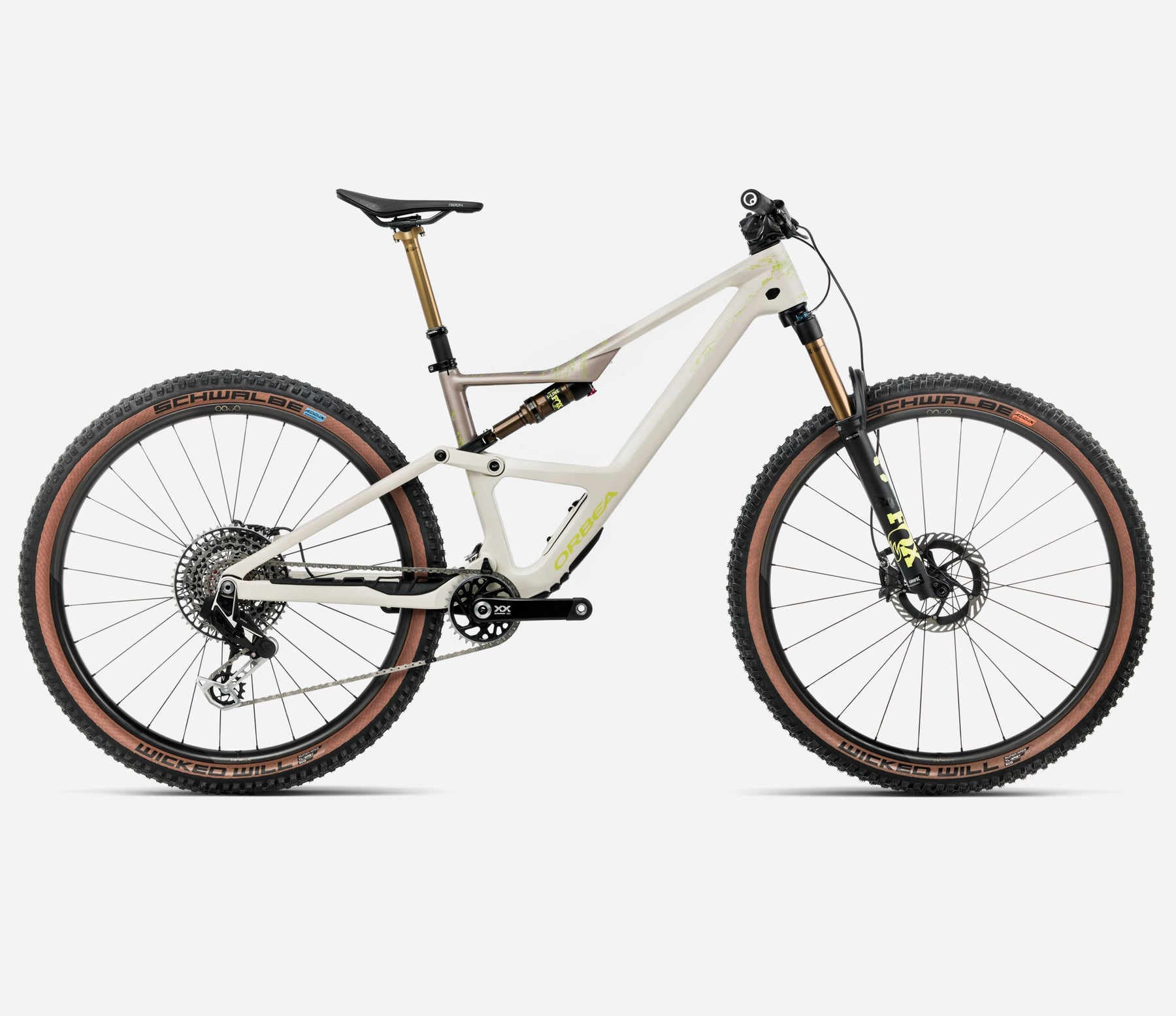

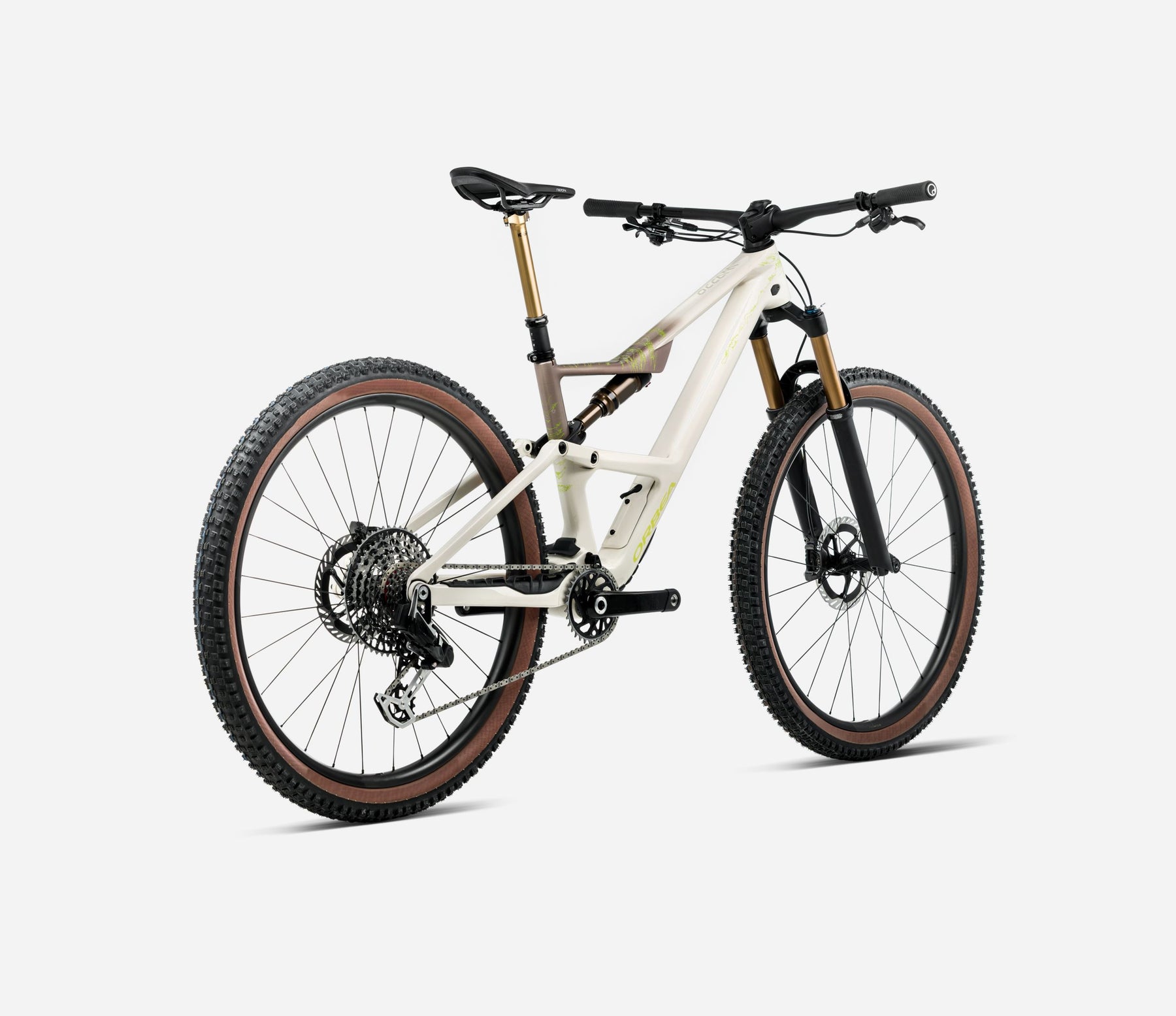

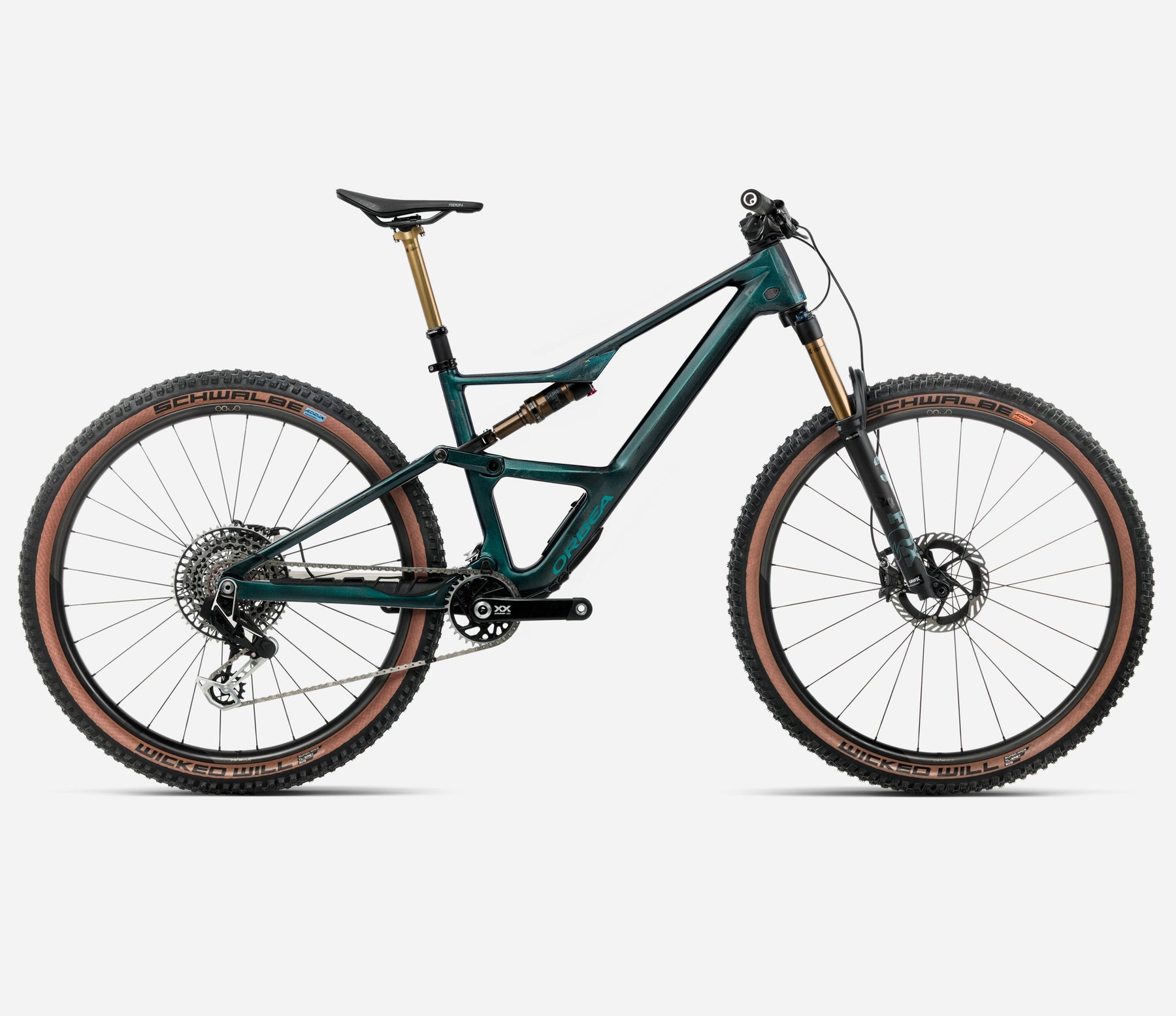

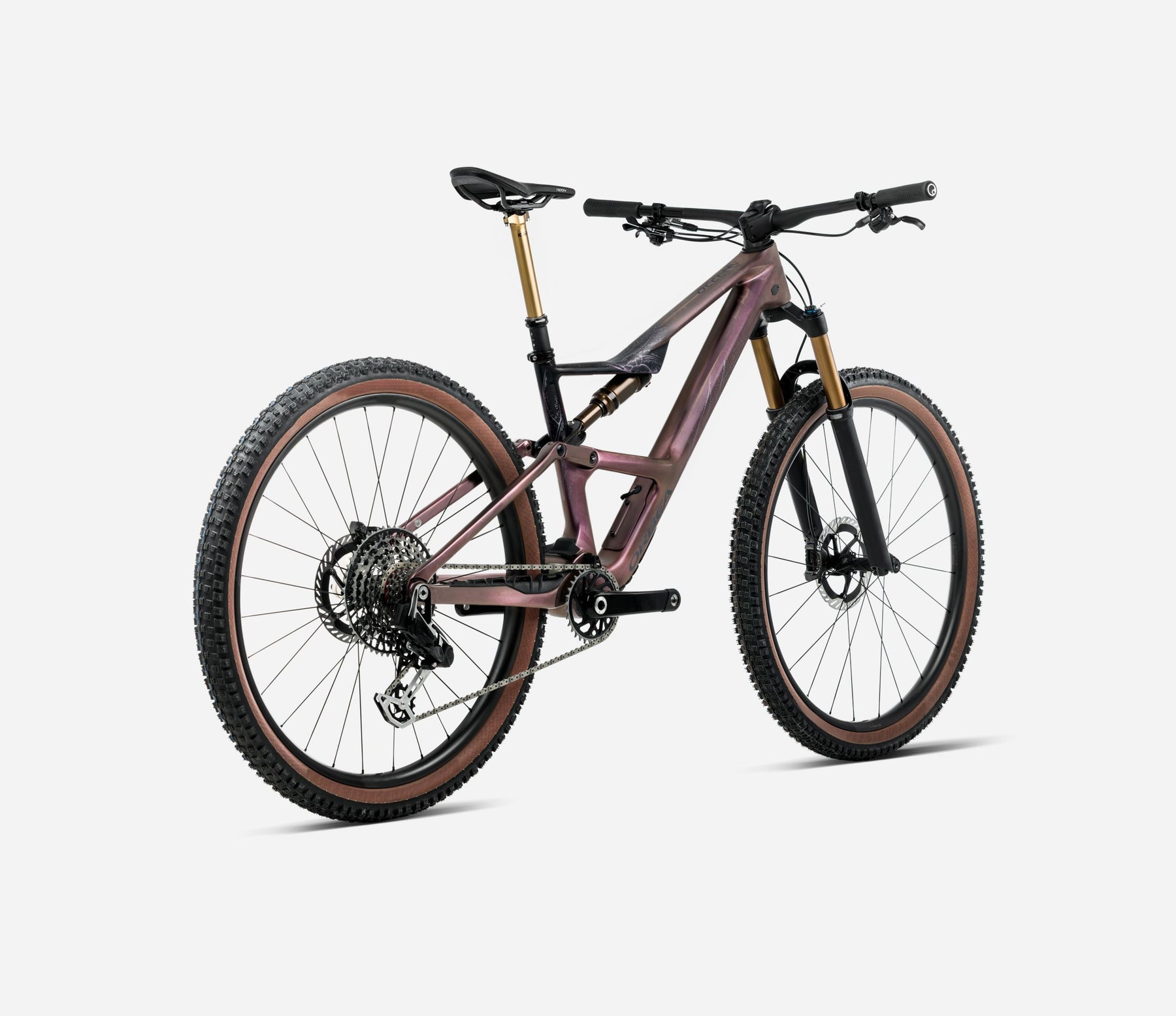

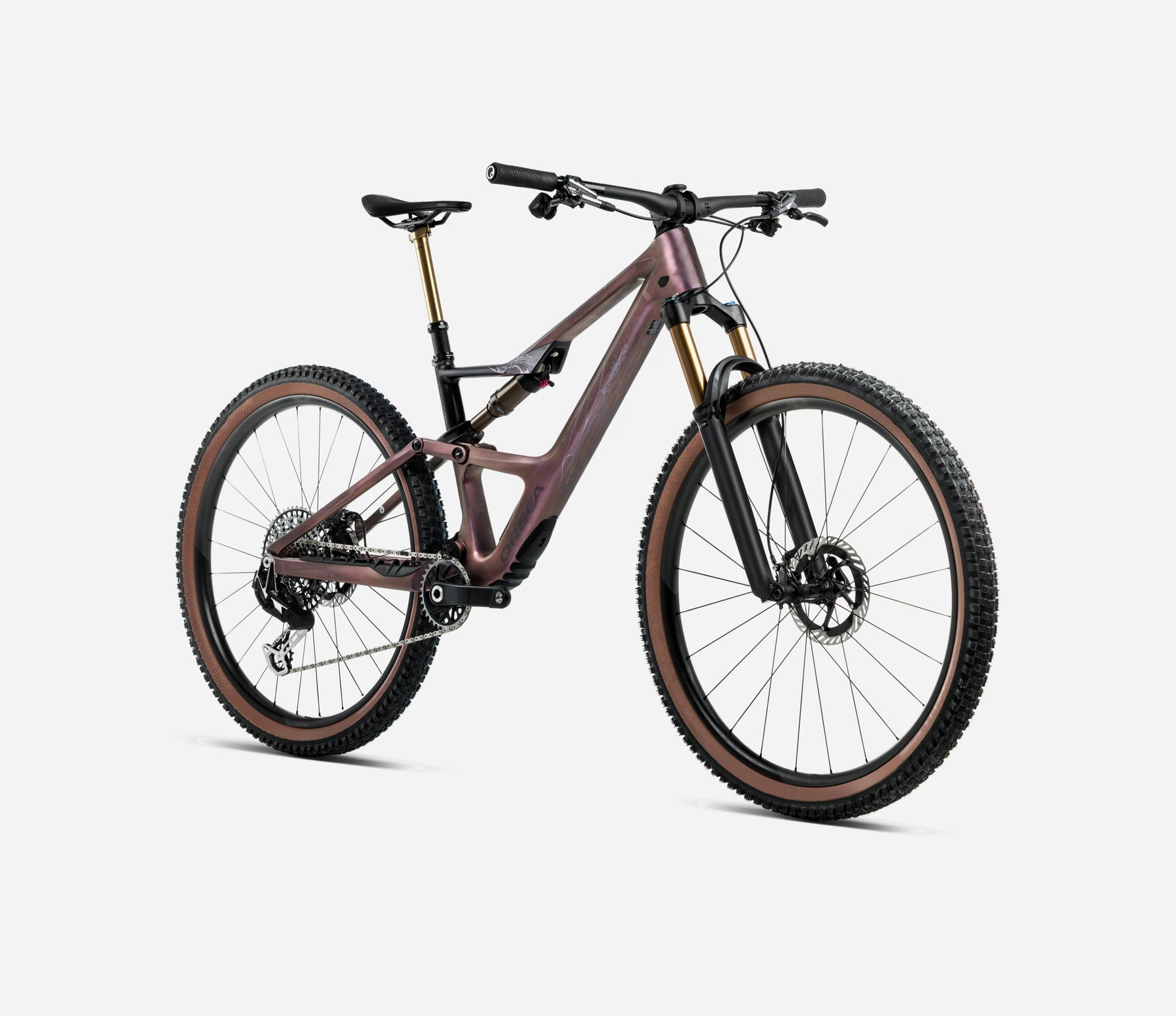

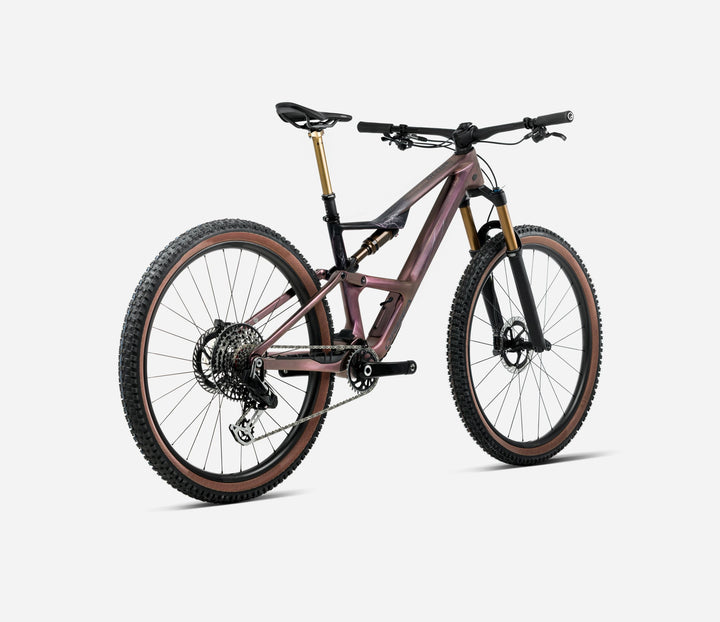

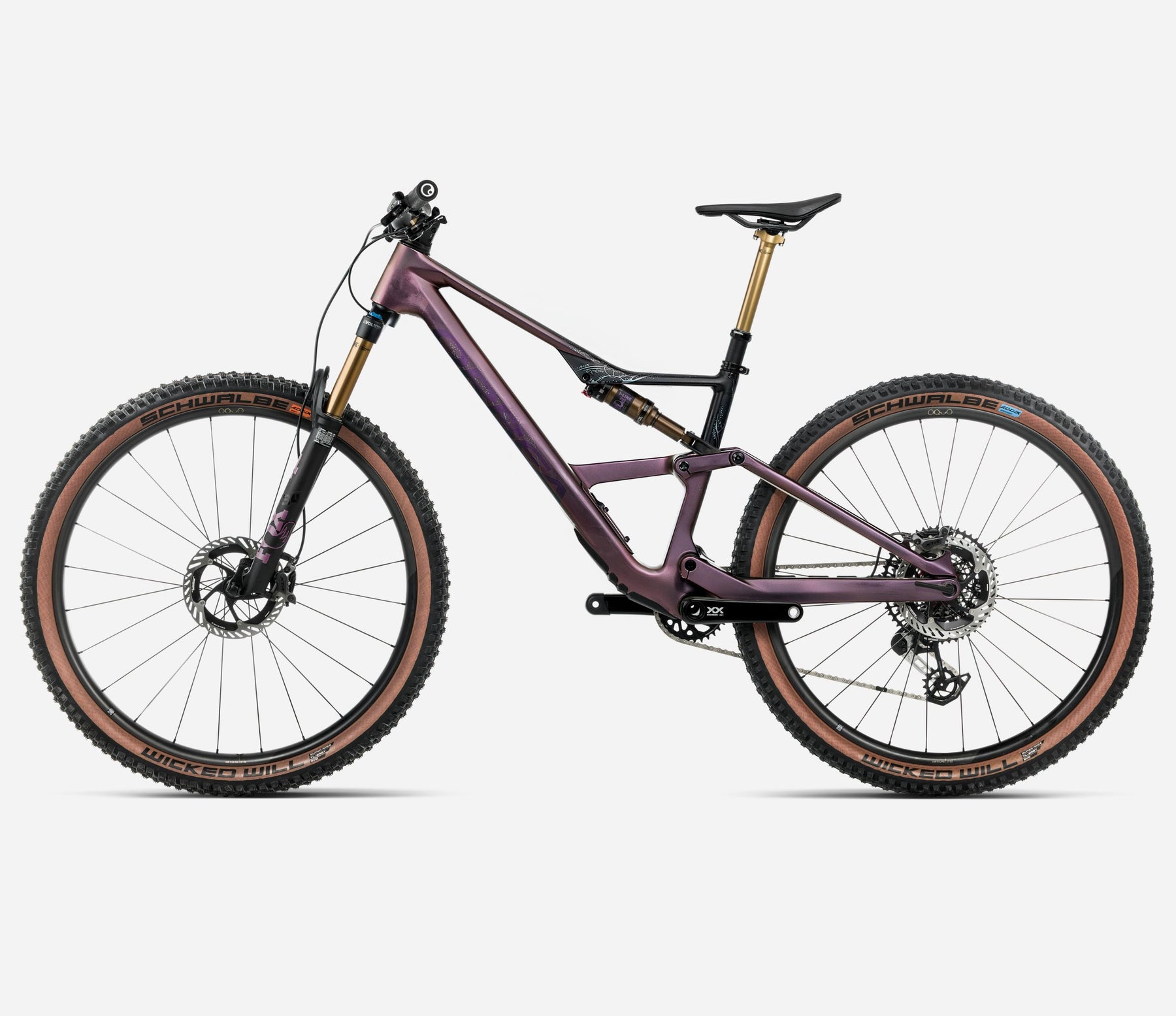

2026 Orbea Occam SL M-LTD Bike
No reviews
- Free Domestic shipping
- Low stock - 2 items left
- Backordered, shipping soon
Key Features
- Orbea Occam SL OMR Carbon frame (2026), ultralight trail platform with 140mm of travel and carbon shock extender.
- Flagship SRAM XX Eagle Transmission 12-speed electronic wireless drivetrain with Carbon DUB Cranks.
- Ultimate weight-saving suspension: FOX 36 SL Factory fork (140mm) and FOX FLOAT Factory shock, both with Kashima coating and OC Squidlock MP11 remote lever for instant lockout.
- Geometry tunable via 3-position offset headset cups (Steep, Neutral, Slack settings).
- Ultralight FOX Transfer SL Factory dropper post with Kashima coating.
- Integrated LOCKR internal frame storage and included FLP MT-20 Multitool.
- Premium OQUO Mountain Performance MP30LTD Carbon wheelset.
- High-performance trail tires: Schwalbe Wicked Will Evo (Super Race/Addix Soft).
- Powerful and lightweight Shimano XTR 2-piston hydraulic disc brakes.
- Customizable through Orbea's MyO personalization program.
Full Specifications
| Product | Orbea Occam SL M-LTD Bike |
|---|---|
| Model Year | 2026 |
| Intended Use | Trail |
| Rider | Unisex |
| Frame Material | Carbon Fiber (OMR) |
| Frame Material Details | OMR carbon front/rear triangles, carbon shock extender, molded protection, replaceable vinyl frame protection |
| Rear Travel | 140mm |
| Rear Shock | FOX FLOAT Factory, EVOL, OC Squidlock MP11 remote lever, Kashima, custom tune, 210mm x 50mm |
| Fork | FOX FLOAT 36 SL Factory, GRIP SL damper, OC Squidlock MP11 remote lever, Kashima coating, 44mm offset |
| Fork Travel | 140mm |
| Head Tube Diameter | Straight, 1.5" |
| Headset | Alloy, oxidated bearings (3-position offset adjustable) |
| Handlebar | OC Mountain Control MC10 Carbon, 800mm width, 20mm or 35mm rise options |
| Stem | OC Mountain Control MC11 Alu SL, 0° rise Length: 35mm (SM), 40mm (MD/LG), 50mm (XL) |
| Grips | Ergon GXR (Option: Nanofoam) |
| Brakes | Shimano XTR, 2-piston |
| Brake Levers | Shimano XTR |
| Drivetrain | 1x |
| Shifters | SRAM Eagle Pod Ultimate Controller, 12-speed, AXS electronic wireless |
| Front Derailleur | None |
| Rear Derailleur | SRAM XX Eagle Transmission, 12-speed, AXS electronic wireless |
| ISCG Tabs | None |
| Chainguide | OC integrated upper slider |
| Cranks | SRAM XX Eagle Transmission Carbon DUB Length: 165mm (SM), 170mm (MD-XL) |
| Chainrings | SRAM XX Eagle Transmission, 32 tooth |
| Bottom Bracket | SRAM DUB |
| Pedals | None |
| Chain | SRAM XX Eagle Transmission Flattop, 12-speed |
| Cassette | SRAM XX Eagle Transmission XS-1297, 10-52 tooth, 12-speed |
| Rims | OQUO Mountain Performance MP30LTD Carbon |
| Hubs | OQUO Mountain Performance wheelset, 15x110mm front, 12x148mm rear, XD driver (Boost) |
| Spokes | OQUO Mountain Performance wheelset |
| Tires | Schwalbe Wicked Will, Evo line, Super Race casing, Addix Soft compound, TLE, 29" x 2.4" (Option: Maxxis Minion DHF 2.5" front/Maxxis Dissector 2.4" rear) |
| Saddle | fi'zi:k Terra Aidon X1, 145mm width (Option: Selle Italia SLR Boost Carbon Fill, carbon rails) |
| Seatpost | FOX Transfer SL Factory dropper, OC Squidlock MP11 remote lever Drop: 125mm (SM), 150mm (MD-XL) (Options: OC Mountain Control MC10/MC22 droppers with higher drop options) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Bottle Cage Mounts | One inside front triangle |
| Colors | Sunset Carbon View/Black, Ivory White/Nickel, Escape Green/Carbon View; customizable via MyO |
| Warranty | Lifetime frame |
| Miscellaneous |
|
Geometry
| Size (Setting) | SM (Steep, Neutral, Slack) | MD (Steep, Neutral, Slack) | LG (Steep, Neutral, Slack) | XL (Steep, Neutral, Slack) |
|---|---|---|---|---|
| Top Tube Length | 570, 570, 569 | 596, 596, 595 | 623, 622, 622 | 650, 649, 649 |
| Head Tube Angle | 65.9°, 65.4°, 64.9° | 65.9°, 65.4°, 64.9° | 65.9°, 65.4°, 64.9° | 65.9°, 65.3°, 64.9° |
| Head Tube Length | 95mm | 100mm | 110mm | 120mm |
| Seat Tube Angle | 78.0°, 78.2°, 78.5° | 78.0°, 78.2°, 78.5° | 78.0°, 78.2°, 78.4° | 78.0°, 78.2°, 78.4° |
| Seat Tube Length | 405mm | 415mm | 430mm | 460mm |
| Bottom Bracket Height | 342 (36 drop), 340 (38 drop), 338 (40 drop) | 342 (36 drop), 340 (38 drop), 338 (40 drop) | 342 (36 drop), 341 (37 drop), 338 (39 drop) | 342 (36 drop), 341 (37 drop), 338 (39 drop) |
| Chainstay Length | 439mm | 439mm | 439mm | 439mm |
| Wheelbase | 1183, 1191, 1197 | 1210, 1218, 1225 | 1239, 1245, 1254 | 1269, 1276, 1283 |
| Reach | 440, 442, 445 | 465, 467, 470 | 490, 492, 495 | 515, 517, 520 |
| Stack | 612, 611, 609 | 617, 615, 613 | 626, 624, 622 | 635, 633, 631 |
| Additional Info |
|
|||
