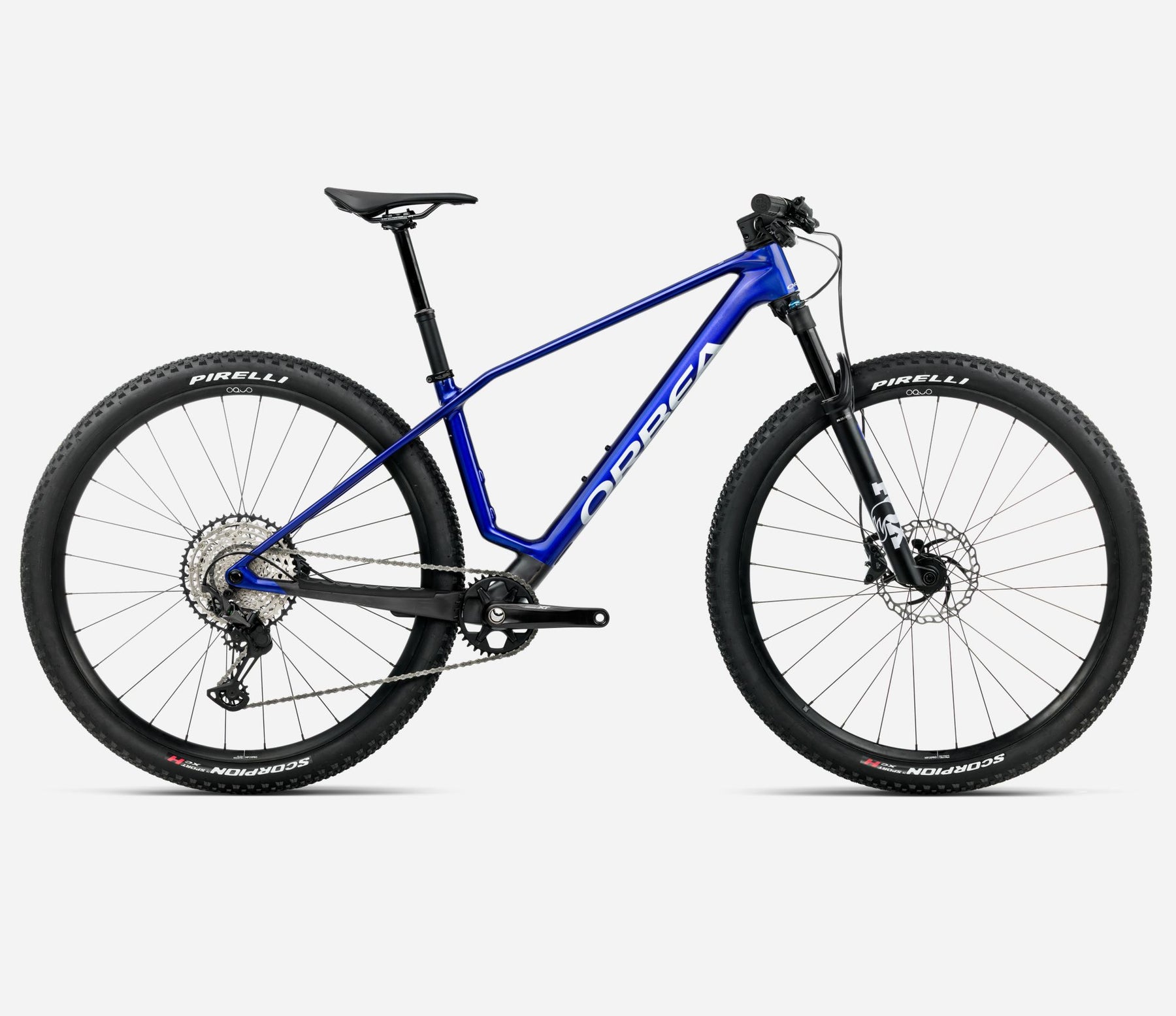

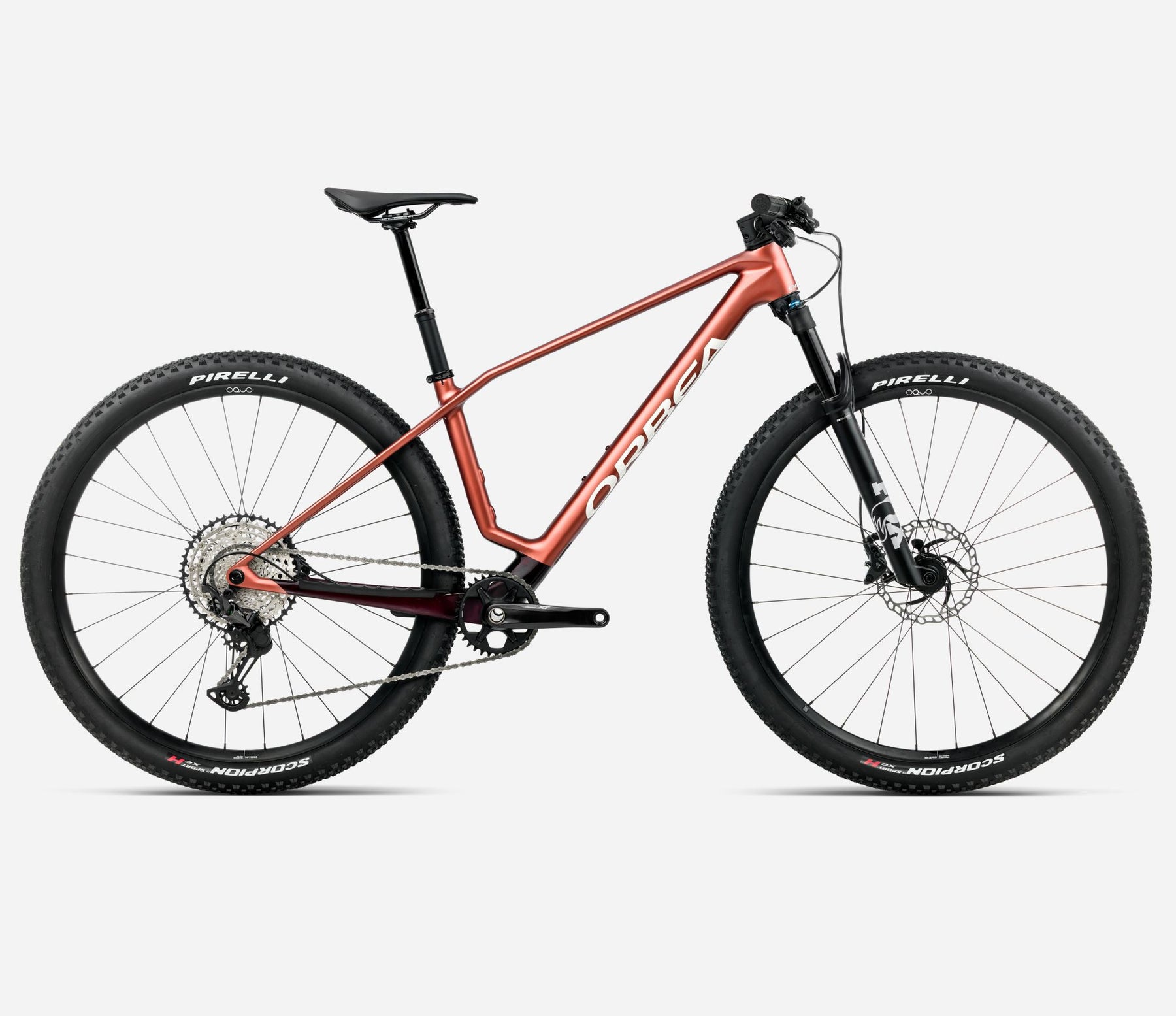

2026 Orbea Alma M20 Bike
No reviews
- Free Domestic shipping
- Low stock - 2 items left
- Backordered, shipping soon
Key Features
- Orbea Alma Carbon frame, a lightweight and stiff platform optimized for racing and fast trail use.
- Premium suspension control from the Fox 34 Float SL Performance 110 fork with Grip damper and Push-to-Lock remote.
- Integrated OC Squidlock MP11 remote controls both suspension lockout and the dropper post from a single lever.
- High-performance Shimano XT M8100 1x12-speed drivetrain for crisp shifting and wide-range capability (10-51t SLX cassette).
- OC Mountain Performance DP-MP10 dropper post for quick adjustments on technical terrain.
- Fast-rolling and durable Oquo Mountain Performance MP28PRO wheelset.
- Aggressive XC tires: Pirelli Scorpion Sport XC H 2.40" with ProWall/TLR technology.
- Modern Pure Trail geometry with a slack 67° head tube angle and tight 425mm chainstays.
Full Specifications
| Frame | Orbea Alma Carbon, Boost 12x148, Internal cable routing |
|---|---|
| Fork | Fox 34 Float SL Performance 110, Grip damper, Remote Push to Lock, QR15x110 |
| Fork Travel | 110mm |
| Remote Lockout | OC Squidlock MP11 (Controls Suspension + Dropper) |
| Head Tube Diameter | 1-1/2" (Steerer tube: Alloy, Black Oxidated Bearing) |
| Handlebar | OC Mountain Performance MP30, 760mm Width |
| Stem | OC Mountain Performance MP21, -6º rise |
| Grips | OC Lock On |
| Brakes | Shimano M6100 Hydraulic Disc (Deore) |
| Rotors | (Not specified, typically 160mm/180mm Shimano Center Lock or 6-bolt) |
| Drivetrain | 1x |
| Shifters | Shimano XT M8100 I-Spec EV, 12-speed |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus, 12s |
| Crankset | Shimano XT M8120, 34 tooth |
| Bottom Bracket | (Not specified by type, assumed Shimano compatible) |
| Chain | Shimano M7100 (SLX), 12-speed |
| Cassette | Shimano CS-M7100 (SLX), 10-51t, 12-Speed |
| Wheels | Oquo Mountain Performance MP28PRO |
| Tires | Pirelli Scorpion Sport XC H 2.40", 60TPI, ProWall/TLR |
| Saddle | Prologo Akero RS steel rails |
| Seatpost | OC Mountain Performance DP-MP10, 31.6mm, Dropper |
| Seatpost Clamp | (Single bolt - assumed) |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 564mm | 594mm | 620mm | 648mm |
| Head Tube Angle | 67° | 67° | 67° | 67° |
| Head Tube Length | 100mm | 100mm | 105mm | 115mm |
| Seat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° |
| Seat Tube Length | 390mm | 410mm | 455mm | 495mm |
| Bottom Bracket Height | 315mm (65mm drop) | 315mm (65mm drop) | 315mm (65mm drop) | 315mm (65mm drop) |
| Chainstay Length | 425mm | 425mm | 425mm | 425mm |
| Wheelbase | 1113mm | 1143mm | 1170mm | 1190mm |
| Standover | 794.0mm | 797.0mm | 811.6mm | 829.4mm |
| Reach | 405mm | 435mm | 460mm | 485mm |
| Stack | 618.5mm | 618.5mm | 623.1mm | 632.3mm |
| Additional Info |
|
|||
