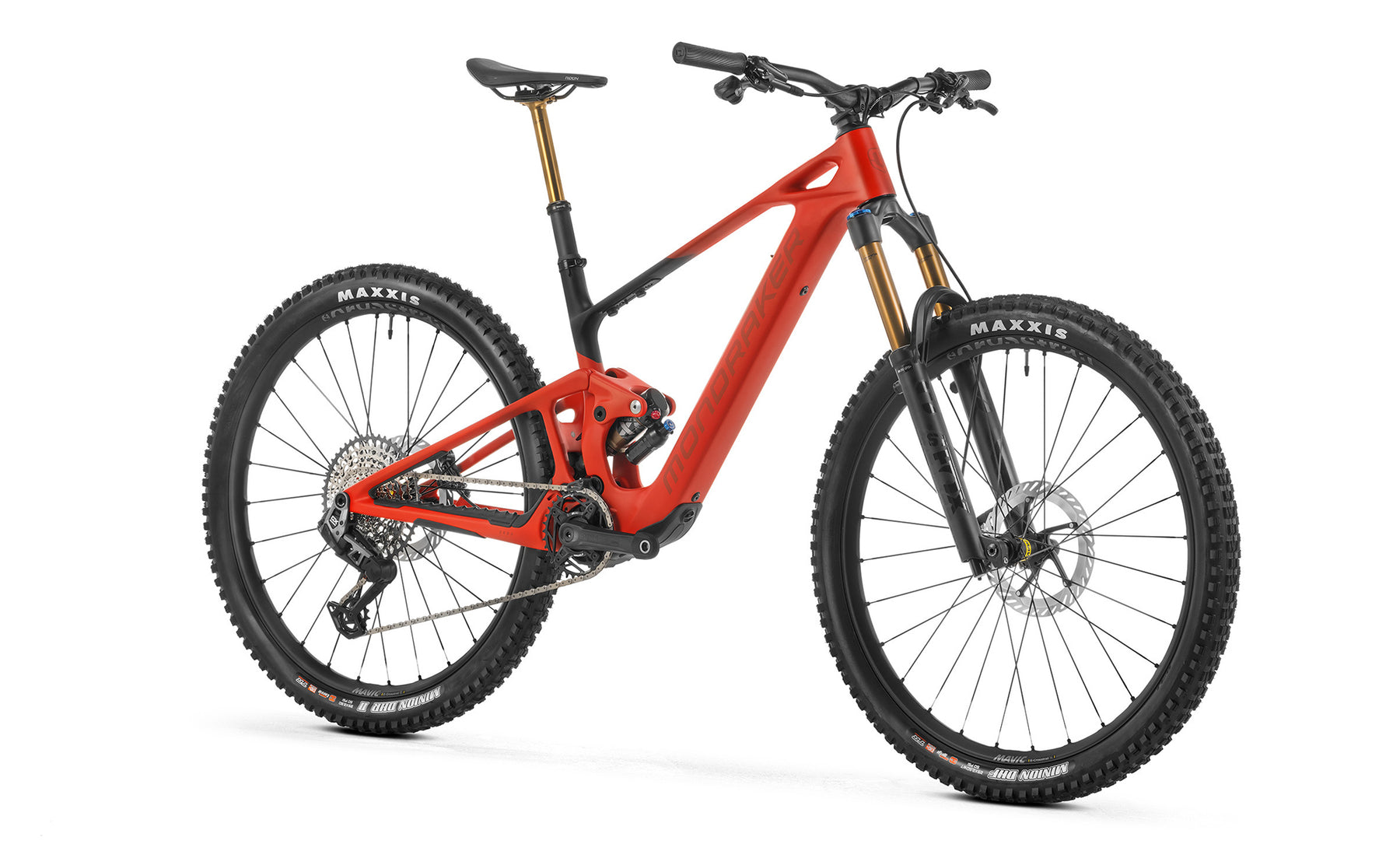

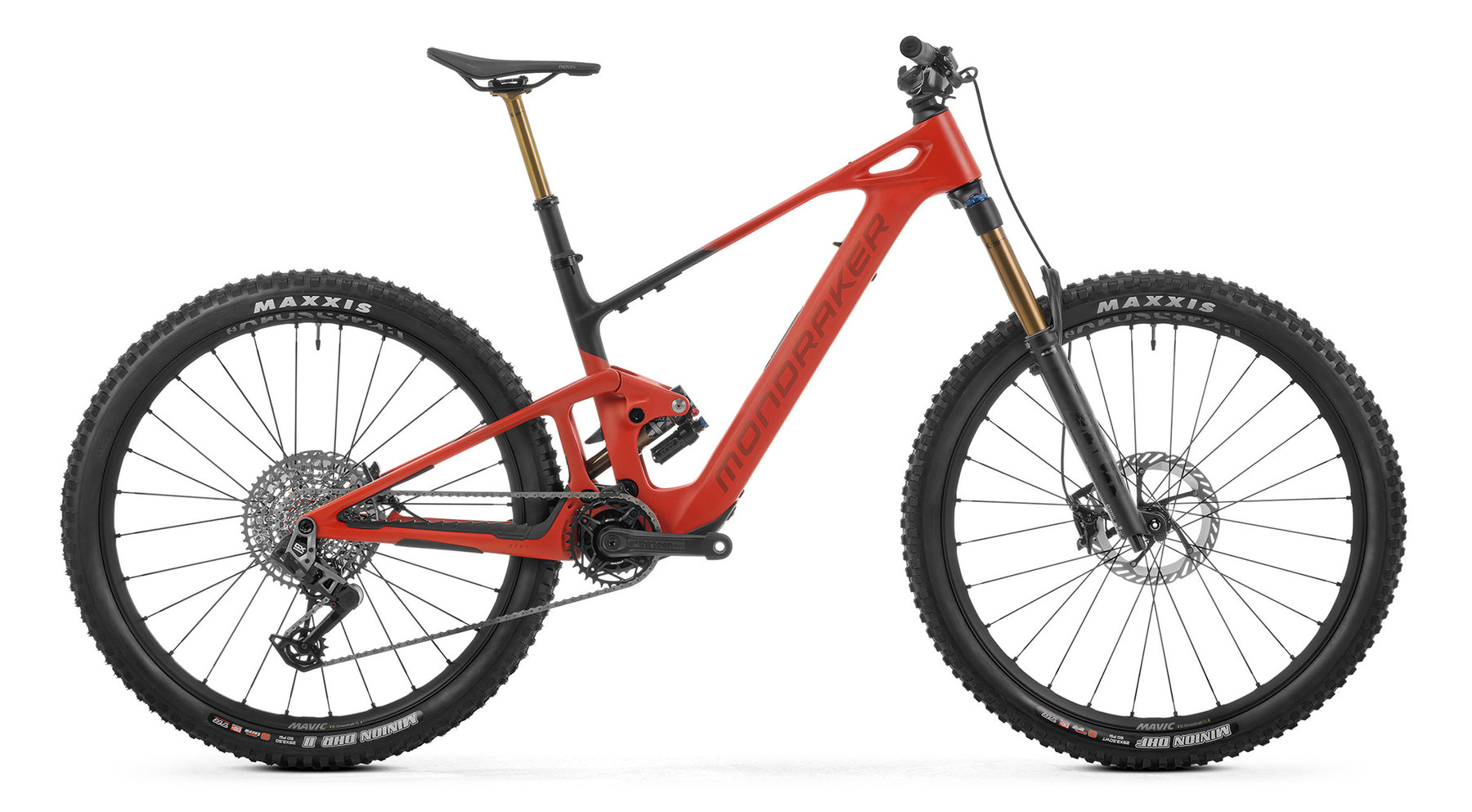

2026 Mondraker Neat RR E-Bike
No reviews
- Free Domestic shipping
- Low stock - 5 items left
- Backordered, shipping soon
Key Features
- Stealth Air Carbon frame with E-Bike Optimized Zero Suspension System and Forward Geometry
- TQ HPR50 Motor (50 Nm torque) and TQ HRP50 360 Wh integrated, removable Battery (Optional TQ 160 Wh range extender available)
- FOX FLOAT 36 Factory 160mm fork (Kashima, GRIP X2 damper) and FOX FLOAT X Factory 150mm shock (Kashima)
- SRAM GX Eagle Transmission 12-speed AXS electronic wireless drivetrain
- Shimano Deore XT M8120 4-piston brakes with 203mm ICE TECH rotors
- Mavic E-CrossTrail SL 29 Alloy wheelset (30mm inner width)
- Maxxis Minion DHF (front) MaxxGrip and DHR II (rear) MaxxTerra tires (29" x 2.5" WT, EXO+ casing)
- FOX Transfer Factory dropper seatpost (Kashima) with adjustable travel (up to 210mm max)
- Power settings customizable via TQ E-Bike smartphone app
Full Specifications
| Product | Mondraker Neat RR E-Bike |
|---|---|
| Model Year | 2025 |
| Intended Use | Enduro / All-Mountain |
| Rider | Unisex |
| Sizes and Geometry | SM MD LG XL View Full Geometry |
| Wheel Size | 29" |
| E-Bike Class | Class 1: Pedal Assist (Pedelecs) |
| Frame Material | Carbon Fiber |
| Frame Material Details | Stealth Air carbon front and rear triangles, one-piece Monoblock upper link, exclusive plastic motor covers, molded chainstay and seatstay protection |
| Rear Travel | 150mm |
| Rear Shock | FOX FLOAT X Factory, EVOL, 2-position compression lever (Open/Firm), rebound adjust, Kashima coating, trunnion mount, 185mm length x 55mm stroke |
| Fork | FOX FLOAT 36 Factory, GRIP X2 damper, high/low-speed compression adjust, high/low-speed rebound adjust, Kashima coating, 44mm offset, Kabolt thru-axle |
| Fork Travel | 160mm |
| Head Tube Diameter | Straight, 1.5" |
| Headset | ACROS custom, internal cable routing, IS52/ZS56 |
| Handlebar | ONOFF S6 1.0 Carbon, 800mm width, 25mm rise, 8° backsweep, 5° upsweep, 31.8mm clamp diameter |
| Stem | ONOFF S6, 6061 forged and CNC alloy, 30mm length, 0° rise, 31.8mm bar clamp |
| Grips | ONOFF Forest, 135mm length, CNC alloy lock-on |
| Brakes | Shimano Deore XT M8120, 4-piston, resin pads with cooling fin Rotors: Shimano MT800 ICE TECH, CENTER LOCK, 203mm |
| Brake Levers | Shimano Deore XT M8100 |
| Drivetrain | 1x |
| Shifters | SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless, MMX mounting bracket |
| Front Derailleur | None |
| Rear Derailleur | SRAM GX Eagle Transmission, 12-speed, AXS electronic wireless, roller bearing clutch |
| ISCG Tabs | N/A (Integrated with motor) |
| Chainguide | Upper slider |
| Cranks | e*thirteen Helix Core e*spec Plus Alloy, 160mm length |
| Chainrings | SRAM Eagle Transmission, steel, X-SYNC 2, narrow/wide profile, 34 tooth, 104mm BCD |
| Bottom Bracket | N/A (Integrated with motor) |
| Pedals | None |
| Chain | SRAM GX Eagle Transmission Flattop, 12-speed, with PowerLock |
| Cassette | SRAM GX Eagle Transmission XS-1275, 12-speed, 10-52 tooth |
| Rims | Mavic E-CrossTrail SL Alloy, 30mm inner width, hookless, 28 hole, tubeless ready |
| Hubs | Mavic Infinity, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with ID360 freehub and XD driver |
| Spokes | Mavic, straight-pull, double-butted |
| Tires | Front: Maxxis Minion DHF, 3C MaxxGrip compound, EXO+ casing, TR, 60 TPI, 29" x 2.5" WT Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, EXO+ casing, TR, 60 TPI, 29" x 2.5" WT |
| Saddle | fi'zi:k Terra Aidon Slim X5 |
| Seatpost | FOX Transfer Factory dropper, adjustable travel, Kashima coating; Shimano MT800 remote lever |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | N/A |
| Bottle Cage Mounts | One inside front triangle, plus accessory mounts under top tube |
| Colors | Red/Black |
| Warranty | Lifetime main frame with registration; 2 years paint, rear triangle, and links |
| Weight | 41 lb 3.2 oz (18688 g) |
| Miscellaneous |
|

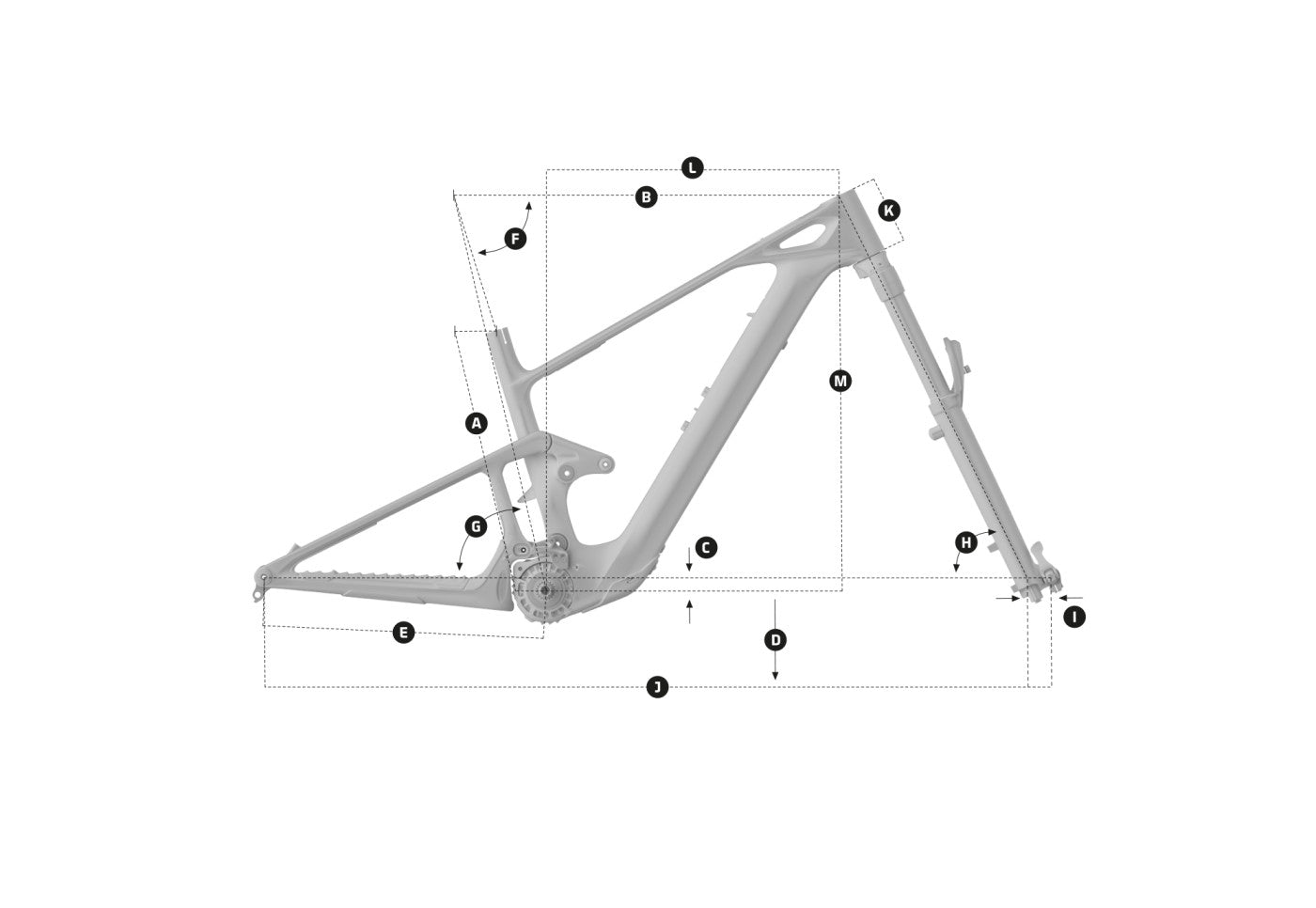

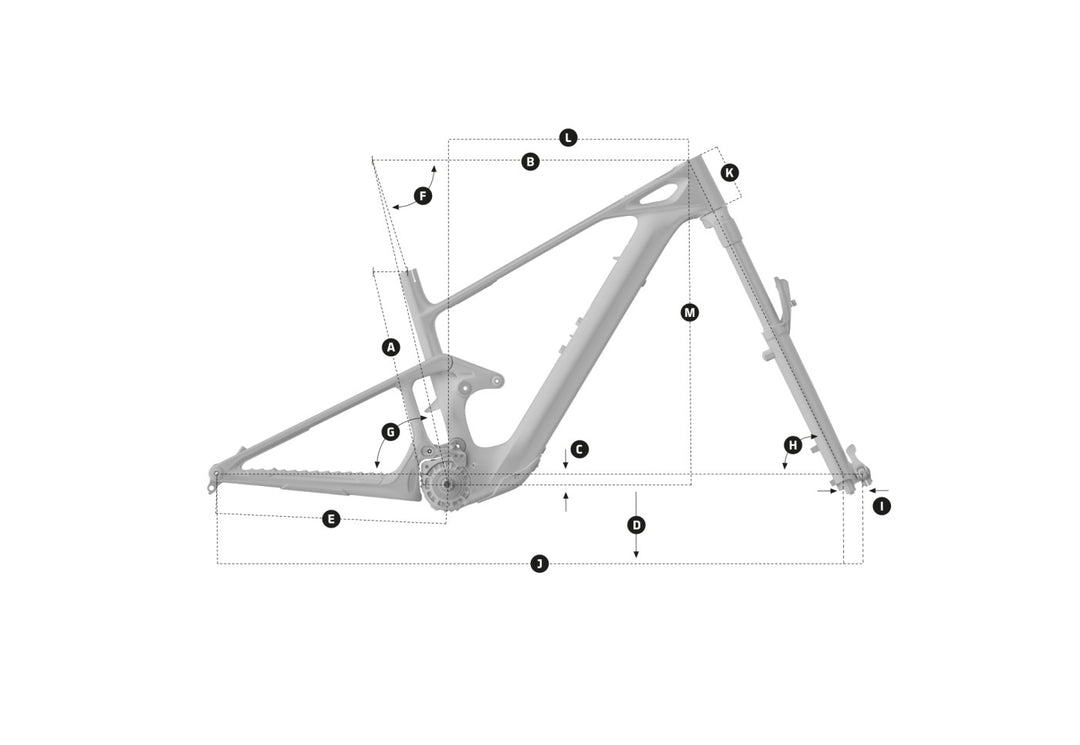

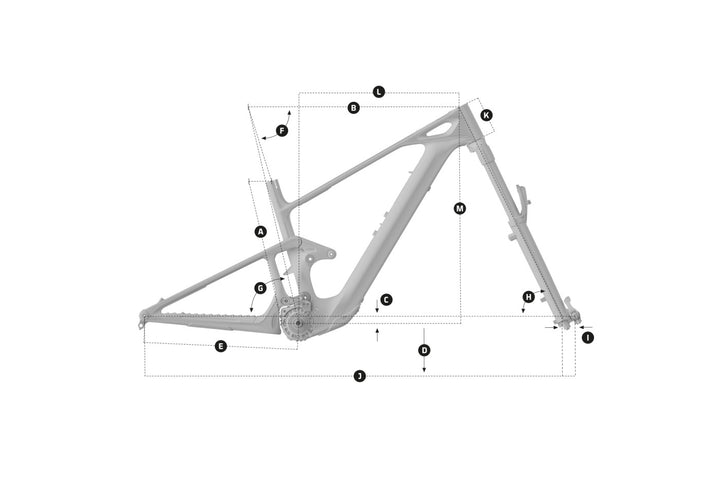

Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 595mm | 615mm | 640mm | 660mm |
| Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Head Tube Length | 110mm | 110mm | 130mm | 140mm |
| Seat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| Seat Tube Length | 380mm | 420mm | 450mm | 490mm |
| Bottom Bracket Height | 348mm | 348mm | 348mm | 348mm |
| Chainstay Length | 450mm | 450mm | 450mm | 450mm |
| Wheelbase | 1235mm | 1255mm | 1275mm | 1295mm |
| Standover | N/A | N/A | N/A | N/A |
| Reach | 450mm | 470mm | 495mm | 515mm |
| Stack | 626mm | 626mm | 642mm | 650mm |
| Additional Info |
|
|||
