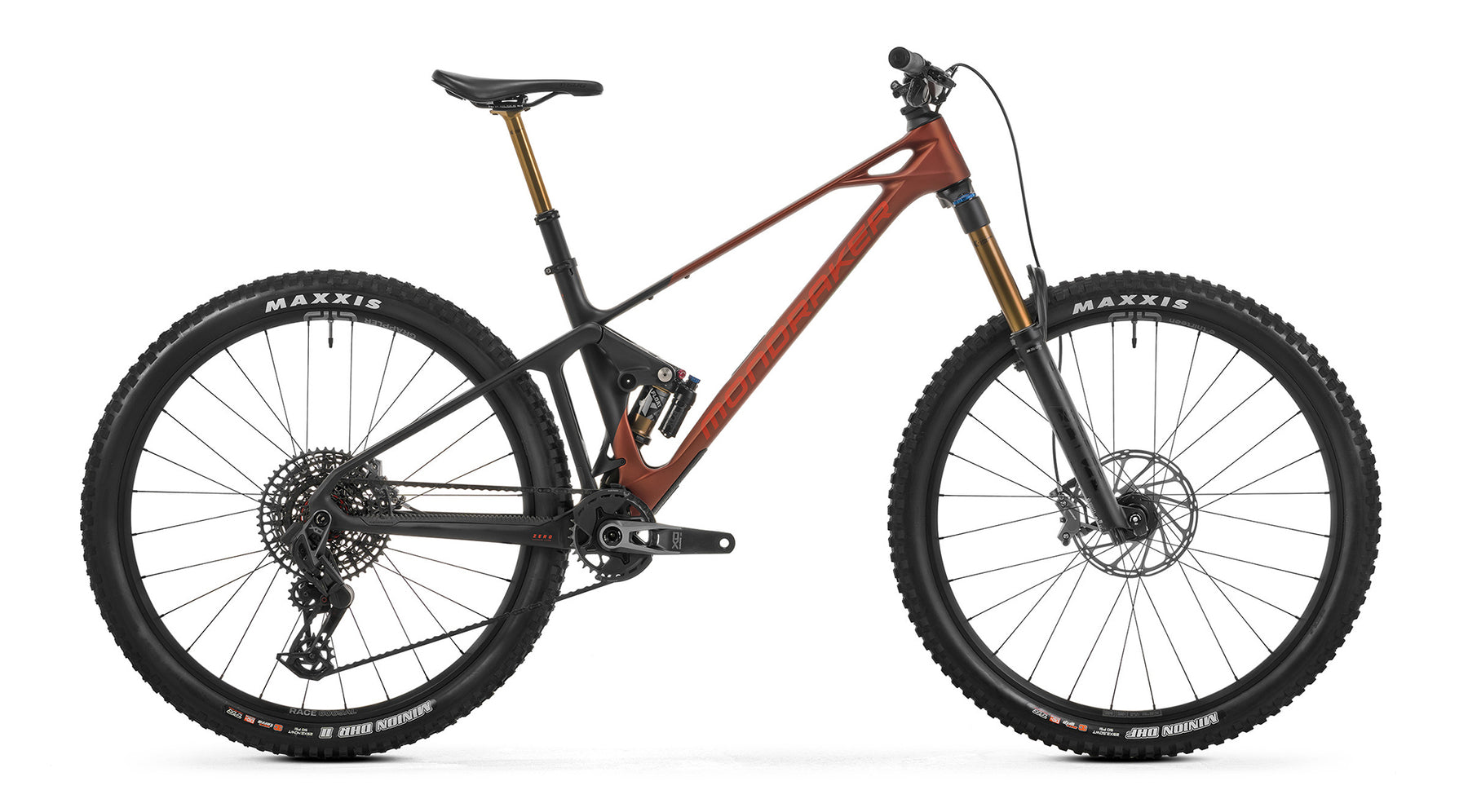

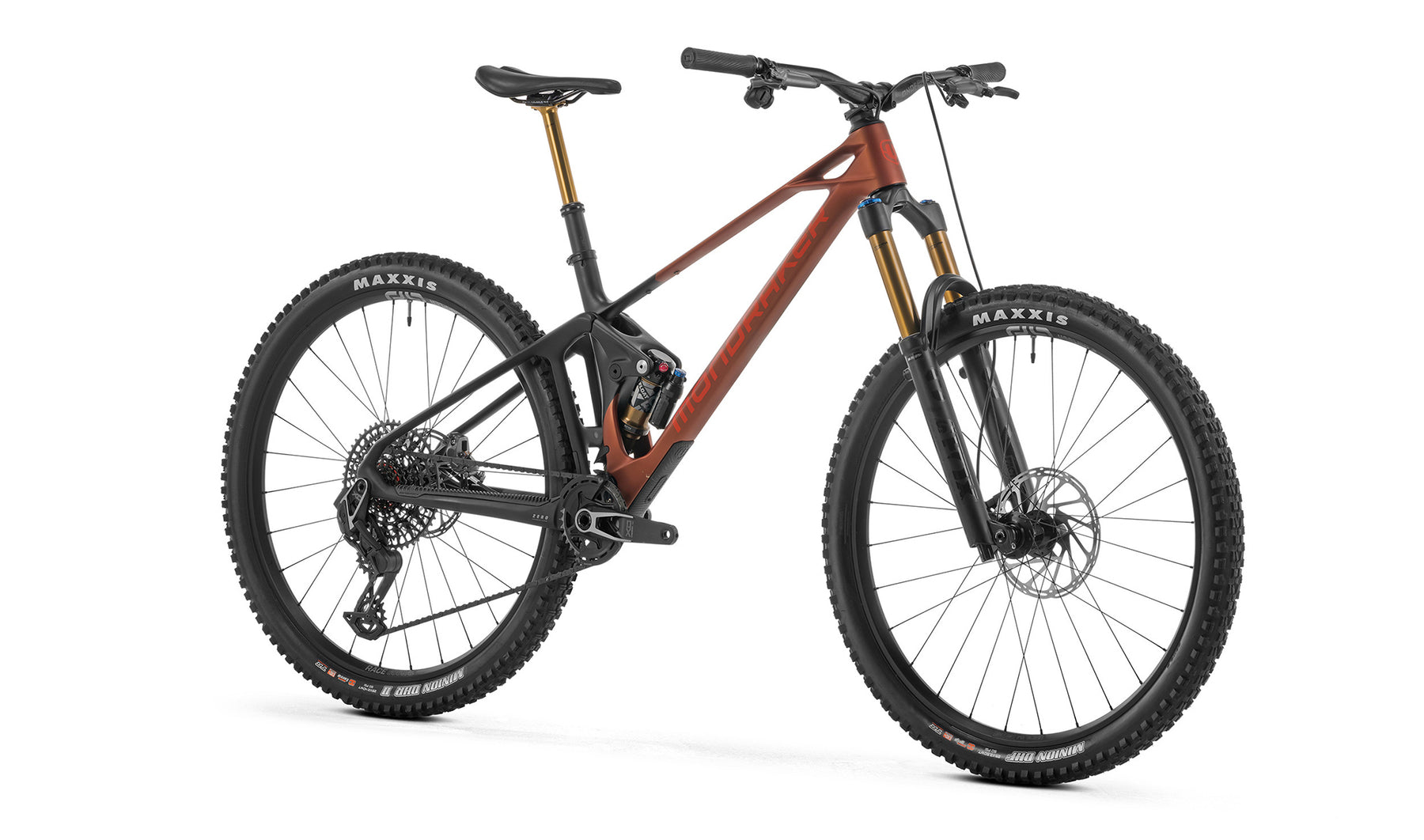

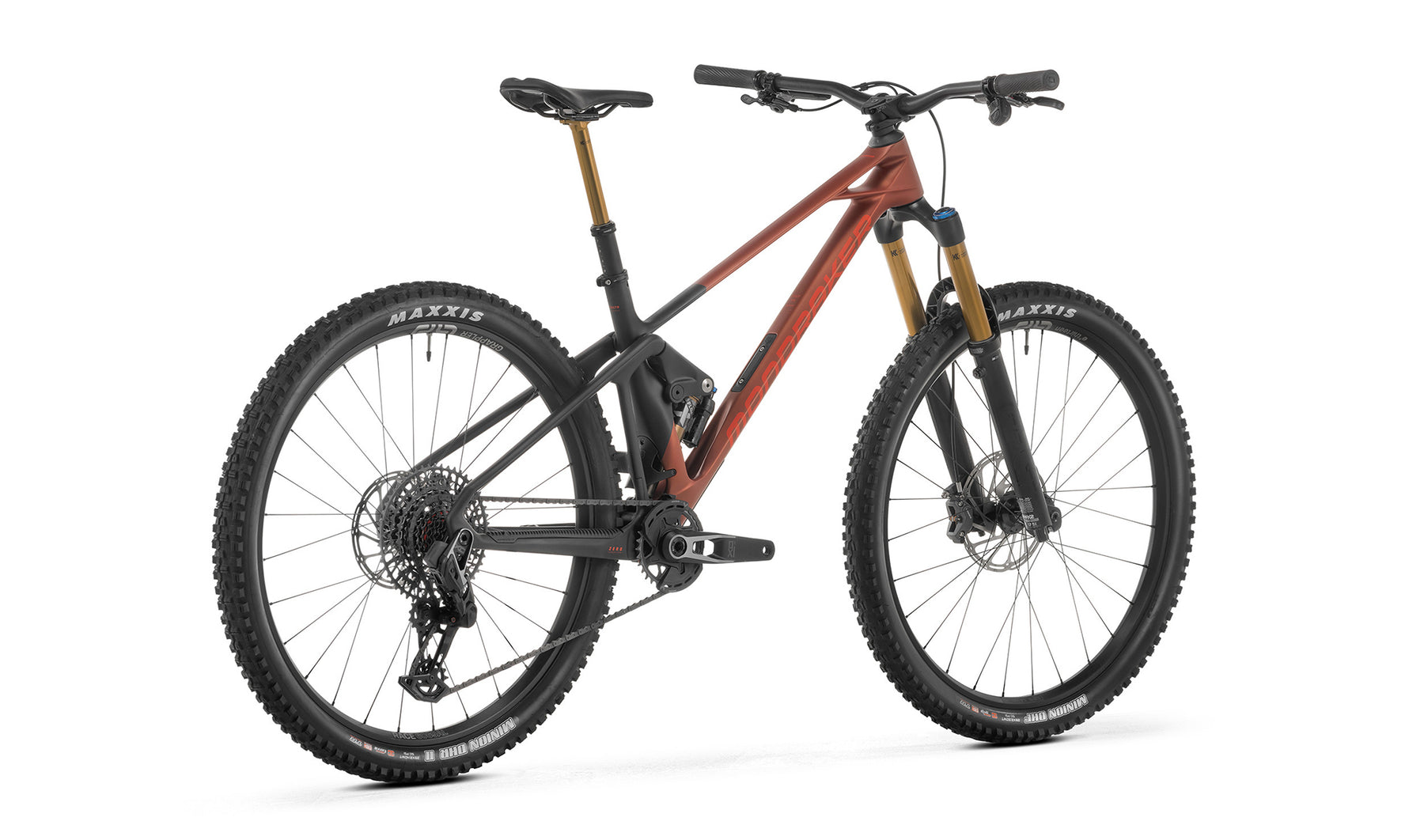

2026 Mondraker Foxy Carbon RR Bike
No reviews
- Free Domestic shipping
- Low stock - 5 items left
- Backordered, shipping soon
Key Features
- Stealth Air Carbon frame with Zero Suspension System and Forward Geometry
- Geometry is adjustable via a 2-position lower shock link bolt and an included +/-1° headset cups kit
- FOX FLOAT 36 Factory 160mm fork (Kashima) and FOX FLOAT X Factory 150mm shock (Kashima)
- SRAM X0 Eagle Transmission 12-speed wireless drivetrain
- SRAM Code Bronze 4-piston brakes with 200mm front/180mm rear rotors
- e*thirteen Grappler Race aluminum wheelset (30mm inner width)
- Maxxis Minion DHF/DHR II tires (29" x 2.5" / 2.4" WT) with EXO+ casing
- FOX Transfer Factory dropper seatpost with adjustable travel (up to 210mm max)
- Lifetime frame warranty with registration
Full Specifications
| Product | Mondraker Foxy Carbon RR Bike |
|---|---|
| Model Year | 2025 |
| Intended Use | Enduro / All-Mountain |
| Rider | Unisex |
| Sizes and Geometry | SM (standard, low) MD (standard, low) LG (standard, low) XL (standard, low) View Full Geometry |
| Wheel Size | 29" |
| Frame Material | Carbon Fiber |

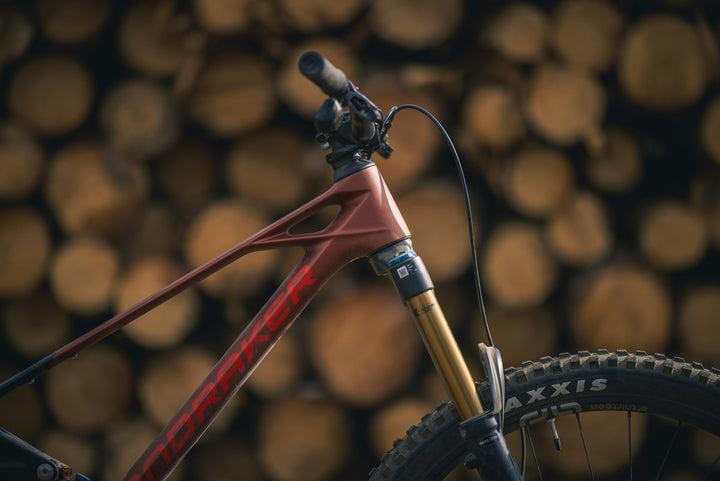

| Frame Material Details | Stealth Air Carbon front and rear triangles, Carbon Monoblock upper link, molded chainstay and down tube protection |
| Rear Travel | 150mm |

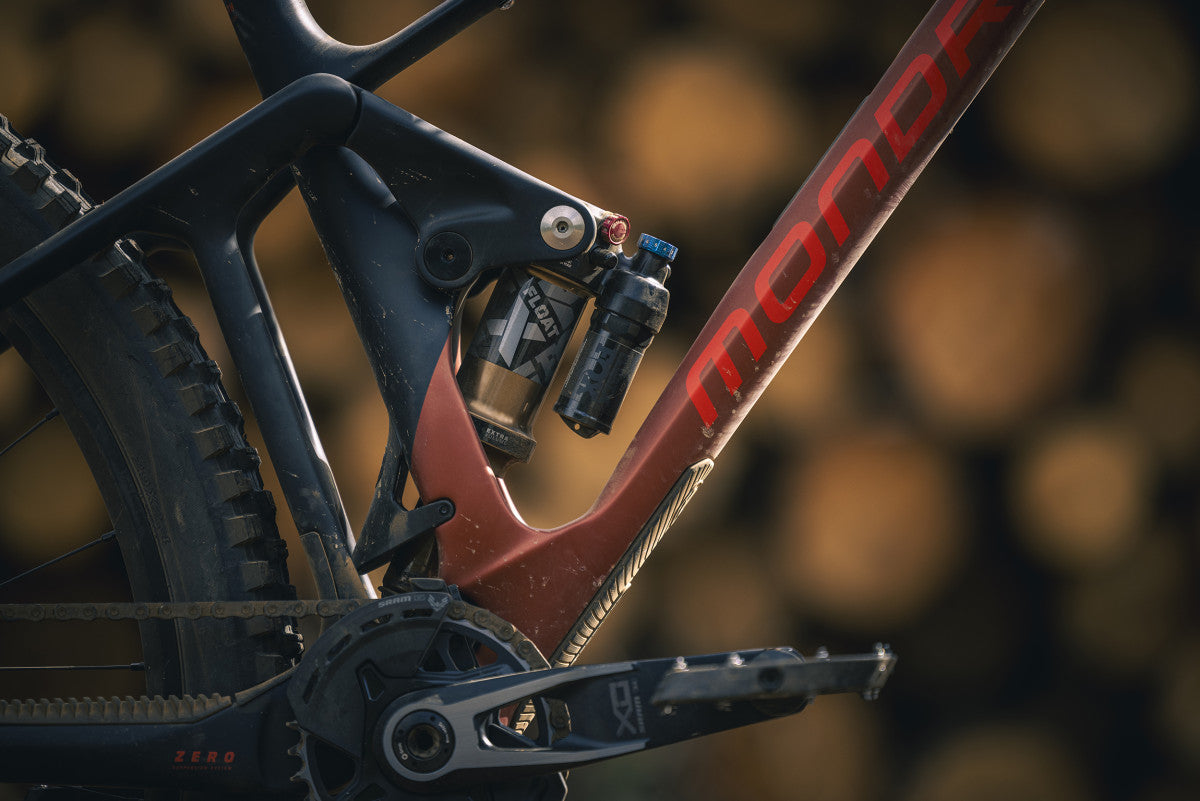

| Rear Shock | FOX FLOAT X Factory, EVOL, 2-position compression lever (Open/Firm), rebound adjust, Kashima coating, trunnion mount, 205mm length x 65mm stroke |
| Fork | FOX FLOAT 36 Factory, GRIP X2 damper, high/low-speed compression adjust, high/low-speed rebound adjust, Kashima coating, 44mm offset, Kabolt thru-axle |
| Fork Travel | 160mm |
| Head Tube Diameter | Straight, 1.5" |
| Headset | ACROS custom, internal cable routing, IS52/ZS56 |

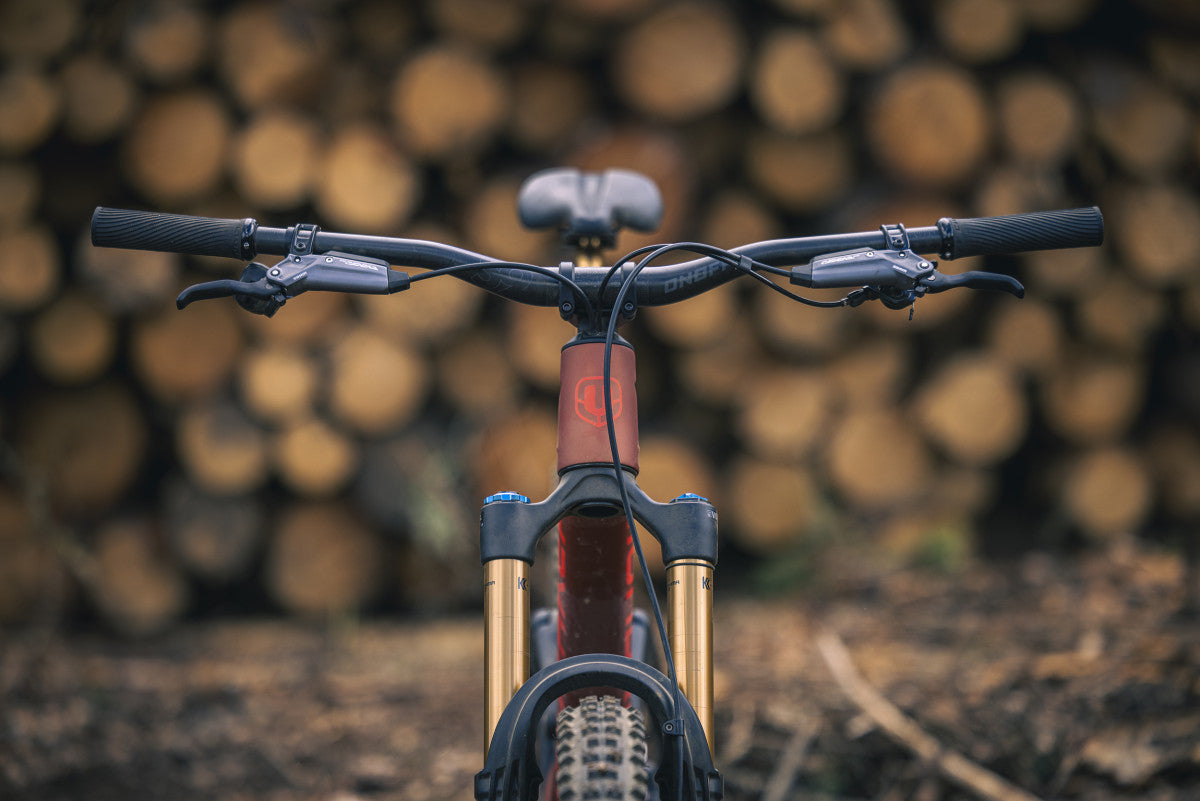

| Handlebar | ONOFF S9 1.0 Carbon, 800mm width, 25mm rise, 8° backsweep, 5° upsweep, 31.8mm clamp diameter |
| Stem | ONOFF S9, CNC alloy, 30mm length, 0° rise, 31.8mm bar clamp |
| Grips | ONOFF Forest, CNC lock-on, 135mm length |
| Brakes | SRAM Code Bronze, 4-piston, steel-backed organic pads Rotors: SRAM CenterLine 6-bolt one-piece rotors (200mm front, 180mm rear) |
| Brake Levers | SRAM Code Bronze Stealth, tool-free reach adjust |
| Drivetrain | 1x |
| Shifters | SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless |
| Front Derailleur | None |
| Rear Derailleur | SRAM X0 Eagle Transmission, 12-speed, AXS electronic wireless |
| ISCG Tabs | ISCG05 |
| Chainguide | None |
| Cranks | SRAM X0 Eagle Transmission Alloy DUB, 170mm length |
| Chainrings | SRAM X0 Eagle Transmission, 32 tooth, CNC-machined alloy, direct mount, with bolt-on bashguards |
| Bottom Bracket | SRAM DUB Wide, sealed bearings, 73mm English/BSA threaded |
| Pedals | None |
| Chain | SRAM X0 Eagle Transmission Flattop, 12-speed, with PowerLock |
| Cassette | SRAM X0 Eagle Transmission XS-1295, 12-speed, 10-52 tooth |
| Rims | e*thirteen Grappler Race, hookless 6069 welded aluminum, 30mm inner width, 28 hole, tubeless ready |
| Hubs | e*thirteen, fully machined aluminum, triple-sealed, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with 6°-engagement freehub and XD driver |
| Spokes | e*thirteen Hive custom, triple-butted steel, alloy nipples with washers |
| Tires | Front: Maxxis Minion DHF, 3C MaxxGrip compound, EXO+ casing, 120 TPI, TR, 29" x 2.5" WT Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, EXO+ casing, 120 TPI, TR, 29" x 2.4" WT |
| Saddle | SDG Bel-Air V3, LPU foam, steel rails |
| Seatpost | FOX Transfer Factory dropper, adjustable travel, Kashima coating Drop: 95-120mm (SM), 125-150mm (MD), 155-180mm (LG), 185-210mm (XL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | |
| Bottle Cage Mounts | One inside front triangle (with Fidlock pocket), plus accessory mounts under top tube |
| Colors | Earth Red/Black/Flame Red |
| Warranty | Lifetime frame with registration, 3 years paint |
| Weight | 31 lb 11.2 oz (14379 g) |
| Miscellaneous |
|

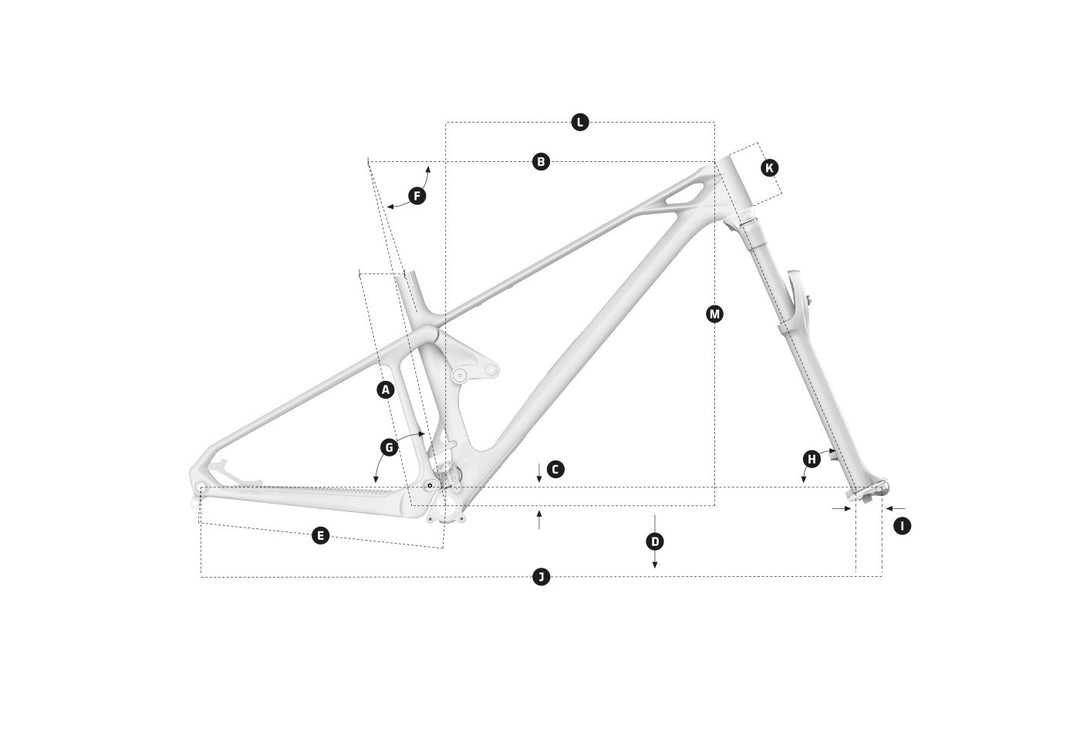

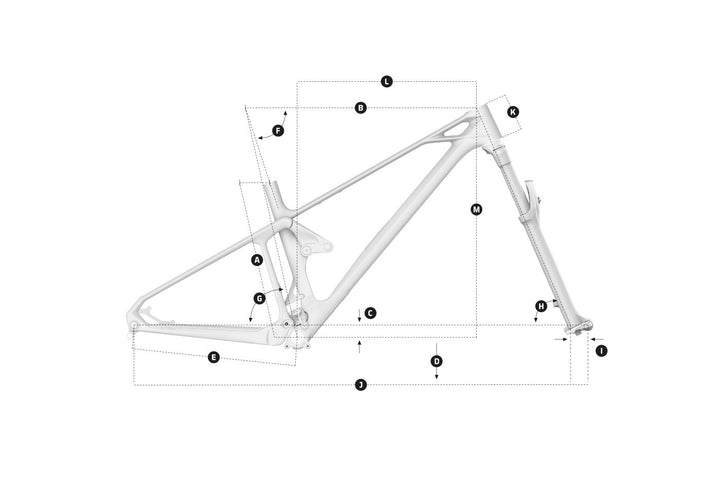

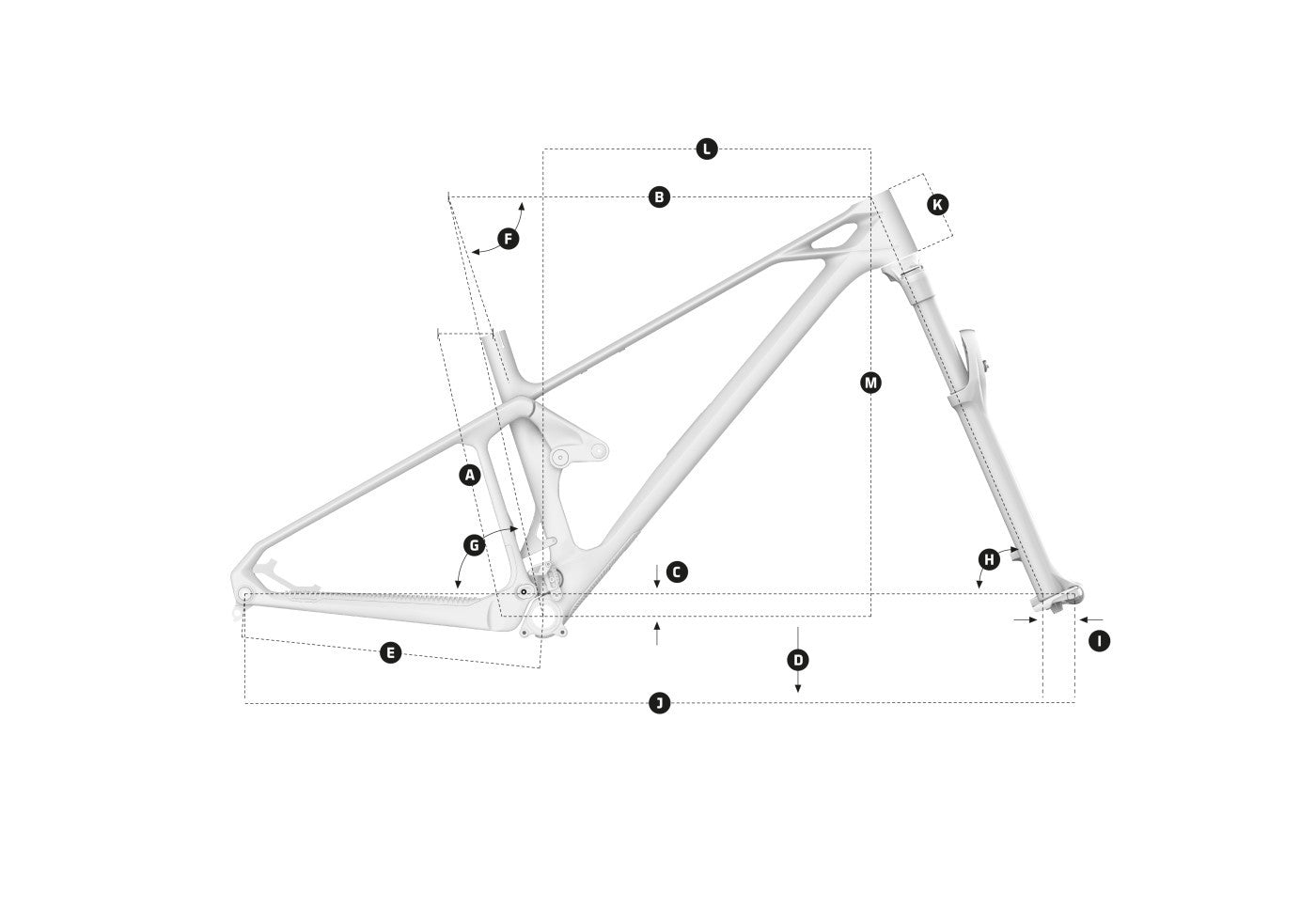

Geometry
| Size | SM (standard, low) | MD (standard, low) | LG (standard, low) | XL (standard, low) |
|---|---|---|---|---|
| Top Tube Length | 600mm | 620mm | 650mm | 670mm |
| Head Tube Angle | 65.0°, 64.5° | 65.0°, 64.5° | 65.0°, 64.5° | 65.0°, 64.5° |
| Head Tube Length | 90mm | 100mm | 115mm | 130mm |
| Seat Tube Angle | 76.0°, 75.5° | 76.0°, 75.5° | 76.0°, 75.5° | 76.0°, 75.5° |
| Seat Tube Length | 375mm | 415mm | 445mm | 500mm |
| Bottom Bracket Height | 350mm (23mm drop), 345mm (28mm drop) | 350mm (23mm drop), 345mm (28mm drop) | 350mm (23mm drop), 345mm (28mm drop) | 350mm (23mm drop), 345mm (28mm drop) |
| Chainstay Length | 435mm, 445mm | 435mm, 445mm | 435mm, 445mm | 435mm, 445mm |
| Wheelbase | 1203mm, 1210mm | 1227mm, 1233mm | 1253mm, 1260mm | 1279mm, 1286mm |
| Standover | ||||
| Reach | 445mm, 440mm | 465mm, 460mm | 485mm, 480mm | 505mm, 500mm |
| Stack | 615mm, 617mm | 623mm, 627mm | 637mm, 641mm | 651mm, 656mm |
| Additional Info |
|
|||
