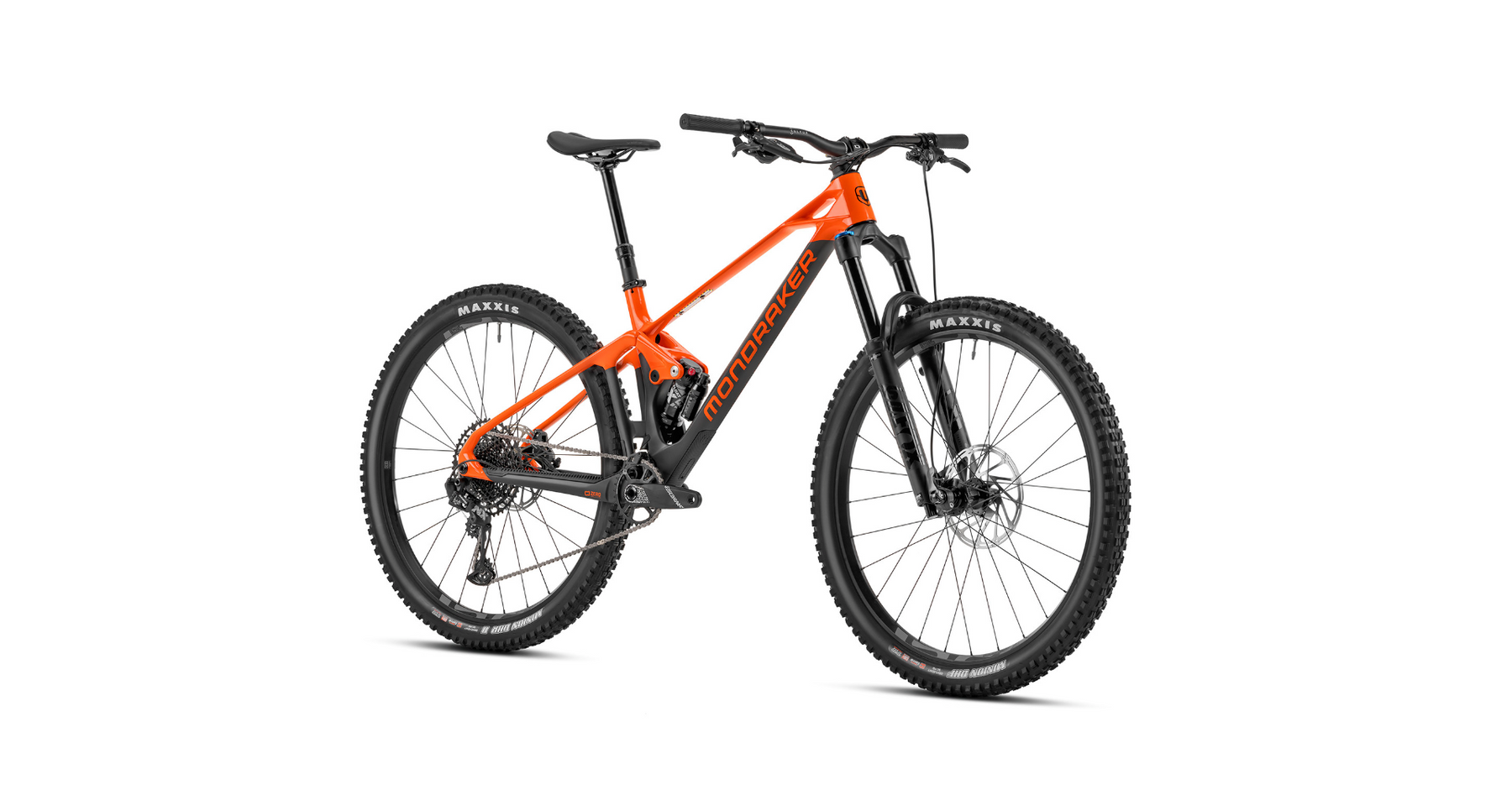

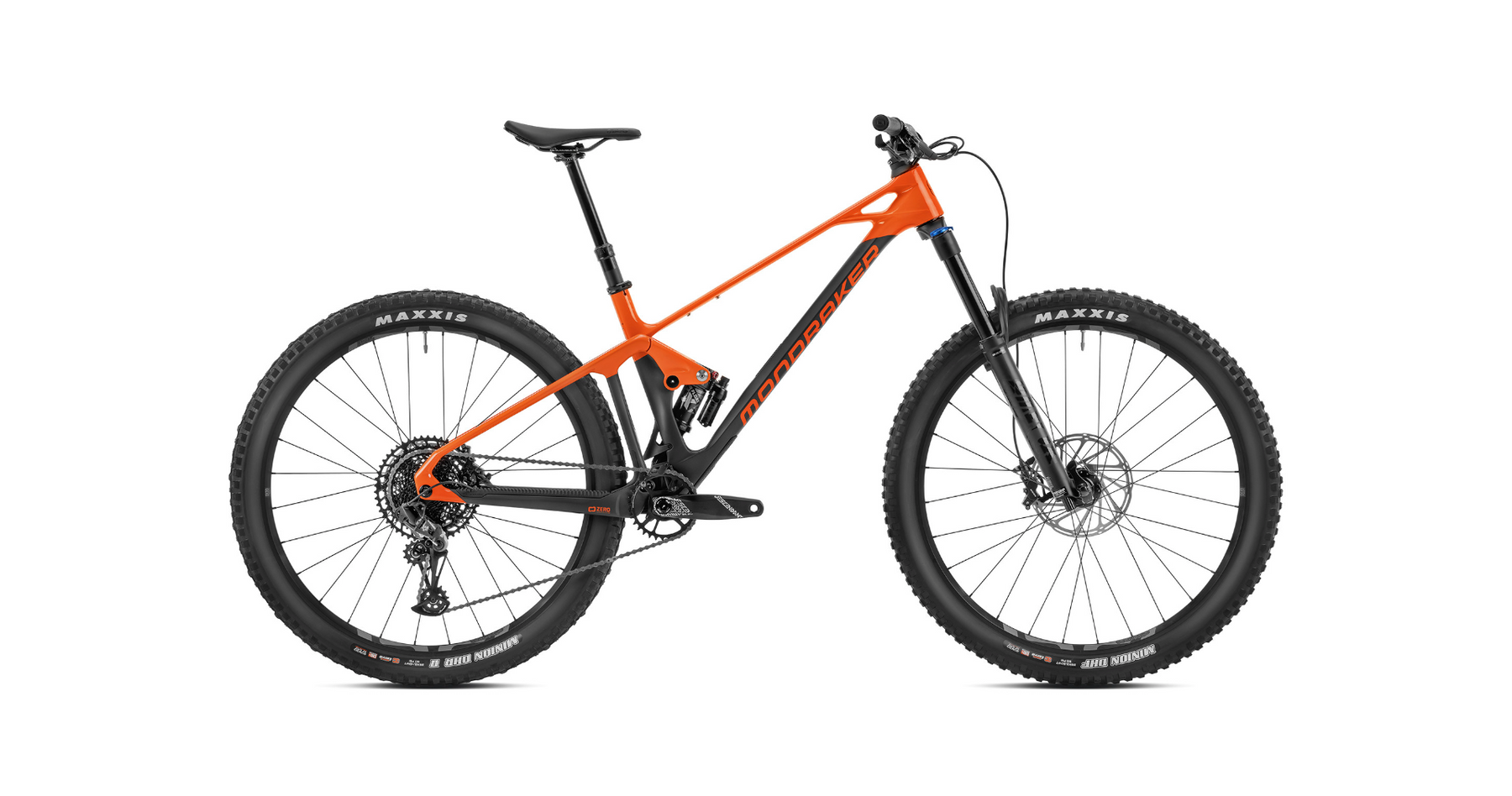

2026 Mondraker Foxy Carbon R Bike
No reviews
- Free Domestic shipping
- Low stock - 5 items left
- Backordered, shipping soon
Key Features
- Foxy 29 Stealth Air full Carbon frame with Zero Suspension System and Forward Geometry
- Geometry is adjustable via a 2-position lower shock link bolt
- Fox 36 29 Float Performance 160mm fork (GRIP damper) and Fox Float-X LV Performance 150mm shock
- SRAM NX Eagle 12-speed drivetrain with 11-50T cassette
- SRAM G2 R 4-piston brakes with 200mm (front) and 180mm (rear) Centerline rotors
- Mavic Deemax 29 Boost wheelset (28mm inner width, tubeless ready)
- Maxxis Minion DHF/DHR II tires (3C MAXX TERRA, EXO+ protection)
-
ONOFF Pija dropper seatpost with up to 170mm maximum travel
Full Specifications
| Product | Mondraker Foxy R Bike |
|---|---|
| Model Year | 2026 |
| Intended Use | Enduro / All-Mountain |
| Rider | Unisex |
| Sizes and Geometry | S: 380mm / M: 420mm / L: 450mm / XL: 500mm View Full Geometry |
| Wheel Size | 29" |
| Frame Material | Carbon Fiber |
| Frame Material Details | Foxy 29 Stealth Air full Carbon, Zero Suspension System, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, custom frame protectors. |
| Rear Travel | 150mm |
| Rear Shock | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings. Shock Settings: Light compression, light rebound, air volume spacer 0.6 |
| Fork | Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. |
| Fork Travel | 160mm |
| Head Tube Diameter | Tapered |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Handlebar | ONOFF Sulfur 1.0 double butted 6061 alloy, 800mm width, 20mm rise, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Stem | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Grips | ONOFF Desert, 1lock-on, 135mm |
| Brakes | Front: Sram G2 R, 4-piston caliper Rear: Sram G2 R, 4-piston caliper |
| Brake Levers | Sram G2 R, tool-free reach adjust |
| Drivetrain | 1x |
| Shifters | Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
| Front Derailleur | None |
| Rear Derailleur | Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| ISCG Tabs | ISCG 05 |
| Chainguide | N/A |
| Cranks | Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring Length: 170mm (S/M), 175mm (L/XL) |
| Chainrings | 32T, steel, X-Sync 2 |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
| Pedals | None |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Cassette | Sram XG-1230, 11-50T, 12s |
| Rims | Mavic Deemax 29 Boost, 28mm internal width, tubeless ready, 28 spokes |
| Hubs | Front: Mavic Boost 15x110mm, IS 6 bolts Rear: Mavic ID360 freewheel technology, Boost 12x148mm, IS 6 bolts |
| Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Tires | Front: Maxxis Minion DHF 29x2.5 WT, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, tubeless ready Rear: Maxxis Minion DHR II 29x2.4 WT, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, tubeless ready |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | ONOFF Pija dropper internal, diameter 31.6mm Travel: 95-125mm (S), 120-150mm (M), 140-170mm (L/XL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | N/A |
| Rear Dropout / Hub Dimensions | Boost 12x148mm |
| Max. Tire Size | N/A |
| Bottle Cage Mounts | N/A |
| Colors | N/A |
| Warranty | N/A |
| Weight | 14.9 kg |
| Miscellaneous |
|
Geometry
| Size | SM (standard, low) | MD (standard, low) | LG (standard, low) | XL (standard, low) |
|---|---|---|---|---|
| Top Tube Length | 600mm | 620mm | 650mm | 670mm |
| Head Tube Angle | 64.5°, 64.0° | 64.5°, 64.0° | 64.5°, 64.0° | 64.5°, 64.0° |
| Head Tube Length | 100mm | 100mm | 120mm | 120mm |
| Seat Tube Angle | 77.0°, 76.5° | 77.0°, 76.5° | 77.0°, 76.5° | 77.0°, 76.5° |
| Seat Tube Length | 375mm | 415mm | 445mm | 500mm |
| Bottom Bracket Height | 350mm | 350mm | 350mm | 350mm |
| Chainstay Length | 438mm, 445mm | 438mm, 445mm | 438mm, 445mm | 438mm, 445mm |
| Wheelbase | 1210mm, 1216mm | 1233mm, 1239mm | 1260mm, 1267mm | 1286mm, 1292mm |
| Standover | N/A | N/A | N/A | N/A |
| Reach | 445mm, 440mm | 465mm, 460mm | 485mm, 480mm | 505mm, 500mm |
| Stack | 617mm | 617mm | 647mm | 647mm |
| Additional Info |
|
|||
