2026 Mondraker Crafty Carbon S E-Bike
- Free Domestic shipping
- Low stock - 5 items left
- Backordered, shipping soon
Key Features

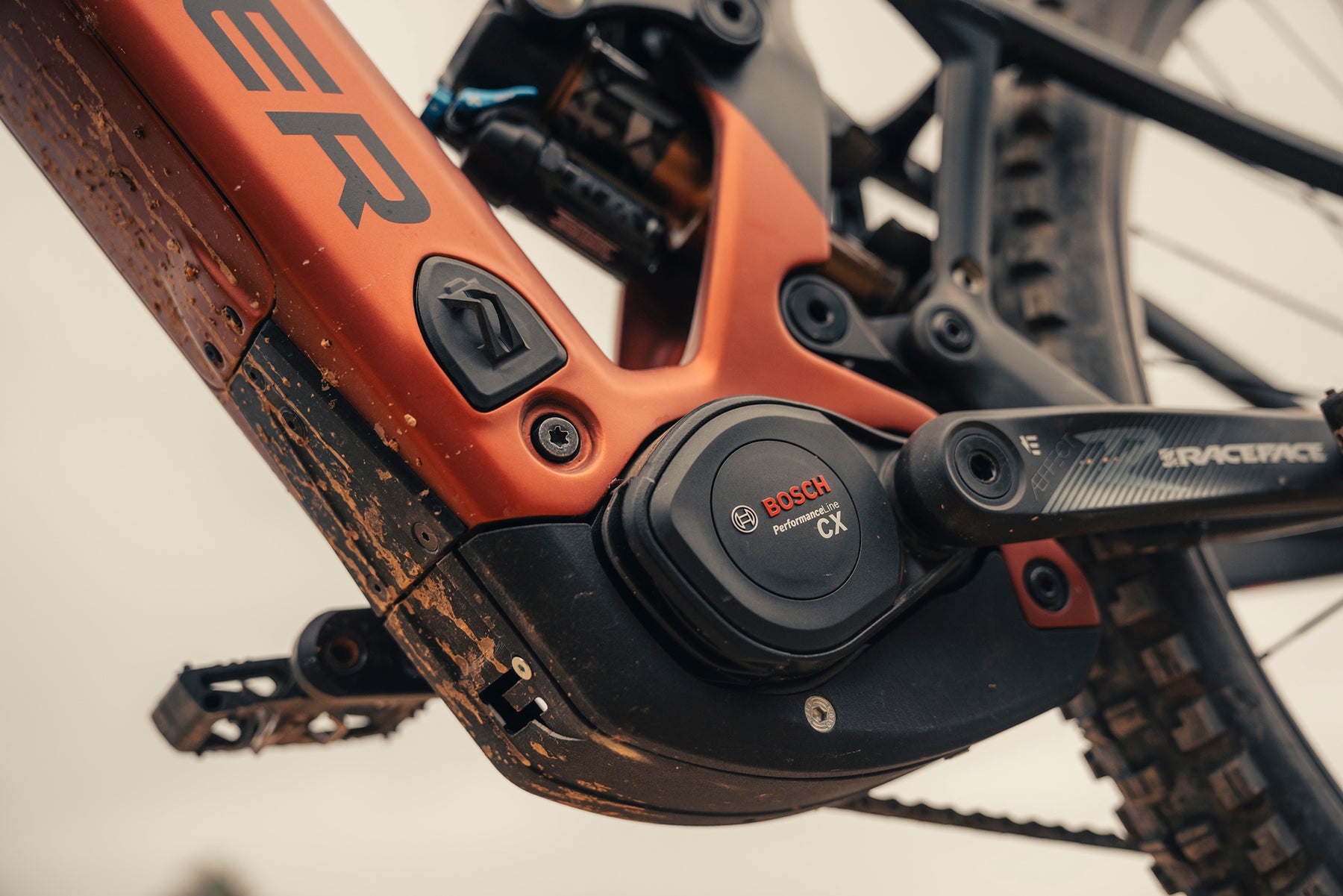

- Bosch Performance Line CX Smart System motor — 85 Nm or 100 Nm max torque, 600 W peak power
- Bosch Powertube 800 Wh integrated battery with optional Powermore 250 Wh range extender
- RockShox ZEB Base 160mm fork and FOX FLOAT X Performance rear shock
- SRAM Eagle 70 Transmission 12-speed drivetrain
- WTB Sportterra Tough rims with Maxxis Assegai & DHR II tires (29" x 2.5")
- X-Fusion Manic dropper post with remote lever
- Lifetime frame warranty (3 years rear triangle & paint)
- Geometry adjustable via two-position flip chip
Full Specifications
| Specification | Details |
|---|---|
| Product | Mondraker Crafty Carbon S E-Bike |
| Model Year | 2026 |
| Intended Use | Enduro / All-Mountain |
| Rider | Unisex |
| Sizes and Geometry | SM (Std, Low) MD (Std, Low) M/L (Std, Low) LG (Std, Low) XL (Std, Low) |
| Wheel Size | 29" |
| E-Bike Class | Class 1: Pedal Assist (Pedelecs) |
| Motor | Bosch Performance Line CX, Smart System, 85 Nm or 100 Nm torque, 600 W peak power |
| Battery | Bosch Powertube, integrated, removable Option: Powermore range extender 250 Wh |
| Battery Capacity | 800 Wh |
| Display/Remote | Bosch Kiox 400 display (top tube integrated); Bosch wireless Mini Remote |
| Modes | Turbo, eMTB, Tour+, Eco, Walk Assist |
| Max Speed with Assist | USA/Canada/NZ: 20 mph (32.2 km/h) Other: 15.5 mph (25 km/h) |
| Frame Material | Carbon Fiber |
| Frame Material Details | Stealth Air carbon front triangle, Stealth Alloy rear triangle, one-piece alloy Monoblock upper link, molded protection |
| Rear Travel | 150mm |
| Rear Shock | FOX FLOAT X Performance, EVOL LV, 2-position lever, trunnion mount, 185mm x 55mm |
| Fork | RockShox ZEB Base, Rush RC damper, low-speed compression & rebound adjust, 38mm stanchions, 44mm offset |
| Fork Travel | 160mm |
| Head Tube Diameter | Straight, 1.5" |
| Headset | ACROS custom, ZS56 upper/lower |
| Handlebar | ONOFF S6 1.0, 7050 alloy, 800mm width, 8° backsweep, 5° upsweep, 31.8mm clamp Rise: 25mm (SM–M/L), 38mm (LG–XL) |
| Stem | ONOFF S6, 6061 forged + CNC alloy, 30mm length, 31.8mm clamp |
| Grips | ONOFF Desert Pro, 135mm, CNC lock-on, standard or thicker diameter by size |
| Brakes | SRAM DB8, 4-piston, steel-backed organic pads Rotors: SRAM CenterLine, 200mm, 6-bolt |
| Brake Levers | SRAM DB8 Stealth, tooled reach adjust |
| Drivetrain | 1x |
| Shifters | SRAM Eagle 70 Transmission, 12-speed |
| Front Derailleur | None |
| Rear Derailleur | SRAM Eagle 70 Transmission, 12-speed |
| Chainguide | None |
| Cranks | e*thirteen Helix Core e*spec Plus Alloy, 160mm |
| Chainrings | SRAM Eagle Transmission, 34T steel, direct mount |
| Pedals | None |
| Chain | SRAM Eagle 70 Transmission Flattop, 12-speed |
| Cassette | SRAM Eagle XS-1270, 12-speed, 10–52T |
| Rims | WTB Sportterra Tough, 6061 aluminum, 30mm inner width, welded, 28 hole, tubeless ready |
| Hubs | WTB Frequency Sport, 15x110mm (Boost) front, 12x148mm (Boost) rear, HG driver |
| Spokes | WTB straight gauge, brass locking nipples |
| Tires | Front: Maxxis Assegai, 3C MaxxGrip, EXO+, 29x2.5" WT Rear: Maxxis Minion DHR II, 3C MaxxTerra, DD casing, 29x2.5" WT |
| Saddle | Ergon SM-10 |
| Seatpost | X-Fusion Manic dropper, remote lever Drop: 125mm (SM), 150mm (MD), 170mm (M/L), 190mm (LG), 200mm (XL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 29" x 2.6" |
| Bottle Cage Mounts | One inside front triangle + accessory mounts under top tube |
| Colors | Vortex Grey, Atomic Orange |
| Warranty | Lifetime frame with registration; 3 years rear triangle and paint |
| Miscellaneous |
|

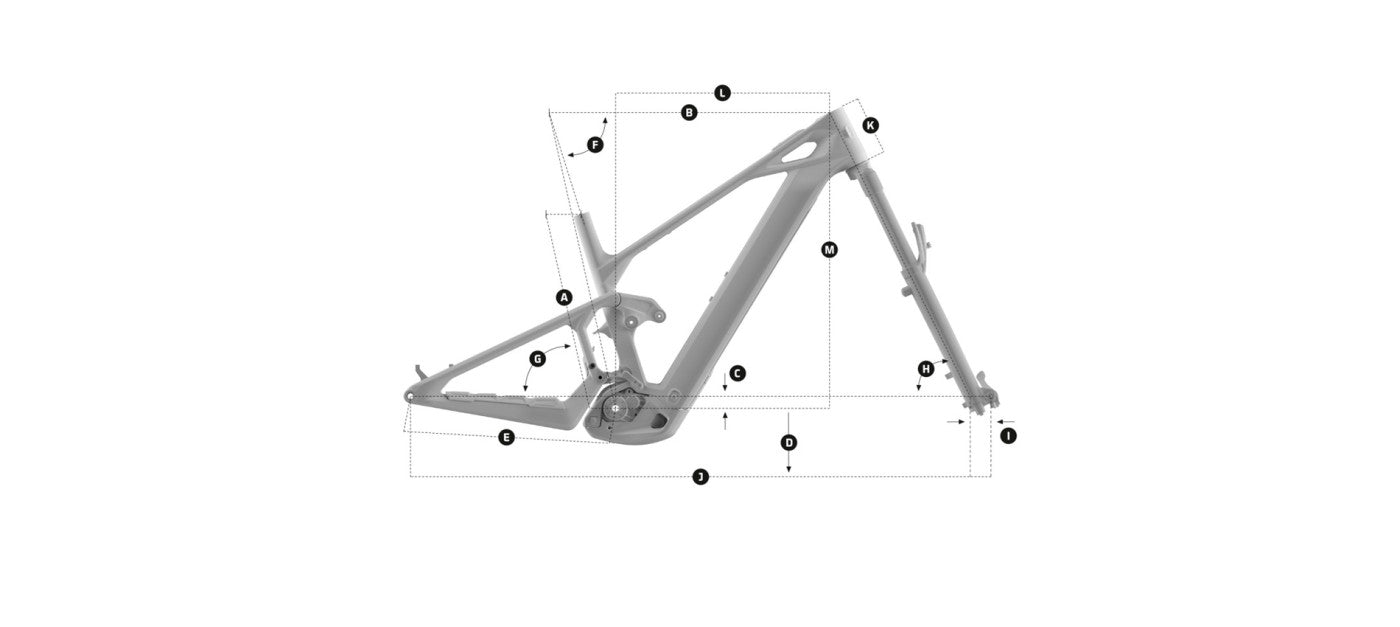

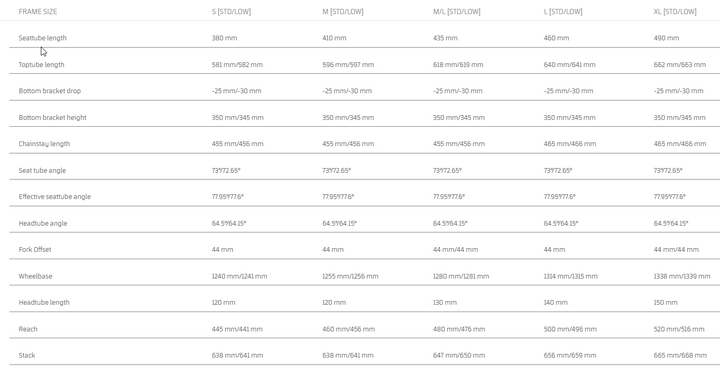

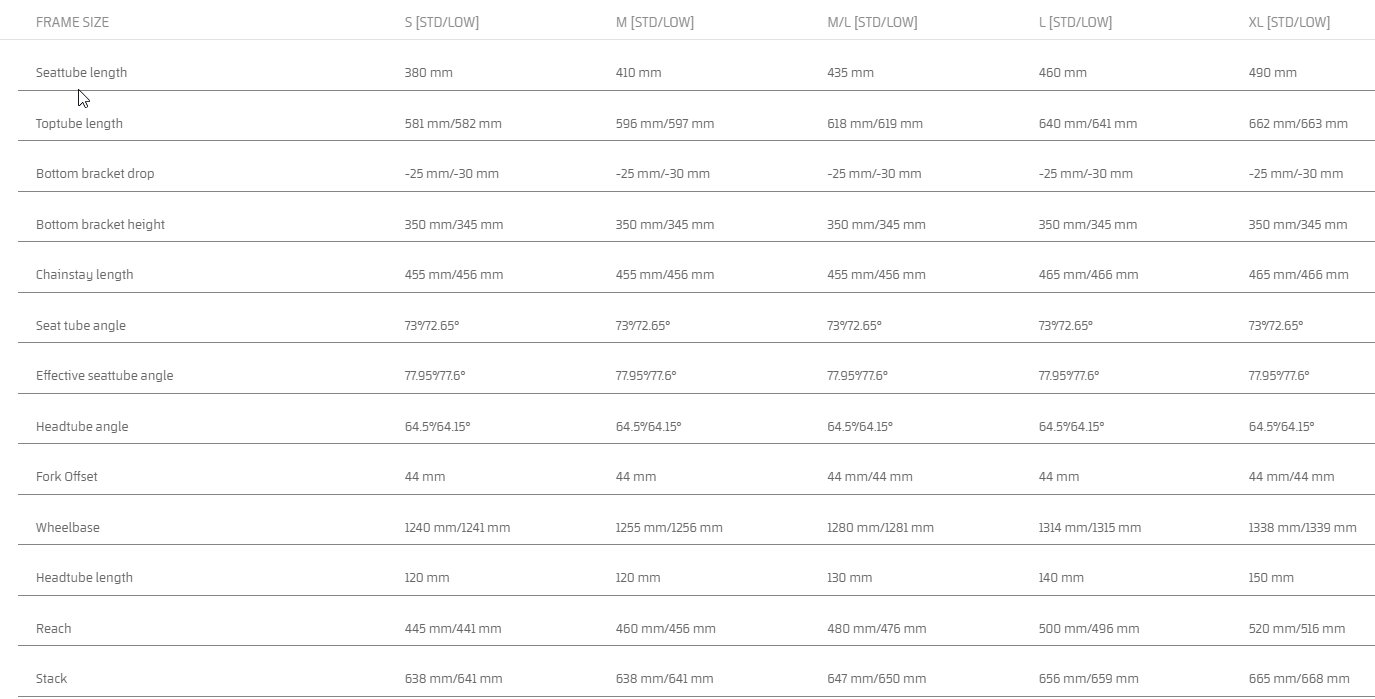

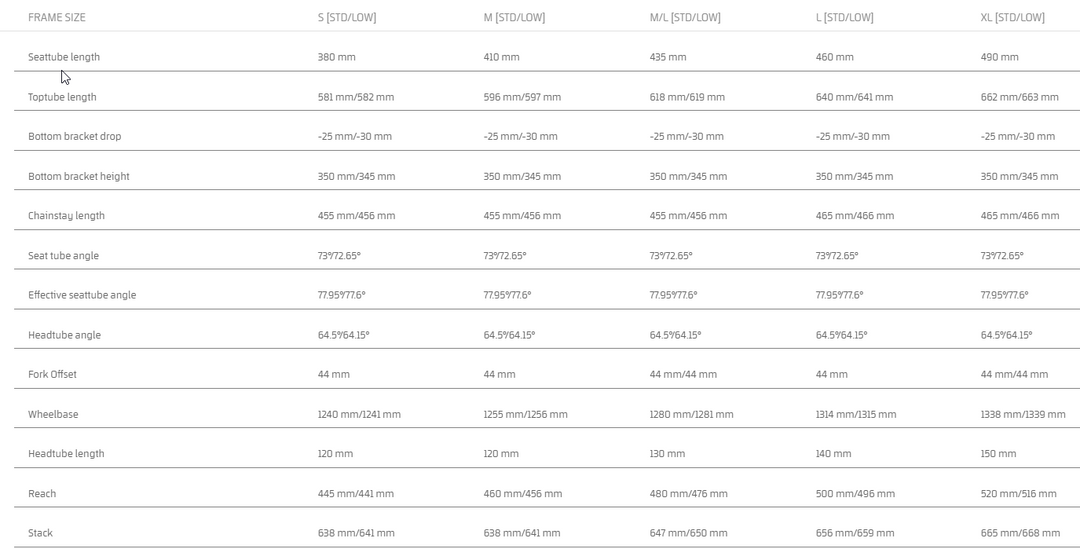

Geometry
| Size | SM (Std, Low) | MD (Std, Low) | M/L (Std, Low) | LG (Std, Low) | XL (Std, Low) |
|---|---|---|---|---|---|
| Top Tube Length | 581mm, 582mm | 596mm, 597mm | 618mm, 619mm | 640mm, 641mm | 662mm, 663mm |
| Head Tube Angle | 64.50°, 64.15° | 64.50°, 64.15° | 64.50°, 64.15° | 64.50°, 64.15° | 64.50°, 64.15° |
| Head Tube Length | 120mm | 120mm | 130mm | 140mm | 150mm |
| Seat Tube Angle | 77.95°, 77.60° | 77.95°, 77.60° | 77.95°, 77.60° | 77.95°, 77.60° | 77.95°, 77.60° |
| Seat Tube Length | 380mm | 410mm | 435mm | 460mm | 490mm |
| Bottom Bracket Height | 350mm / 345mm | 350mm / 345mm | 350mm / 345mm | 350mm / 345mm | 350mm / 345mm |
| Chainstay Length | 455mm, 456mm | 455mm, 456mm | 455mm, 456mm | 465mm, 466mm | 465mm, 466mm |
| Wheelbase | 1240mm, 1241mm | 1255mm, 1256mm | 1280mm, 1281mm | 1314mm, 1315mm | 1338mm, 1339mm |
| Reach | 445mm, 441mm | 460mm, 456mm | 480mm, 476mm | 500mm, 496mm | 520mm, 516mm |
| Stack | 638mm, 641mm | 638mm, 641mm | 647mm, 650mm | 656mm, 659mm | 665mm, 668mm |
| Additional Info |
|
||||
