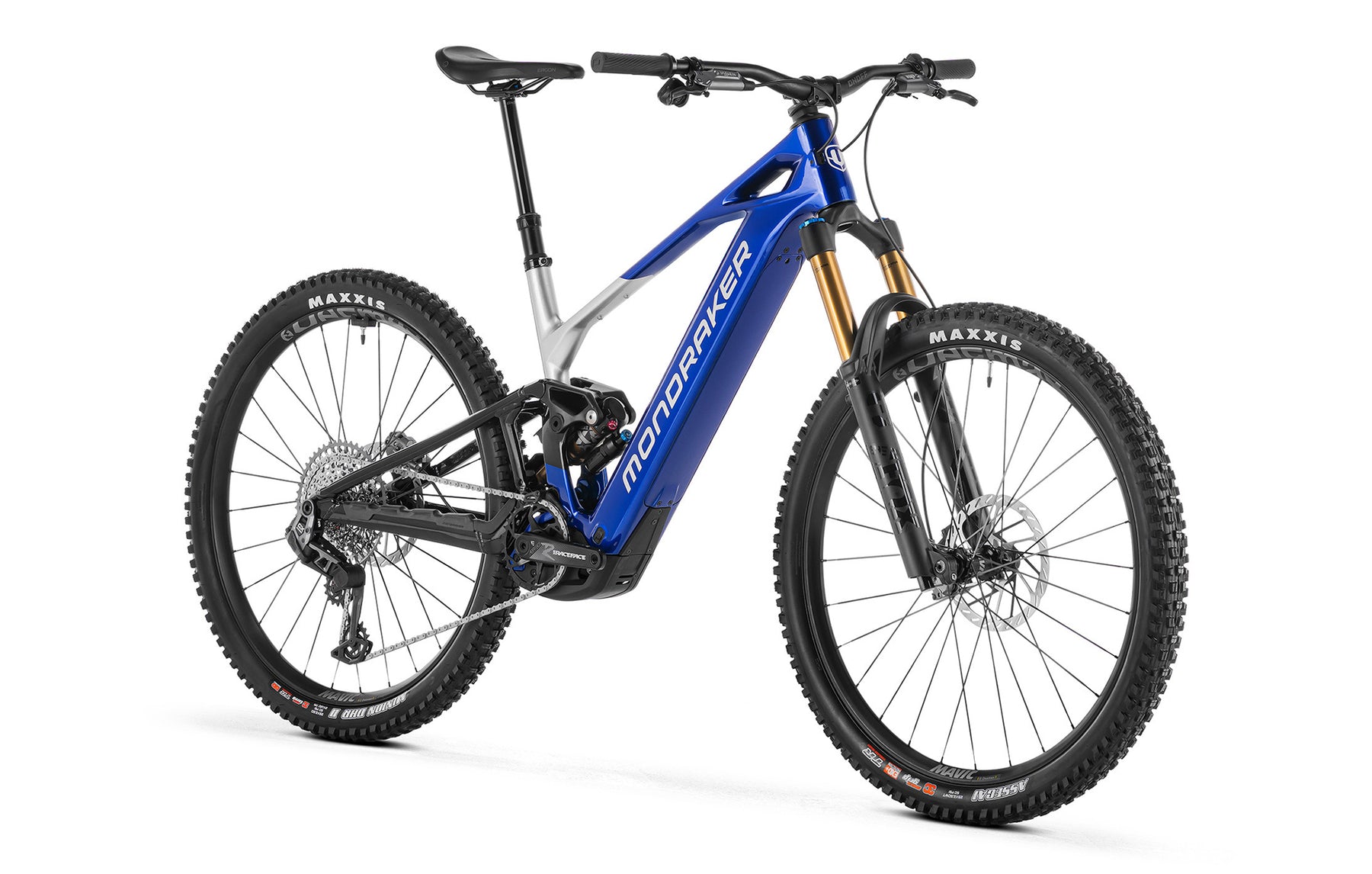

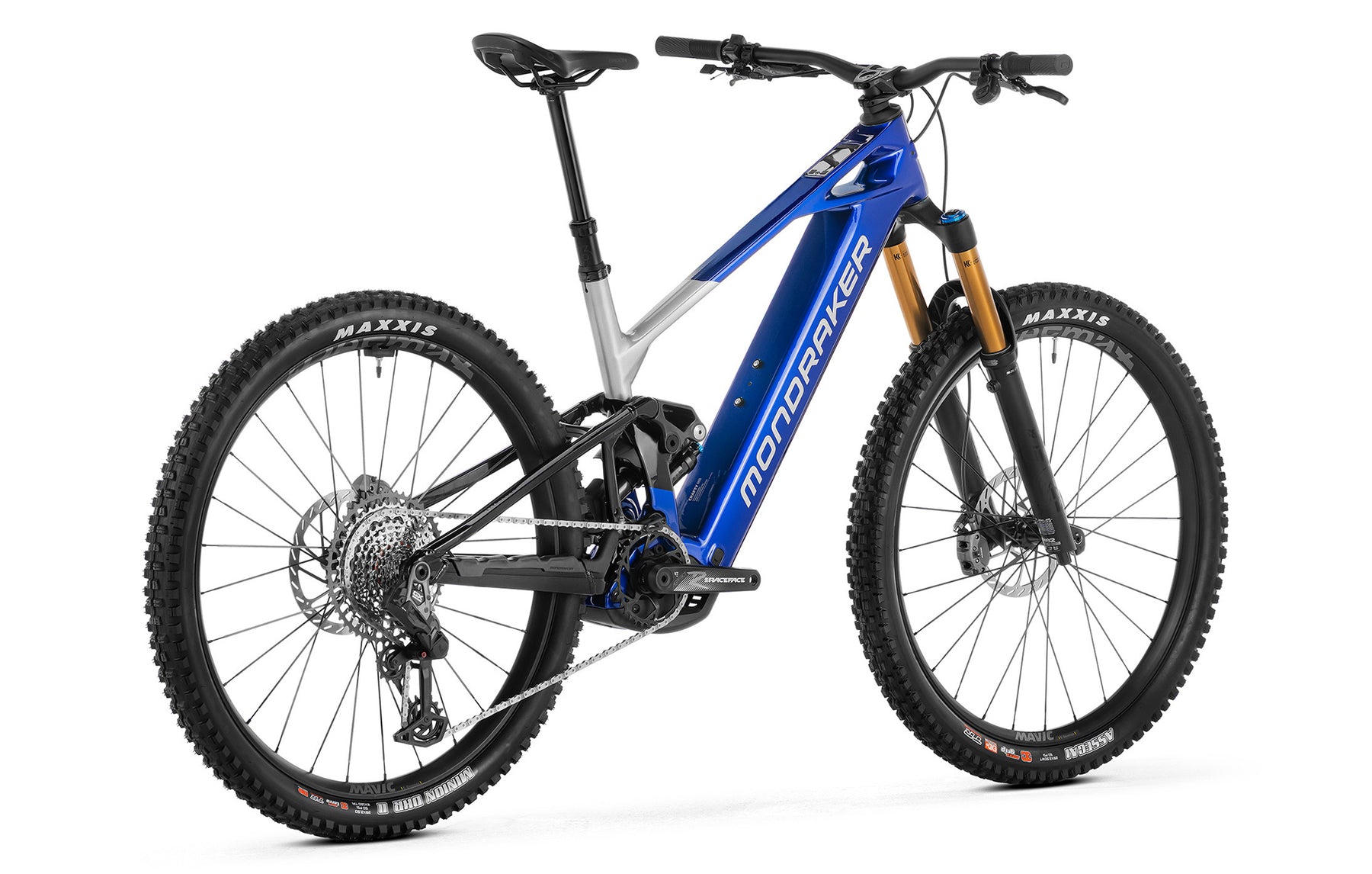

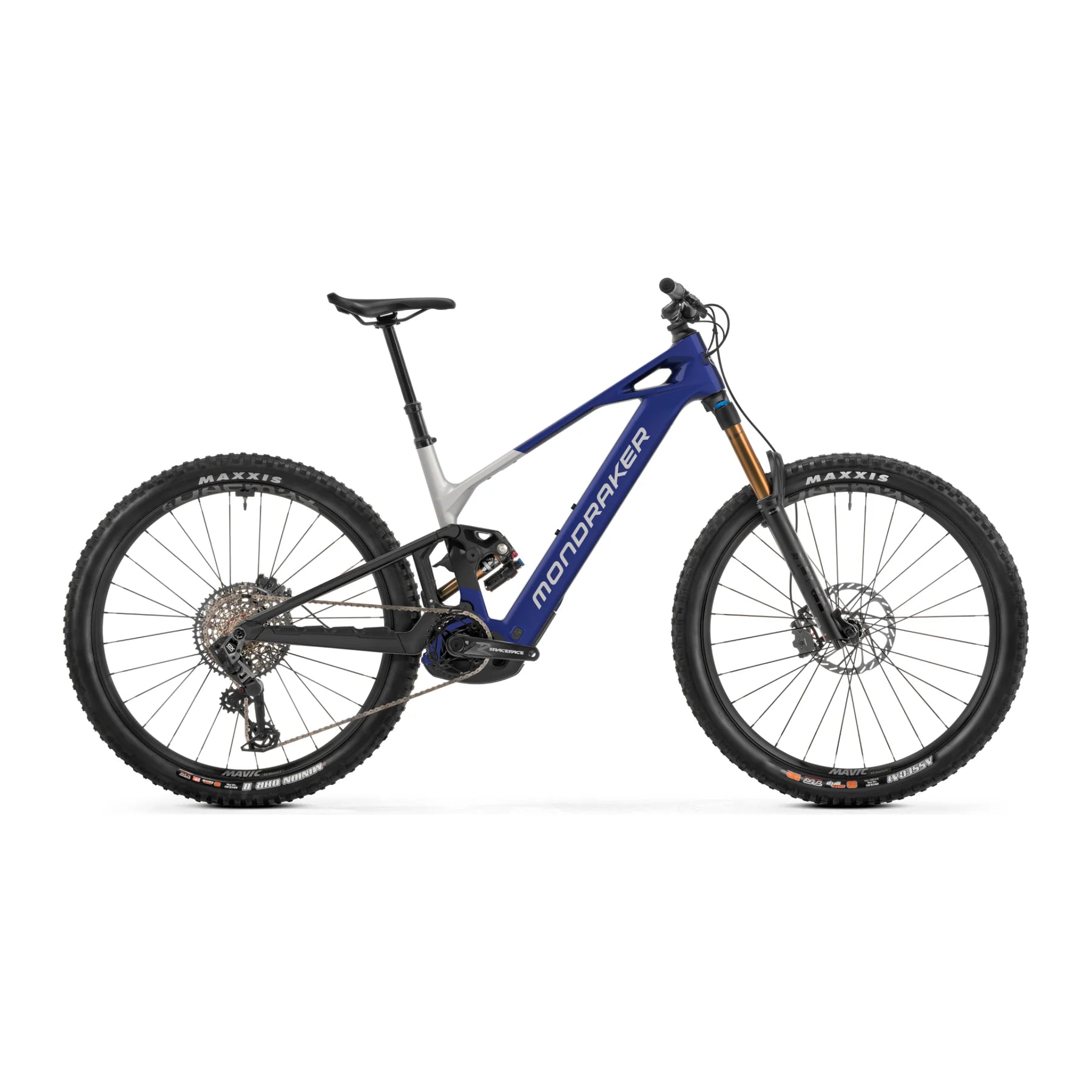

2026 Mondraker Crafty Carbon RR E-Bike
- Free Domestic shipping
- Low stock - 5 items left
- Backordered, shipping soon
Key Features
- Bosch Performance Line CX Smart System motor with up to 100 Nm torque and 600 W peak power
- 800 Wh Bosch Powertube battery with optional 250 Wh Powermore range extender
- FOX FLOAT 38 Factory fork and FOX FLOAT X Factory rear shock with Kashima coating
- SRAM GX Eagle Transmission 12-speed AXS wireless drivetrain
- Mavic E-Deemax wheels with Maxxis Assegai / Minion DHR II tires (29”)
- Carbon frame with Mondraker’s Zero Suspension & Forward Geometry
- ONOFF Pija dropper seatpost with adjustable travel
- Geometry adjustable via two-position flip chip
- Lifetime frame warranty (3 years rear triangle & paint)
Full Specifications
| Product | Mondraker Crafty Carbon RR E-Bike |
|---|---|
| Model Year | 2026 |
| Intended Use | Enduro / All-Mountain |
| Rider | Unisex |
| Sizes and Geometry | SM (Std, Low) MD (Std, Low) M/L (Std, Low) LG (Std, Low) XL (Std, Low) |
| Wheel Size | 29" |
| E-Bike Class | Class 1: Pedal Assist (Pedelecs) |
| Motor | Bosch Performance Line CX, Smart System, 85 Nm or 100 Nm max torque, 600 W peak power |
| Battery | Bosch Powertube, integrated, removable Optional Bosch Powermore 250 Wh range extender |
| Battery Capacity | 800 Wh |

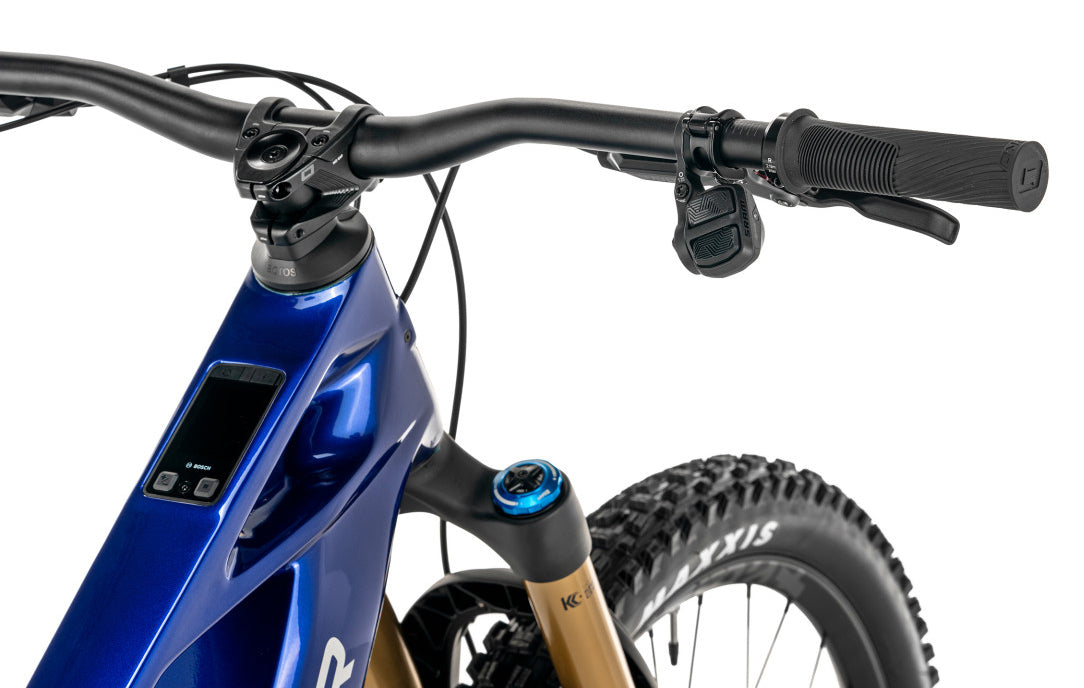

| Display/Remote | Bosch Kiox 400 display, top-tube integrated; Bosch wireless Mini Remote |
| Modes | Turbo, eMTB, Tour+, Eco, Walk Assist |
| Max Speed with Assist | USA/Canada/New Zealand: 20 mph (32.2 km/h) Other regions: 15.5 mph (25 km/h) |
| Frame Material | Carbon Fiber |
| Frame Material Details | Stealth Air carbon front triangle, Stealth Alloy rear triangle, one-piece alloy Monoblock upper link, molded chainstay protection |
| Rear Travel | 150mm |
| Rear Shock | FOX FLOAT X Factory, EVOL, 2-position platform lever, rebound adjust, Kashima coating, trunnion mount, 185mm x 55mm |
| Fork | FOX FLOAT 38 Factory, GRIP X2 damper, high/low-speed compression and rebound adjust, Kashima coating, 44mm offset |
| Fork Travel | 160mm |
| Head Tube Diameter | Straight, 1.5" |
| Headset | ACROS custom, ZS56 upper/lower |
| Handlebar | ONOFF S6 1.0, 7050 alloy, 800mm width, 8° backsweep, 5° upsweep, 31.8mm clamp Rise: 25mm (SM-M/L), 38mm (LG/XL) |
| Stem | ONOFF S6, 6061 forged + CNC alloy, 30mm length |
| Grips | ONOFF Desert Pro, 135mm length, CNC lock-on, standard or thicker diameter by size |
| Brakes | SRAM Maven Bronze, 4-piston, steel-backed sintered metal pads Rotors: SRAM HS2, 200mm |
| Brake Levers | SRAM Maven Bronze Stealth, tool-free reach adjust |
| Drivetrain | 1x |
| Shifters | SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless |
| Front Derailleur | None |
| Rear Derailleur | SRAM GX Eagle Transmission, 12-speed, AXS wireless |
| Cranks | Race Face Aeffect R E-Bike Alloy, 160mm |
| Chainrings | SRAM Eagle Transmission, steel, 34T |
| Cassette | SRAM GX Eagle Transmission XS-1275, 10-52T |
| Chain | SRAM GX Eagle Transmission Flattop, 12-speed, with PowerLock |
| Rims | Mavic E-Deemax Alloy, 30mm inner width, welded joint, 28H, tubeless ready |
| Hubs | Mavic Boost hubs, ID360 Ratchet freehub, XD driver |
| Tires | Front: Maxxis Assegai 29"x2.5" WT, 3C MaxxGrip EXO+ Rear: Maxxis Minion DHR II 29"x2.5" WT, 3C MaxxTerra DoubleDown |
| Saddle | Ergon SM-10 |
| Seatpost | ONOFF Pija dropper, adjustable travel Drop: 115-140mm (SM), 135-160mm (MD), 155-180mm (M/L), 185-210mm (LG/XL) |
| Seatpost Diameter | 31.6mm |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 29" x 2.6" |
| Colors | Admiral Blue |
| Warranty | Lifetime frame (with registration), 3 years rear triangle & paint |
| Weight | 53 lb 12.8 oz (24,403 g) |
| Miscellaneous |
|

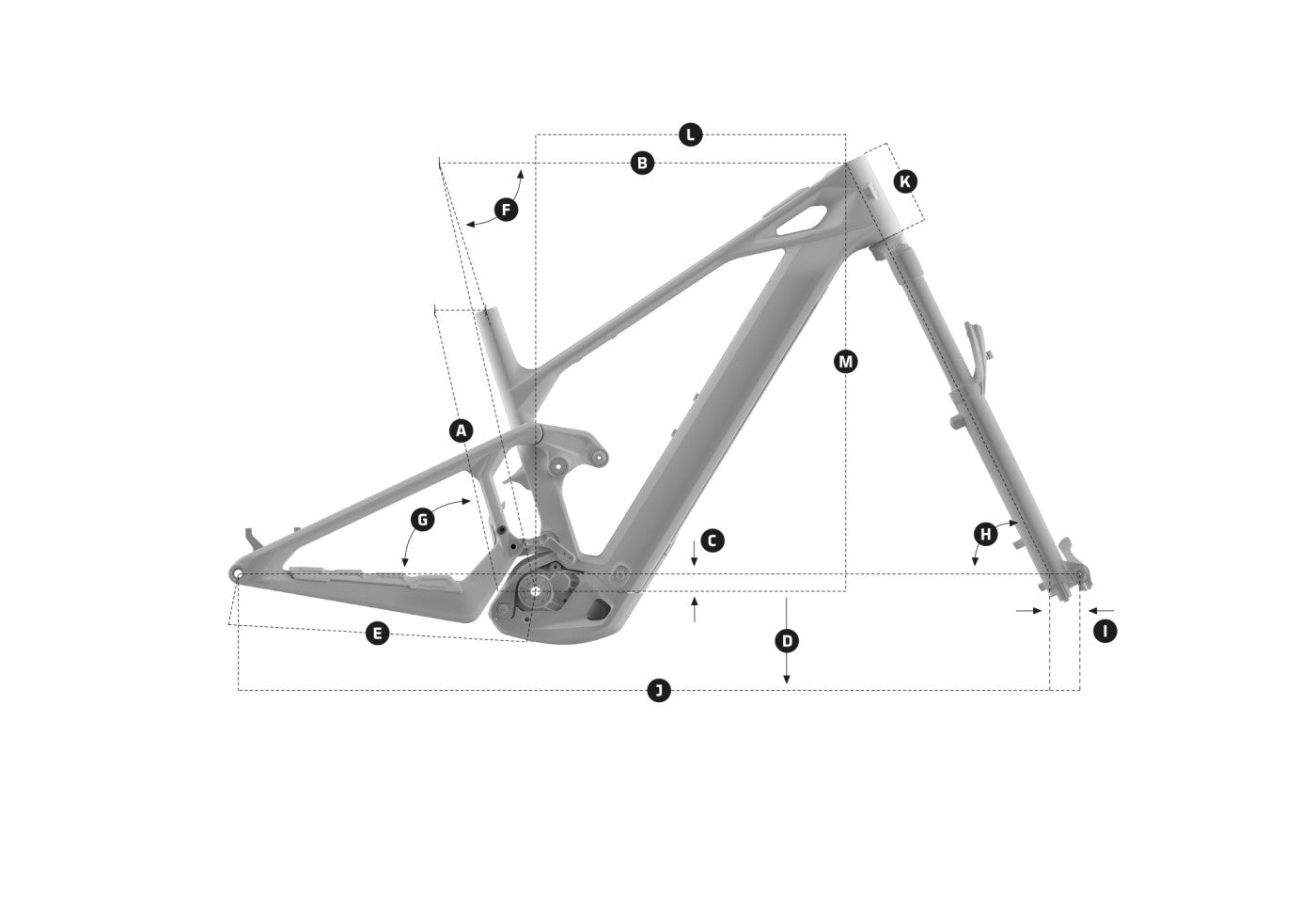

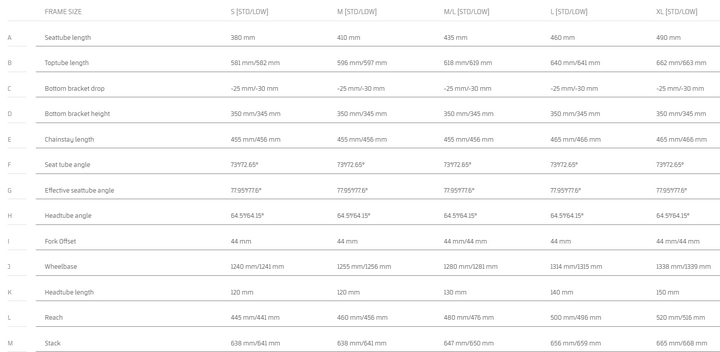

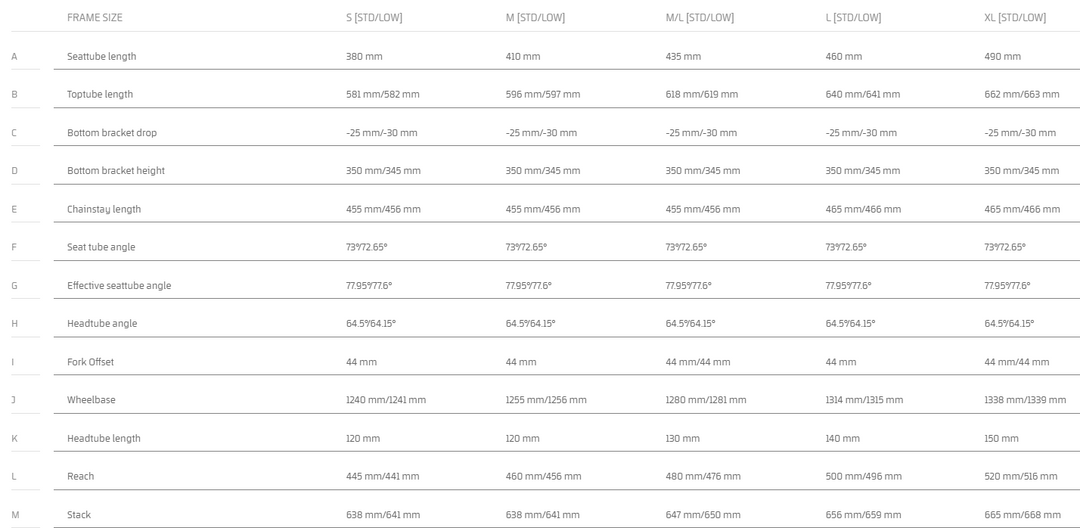

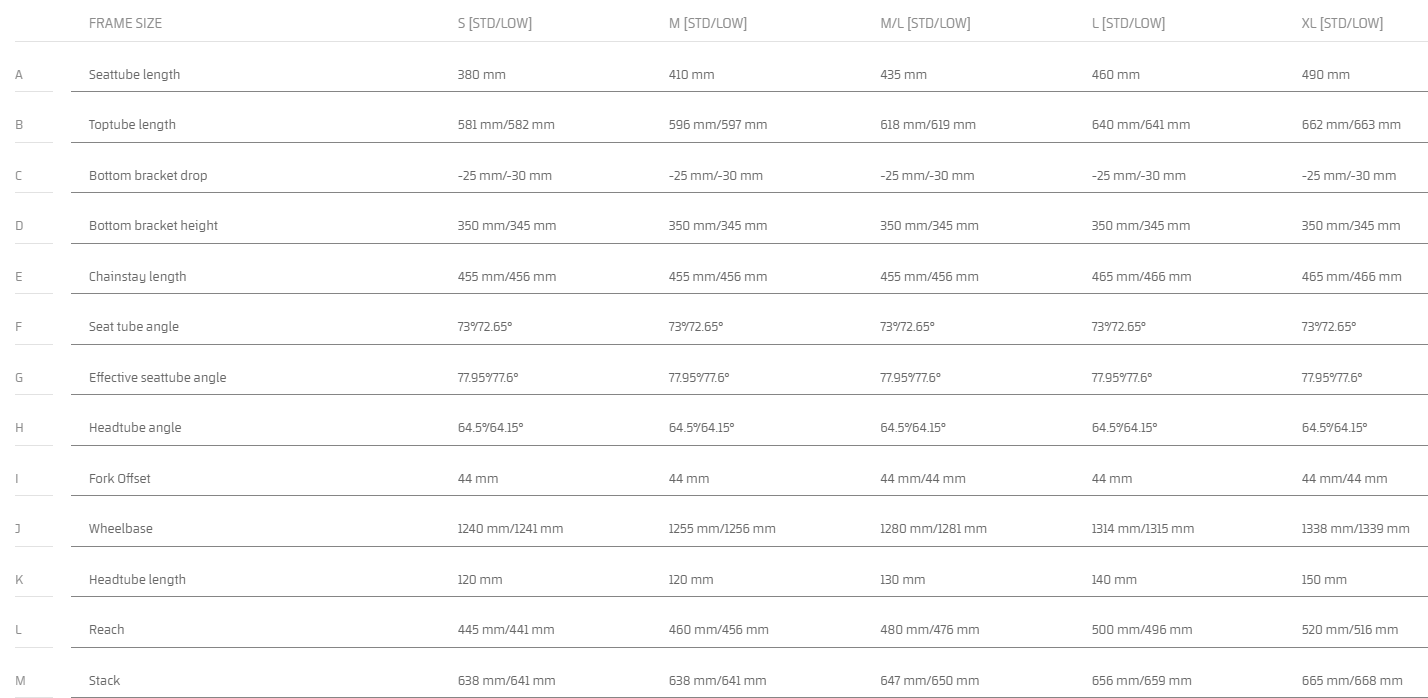

Geometry
| Size | SM (Std, Low) | MD (Std, Low) | M/L (Std, Low) | LG (Std, Low) | XL (Std, Low) |
|---|---|---|---|---|---|
| Top Tube Length | 581mm, 582mm | 596mm, 597mm | 618mm, 619mm | 640mm, 641mm | 662mm, 663mm |
| Head Tube Angle | 64.50°, 64.15° | 64.50°, 64.15° | 64.50°, 64.15° | 64.50°, 64.15° | 64.50°, 64.15° |
| Head Tube Length | 120mm | 120mm | 130mm | 140mm | 150mm |
| Seat Tube Angle | 77.95°, 77.60° | 77.95°, 77.60° | 77.95°, 77.60° | 77.95°, 77.60° | 77.95°, 77.60° |
| Seat Tube Length | 380mm | 410mm | 435mm | 460mm | 490mm |
| Bottom Bracket Height | 350mm (25mm drop), 345mm (30mm drop) | 350mm (25mm drop), 345mm (30mm drop) | 350mm (25mm drop), 345mm (30mm drop) | 350mm (25mm drop), 345mm (30mm drop) | 350mm (25mm drop), 345mm (30mm drop) |
| Chainstay Length | 455mm, 456mm | 455mm, 456mm | 455mm, 456mm | 465mm, 466mm | 465mm, 466mm |
| Wheelbase | 1240mm, 1241mm | 1255mm, 1256mm | 1280mm, 1281mm | 1314mm, 1315mm | 1338mm, 1339mm |
| Reach | 445mm, 441mm | 460mm, 456mm | 480mm, 476mm | 500mm, 496mm | 520mm, 516mm |
| Stack | 638mm, 641mm | 638mm, 641mm | 647mm, 650mm | 656mm, 659mm | 665mm, 668mm |
| Additional Info |
|
||||
