2026 Mondraker Crafty Carbon R E-Bike
- Free Domestic shipping
- Low stock - 5 items left
- Backordered, shipping soon
Key Features
- Bosch Performance Line CX, Smart System motor — 85 Nm or 100 Nm max torque options, 600 W peak power
- Bosch Powertube 800 Wh integrated, removable battery (option for Bosch Powermore 250 Wh range extender)
- FOX FLOAT X Performance rear shock, FOX FLOAT 38 Performance fork (E-Bike tuned)
- SRAM S1000 / Eagle Transmission 12-speed AXS electronic wireless drivetrain (1x)
- Mavic E-Deemax tubeless ready rims & high-grip Maxxis tires (29" x 2.5")
- Geometry adjustable via two-position flip chip in lower/rear shock mount
- ONOFF S6 cockpit (800mm bar, 7050 alloy) with ONOFF Pija dropper seatpost (adjustable travel)
- Lifetime frame warranty with registration (3 years rear triangle and paint)
- Lightweight race geometry: Weight 52 lb 11.2 oz (23,904 g)
Full Specifications
| Specification | Details |
|---|---|
| Product | Mondraker Crafty Carbon R E-Bike |
| Model Year | 2026 |
| Intended Use | Enduro / All-Mountain |
| Rider | Unisex |
| Sizes and Geometry | SM (Std, Low) MD (Std, Low) M/L (Std, Low) LG (Std, Low) XL (Std, Low) |
| Wheel Size | 29" |
| E-Bike Class | Class 1: Pedal Assist (Pedelecs) |
| Motor | Bosch Performance Line CX, Smart System, 85 Nm or 100 Nm max torque options, 600 W peak power |
| Battery | Bosch Powertube, integrated, removable Option: Bosch Powermore range extender battery, 250 Wh |
| Battery Capacity | 800 Wh |
| Display/Remote | Bosch Kiox 400 display, top tube integrated; Bosch wireless Mini Remote |
| Modes | Turbo, eMTB, Tour+, Eco, Walk Assist |
| Max Speed with Assist | USA/Canada/New Zealand: 20 mph (32.2 km/h) Other: 15.5 mph (25 km/h) |
| Frame Material | Carbon Fiber |
| Frame Material Details | Stealth Air carbon front triangle, Stealth Alloy rear triangle, one-piece alloy Monoblock upper link, exclusive plastic motor covers, molded chainstay protection |
| Rear Travel | 150mm |
| Rear Shock | FOX FLOAT X Performance, EVOL LV, 2-position (Open/Firm) platform lever, low-speed rebound adjust, trunnion mount, 185mm length x 55mm stroke |
| Fork | FOX FLOAT 38 Performance, E-Bike tuned, GRIP damper, 3-position compression lever with Micro Adjust, low-speed rebound adjust, 44mm offset |
| Fork Travel | 160mm |
| Head Tube Diameter | Straight, 1.5" |
| Headset | ACROS custom, ZS56 upper/lower |
| Handlebar | ONOFF S6 1.0, 7050 alloy, 800mm width, 8° backsweep, 5° upsweep, 31.8mm clamp diameter Rise: 25mm (SM-M/L), 38mm (LG/XL) |
| Stem | ONOFF S6, 6061 forged + CNC alloy, 30mm length, 31.8mm bar clamp |
| Grips | ONOFF Desert Pro, 135mm length, CNC lock-on, standard (SM-M/L) or thicker (LG/XL) diameter |
| Brakes | SRAM Maven Base, 4-piston, steel-backed organic pads Rotors: SRAM CenterLine, 6-bolt, 200mm |
| Brake Levers | SRAM Maven Base Stealth, tool-free reach adjust |
| Drivetrain | 1x |
| Shifters | SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless, MMX mounting bracket |
| Front Derailleur | None |
| Rear Derailleur | SRAM S1000 Eagle Transmission, 12-speed, AXS electronic wireless |
| Chainguide | None |
| Cranks | Race Face Aeffect R E-Bike Alloy, 160mm length |
| Chainrings | SRAM Eagle Transmission, steel, direct mount, 34 tooth |
| Pedals | None |
| Chain | SRAM GX Eagle Transmission Flattop, 12-speed, with PowerLock |
| Cassette | SRAM Eagle Transmission XS-1270, 12-speed, 10-52 tooth |
| Rims | Mavic E-Deemax Alloy, 30mm inner width, welded joint, 28 hole, tubeless ready |
| Hubs | Mavic, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with ID360 Ratchet freehub and HG driver |
| Spokes | Mavic, J-bend, double butted, contactless lacing |
| Tires | Front: Maxxis Assegai, 3C MaxxGrip compound, EXO+ casing, TR, 60 TPI, 29" x 2.5" WT Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, DoubleDown (DD) casing, TR, 2x 120 TPI, 29" x 2.5" WT |
| Saddle | Ergon SM-10 |
| Seatpost | ONOFF Pija dropper, adjustable travel, 1x remote lever with bearing pivot Drop: 115-140mm (SM), 135-160mm (MD), 155-180mm (M/L), 185-210mm (LG/XL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 29" x 2.6" |
| Bottle Cage Mounts | One inside front triangle, plus accessory mounts under top tube |

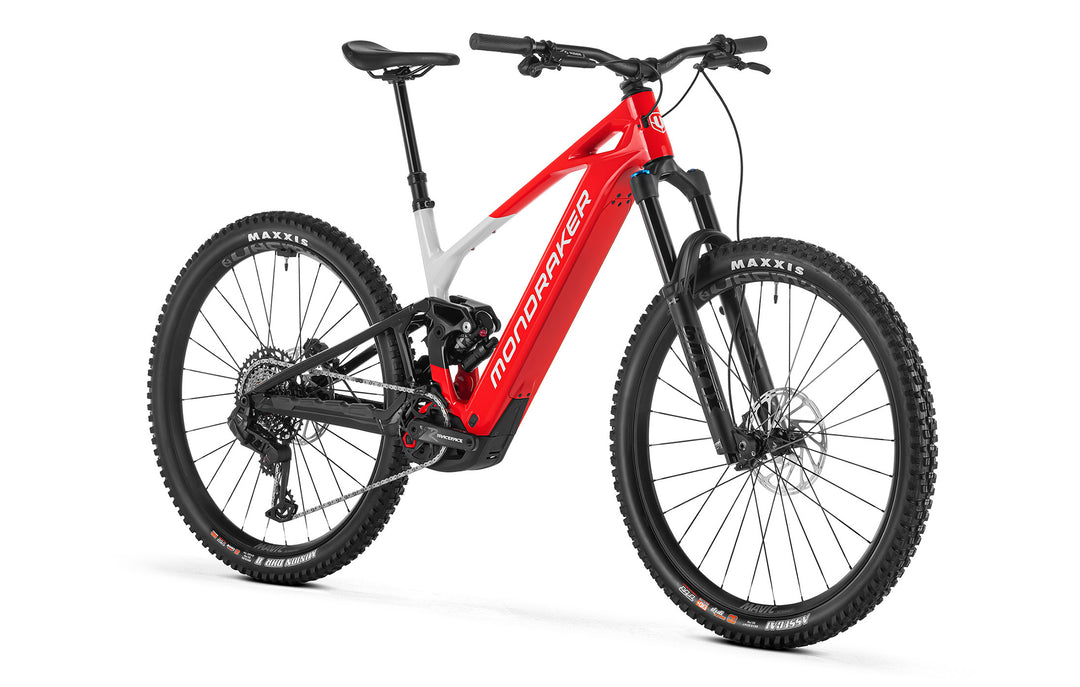

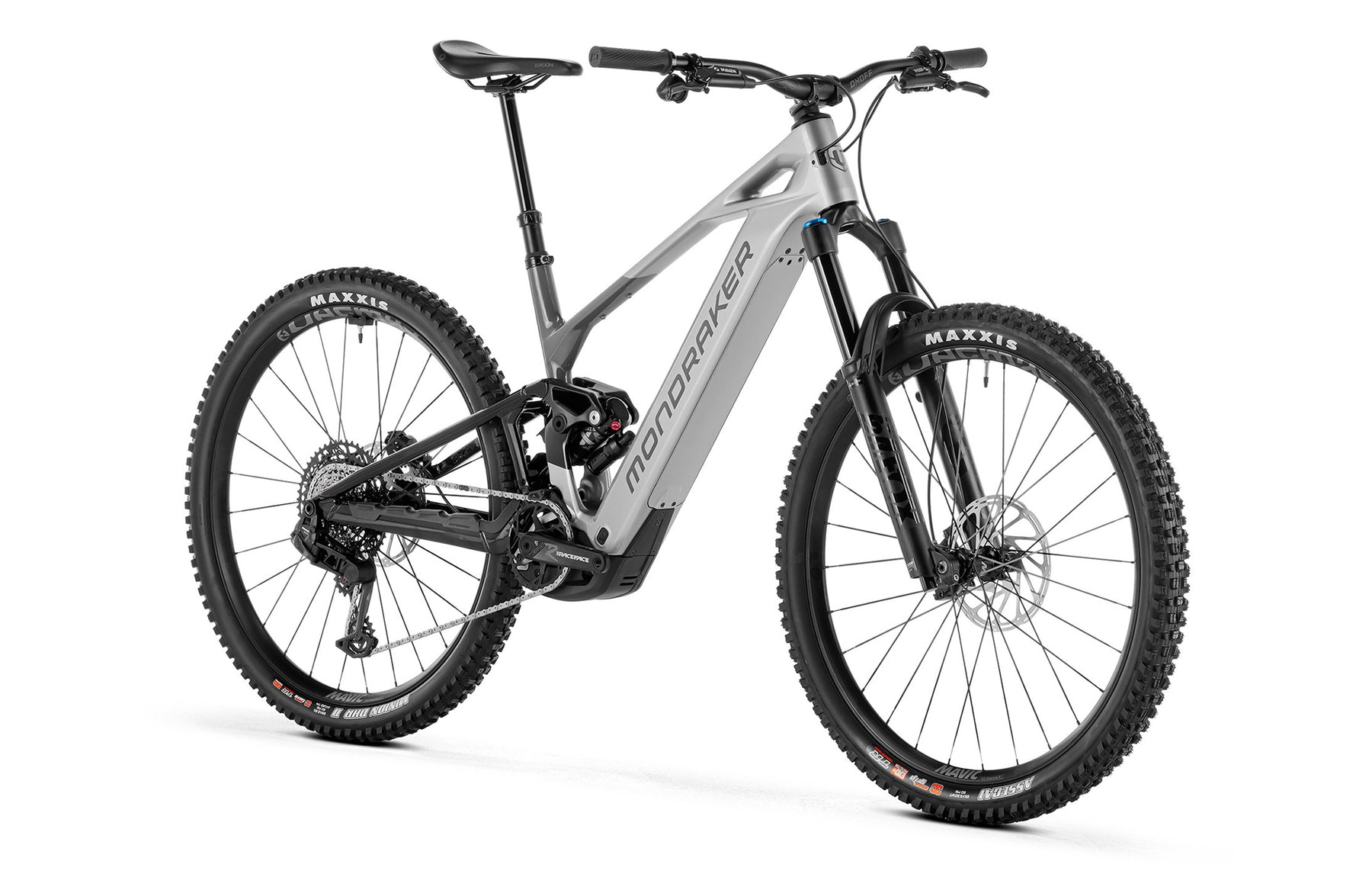

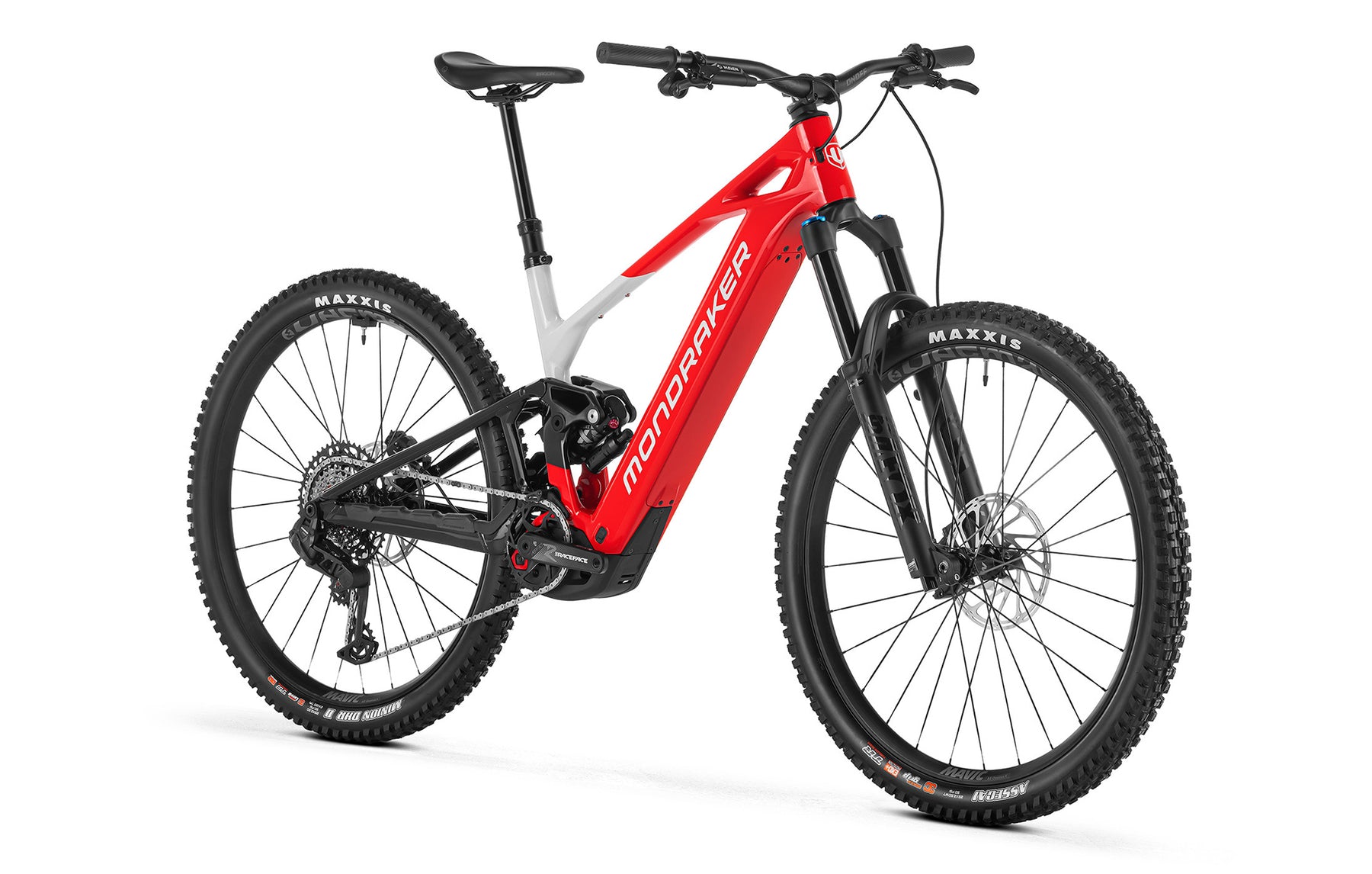

| Colors | Golden Silver, Chili Red |
| Warranty | Lifetime frame with registration, 3 years rear triangle and paint |
| Weight | 52 lb 11.2 oz (23,904 g) |
| Miscellaneous |
|

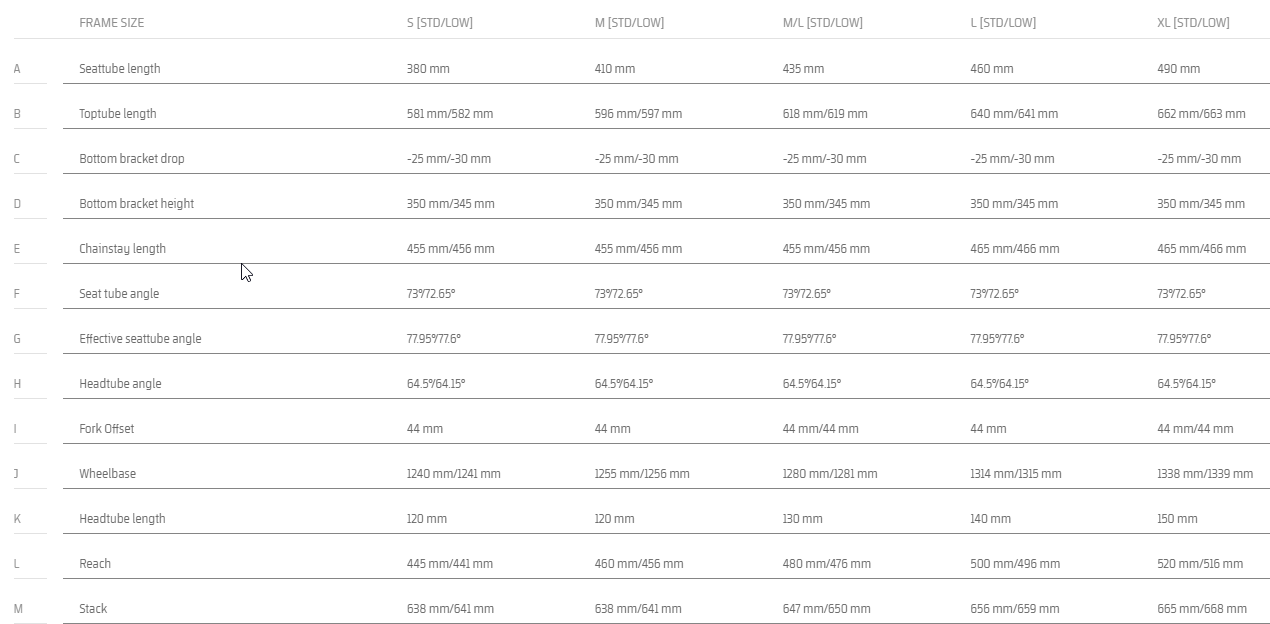

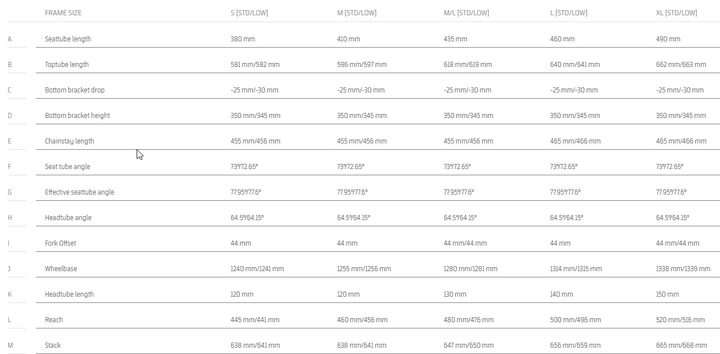

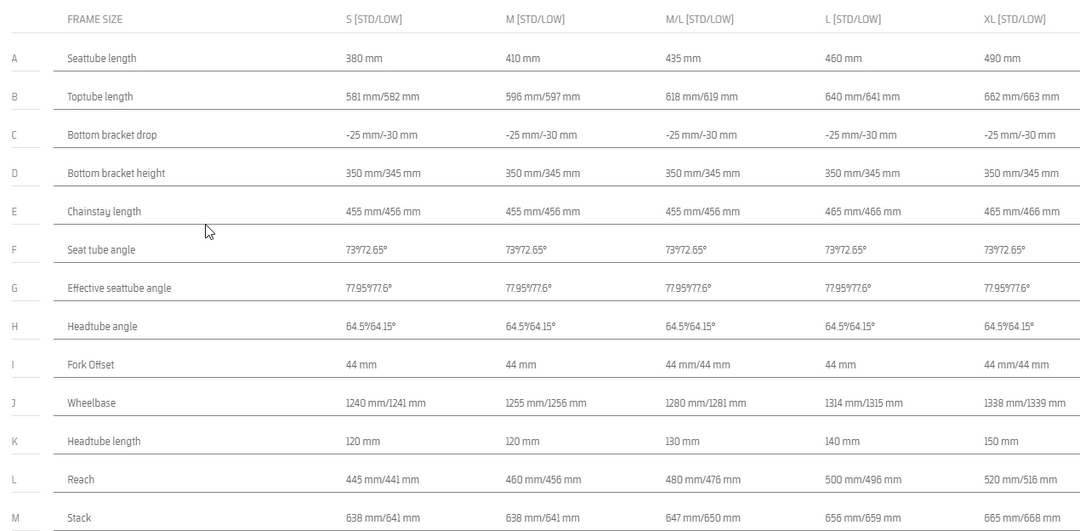

Geometry
| Size | SM (Std, Low) | MD (Std, Low) | M/L (Std, Low) | LG (Std, Low) | XL (Std, Low) |
|---|---|---|---|---|---|
| Top Tube Length | 581mm, 582mm | 596mm, 597mm | 618mm, 619mm | 640mm, 641mm | 662mm, 663mm |
| Head Tube Angle | 64.50°, 64.15° | 64.50°, 64.15° | 64.50°, 64.15° | 64.50°, 64.15° | 64.50°, 64.15° |
| Head Tube Length | 120mm | 120mm | 130mm | 140mm | 150mm |
| Seat Tube Angle | 77.95°, 77.60° | 77.95°, 77.60° | 77.95°, 77.60° | 77.95°, 77.60° | 77.95°, 77.60° |
| Seat Tube Length | 380mm | 410mm | 435mm | 460mm | 490mm |
| Bottom Bracket Height | 350mm (25mm drop), 345mm (30mm drop) | 350mm (25mm drop), 345mm (30mm drop) | 350mm (25mm drop), 345mm (30mm drop) | 350mm (25mm drop), 345mm (30mm drop) | 350mm (25mm drop), 345mm (30mm drop) |
| Chainstay Length | 455mm, 456mm | 455mm, 456mm | 455mm, 456mm | 465mm, 466mm | 465mm, 466mm |
| Wheelbase | 1240mm, 1241mm | 1255mm, 1256mm | 1280mm, 1281mm | 1314mm, 1315mm | 1338mm, 1339mm |
| Reach | 445mm, 441mm | 460mm, 456mm | 480mm, 476mm | 500mm, 496mm | 520mm, 516mm |
| Stack | 638mm, 641mm | 638mm, 641mm | 647mm, 650mm | 656mm, 659mm | 665mm, 668mm |
| Additional Info |
|
||||
