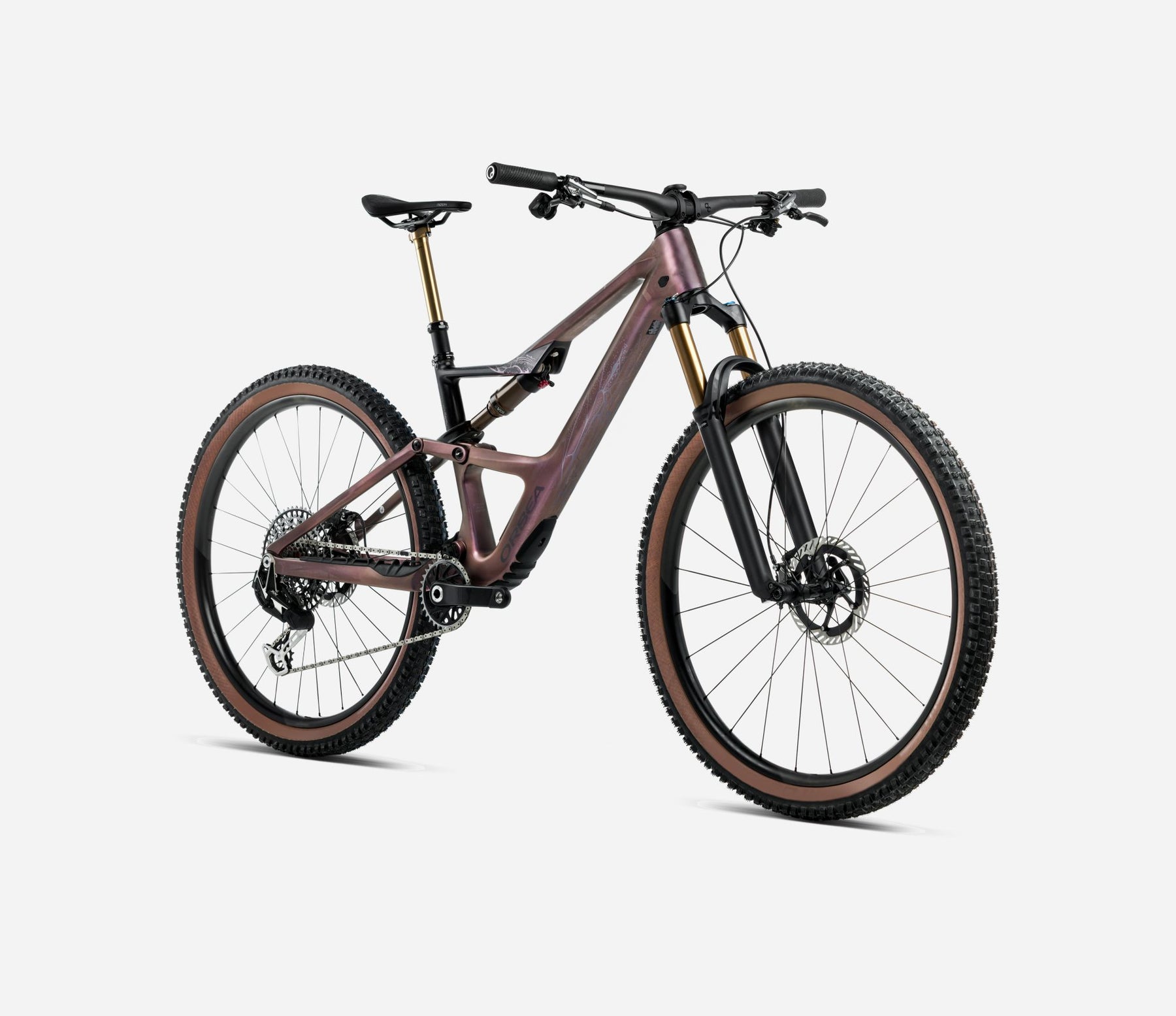

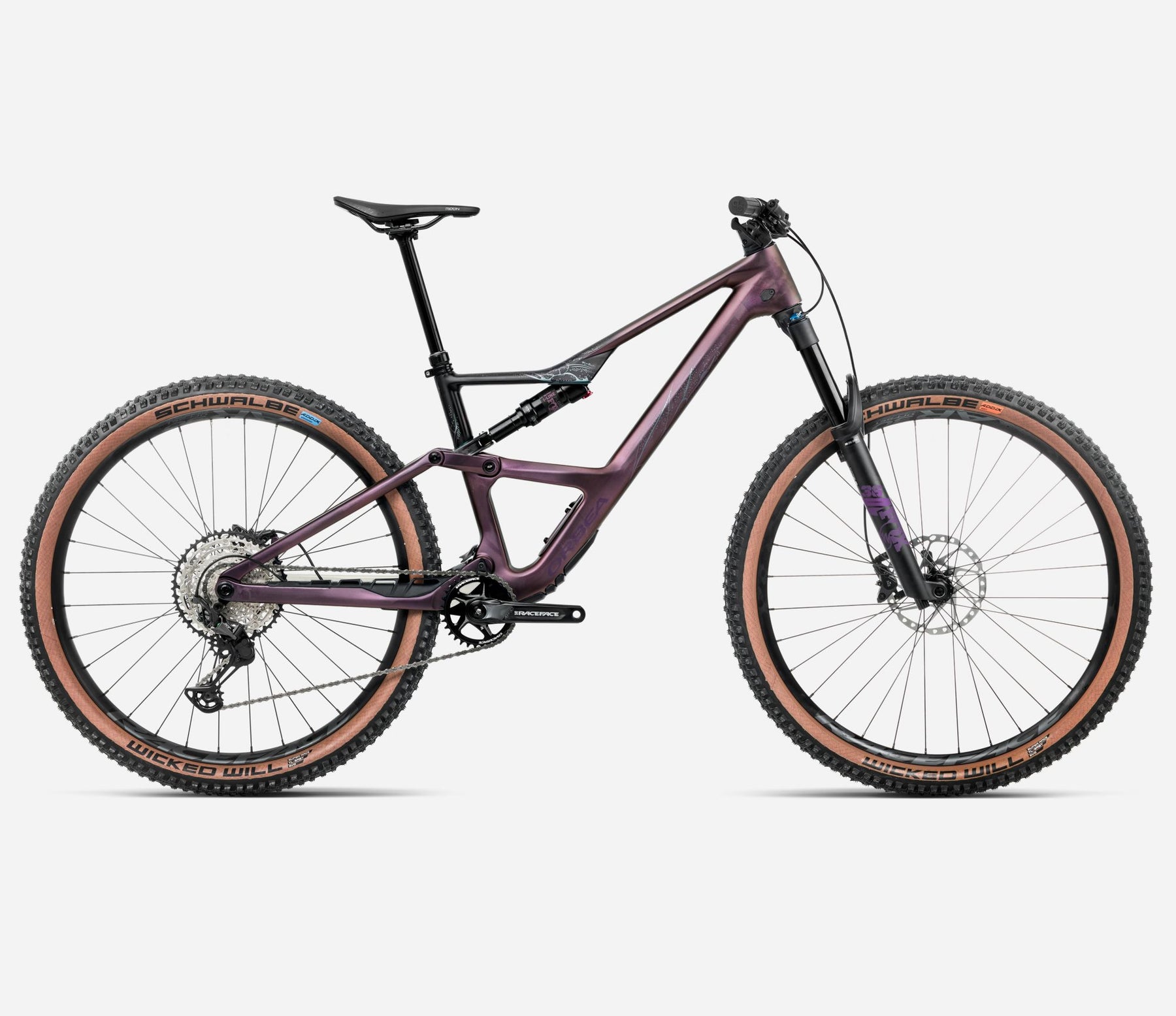

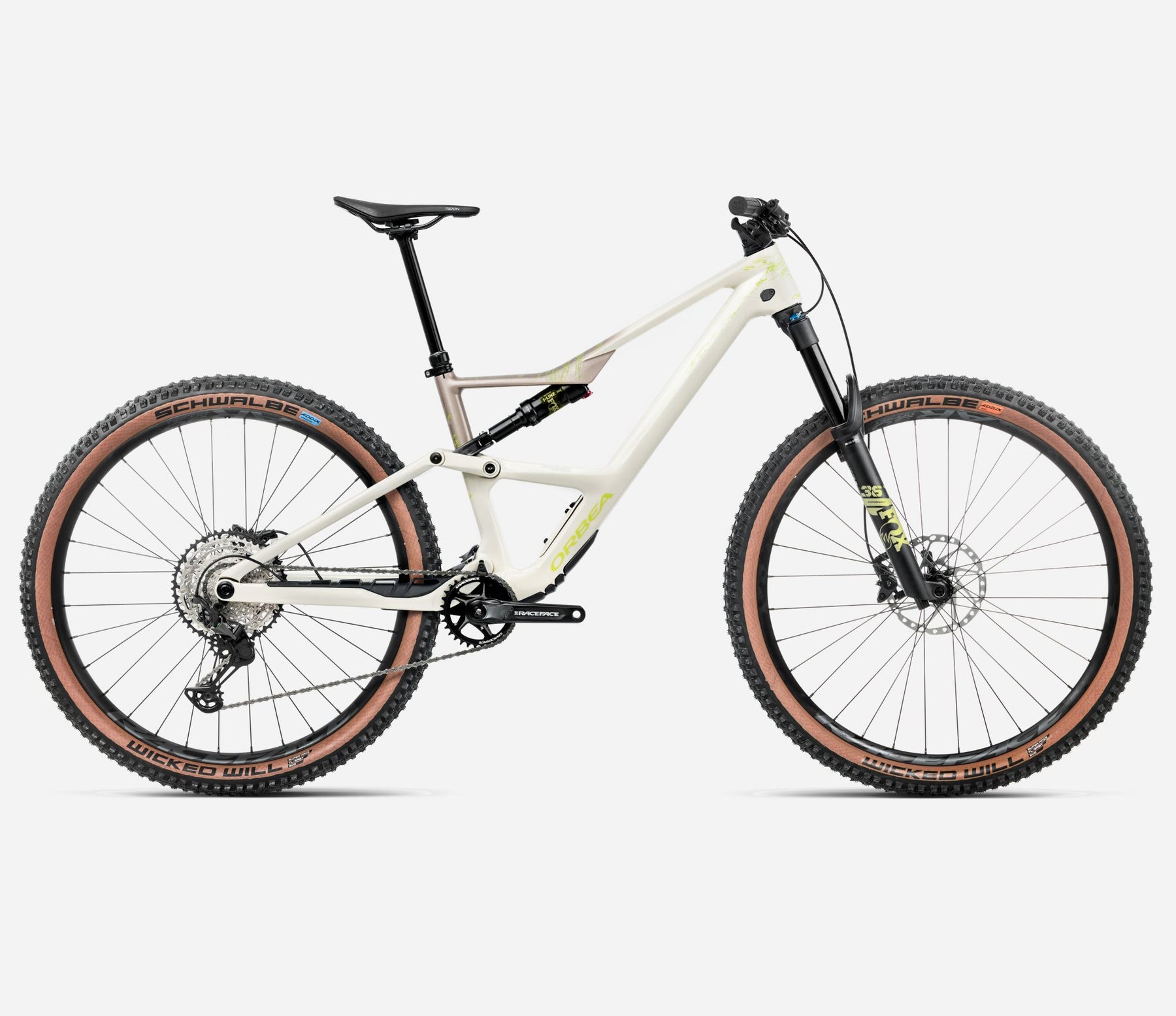

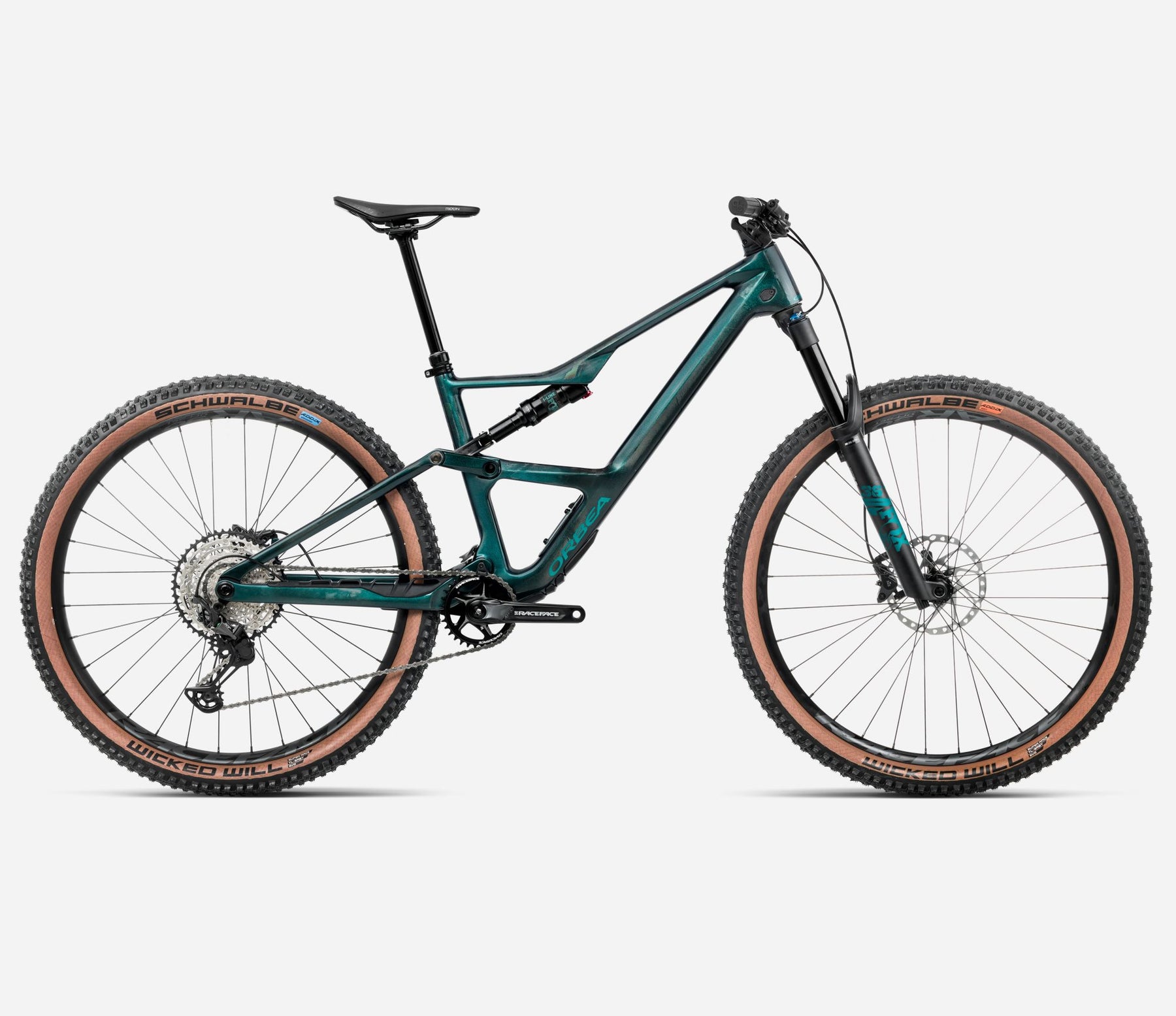

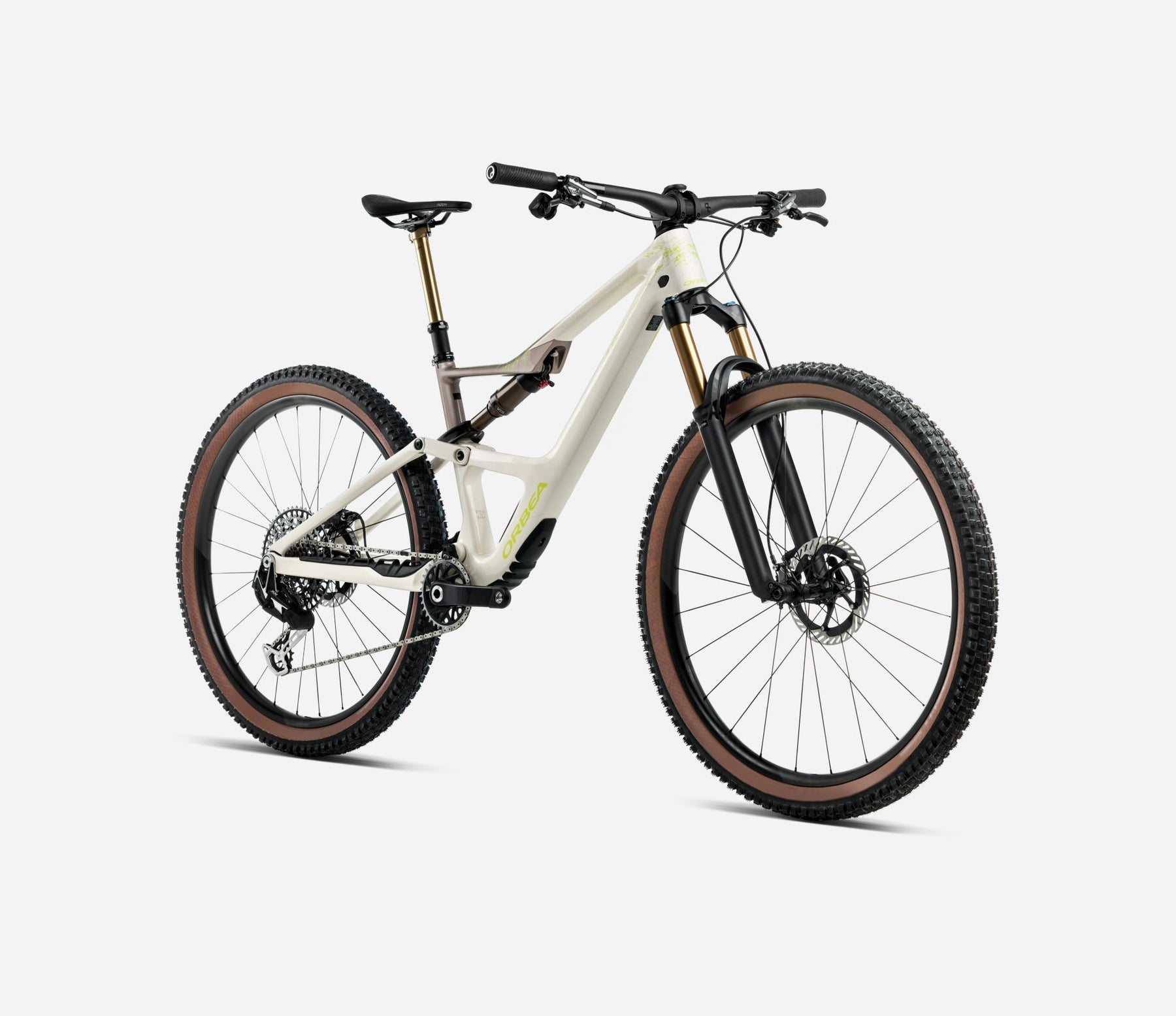

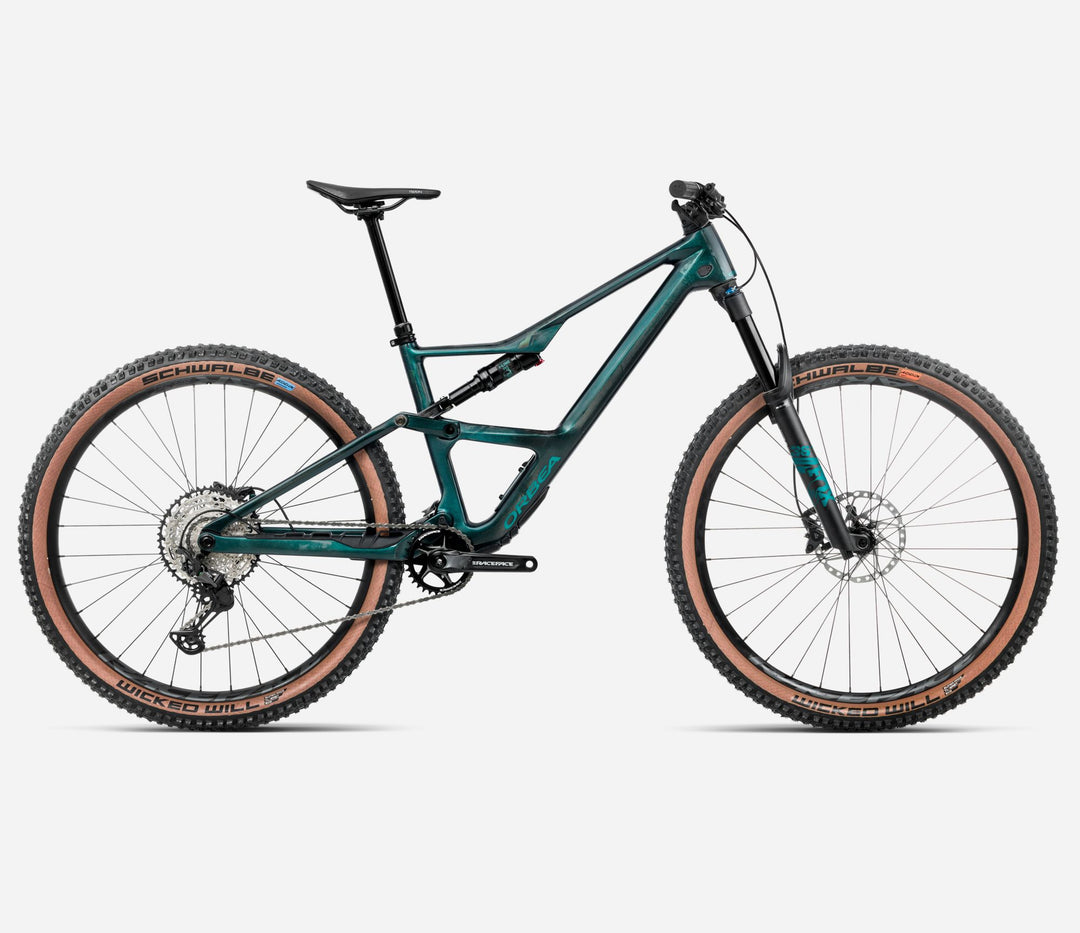

2026 Orbea Occam SL M30 Bike
No reviews
- Free Domestic shipping
- Low stock - 5 items left
- Backordered, shipping soon
Key Features
- Orbea Occam OMR Carbon frame with Pure Trail geometry and Asymmetric design.
- Geometry is adjustable via 3-position offset headset cups (Steep, Neutral, Slack).
- Fox 36 Float SL Performance 140mm fork (GRIP damper) and Fox Float Performance 140mm shock, both with Push-lock remote lockout.
- Shimano XT M8100 12-speed rear derailleur with Shimano SLX shifters.
- Shimano M6100 hydraulic disc brakes.
- Race Face AR 30c Tubeless Ready wheelset.
- Schwalbe Wicked Will Evo TLE 29x2.40 tires (Super Race, Soft/Speed Grip compounds).
- OC Squidlock MC20 Remote controls dropper post and suspension lockout.
Full Specifications
| Product | Orbea Occam SL M30 |
|---|---|
| Model Year | 2026 |
| Intended Use | Trail |
| Rider | Unisex |
| Sizes and Geometry | SM (Steep, Neutral, Slack) MD (Steep, Neutral, Slack) LG (Steep, Neutral, Slack) XL (Steep, Neutral, Slack) View Full Geometry |
| Wheel Size | 29" |
| Frame Material | Carbon Fiber |
| Frame Material Details | Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Both Internal & External cable routing. Asymmetric design. |
| Rear Travel | 140mm |
| Rear Shock | Fox Float Performance Remote Push-lock Evol custom tune 210x50mm |
| Fork | Fox 36 Float SL Performance 140, Grip, Remote Push-lock, QR15x110 |
| Fork Travel | 140mm |
| Head Tube Diameter | Tapered (Alloy 1-1/2" Steerer tube, Black Oxidated Bearing) |
| Headset | N/A |
| Handlebar | OC Mountain Control MC30, Rise20, Width 800 |
| Stem | OC Mountain Control MC11 Alu SL, 0º |
| Grips | OC Lock On |
| Brakes | Shimano M6100 Hydraulic Disc |
| Brake Levers | Shimano M6100 (Integrated with brake system) |
| Drivetrain | 1x |
| Shifters | Shimano SLX M7100 I-Spec EV |
| Front Derailleur | None |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus |
| ISCG Tabs | N/A |
| Chainguide | N/A |
| Cranks | Race Face Aeffect 32t |
| Chainrings | 32t |
| Bottom Bracket | N/A |
| Pedals | None |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Rims | Race Face AR 30c Tubeless Ready |
| Hubs | N/A (Integrated into wheels) |
| Spokes | N/A |
| Tires | Front: Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Soft Compound, Addix, Brown Rear: Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown |
| Saddle | Fizik Terra Ridon X5 145mm |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | N/A |
| Rear Dropout / Hub Dimensions | Concentric Boost 12x148 |
| Max. Tire Size | N/A |
| Bottle Cage Mounts | N/A |
| Colors | N/A |
| Warranty | N/A |
| Weight | N/A |
| Miscellaneous |
|
Geometry
| Size | SM (Steep, Neutral, Slack) | MD (Steep, Neutral, Slack) | LG (Steep, Neutral, Slack) | XL (Steep, Neutral, Slack) |
|---|---|---|---|---|
| Top Tube Length | 570, 570, 569 | 596, 596, 595 | 623, 622, 622 | 650, 649, 649 |
| Head Tube Angle | 65.9°, 65.4°, 64.9° | 65.9°, 65.4°, 64.9° | 65.9°, 65.4°, 64.9° | 65.9°, 65.3°, 64.9° |
| Head Tube Length | 95 | 100 | 110 | 120 |
| Seat Tube Angle | 78.0°, 78.2°, 78.5° | 78.0°, 78.2°, 78.5° | 78.0°, 78.2°, 78.4° | 78.0°, 78.2°, 78.4° |
| Seat Tube Length | 405 | 415 | 430 | 460 |
| Bottom Bracket Height | 342, 340, 338 | 342, 340, 338 | 342, 341, 338 | 342, 341, 338 |
| Chainstay Length | 439 | 439 | 439 | 439 |
| Wheelbase | 1183, 1191, 1197 | 1210, 1218, 1225 | 1239, 1245, 1254 | 1269, 1276, 1283 |
| Standover | N/A | N/A | N/A | N/A |
| Reach | 440, 442, 445 | 465, 467, 470 | 490, 492, 495 | 515, 517, 520 |
| Stack | 612, 611, 609 | 617, 615, 613 | 626, 624, 622 | 635, 633, 631 |
| Additional Info |
|
|||
