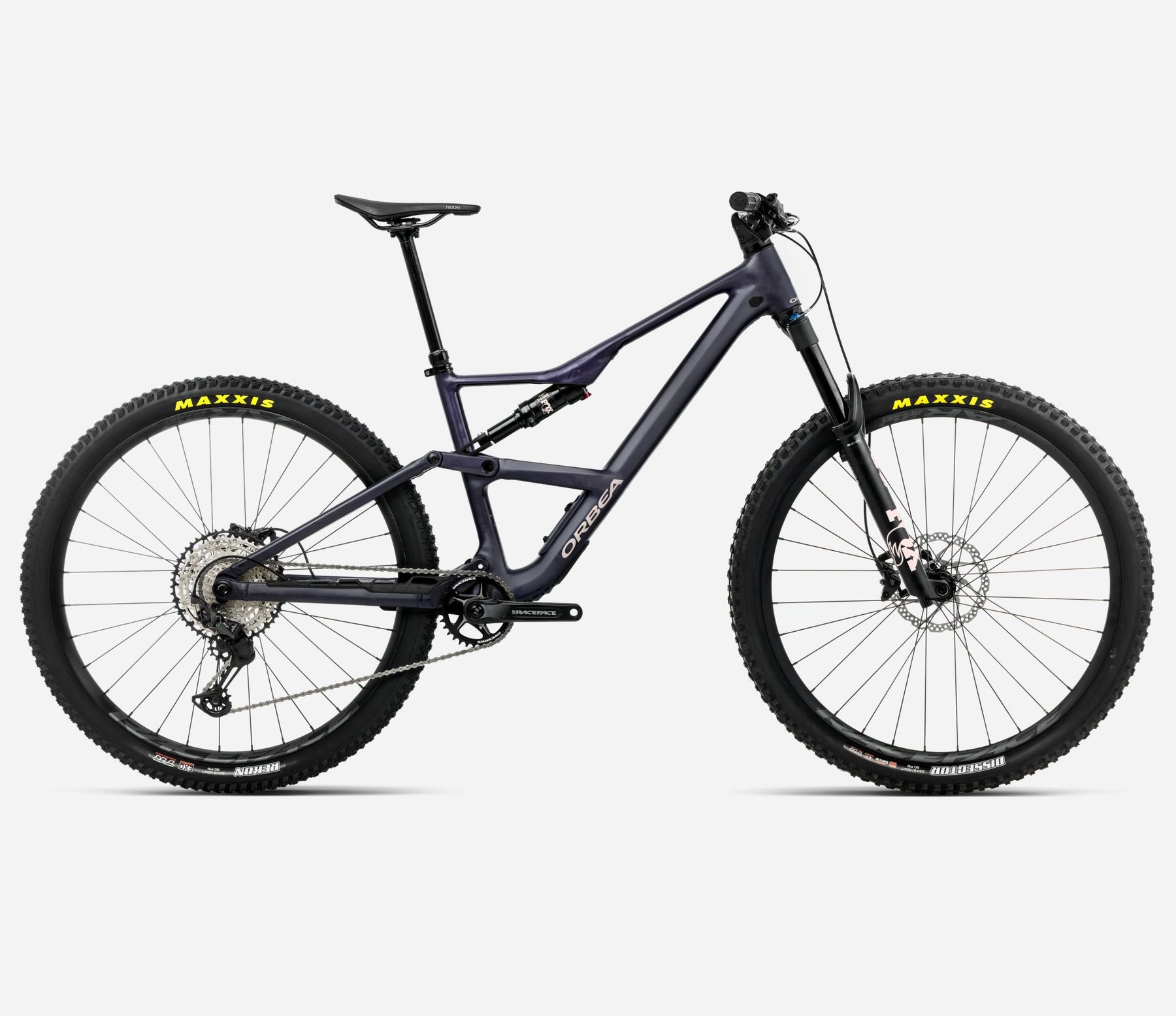

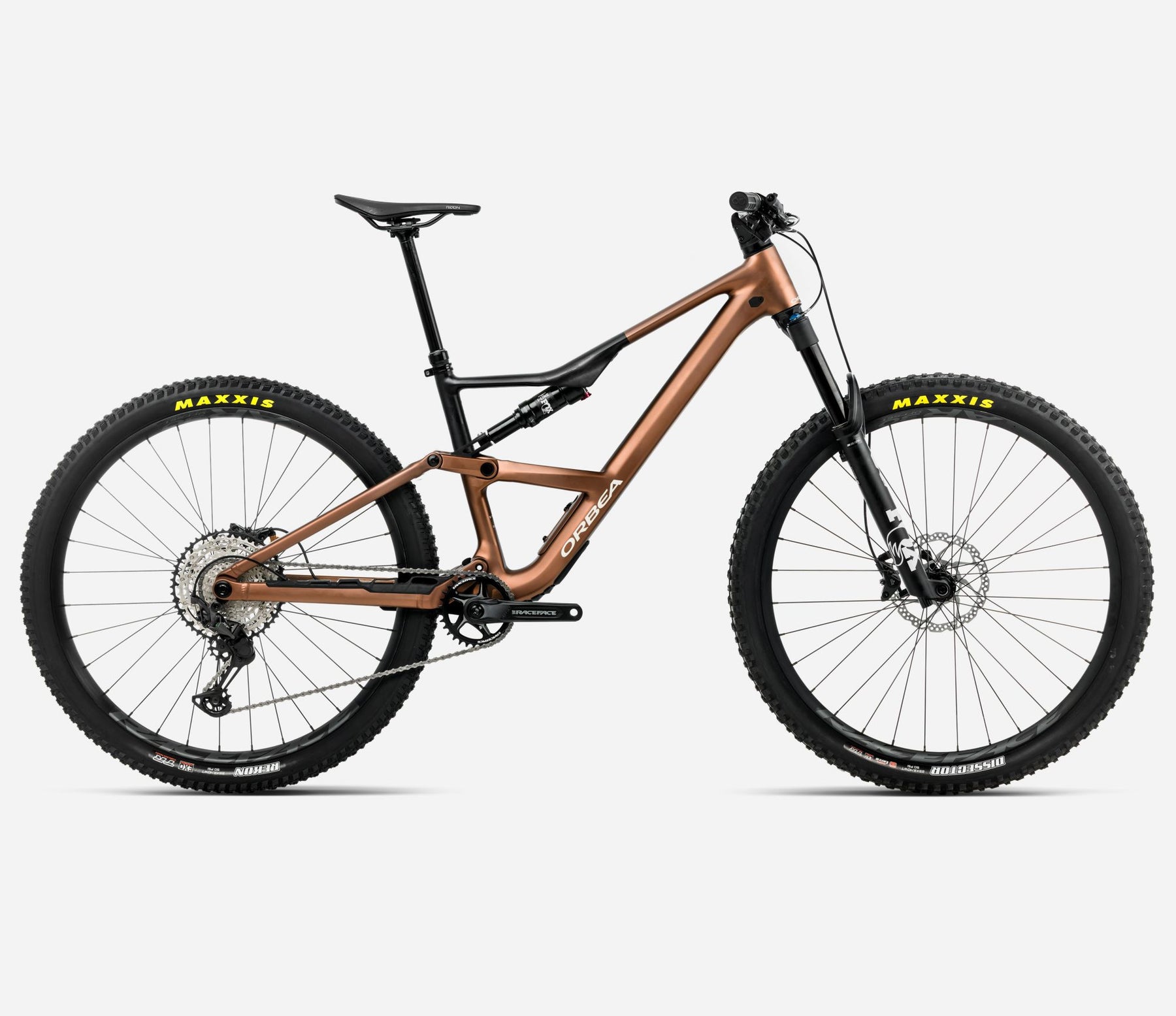

2026 Orbea Occam SL H10
No reviews
- Free Domestic shipping
- Low stock - 2 items left
- Backordered, shipping soon
Key Features
- Orbea Occam Hydro aluminum frame, featuring Asymmetric design and Concentric Boost rear axle.
- Integrated OC Squidlock MC20 Remote controls suspension lockout and dropper post from a single lever.
- Performance suspension handled by the Fox 36 Float SL Performance 140 fork and Fox Float Performance shock with remote lockout.
- Reliable Shimano SLX/XT 1x12-speed drivetrain with a wide-range 10-51t cassette.
- Strong stopping power from Shimano M6100 Hydraulic Disc Brakes.
- Aggressive Maxxis tire pairing: Dissector (front, 3C MaxxTerra Exo) and Rekon (rear, Dual Exo TR).
- Durable Race Face AR 30c Tubeless Ready wheelset.
- Features the Pure Trail geometry with a slack 65.5° head tube angle and steep 78° seat tube angle.
- Frame supports internal cable routing and includes Accessories Containers for storage.
Full Specifications
| Frame | Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Both Internal & External cable routing. Asymmetric design. 29" wheels. Linkage compatible with OC multitool |
|---|---|
| Rear Shock | Fox Float Performance Remote Push-lock Evol custom tune 210x50mm |
| Rear Travel | 140mm (Assumed from 210x50mm shock/140mm fork context) |
| Fork | Fox 36 Float SL Performance 140, Grip, Remote Push-lock, QR15x110 |
| Fork Travel | 140mm |
| Remote Lockout | OC Squidlock MC20 Remote, Dropper, Suspension 2 Pos |
| Head Tube Diameter | 1-1/2" (Steerer tube: FSA 1-1/2" Integrated Aluminium Cup) |
| Handlebar | OC Mountain Control MC30, Rise 20, 800mm Width |
| Stem | OC Mountain Control MC20, 0º |
| Grips | OC Lock On |
| Brakes | Shimano M6100 Hydraulic Disc (Deore) |
| Rotors | (Not specified, typically 180mm/203mm) |
| Drivetrain | 1x |
| Shifters | Shimano SLX M7100 I-Spec EV, 12-speed |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus, 12-Speed |
| Crankset | Race Face Aeffect, 32t |
| Bottom Bracket | (Assumed Race Face Cinch compatible) |
| Chain | Shimano M6100 (Deore), 12-speed |
| Cassette | Shimano CS-M7100 (SLX), 10-51t, 12-Speed |
| Wheels | Race Face AR 30c Tubeless Ready |
| Front Tire | Maxxis Dissector 2.40" 60 TPI 3C MaxxTerra Exo TLR |
| Rear Tire | Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR |
| Saddle | Fizik Terra Ridon X5 145mm |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Seatpost Lever | (Integrated into OC Squidlock MC20 remote) |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Concentric Boost) |
| Miscellaneous | Asymmetric design, Internal & External cable routing, Accessories Containers for storage |
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 570mm | 596mm | 622mm | 649mm |
| Head Tube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| Head Tube Length | 95mm | 100mm | 110mm | 120mm |
| Seat Tube Angle | 78° | 78° | 78° | 78° |
| Seat Tube Length | 405mm | 415mm | 430mm | 460mm |
| Bottom Bracket Height | 341mm (37mm drop) | 341mm (37mm drop) | 341mm (37mm drop) | 341mm (37mm drop) |
| Chainstay Length | 440mm | 440mm | 440mm | 440mm |
| Wheelbase | 1191mm | 1218mm | 1245mm | 1276mm |
| Reach | 440mm | 465mm | 490mm | 515mm |
| Stack | 611mm | 615mm | 624mm | 633mm |
| Additional Info |
|
|||
