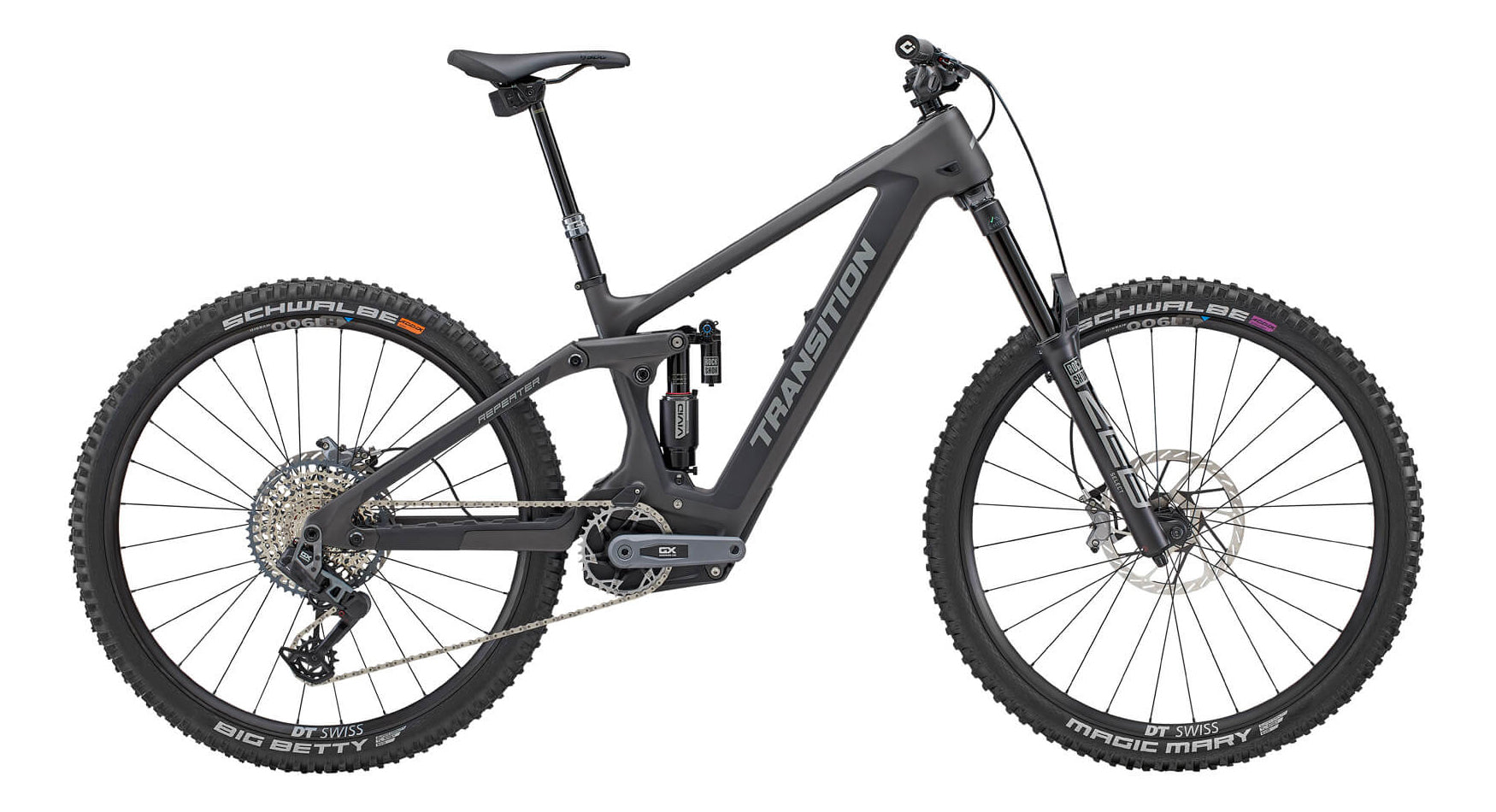

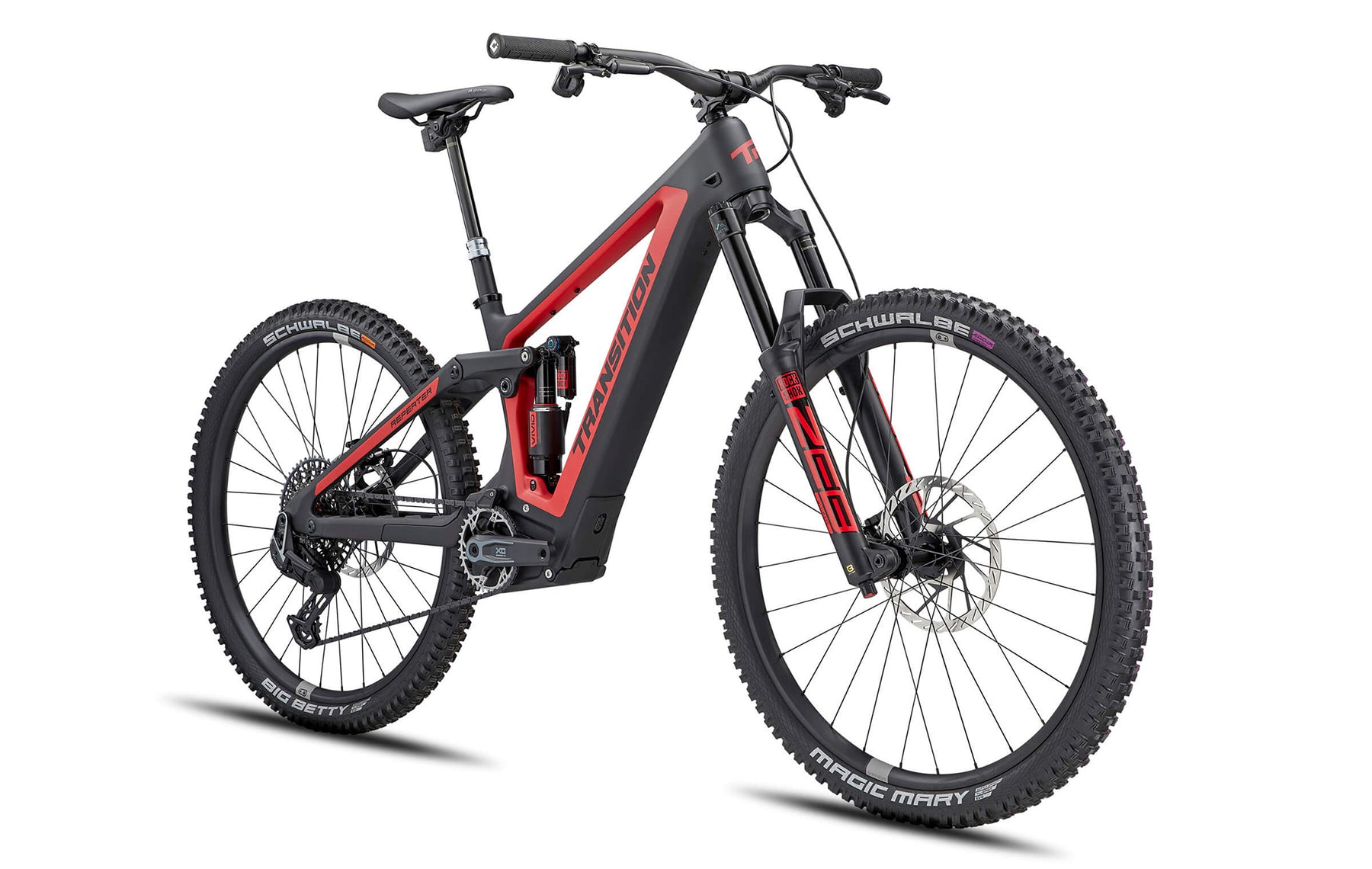

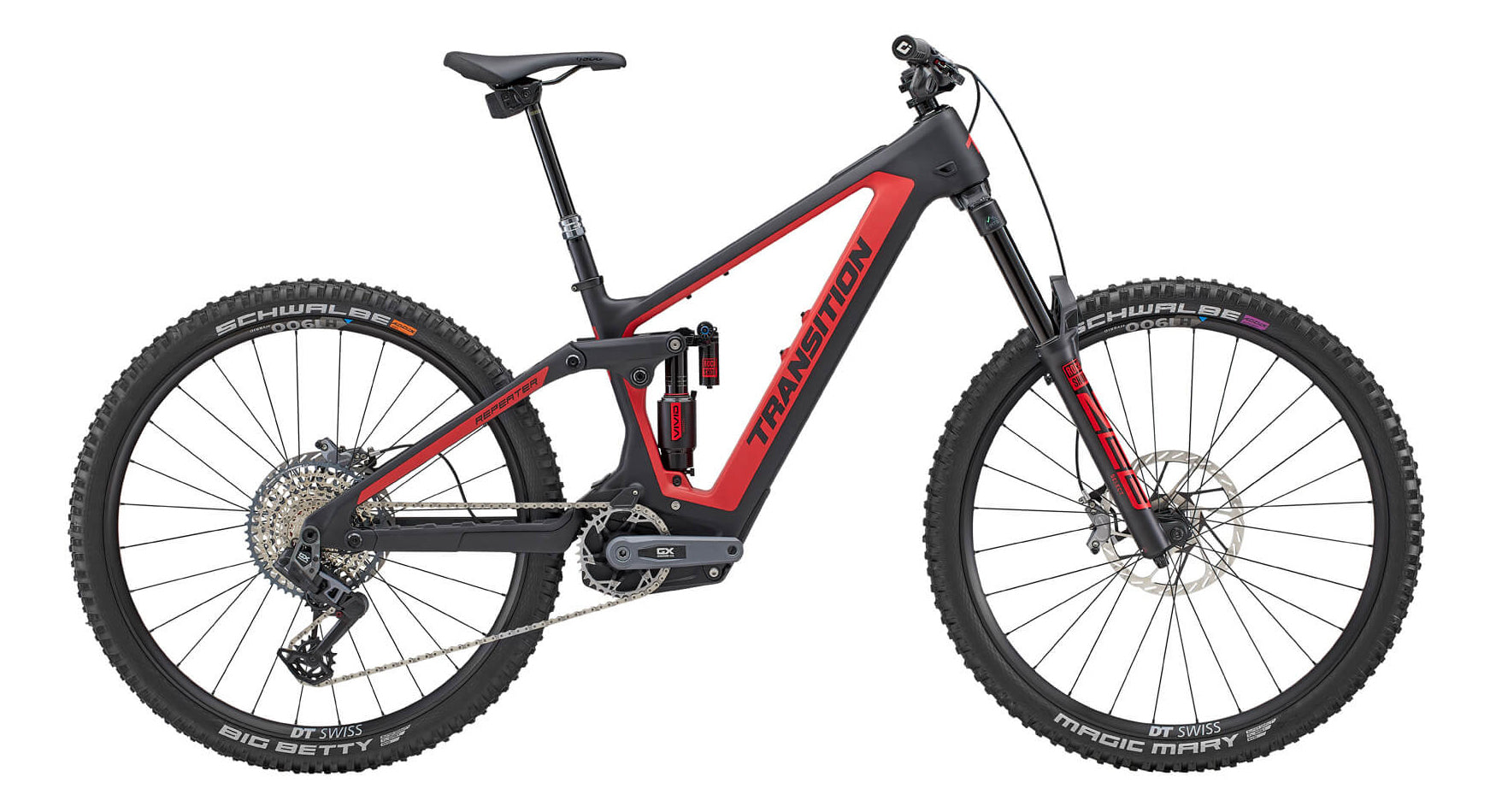

2025 Transition Repeater PT Carbon GX AXS E-Bike
No reviews
- Free Domestic shipping
- Low stock - 5 items left
- Backordered, shipping soon
Key Features
- Transition Repeater PT Carbon frame (2025) with 170mm of GiddyUp Horst-Link rear suspension.
- Integrated SRAM Eagle Powertrain e-bike system (90 Nm torque, 720 Wh capacity) with Auto Shift and Coast Shift functions.
- Premium gravity suspension: RockShox ZEB Select fork (170mm) and Vivid Select+ rear shock.
- Seamless shifting with the SRAM GX Eagle Transmission (T-Type) AXS wireless drivetrain and Powertrain integration.
- Powerful braking from SRAM Code Bronze 4-piston brakes with massive 220mm HS2 rotors.
- Hybrid wheelset build featuring DT Swiss H 1900 Spline Alloy rims and DT Swiss Hybrid 370 hubs.
- Gravity-focused tire pairing: Schwalbe Magic Mary (front, Super Gravity Ultra Soft) and Big Betty (rear, Super Gravity Soft).

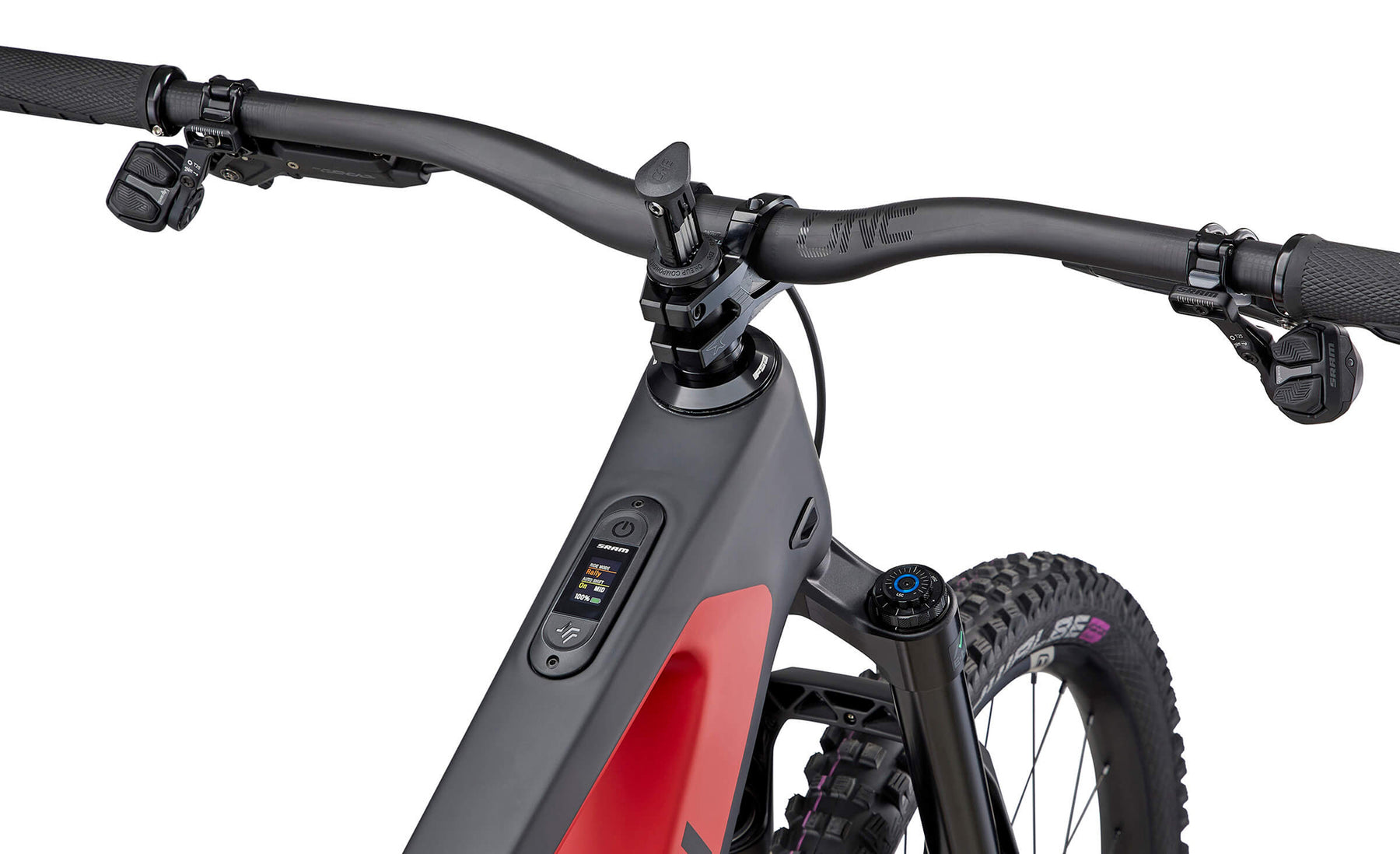

- Integrated cockpit controls via the SRAM Eagle Powertrain top tube display and RockShox Reverb AXS dropper post.
- Includes the OneUp Components EDC Lite Tool installed in the steerer tube.
- Frame is Mullet convertible (29" Front / 27.5" Rear) via lower shock mount adjustment.
Full Specifications
| Product | Transition Repeater PT Carbon GX AXS E-Bike |
|---|---|
| Model Year | 2025 |
| Intended Use | Enduro / All-Mountain, Freeride / Bike Park |
| Rider | Unisex |
| E-Bike Class | Class 1: Pedal Assist (Pedelecs) |

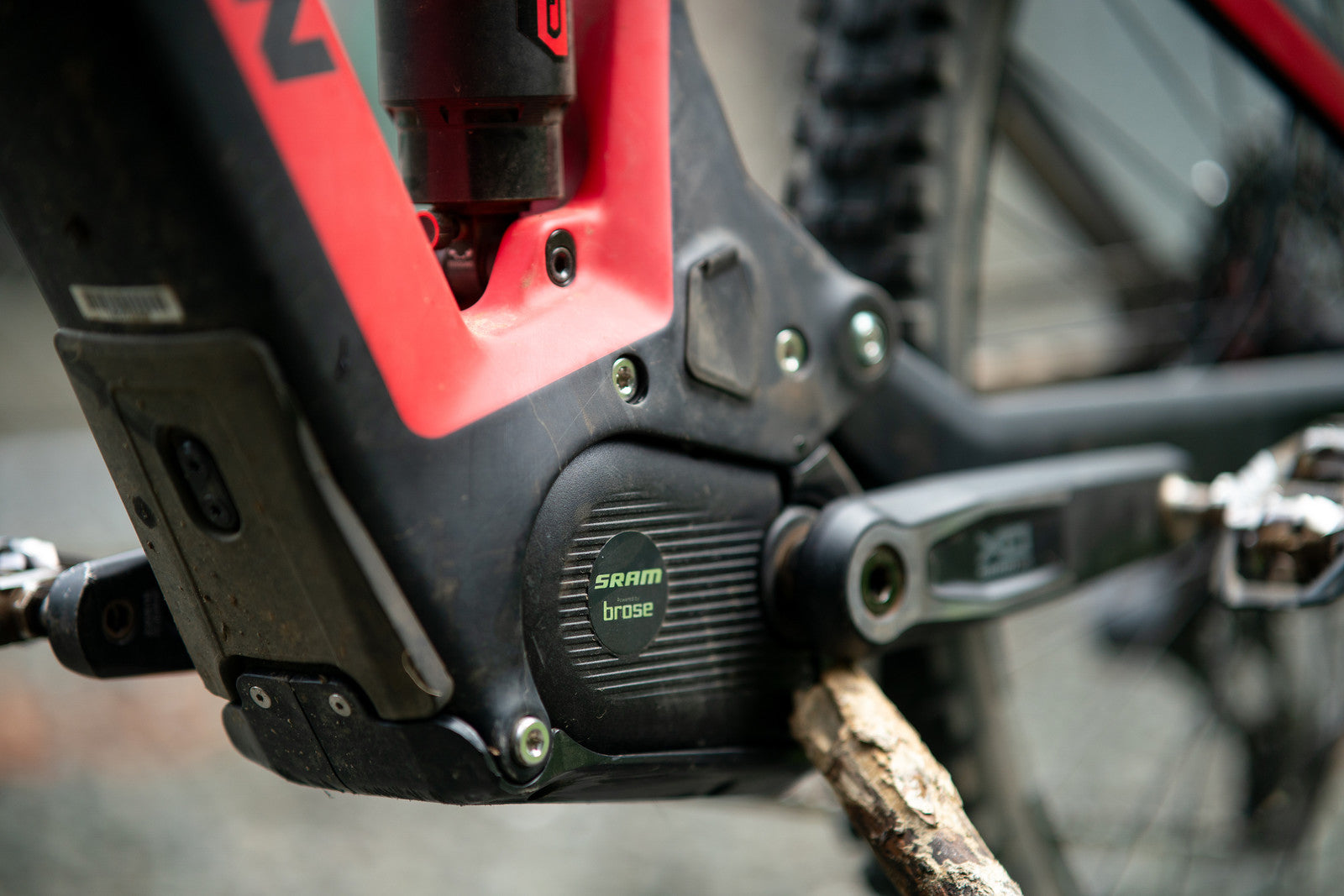

| Motor | SRAM Eagle Powertrain, 90 Nm max torque |
| Battery | SRAM Eagle Powertrain, integrated, 720 Wh capacity |
| Max Speed with Assist | 20 mph (32.2 km/h) |
| Display/Remote | SRAM Eagle Powertrain top tube LCD display, AXS electronic wireless SRAM Eagle Pod Ultimate Controller |
| Modes | Range, Rally, Push Mode (walk assist) |
| Frame Material | Carbon Fiber |
| Frame Material Details | Carbon front and rear triangles, molded protection, motor skid plate |
| Rear Travel | 170mm |
| Rear Shock | RockShox Vivid Select+, trunnion mount, 205mm x 65mm stroke |
| Fork | RockShox ZEB Select, 38mm stanchions |
| Fork Travel | 170mm |
| Head Tube Diameter | Tapered, 56mm upper, 66mm lower |
| Headset | FSA No.55R/44, ZS56 upper, ZS66 lower |
| Handlebar | ANVL Mandrel Alloy, 800mm width, 35mm clamp Rise: 20mm (SM), 30mm (MD/LG), 40mm (XL) |
| Stem | ANVL Swage, 40mm length |
| Grips | ODI Elite Flow, lock-on |
| Brakes | SRAM Code Bronze, 4-piston |
| Rotors | SRAM HS2, 220mm |
| Brake Levers | SRAM Code Bronze Stealth, tool-free Reach Adjust |
| Drivetrain | 1x |
| Shifters | SRAM Eagle Pod Controller, 12-speed, AXS wireless, MMX Bridge |
| Front Derailleur | None |
| Rear Derailleur | SRAM GX Eagle Transmission, 12-speed, AXS wireless, with power wire |
| Chainguide | Transition integrated upper slider |
| Cranks | SRAM GX Eagle Transmission Alloy E-MTB DUB, 160mm length |
| Chainrings | SRAM XX Eagle Transmission, 34 tooth, direct mount |
| Bottom Bracket | (Integrated into SRAM Powertrain system) |
| Pedals | None |
| Chain | SRAM GX Eagle Transmission, 12-speed |
| Cassette | SRAM GX Eagle Transmission XS-1275, 10-52 tooth, 12-speed |
| Rims | DT Swiss H 1900 Spline Alloy |
| Hubs | DT Swiss Hybrid 370 (15 x 110mm front), (12 x 148mm rear) with XD driver |
| Spokes | DT Swiss Hybrid 1 |
| Tires | Front: Schwalbe Magic Mary, Super Gravity, Ultra Soft, 29" x 2.4" Rear: Schwalbe Big Betty, Super Gravity, Soft, 29" x 2.4" |
| Saddle | SDG Bel-Air V3 |
| Seatpost | Rockshox Reverb AXS dropper, electronic wireless Drop: 150mm (SM), 170mm (MD-XL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt, 37.0mm |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 29" x 2.6" |
| Bottle Cage Mounts | One inside front triangle plus accessory mounts under top tube |
| Warranty | Lifetime frame, 2 years motor and battery |
| Weight | 52 lb 14.9 oz (24010 g) |
| Miscellaneous |
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 551mm | 584mm | 615mm | 654mm |
| Head Tube Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| Head Tube Length | 110mm | 115mm | 125mm | 135mm |
| Seat Tube Angle | 79.2° | 78.5° | 78.2° | 77.5° |
| Seat Tube Length | 380mm | 400mm | 440mm | 470mm |
| Bottom Bracket Height | 345mm (25mm drop) | 345mm (25mm drop) | 345mm (25mm drop) | 345mm (25mm drop) |
| Chainstay Length | 455mm | 455mm | 455mm | 455mm |
| Wheelbase | 1230mm | 1262mm | 1292mm | 1326mm |
| Standover | 710mm | 720mm | 730mm | 740mm |
| Reach | 425mm | 455mm | 480mm | 510mm |
| Stack | 630mm | 635mm | 643mm | 652mm |
| Additional Info |
|
|||
