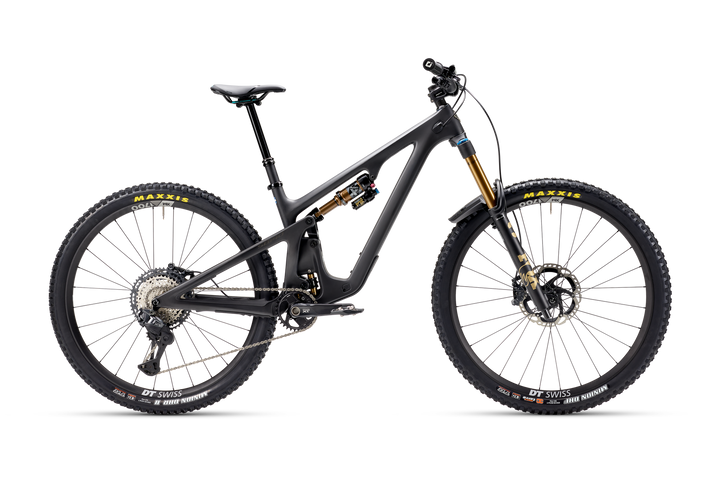

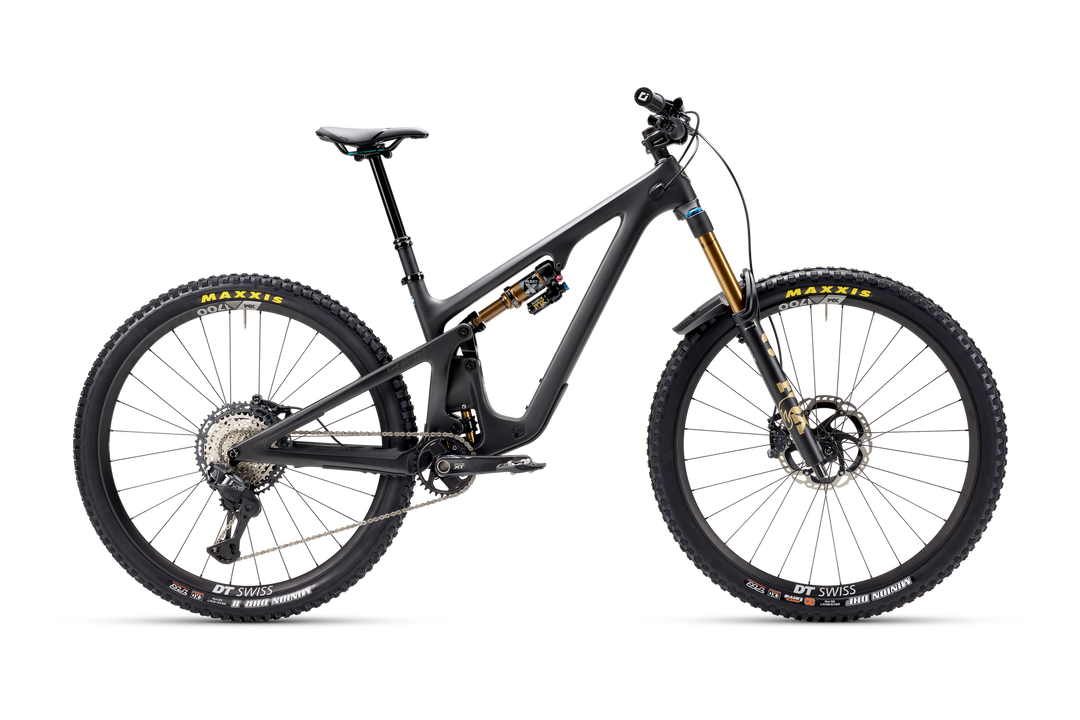

2026 Yeti SB140 T1 XT Di2 Bike
- Free Domestic shipping
- Low stock - 5 items left
- Backordered, shipping soon
Key Features
- Switch Infinity V2 suspension design with 140mm rear travel
- TURQ Series carbon frame for optimal strength and low weight (7.44 lbs)
- High-performance suspension: FOX FLOAT 36 Factory (150mm) and FOX FLOAT X Factory rear shock, both with Kashima coating
- Shimano Deore XT Di2 12-speed electronic wireless drivetrain for crisp, reliable shifting
- Powerful Shimano Deore XT 4-piston brakes with ICE TECHNOLOGIES FREEZA rotors
- Durable DT Swiss XM 1700 Alloy wheelset with 30mm inner width (Carbon option available)
- High-traction tire setup: Maxxis Minion DHF (front) and DHR II (rear), 29"
- Premium components including a Yeti Carbon bar, Burgtec stem, and FOX Transfer dropper post
- Lifetime frame and Switch Infinity Link warranty (1 year paint/finish)
Full Specifications
| Product | Yeti SB140 T1 XT Di2 Bike |
|---|---|
| Model Year | 2026 |
| Intended Use | Trail Enduro / All-Mountain |
| Rider | Unisex |
| Sizes and Geometry | SM MD LG XL XXL |
| Wheel Size | 29" |
| Frame Material | Carbon Fiber |
| Frame Material Details | TURQ Series carbon fiber front and rear triangles; molded chainstay, seatstay, and lower down tube protection |
| Rear Travel | 140mm |
| Rear Shock | FOX FLOAT X Factory, Kashima coating, 210mm length x 55mm stroke |
| Fork | FOX FLOAT 36 Factory, GRIP X2 damper, Kashima coating, 44mm offset |
| Fork Travel | 150mm |
| Head Tube Diameter | Tapered, 1.125" top, 1.5" bottom |
| Headset | Cane Creek 40 Integrated, 41mm upper, 52mm lower |
| Handlebar | Yeti Carbon, 780mm width, 35mm rise, 35mm clamp diameter |
| Stem | Burgtec Enduro MK3, 50mm length, 35mm bar clamp |
| Grips | ODI Elite Pro |
| Brakes | Shimano Deore XT, 4-piston Rotors: Shimano ICE TECHNOLOGIES FREEZA, 203mm front, 180mm rear |
| Brake Levers | Shimano Deore XT |
| Drivetrain | 1x |
| Shifters | Shimano Deore XT M8250 Di2, 12-speed, electronic wireless |
| Front Derailleur | None |
| Rear Derailleur | Shimano Deore XT M8250 Di2, 12-speed, electronic wireless |
| ISCG Tabs | ISCG05 |
| Chainguide | None |
| Cranks | Shimano Deore XT Alloy, 165mm length |
| Chainrings | Shimano Deore XT, 30 tooth |
| Bottom Bracket | Shimano Deore XT, 73mm English/BSA threaded |
| Pedals | None |
| Chain | Shimano Deore XT, 12-speed |
| Cassette | Shimano Deore XT, 12-speed, 10-51 tooth |
| Rims | DT Swiss XM 1700 Alloy, 30mm inner width Option: DT Swiss EXC 1501 Carbon |
| Hubs | DT Swiss XM 1700 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) with Star Ratchet freehub and MICRO SPLINE driver |
| Spokes | DT Swiss XM 1700 wheelset |
| Tires | Front: Maxxis Minion DHF, 3C MaxxTerra compound, EXO casing, 29" x 2.5" Rear: Maxxis Minion DHR II, Dual compound, EXO casing, 29" x 2.4" |
| Saddle | WTB Solano, Chromoly rails |
| Seatpost | FOX Transfer dropper Drop: 150mm (SM), 175mm (MD), 200mm (LG-XXL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt, 36.4mm |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 29" x 2.6" |
| Bottle Cage Mounts | One inside front triangle |

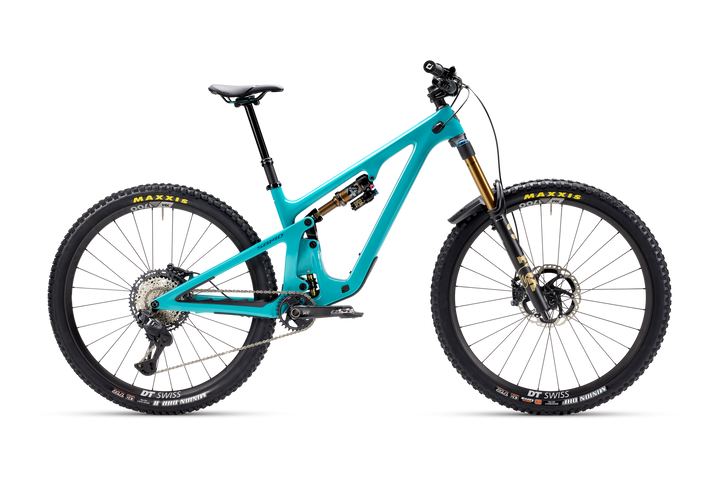

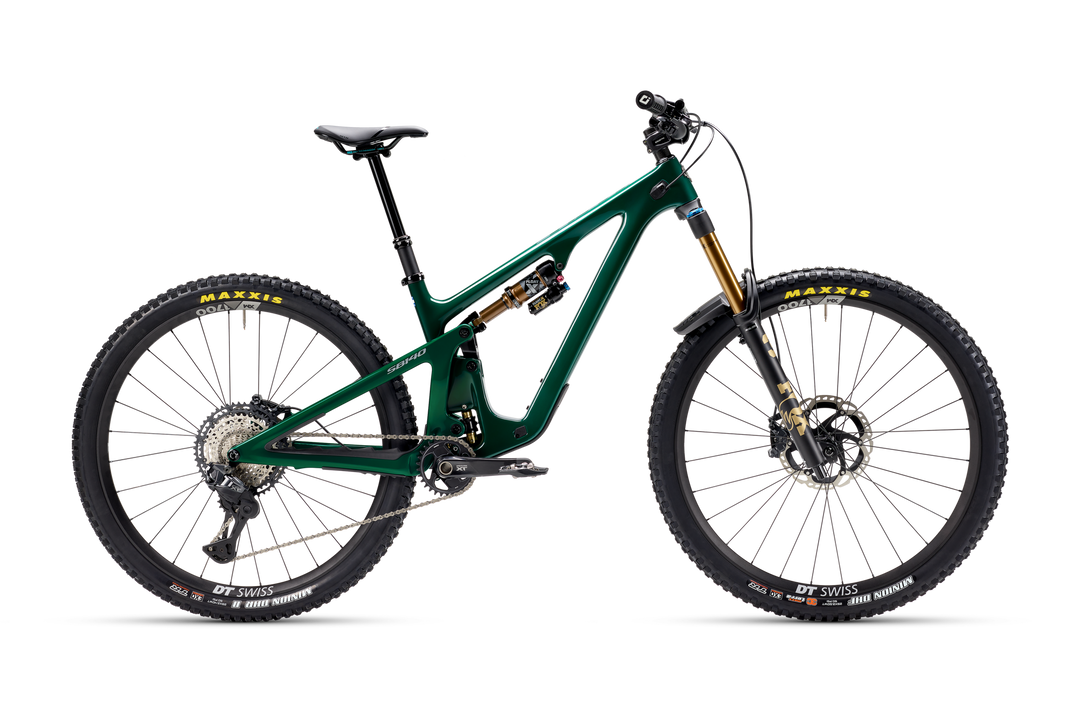

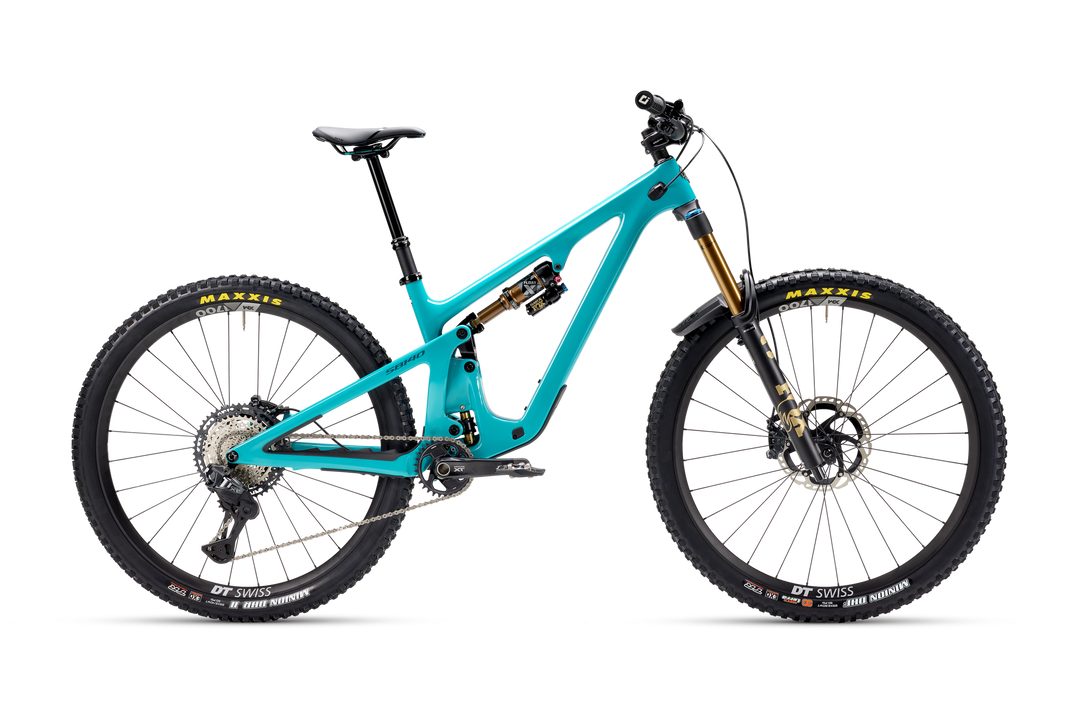

| Colors | Turquoise, Raw Carbon, Emerald |
| Warranty | Lifetime frame and Switch Infinity Link, 1 year paint and finish |
| Weight | 31 lb 3 oz (14,148 g) |
| Miscellaneous |
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Top Tube Length | 571mm | 602mm | 623mm | 650mm | 670mm |
| Head Tube Angle | 65.4° | 65.5° | 65.4° | 65.4° | 65.4° |
| Head Tube Length | 92mm | 95mm | 100mm | 112mm | 134mm |
| Seat Tube Angle | 77.5° | 77.5° | 77.5° | 77.4° | 77.4° |
| Seat Tube Length | 365mm | 400mm | 440mm | 470mm | 485mm |
| Bottom Bracket Height | 339mm | 339mm | 339mm | 339mm | 339mm |
| Chainstay Length | 436mm | 438mm | 440mm | 442mm | 444mm |
| Wheelbase | 1184mm | 1217mm | 1242mm | 1273mm | 1300mm |
| Standover | 722mm | 729mm | 733mm | 735mm | 740mm |
| Reach | 435mm | 465mm | 485mm | 510mm | 525mm |
| Stack | 614mm | 617mm | 621mm | 631mm | 651mm |
| Additional Info |
|
||||
