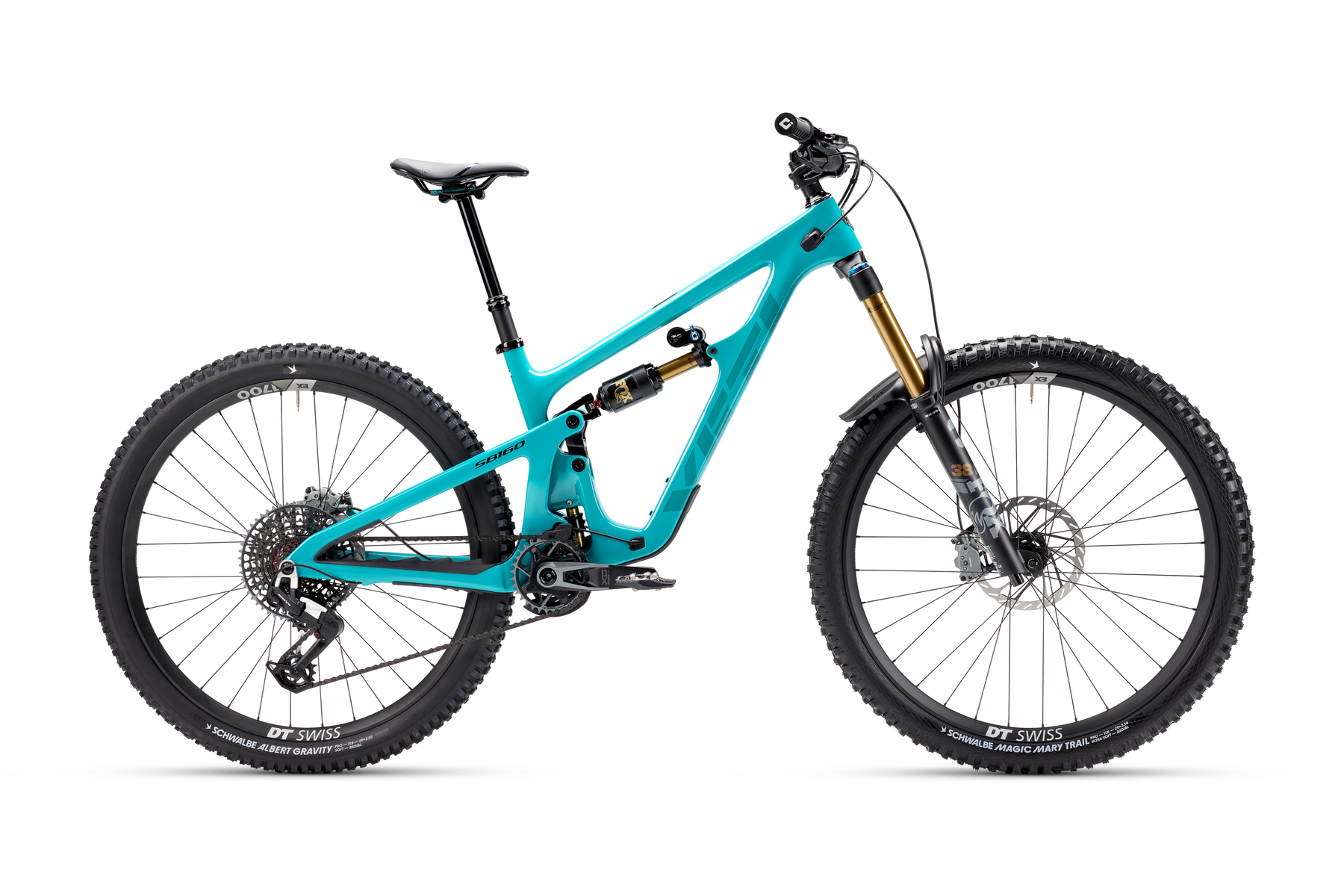

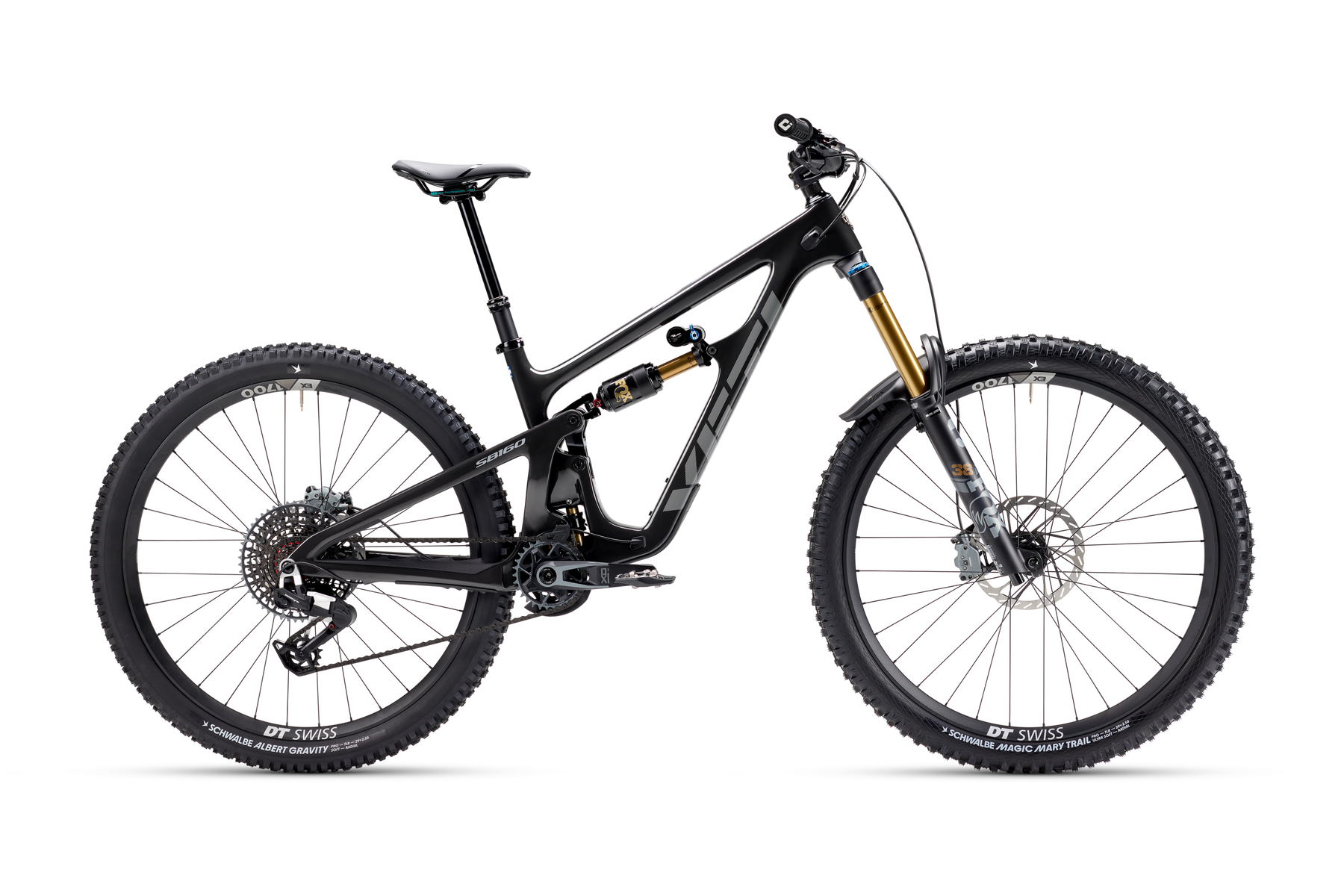

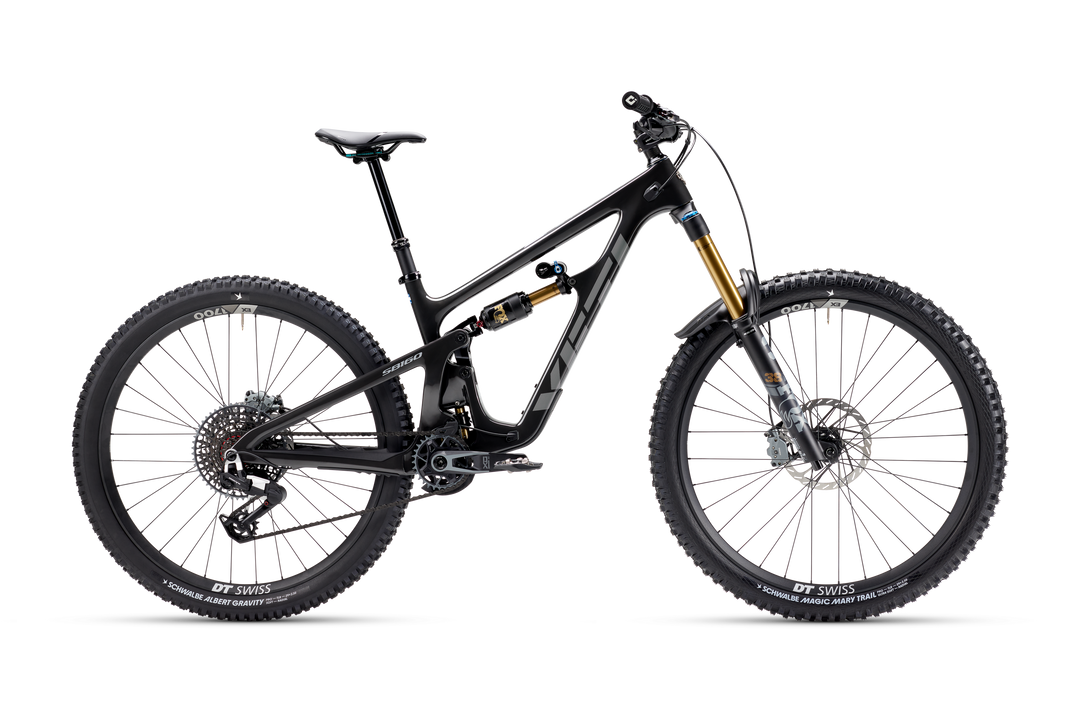

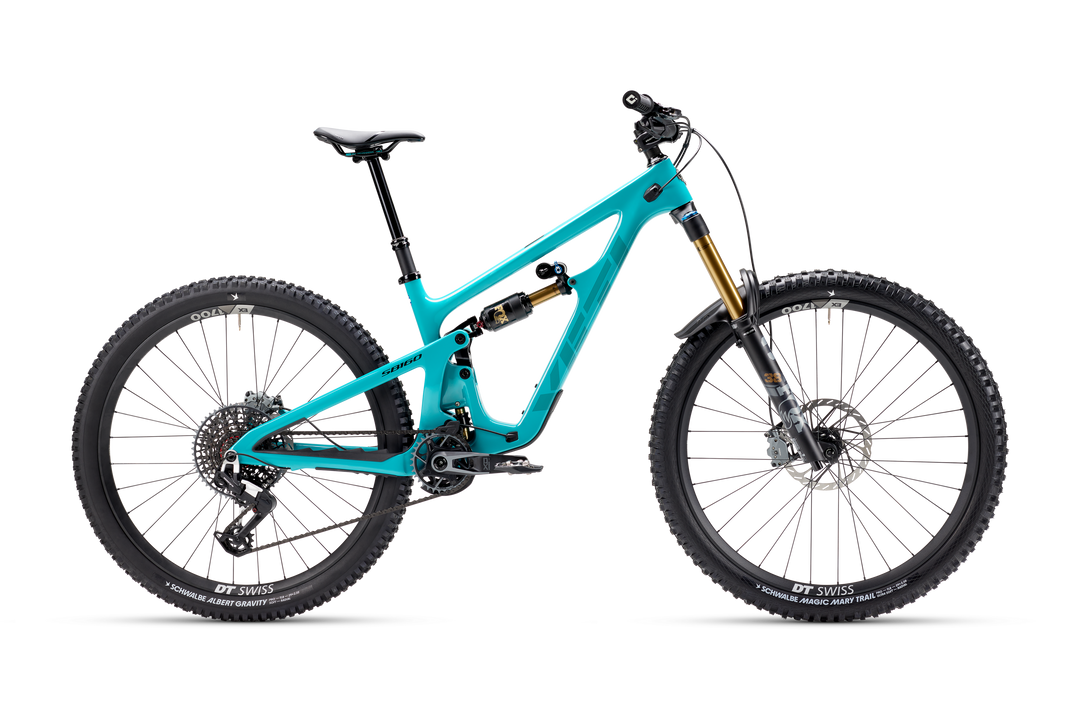

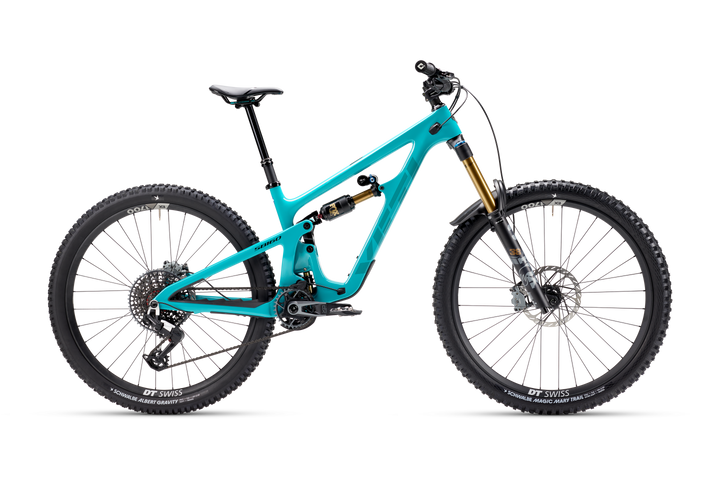

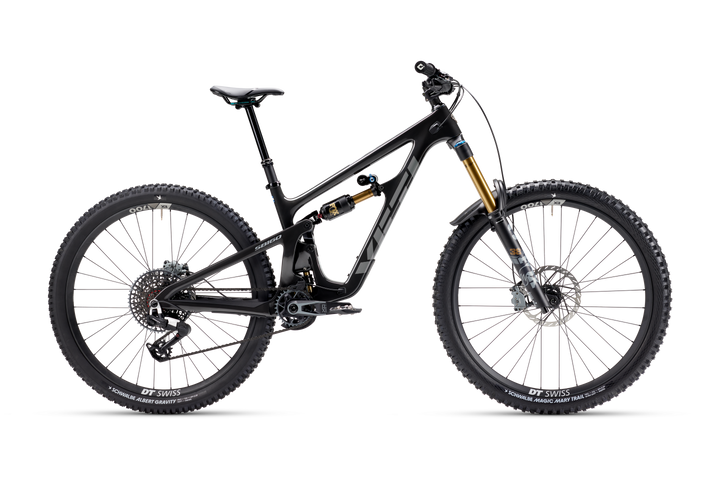

2026 Yeti SB160 T2 X0/90 Transmission Bike

2026 Yeti SB160 T2 X0/90 Transmission Bike

$8,500.00
$8,500.00
Sale Sold out
Shipping calculated at checkout.
  • Premium Component Quality
Color
Wheels
Size
Animation Image

Free Shipping Over $50

Key Features

  • Switch Infinity V2 rear suspension design
  • TURQ Series carbon fiber frame with molded protection
  • FOX FLOAT X2 Factory rear shock and FOX FLOAT 38 Factory fork
  • SRAM Eagle 90 Transmission 12-speed drivetrain
  • DT Swiss Custom EX 1700 wheels with Schwalbe tires
  • FOX Transfer dropper seatpost with size-based drop
  • Lifetime frame and Switch Infinity Link warranty

Full Specifications

Product Yeti SB160 T2 X0/90 Transmission Bike
Model Year 2026
Intended Use Enduro / All-Mountain
Freeride / Bike Park
Rider Unisex
Sizes and Geometry SM
MD
LG
XL
XXL
Wheel Size 29"
Frame Material Carbon Fiber
Frame Material Details TURQ Series carbon fiber front and rear triangles; molded chainstay, seatstay, and lower down tube protection
Rear Travel 160mm
Rear Shock FOX FLOAT X2 Factory, Kashima coating, 230mm x 65mm stroke
Fork FOX FLOAT 38 Factory, GRIP X2 damper, Kashima coating, 44mm offset
Fork Travel 170mm
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Headset Cane Creek 40 Integrated, 41mm upper, 52mm lower
Handlebar Yeti Carbon, 780mm width, 35mm rise, 35mm clamp diameter
Stem Burgtec Enduro MK3, 50mm length, 35mm bar clamp
Grips ODI Elite Pro
Brakes SRAM Maven Bronze, 4-piston
Rotors: SRAM HS2, 200mm
Brake Levers SRAM Maven Bronze Stealth, tool-free reach adjust
Drivetrain 1x
Shifters SRAM Eagle 90 Transmission, 12-speed
Front Derailleur None
Rear Derailleur SRAM Eagle 90 Transmission, 12-speed
ISCG Tabs ISCG05
Chainguide MRP AMg SL upper slider with bashguard
Cranks SRAM X0 Eagle Transmission Alloy DUB, 165mm length
Chainrings SRAM X0 Eagle Transmission, 30 tooth
Bottom Bracket SRAM DUB, 73mm English/BSA threaded
Pedals None
Chain SRAM X0 Eagle Transmission Flattop, 12-speed
Cassette SRAM X0 Eagle Transmission XS-1295, 12-speed, 10-52 tooth
Rims DT Swiss Custom EX 1700 Alloy, 30mm inner width
Option: DT Swiss EXC 1501 Carbon
Hubs DT Swiss Custom EX 1700 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) with Star Ratchet freehub and XD driver
Spokes DT Swiss Custom EX 1700 wheelset
Tires Front: Schwalbe Magic Mary, Trail Pro Radial casing, Ultra Soft compound, 29" x 2.5"
Rear: Schwalbe Albert, Gravity Pro Radial casing, Soft compound, 29" x 2.5"
Saddle WTB Solano, Chromoly rails
Seatpost FOX Transfer dropper
Drop: 150mm (SM), 175mm (MD), 200mm (LG-XXL)
Seatpost Diameter 31.6mm
Seatpost Clamp Single bolt, 36.4mm
Rear Dropout / Hub Dimensions 12mm x 148mm (Boost)
Max. Tire Size 29" x 2.6"
Bottle Cage Mounts One inside front triangle
Colors Turquoise, Raw Carbon
Warranty Lifetime frame and Switch Infinity Link, 1 year paint and finish
Weight 34 lb 5.9 oz (15,590 g)
Miscellaneous
  • Switch Infinity V2 rear suspension design
  • Internally tunneled cable routing
  • SRAM UDH (Universal Derailleur Hanger)
  • Frame weight: 8.39 lbs (3806 g)

Geometry

Size SM MD LG XL XXL
Top Tube Length 571mm 602mm 624mm 651mm 670mm
Head Tube Angle 64° 64° 64° 64° 64°
Head Tube Length 95mm 101mm 107mm 118mm 140mm
Seat Tube Angle 77.5° 77.5° 77.5° 77.5° 77.5°
Seat Tube Length 365mm 400mm 440mm 470mm 485mm
Bottom Bracket Height 353mm 353mm 353mm 353mm 353mm
Chainstay Length 437mm 439mm 441mm 443mm 445mm
Wheelbase 1211mm 1246mm 1270mm 1302mm 1329mm
Standover 735mm 744mm 750mm 756mm 757mm
Reach 435mm 465mm 485mm 510mm 525mm
Stack 615mm 620mm 625mm 635mm 655mm
Additional Info
  • All specifications listed are with 170mm travel fork with 588mm axle-to-crown length and 44mm offset
  • Bottom bracket heights are listed as "estimated" by Yeti
