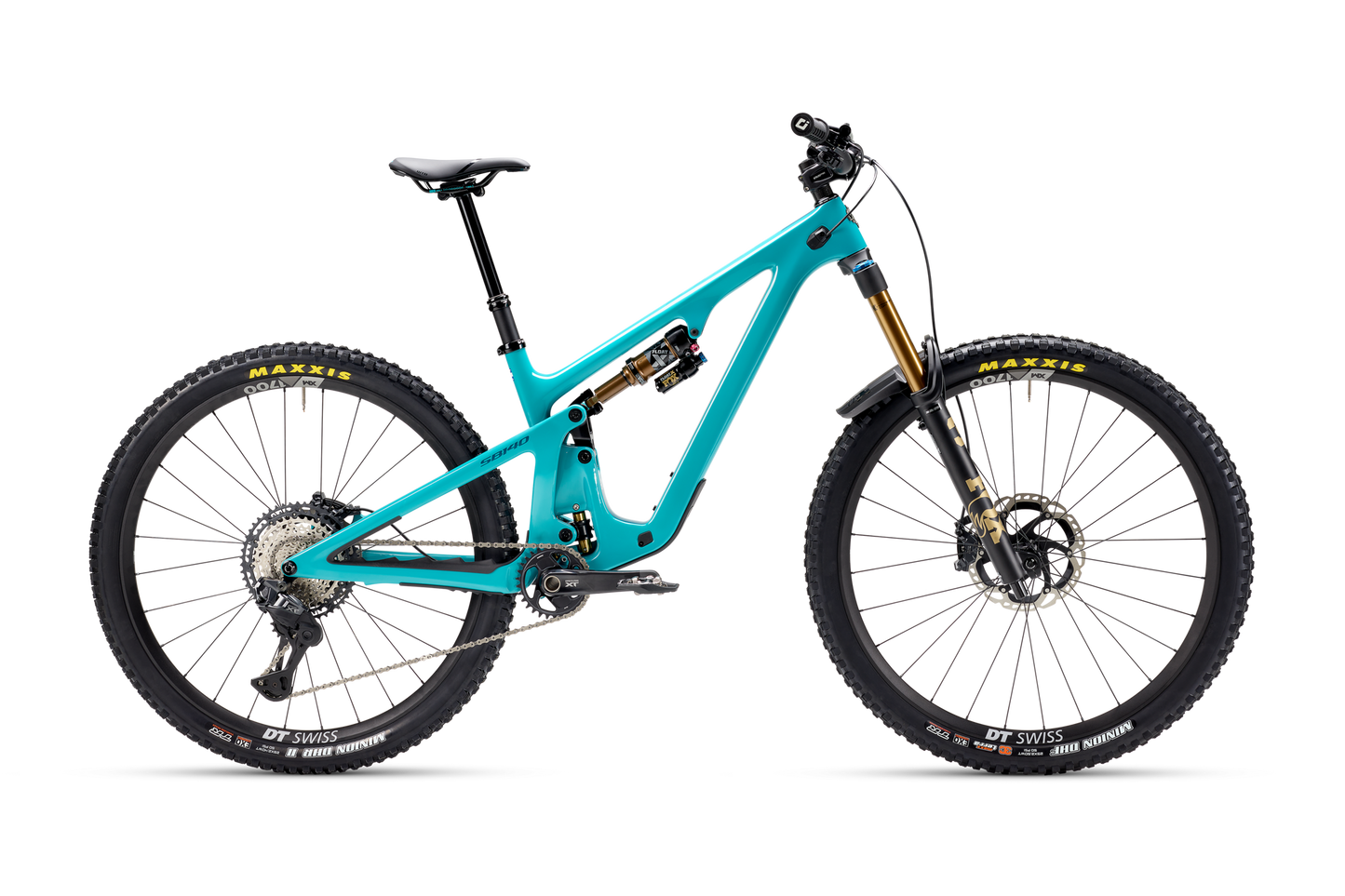

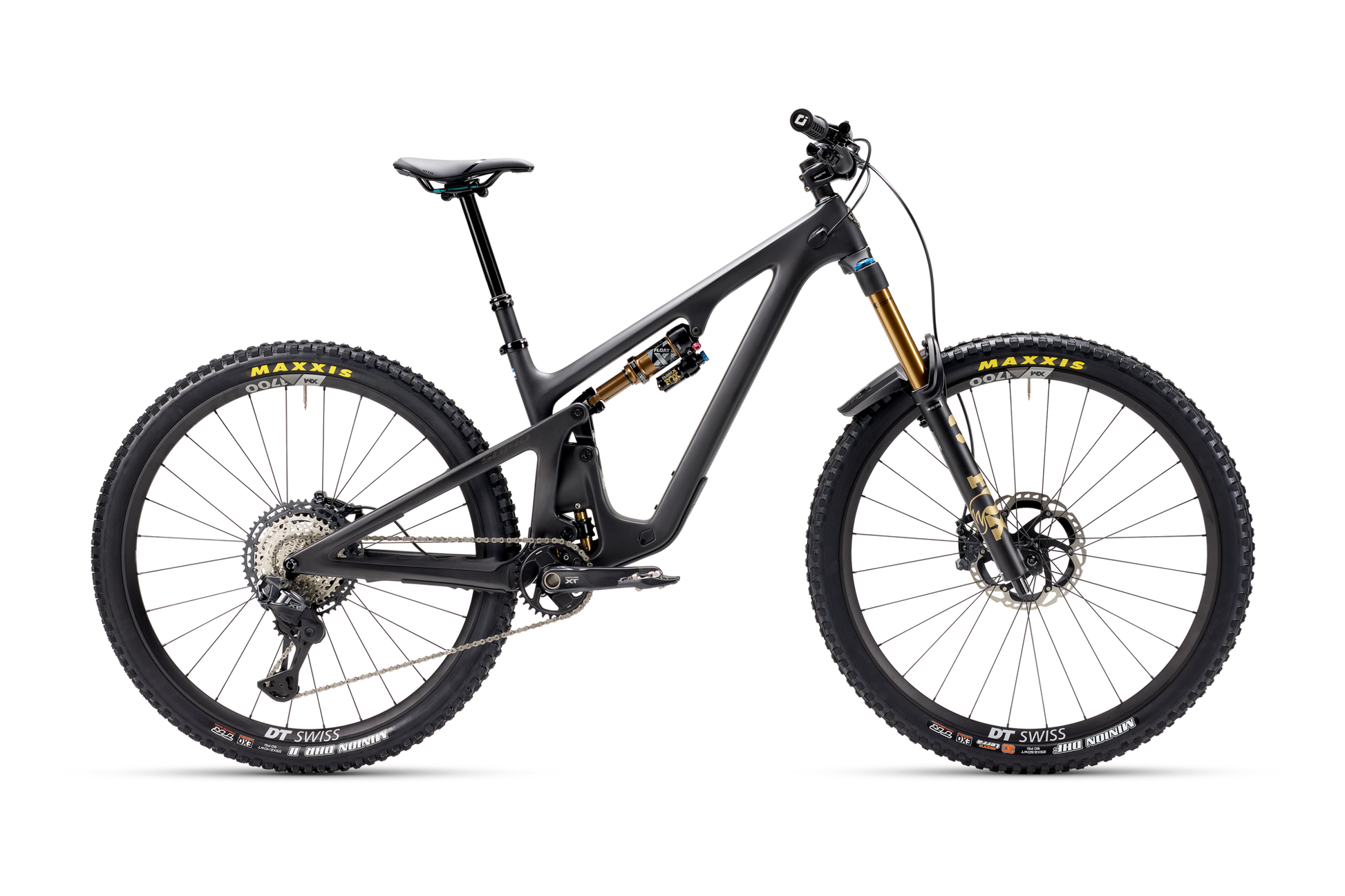

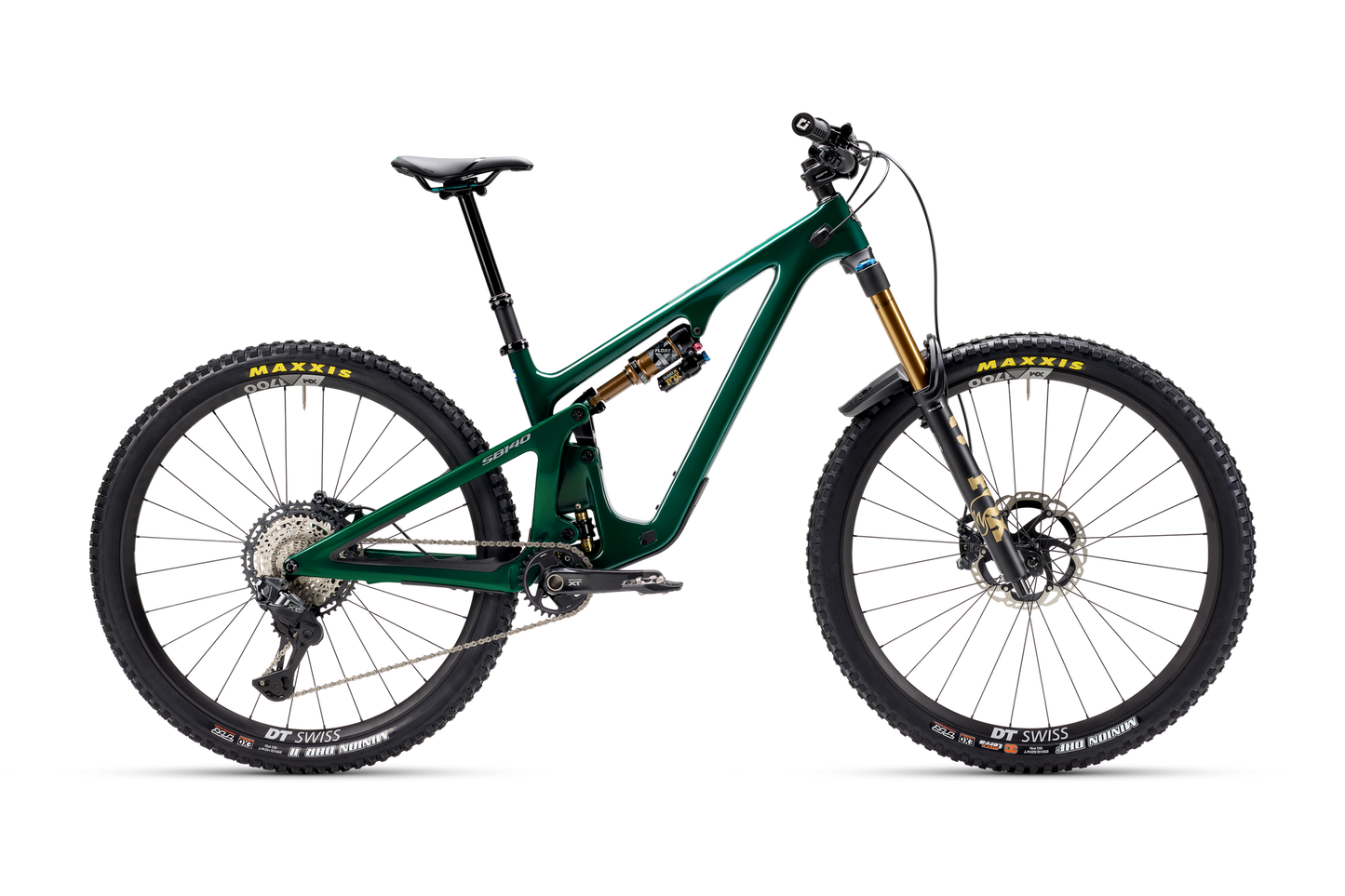

2026 Yeti SB140 T1 XT Di2 Bike

2026 Yeti SB140 T1 XT Di2 Bike

$8,400.00
$8,400.00
Sale Sold out
Shipping calculated at checkout.
  • Premium Component Quality
Color
Size
Animation Image

Free Shipping Over $50

Key Features

  • Switch Infinity V2 suspension design with 140mm rear travel
  • TURQ Series carbon frame for optimal strength and low weight (7.44 lbs)
  • High-performance suspension: FOX FLOAT 36 Factory (150mm) and FOX FLOAT X Factory rear shock, both with Kashima coating
  • Shimano Deore XT Di2 12-speed electronic wireless drivetrain for crisp, reliable shifting
  • Powerful Shimano Deore XT 4-piston brakes with ICE TECHNOLOGIES FREEZA rotors
  • Durable DT Swiss XM 1700 Alloy wheelset with 30mm inner width (Carbon option available)
  • High-traction tire setup: Maxxis Minion DHF (front) and DHR II (rear), 29"
  • Premium components including a Yeti Carbon bar, Burgtec stem, and FOX Transfer dropper post
  • Lifetime frame and Switch Infinity Link warranty (1 year paint/finish)

Full Specifications

Product Yeti SB140 T1 XT Di2 Bike
Model Year 2026
Intended Use Trail
Enduro / All-Mountain
Rider Unisex
Sizes and Geometry SM
MD
LG
XL
XXL
Wheel Size 29"
Frame Material Carbon Fiber
Frame Material Details TURQ Series carbon fiber front and rear triangles; molded chainstay, seatstay, and lower down tube protection
Rear Travel 140mm
Rear Shock FOX FLOAT X Factory, Kashima coating, 210mm length x 55mm stroke
Fork FOX FLOAT 36 Factory, GRIP X2 damper, Kashima coating, 44mm offset
Fork Travel 150mm
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Headset Cane Creek 40 Integrated, 41mm upper, 52mm lower
Handlebar Yeti Carbon, 780mm width, 35mm rise, 35mm clamp diameter
Stem Burgtec Enduro MK3, 50mm length, 35mm bar clamp
Grips ODI Elite Pro
Brakes Shimano Deore XT, 4-piston
Rotors: Shimano ICE TECHNOLOGIES FREEZA, 203mm front, 180mm rear
Brake Levers Shimano Deore XT
Drivetrain 1x
Shifters Shimano Deore XT M8250 Di2, 12-speed, electronic wireless
Front Derailleur None
Rear Derailleur Shimano Deore XT M8250 Di2, 12-speed, electronic wireless
ISCG Tabs ISCG05
Chainguide None
Cranks Shimano Deore XT Alloy, 165mm length
Chainrings Shimano Deore XT, 30 tooth
Bottom Bracket Shimano Deore XT, 73mm English/BSA threaded
Pedals None
Chain Shimano Deore XT, 12-speed
Cassette Shimano Deore XT, 12-speed, 10-51 tooth
Rims DT Swiss XM 1700 Alloy, 30mm inner width
Option: DT Swiss EXC 1501 Carbon
Hubs DT Swiss XM 1700 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) with Star Ratchet freehub and MICRO SPLINE driver
Spokes DT Swiss XM 1700 wheelset
Tires Front: Maxxis Minion DHF, 3C MaxxTerra compound, EXO casing, 29" x 2.5"
Rear: Maxxis Minion DHR II, Dual compound, EXO casing, 29" x 2.4"
Saddle WTB Solano, Chromoly rails
Seatpost FOX Transfer dropper
Drop: 150mm (SM), 175mm (MD), 200mm (LG-XXL)
Seatpost Diameter 31.6mm
Seatpost Clamp Single bolt, 36.4mm
Rear Dropout / Hub Dimensions 12mm x 148mm (Boost)
Max. Tire Size 29" x 2.6"
Bottle Cage Mounts One inside front triangle

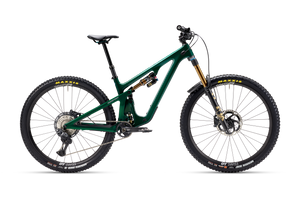

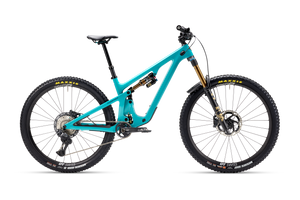

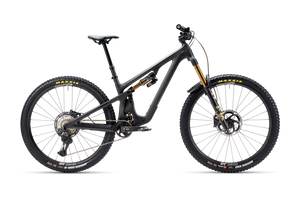

Colors Turquoise, Raw Carbon, Emerald
Warranty Lifetime frame and Switch Infinity Link, 1 year paint and finish
Weight 31 lb 3 oz (14,148 g)
Miscellaneous
  • Switch Infinity V2 rear suspension design
  • Internally tunneled cable routing
  • SRAM UDH (Universal Derailleur Hanger)
  • Frame weight: 7.44 lbs (3,375 g)

Geometry

Size SM MD LG XL XXL
Top Tube Length 571mm 602mm 623mm 650mm 670mm
Head Tube Angle 65.4° 65.5° 65.4° 65.4° 65.4°
Head Tube Length 92mm 95mm 100mm 112mm 134mm
Seat Tube Angle 77.5° 77.5° 77.5° 77.4° 77.4°
Seat Tube Length 365mm 400mm 440mm 470mm 485mm
Bottom Bracket Height 339mm 339mm 339mm 339mm 339mm
Chainstay Length 436mm 438mm 440mm 442mm 444mm
Wheelbase 1184mm 1217mm 1242mm 1273mm 1300mm
Standover 722mm 729mm 733mm 735mm 740mm
Reach 435mm 465mm 485mm 510mm 525mm
Stack 614mm 617mm 621mm 631mm 651mm
Additional Info
  • All specifications listed are with 150mm travel fork with 565mm axle-to-crown length and 44mm offset
  • Bottom bracket heights are listed as "estimated" by Yeti
