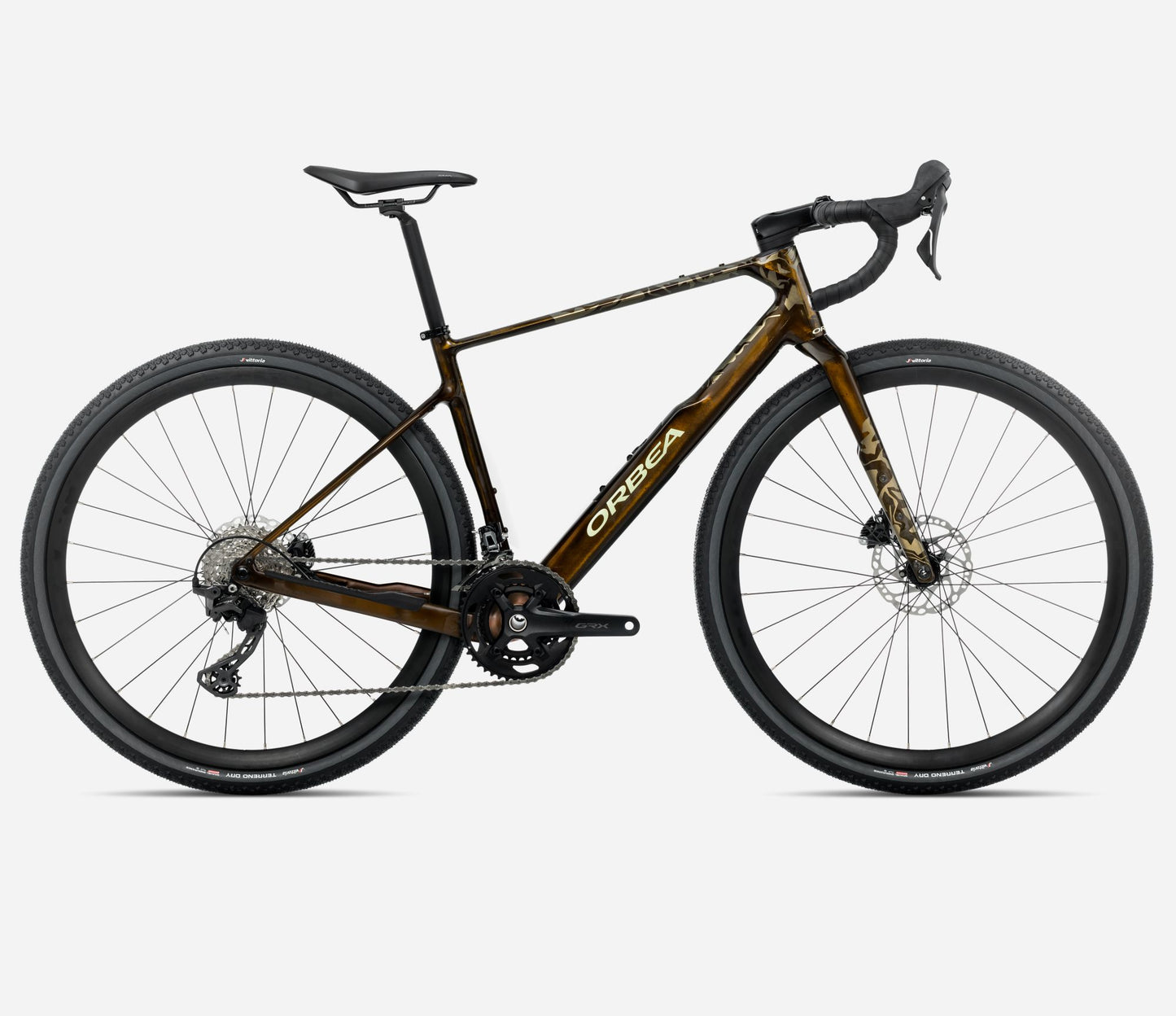

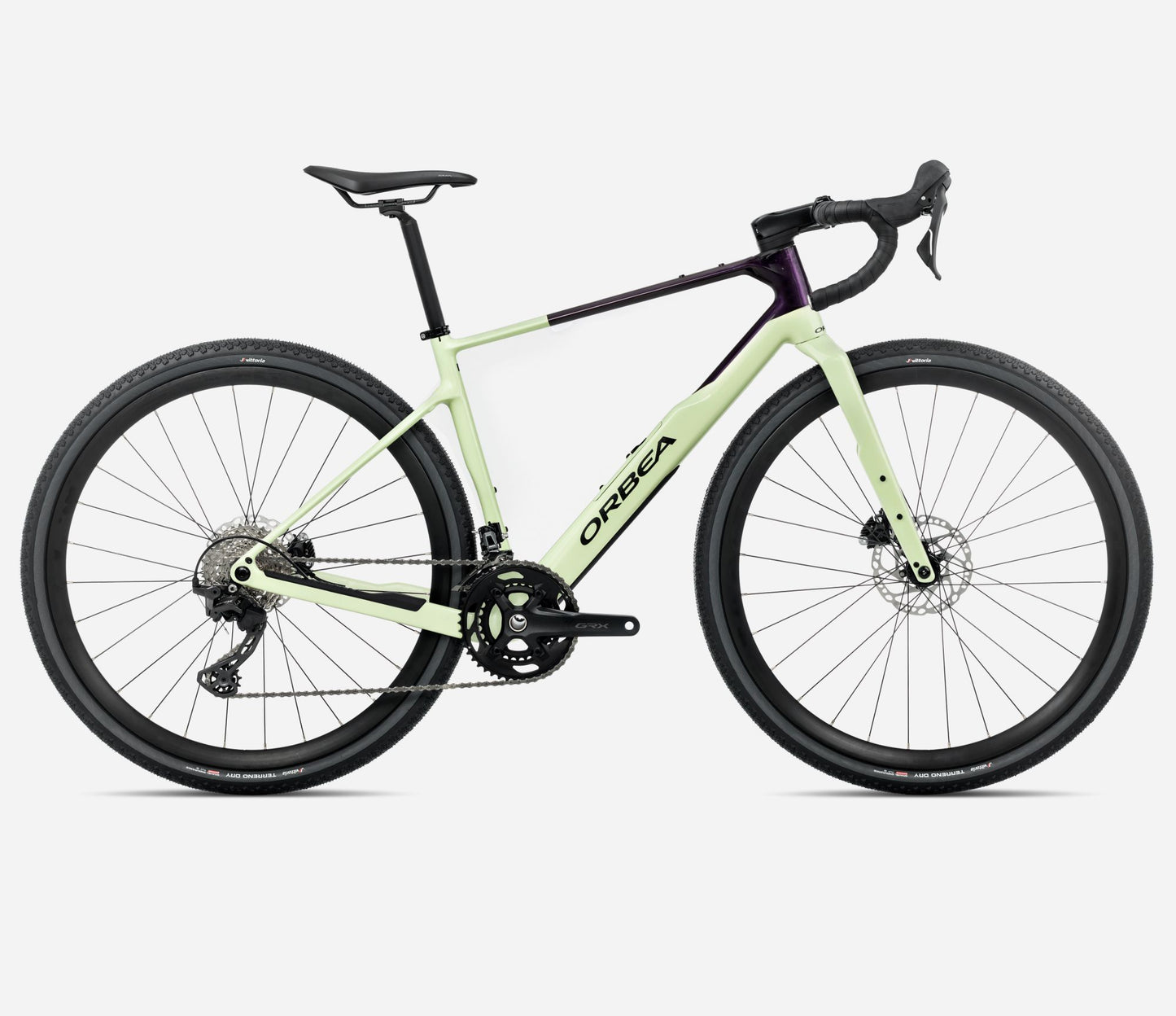

2026 Orbea Terra M30TEAM

2026 Orbea Terra M30TEAM

$2,939.16
$2,939.16 $3,499.00
Save $559.84
Sale Sold out
Shipping calculated at checkout.
  • Premium Component Quality
Color
Size
Animation Image

Free Shipping Over $50

Key Features

  • Orbea Terra Carbon OMR frame, featuring monocoque construction and a LOCKR XXL internal storage box.
  • Full carbon Orbea Terra Race ICR fork with multiple mount systems and internal cable routing.
  • Performance-oriented Shimano GRX RX610/RX820 2x12-speed drivetrain with a 30x46t crankset and 11-36t cassette.
  • Powerful and reliable Shimano RX410 Hydraulic Disc Brakes.
  • High-volume gravel tires: Vittoria Terreno T30 700x45c (Endurance G2.0) for fine loose gravel.
  • Comfort-focused SP 0.2 Carbon seatpost with 27.2mm diameter.
  • Includes the MMS (Multi Mount System) for maximum cargo and fender compatibility.
  • Features a modern UDH (Universal Derailleur Hanger) dropout.

Full Specifications

Frame Orbea Terra Carbon OMR Disc, monocoque construction, HS 1.5", BB386EVO, Thru Axle 12x142mm, UDH dropout, LOCKR XXL service box, MMS multi mount system, fender ready.
Fork Orbea Terra Race ICR, full carbon, 1-1/8" - 1.5" tappered head tube, Thru axle 12x100mm, MMS multi mount system, fender ready.
Headset FSA 1-1/2" Integrated Aluminium Cup
Handlebar OC Gravel GR31, Reach 70, Drop 110
Stem OC Road Performance RP23, -5º
Handlebar Tape Orbea Anti-Slippery/Shock Proof
Brakes Shimano RX410 Hydraulic disc
Rotors (Not Specified)
Drivetrain 2x
Shifters Shimano GRX RX610
Rear Derailleur Shimano GRX RX820
Front Derailleur Shimano GRX RX820
Crankset Shimano GRX RX610 30x46t
Bottom Bracket BB386EVO (Power meter compatible)
Chain Shimano M6100
Cassette Shimano HG710 11-36t 12-Speed
Wheels Alloy, Tubeless, 700c, 21c inner width
Front Wheel Axle Orbea Thru Axle 12x100mm M12xP1 Hollow
Rear Wheel Axle Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
Tires Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c
Saddle Fizik Terra Argo X7 Aluminium Rail 150mm
Seatpost SP 0.2 Carbon, 27.2mm, Setback 20mm
Rear Dropout / Hub Dimensions 12mm x 142mm
Storage LOCKR XXL service box, Accessories Containers

Geometry

XS S M L XL XXL
Seat Tube (C-T) 410mm 440mm 470mm 505mm 540mm 575mm
Top Tube (EFF) 535mm 547mm 561mm 573mm 585mm 596mm
Head Tube 110mm 132.5mm 153.5mm 175mm 198mm 218mm
Chainstay 430mm 430mm 430mm 430mm 430mm 430mm
BB Drop 80mm 80mm 80mm 80mm 80mm 80mm
BB Height 261mm 261mm 261mm 261mm 261mm 261mm
Wheelbase 1031mm 1041mm 1052mm 1061mm 1072mm 1081mm
Head Angle 69.0° 69.5° 70.0° 70.5° 70.8° 71.0°
Seat Angle 74.0° 74.0° 74.0° 74.0° 74.0° 74.0°
Rake 45mm 45mm 45mm 45mm 45mm 45mm
Standover 690mm 717mm 743mm 772mm 801mm 828mm
Reach 386mm 392mm 400mm 406mm 412mm 417mm
Stack 535mm 558mm 580mm 602mm 625mm 645mm
Fork Length 395mm 395mm 395mm 395mm 395mm 395mm
Trail 82.7mm 79.5mm 76.2mm 73.0mm 71.4mm 69.8mm
