2024 Transition Spur Carbon GX Bike
No reviews
- Free Domestic shipping
- Low stock - 2 items left
- Backordered, shipping soon
Key Features
- Lightweight Carbon Frame: Constructed from a blend of Japanese Toray carbon fibers (24T, 30T, 40T) for exceptional strength and minimal weight (5.4 lbs frame).
- 120mm GiddyUp Suspension: Features Transition's efficient pivot-less flex-stay rear triangle design.
- Performance Elite Suspension: Equipped with a FOX FLOAT 34 Performance Elite fork and FOX FLOAT DPS Performance Elite rear shock.
- SRAM GX Eagle Drivetrain: Reliable and wide-range 1x12 speed drivetrain with a 10-52 tooth cassette.
- SRAM G2 RS Brakes: Powerful 4-piston hydraulic disc brakes with 180mm CenterLine rotors.
- Race Face/Maxxis Wheelset: Race Face Aeffect R rims and Trace hubs paired with Maxxis Dissector/Rekon 2.4" tires for a balanced trail setup.
- OneUp Dropper Post: High-quality dropper post with travel ranging from 150mm to 240mm depending on frame size.
- Rider-Focused Details: Includes external rear brake routing for easy maintenance, internal cable routing with guide tubes, and a Lifetime Frame Warranty.
Full Specifications
| Product | Transition Spur Carbon GX Bike |
|---|---|
| Model Year | 2024 |
| Intended Use | Cross Country / Trail |
| Rider | Unisex |
| Sizes and Geometry | SM, MD, LG, XL |
| Wheel Size | 29" |
| Frame Material | Carbon Fiber |
| Frame Material Details | Japanese Toray fiber front and rear triangles; blend of 24T, 30T, and 40T materials with EPS molding process; molded chainstay and down tube protection |
| Rear Travel | 120mm |
| Rear Shock | FOX FLOAT DPS Performance Elite, 190mm length x 45mm stroke |
| Fork | FOX FLOAT 34 Performance Elite, FIT4 damper, 44mm offset |
| Fork Travel | 120mm |
| Head Tube Diameter | Tapered, 1.125" top, 1.5" bottom |
| Headset | FSA No.57E, ZS44 upper, ZS56 lower |
| Handlebar | ANVL Mandrel Alloy, 800mm width, 35mm clamp diameter Rise: 20mm (SM/MD), 30mm (LG/XL) |
| Stem | ANVL Swage, 40mm length, 35mm bar clamp |
| Grips | ODI Elite Flow, lock-on |
| Brakes | SRAM G2 RS, 4-piston, SRAM CenterLine 180mm rotors |
| Brake Levers | SRAM G2 RS, tool-free reach adjust |
| Drivetrain | 1x |
| Shifters | SRAM GX Eagle, 12-speed |
| Front Derailleur | None |
| Rear Derailleur | SRAM GX Eagle, 12-speed |
| ISCG Tabs | ISCG05 (top/front two mounts only) |
| Chainguide | None |
| Cranks | SRAM GX Eagle Alloy DUB, 170mm length |
| Chainrings | SRAM GX Eagle, 32 tooth |
| Bottom Bracket | SRAM DUB, 73mm English/BSA threaded |
| Pedals | None |
| Chain | SRAM GX Eagle, 12-speed |
| Cassette | SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth |
| Rims | Race Face Aeffect R, alloy, 28 hole |
| Hubs | Race Face Trace, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver |
| Spokes | Race Face, 2.0/1.7/2.0 butted |
| Tires | Front: Maxxis Dissector, 3C MaxxTerra compound, EXO casing, 29" x 2.4" Rear: Maxxis Rekon, 3C MaxxTerra compound, EXO casing, 29" x 2.4" |
| Saddle | SDG Bel-Air V3 |
| Seatpost | OneUp dropper Drop: 150mm (SM), 180mm (MD), 210mm (LG), 240mm (XL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt, 37.0mm |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 29" x 2.4" |
| Bottle Cage Mounts | One inside front triangle, one under down tube, plus accessory mounts under top tube |

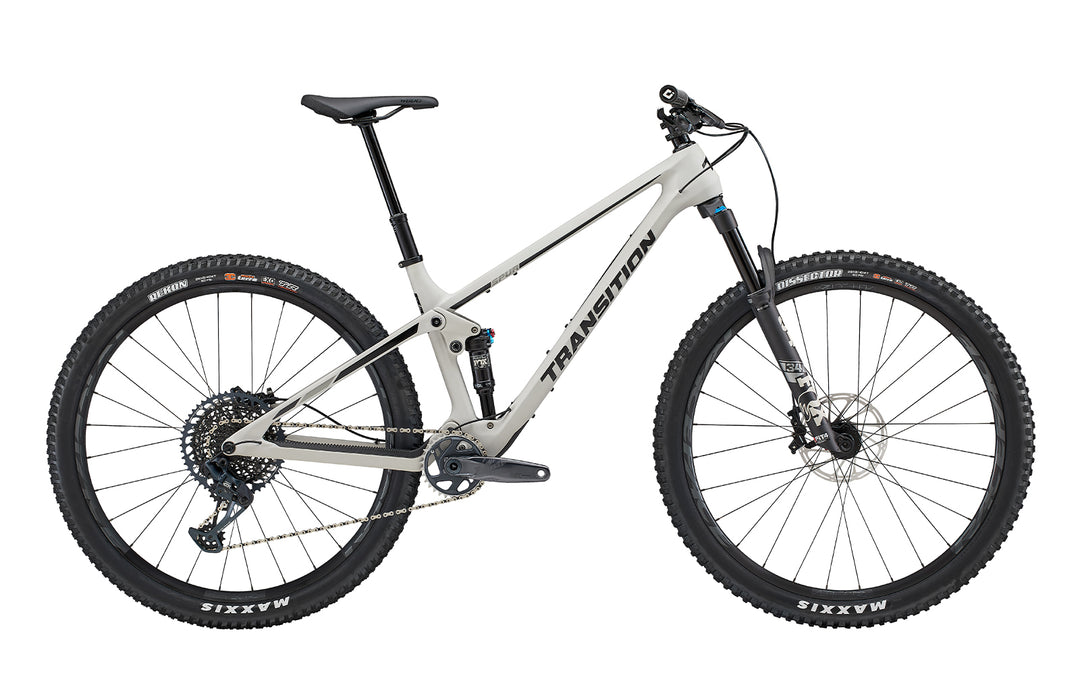

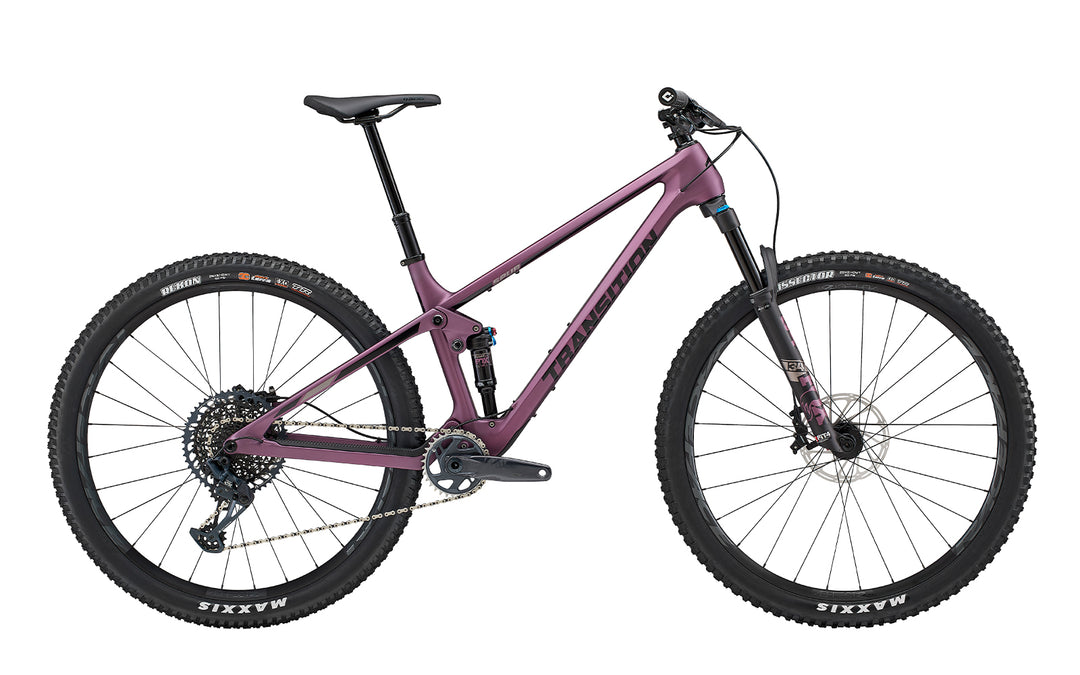

| Colors | Hazy Grey, Blackberry |
| Warranty | Lifetime frame |
| Weight | Frame weight: 5.4 lbs (2.45 kg), size MD with shock |
| Miscellaneous |
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Reach (mm) | 425 | 455 | 480 | 510 |
| Stack (mm) | 600 | 610 | 619 | 632 |
| Top Tube Length (Effective, mm) | 569 | 602 | 630 | 664 |
| Seat Tube Length (mm) | 380 | 410 | 460 | 500 |
| Head Tube Angle | 66.0° | 66.0° | 66.0° | 66.0° |
| Seat Tube Angle (Effective) | 76.7° | 76.2° | 75.9° | 75.6° |
| Chainstay Length (mm) | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1,156 | 1,190 | 1,219 | 1,255 |
| Head Tube Length (mm) | 100 | 110 | 120 | 135 |
| Bottom Bracket Drop (mm) | 40 | 40 | 40 | 40 |
| Bottom Bracket Height (mm) | 335 | 335 | 335 | 335 |
| Standover Height (mm) | 662 | 667 | 670 | 677 |
| Fork Offset (mm) | 44 | 44 | 44 | 44 |
| Sizing Guide (Rider Height) | 5'0" – 5'7" | 5'4" – 6'0" | 5'8" – 6'3" | 6'0" – 6'7" |
| Additional Info |
|
|||
