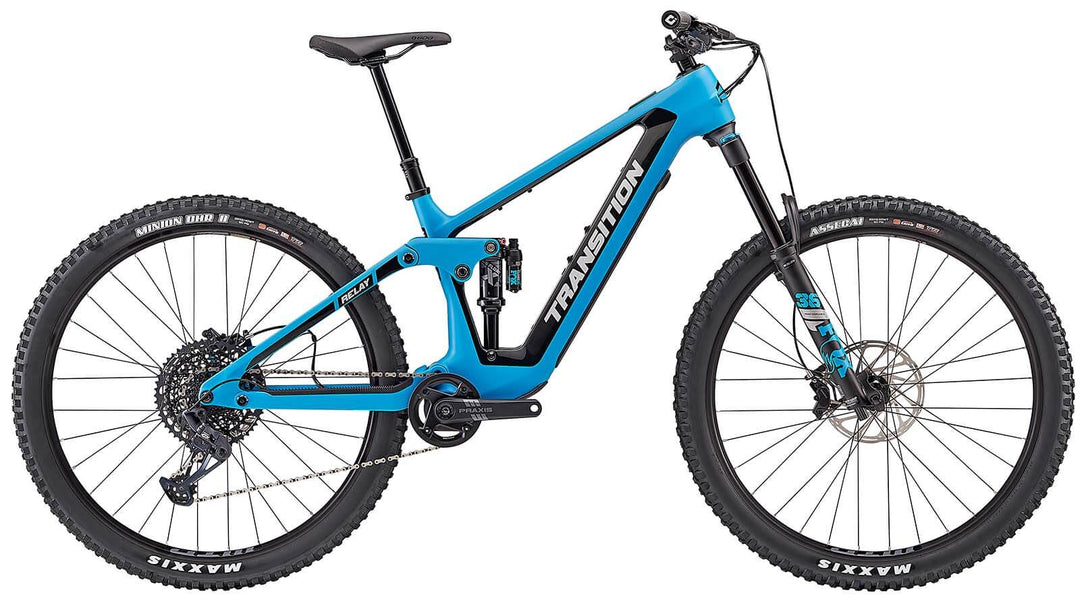

2023 Transition Relay Carbon GX E-Bike
No reviews
- Free Domestic shipping
- Low stock - 3 items left
- Backordered, shipping soon
Key Features
- Fazua Ride 60 System: Class 1 E-Bike with a lightweight, quiet Fazua Ride 60 motor (60Nm/450W Peak) and a 430 Wh removable battery.
- Carbon Frame: Durable carbon fiber construction with Transition's GiddyUp Horst-Link suspension design.
- Long Travel Suspension: 160mm of front and rear travel, managed by a FOX FLOAT 36 Performance fork and FOX FLOAT X Performance shock.
- Versatile Wheel Sizing: XS comes with 27.5" wheels, while SM-XXL come with 29" wheels. Frame is Mullet-compatible via a lower shock mount flip chip.
- SRAM GX Eagle Drivetrain: Reliable 1x12 speed groupset with a single-click shifter optimized for E-Bikes.
- Powerful Braking: SRAM Code R 4-piston hydraulic brakes with 200mm rotors for maximum stopping power.
- Aggressive Tire Setup: Maxxis Assegai (front, 2.5") and Minion DHR II (rear, 2.4") with EXO+ casing for superior grip and puncture resistance.
- Rider-Focused Details: Includes a OneUp V2 Dropper post, Fazua LED Hub display/charge port, and a Lifetime Frame Warranty.
Full Specifications
| Product | Transition Relay Carbon GX E-Bike |
|---|---|
| Model Year | 2023 |
| Intended Use | Enduro / All-Mountain |
| Rider | Unisex |
| Sizes and Geometry | XS, SM, MD, LG, XL, XXL |
| Wheel Size | 27.5" (XS only) / 29" (SM-XXL) |
| E-Bike Class | Class 1: Pedal Assist (Pedelecs) |
| Motor | Fazua Ride 60, 60Nm max torque, 250W continuous power, 450W peak power |
| Battery | Fazua Energy, integrated, removable via tool-free door |
| Battery Capacity | 430 Wh |
| Display/Remote | Fazua LED Hub (5-bar display/charging port), Fazua Ring Controller remote switch |
| Modes | Breeze, River, Rocket |
| Max Speed with Assist | 20 mph (32.2 km/h) |
| Frame Material | Carbon Fiber |
| Frame Material Details | Carbon front and rear triangles, molded down tube and chainstay protection |
| Rear Travel | 160mm (Upgradable to 170mm with 65mm stroke shock) |
| Rear Shock | FOX FLOAT X Performance, 2-position compression lever, trunnion mount, 205mm length x 60mm stroke |
| Fork | FOX FLOAT 36 Performance, 44mm offset |
| Fork Travel | 160mm |
| Head Tube Diameter | Tapered |
| Headset | FSA No.55R, ZS56 upper, ZS66 lower |
| Handlebar | Race Face Chester, 780mm width, 35mm clamp diameter Rise: 20mm (XS/SM), 35mm (MD-XXL) |
| Stem | Race Face Aefect R, 40mm length, 35mm bar clamp |
| Grips | ODI Elite Flow, lock-on |
| Brakes | SRAM Code R, 4-piston, SRAM Centerline 200mm rotors |
| Brake Levers | SRAM Code R |
| Drivetrain | 1x |
| Shifters | SRAM GX Eagle, 12-speed, Single Click |
| Front Derailleur | None |
| Rear Derailleur | SRAM GX Eagle, 12-speed |
| ISCG Tabs | Yes |
| Chainguide | None (Includes Transition forged spider-mounted bashguard) |
| Cranks | Praxis Alloy ETOR Length: 160mm (XS), 165mm (SM-XXL) |
| Chainrings | SRAM Eagle, 32 tooth, alloy |
| Bottom Bracket | Integrated with Fazua motor unit |
| Pedals | None |
| Chain | SRAM GX Eagle, 12-speed |
| Cassette | SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth |
| Rims | WTB i30, alloy |
| Hubs | Novatec, D791SB 15x110mm (Boost) front, D902SB 12x148mm (Boost) rear with XD driver |
| Spokes | Pillar |
| Tires | Front: Maxxis Assegai, 3C compound, EXO+ casing, 2.5" Rear: Maxxis Minion DHR II, 3C compound, EXO+ casing, 2.4" |
| Saddle | SDG Bel-Air V3 |
| Seatpost | OneUp V2 dropper Drop: 120mm (XS), 150mm (SM), 180mm (MD), 210mm (LG-XXL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt, 37.0mm |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 2.6" |
| Bottle Cage Mounts | One inside front triangle (450ml Fidlock bottle only on XS/SM) plus accessory mounts under top tube |
| Colors | TR Blue, Oxide Grey |
| Warranty | Lifetime frame, 2 years motor and battery |
| Weight | |
| Miscellaneous |
|
Geometry
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Reach (mm) | 410 | 430 | 460 | 485 | 510 | 535 |
| Stack (mm) | 590 | 615 | 628 | 637 | 646 | 655 |
| Top Tube Length (Effective, mm) | 523 | 553 | 586 | 614 | 642 | 671 |
| Seat Tube Length (mm) | 380 | 390 | 410 | 430 | 460 | 490 |
| Head Tube Angle | 64.0° | 64.0° | 64.0° | 64.0° | 64.0° | 64.0° |
| Seat Tube Angle (Effective) | 79.7° | 79.1° | 78.4° | 77.8° | 77.3° | 77.0° |
| Chainstay Length (mm) | 436 | 442 | 442 | 448 | 448 | 448 |
| Wheelbase (mm) | 1,167 | 1,208 | 1,244 | 1,280 | 1,309 | 1,338 |
| Head Tube Length (mm) | 100 | 100 | 115 | 125 | 135 | 145 |
| Bottom Bracket Height (mm) | 340 | 350 | 350 | 350 | 350 | 350 |
| BB Drop (mm) | 15 | 25 | 25 | 25 | 25 | 25 |
| Standover (mm) | 662 | 667 | 670 | 677 | 703 (Estimate) | 730 (Estimate) |
| Additional Info |
|
|||||
